Troubleshooting Smart Licensing Using Policy

This chapter provides step-by-step instructions to resolve SLP issues on Nexus switches.

The first section covers common problems related to connectivity of switch to CSSM, along with their respective solutions.

The second section provides the list of SLP-related system messages you may encounter, possible reasons for failure, and recommended action.

Resolving SLP Issues on Nexus Switches

This section provides information about common problems related to connectivity of switch to CSSM and their resolution.

The following issues are covered in this section:

Issue: Trust code installation failed

Possible reasons for failure include:

  • A trust code is already installed: Trust codes are linked to the Unique Device Identifier (UDI) of the product instance. If the UDI is already registered, and you try to install another one, installation fails.

  • Timestamp mismatch: This means the product instance time is not in sync with Cisco Smart Software Manager (CSSM), and can cause installation to fail.

Recommended Action:

  • A trust code is already installed: If you want to install a trust code in spite of an existing trust code on the product instance, re-configure the license smart trust idtoken id_token_value [ force ] command in privileged EXEC mode, and be sure to include the force keyword. Entering the force keyword asks CSSM to create a new trust code even if it exists already.

  • Timestamp mismatch: Configure the ntp server command in global configuration mode. For example:

    switch (config)# ntp server 10.28.13.90 prefer

    Note

    If there is a difference in time between device and CSSM then it should be less than one hour.

Issue: Smart Licensing communication with CSSM/CSLU/SSM On-Prem failed

Possible reasons for failure include:

  • Missing DNS configurations.

  • CSSM, CSLU, SSM On-Prem is not reachable: This means that there may be network problem.

Recommended Action for DNS:

Troubleshooting steps are provided for missing DNS configurations, when CSSM/CSLU/SSM On-Prem is not reachable.

  • If ping to cisco.com in the configured vrf for SLP throws error % Invalid host/interface <URL>:

    1. Execute the following commands from global configuration mode to configure DNS,

      switch# config terminal
switch(config)# ip domain-lookup
switch(config)# ip domain-name cisco.com
switch(config)# ip name-server <dns-server-ip> use-vrf <vrf-name>
switch(config)# vrf context <vrf-name>
switch(config-vrf)# ip domain-name cisco.com
switch(config-vrf)# ip name-server <dns-server-ip>

    2. Check if ping to cisco.com is working or not, using vrf <vrf-name> . The following example shows working DNS scenario:

      switch(config)# ping cisco.com vrf <vrf-name>
PING cisco.com (<ip-address>): 56 data bytes
64 bytes from <ip-address>: icmp_seq=0 ttl=236 time=242.279 ms
64 bytes from <ip-address>: icmp_seq=1 ttl=236 time=242.108 ms
64 bytes from <ip-address>: icmp_seq=2 ttl=236 time=242.032 ms
64 bytes from <ip-address>: icmp_seq=3 ttl=236 time=242.278 ms
64 bytes from <ip-address>: icmp_seq=4 ttl=236 time=241.968 ms
--- cisco.com ping statistics ---
5 packets transmitted, 5 packets received, 0.00% packet loss
round-trip min/avg/max = 241.968/242.133/242.279 ms

    Note

    For transport mode CSLU, either configure ip host cslu-local <cslu_address> or cslu-local should be part of DNS server. For SSM On-Prem, the URL configured in switch should be Fully Qualified Domain Name (FQDN) and not the ip-address.

Recommended Action for Network Reachability:

  • If the configured transport mode is smart transport:

    1. In the show license status command output, under the Transport: header, check the following:

      1. Type: must be Smart and

      2. URL: must be https://smartreceiver.cisco.com/licservice/license. For example,

        Transport:

        Type: Smart

        URL: https://smartreceiver.cisco.com/licservice/license

        Proxy:

        Not configured

        VRF: <vrf-name>

      If it is not, configure using the license smart transport smart and license smart url smart https://smartreceiver.cisco.com/licservice/license commands in global configuration mode.

    2. Check DNS resolution. Verify that the URL https://smartreceiver.cisco.com/licservice/license is reachable through the browser. The following example shows reachability for the smart URL.

      This is the Smart Receiver!

Environment Information:
  cisco.life = prod
  License Engine = https://swapi.cisco.com/software/csws/ssm/services
  License EngineSLE = https://swapi.cisco.com/software/csws/ssm/v2/services
  License Crypto Service = https://lcs.cisco.com/LCS
  Crypto Enabled = true
  Retry Enabled = true
  Retry Timeout = 55000
  Rate Limit Window Length = 3600
  Rate Limit Max Allowed in Window = 12

    Optionally, you can ping smart URL (https://smartreceiver.cisco.com/licservice/license) and verify.

    Example:

    bash-4.4$ ping smartreceiver.cisco.com
PING smartreceiver.cisco.com (<ip-address>) 56(84) bytes of data.
64 bytes from <ip-address> (<ip-address>): icmp_seq=1 ttl=53 time=2.57 ms
64 bytes from <ip-address> (<ip-address>): icmp_seq=2 ttl=53 time=2.79 ms
64 bytes from <ip-address> (<ip-address>): icmp _seq=3 ttl=53 time=2.54 ms
64 bytes from <ip-address> (<ip-address>): icmp_seq=4 ttl=53 time=2.43 ms
64 bytes from <ip-address> (<ip-address>): icmp_seq=5 ttl=53 time=3.23 ms
64 bytes from <ip-address> (<ip-address>): icmp_seq=6 ttl=53 time=2.100 ms
^С
--- smartreceiver.cisco.com ping statistics ---
6 packets transmitted, 6 received, 0% packet loss, time 5009ms
rtt min/avg/max/mdev = 2.429/2.757/3.231/0.289 ms
bash-4.4$

  • If the configured transport mode is cslu:

    1. In the show license status command output, under the Transport: header, check the following:

      1. Type: must be CSLU and

      2. Cslu address: must be cslu-local

      Example

      Transport:

      Type: CSLU

      Cslu address: cslu-local

      VRF: <vrf-name>

      If it is not, configure using the license smart transport cslu and license smart url cslu <cslu-local-url> commands in global configuration mode.

    2. Check DNS resolution. Verify that the configured cslu-local-url is reachable through the browser.

  • If the configured transport mode is callhome:

    1. In the show license status command output, under the Transport: header, check the following:

      • Type: must be Callhome.

        For example,

        Transport:

        Type: Callhome

        If it is not, configure using the license smart transport callhome commands in global configuration mode.

    2. Check if callhome is configured correctly. Use the show running-config callhome all command in privileged EXEC mode, to check callhome configuration as follows:

      switch(config)# show running-config callhome all
!Command: show running-config callhome all
!Running configuration last done at: Thu Aug  3 20:38:37 2023
!Time: Thu Aug  3 20:43:58 2023
version 10.3(1) Bios:version 05.45
callhome
  email-contact <email-address>
  destination-profile xml transport-method http
  destination-profile xml index 1 email-addr <email-address>
  destination-profile xml index 1 http https://tools.cisco.com/its/service/oddce/services/DDCEService
  transport email smtp-server <ip-address> port <port-number>
  transport email from <email-address>
  transport email reply-to <email-address>
  transport http use-vrf <vrf-name>
  enable
  periodic-inventory notification interval 1

    3. Check DNS Resolution. Verify that the product instance can ping tools.cisco.com through configured vrf using the ping tools.cisco.com vrf <vrf-name> command.

      Example

      switch(config) # ping tools.cisco.com vrf <vrf-name>
PING tools.cisco.com (<ip-address>): 56 data bytes
64 bytes from <ip-address>: icmp_seq=0 ttl=236 time=244.692 ms
64 bytes from <ip-address>: icmp_seq=1 ttl=236 time=244.532 ms
64 bytes from <ip-address>: icmp_seq=2 ttl=236 time=244.396 ms.
64 bytes from <ip-address>: icmp_seq=3 ttl=236 time=244.502 ms.
64 bytes from <ip-address>: icmp_seq=4 ttl=236 time=244.607 ms

-- tools.cisco.com ping statistics ---
5 packets transmitted, 5 packets received, 0.00% packet loss
round-trip min/avg/max = 244.396/244.545/244.692 ms.
switch(config)#

      You can also ping directly to the callhome URL tools.cisco.com.

      Example

      bash-4.4$ ping tools.cisco.com
PING tools.cisco.com (<ip-address>) 56(84) bytes of data.
64 bytes from tools2.cisco.com (<ip-address>): icmp_seq=1 ttl=242 time=43.7 ms
64 bytes from tools2.cisco.com (<ip-address>): icmp_seq=2 ttl=242 time=43.7 ms
64 bytes from tools2.cisco.com (<ip-address>): icmp_seq=3 ttl=242 time=43.7 ms
64 bytes from tools2.cisco.com (<ip-address>): icmp_seq=4 ttl=242 time=43.8 ms
64 bytes from tools2.cisco.com (<ip-address>): icmp_seq=5 ttl=242 time=43.8 ms
64 bytes from tools2.cisco.com (<ip-address>): icmp_seq=6 ttl=242 time=43.7 ms
^С
--- tools.cisco.com ping statistics ---
6 packets transmitted, 6 received, 0% packet loss, time 5009ms
rtt min/avg/max/mdev = 43.656/43.703/43.770/0.214 ms
bash-4.4$

Issue: Failed to send usage Report

Possible reasons for failure include:

  • Because of a communication failure, the product instance failed to send the RUM report.

Recommended Action:

  • Check if the RUM report is due any time soon using the show license tech support command. If not, and the problem is with a server or link that is down, you can try again after some time.

  • If the communication failure persists, check if the transport type and URL have been set as required by the topology.

Issue: Failed to receive Report Acknowledgment

Possible reasons for failure include:

  • Connectivity problems. Depending on the implemented topology, this can mean a connectivity problem with CSSM, or CSLU, or SSM On-Prem.

  • Delayed communication. There may be a lag between the time that a RUM Report is sent and the RUM acknowledgment (ACK) is available on the product instance. For example, if you use CSLU or SSM On-Prem, the time at which the product instance receives information depends on when CSLU or SSM On-Prem is scheduled to synchronize with CSSM and with the product instance. In direct connectivity mode, acknowledgment takes around 15 minutes to be updated on the switch.

  • The ACK received can fail, if the product instance (switch) was previously registered with a different On-Prem account.

    Recommended Action:

    To troubleshoot this issue, perform the following steps:

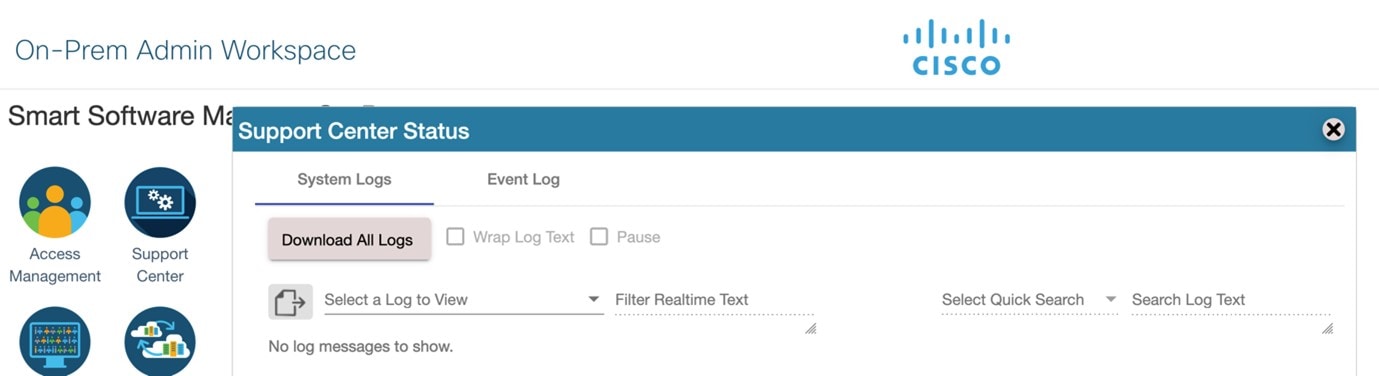

    1. Navigate to On-Prem Admin Workspace > Support Center. The Support Center Status window opens.

    2. In the Support Center Status window, click the System Logs tab and click Download All Logs. After a few seconds, a dialog window opens to save the zip file.

    3. Save the AllFiles.zip file.

    4. Extract the AllFiles.zip archive.

    5. Check for the following symptoms inside the file named messages and search for the error: “failed due to the following error: record not found.” For example,

      Aug 7 17:02:36 rtp-dcrs-licensing cf881d42a1b7: 2023/08/07
 17:02:36#011[ERROR]#011adapters/pi_routes_impl.go:1322#011
 Finding SL product by UDI {<switch> FDO212100YT} failed due to the following error: record not found.

    6. It is also possible that the CSSM does not have the product instance but On-Prem has the product instance.

Recommended Action:

  1. Ensure that the trust code is installed.

  2. When the trust code is installed, check for Usage reporting: in show license status to know whether the report is synced or not. The Next report push field displays the following information about the synchronization:

    Usage reporting:
         Last ACK received: <none>
         Next ACK deadline: <none>
         Reporting push interval: <none>
         Next ACK push check: <none>
         Next report push: <none>
         Last report push: <none>
         Last report file write: <none>
Trust Code installed: Jul 14 11:40:36 2023 UTC
         Active: PID: <device_pid>, SN: <device_sn>
                 Jul 14 11:40:36 2023 UTC

  3. If the synchronization does not take place automatically, then initiate an on-demand synchronization based on the implemented topology as follows:

    • For online topologies, use the license smart sync command in privileged EXEC mode. If SSM On-Prem is used in topology, then, additionally, sync to Cisco as well as the switch on SSM On-Prem.

    • For offline topologies, upload the RUM report to CSSM and install the ACK back on the switch.

  4. After the sync is completed, wait for 15 minutes to receive acknowledgment for the CSSM.

  5. Perform On-Prem Report Synchronization out-of-band (Export/Import Cisco Usage Report/ACK) if acknowledgment fails due to already registered device reason on On-Prem.

    1. On the On-Prem server, navigate to Smart Software Manager On-Prem > Smart Licensing > Inventory > SL Using Policy.

      Then, select the product names for which you require the acknowledgment.

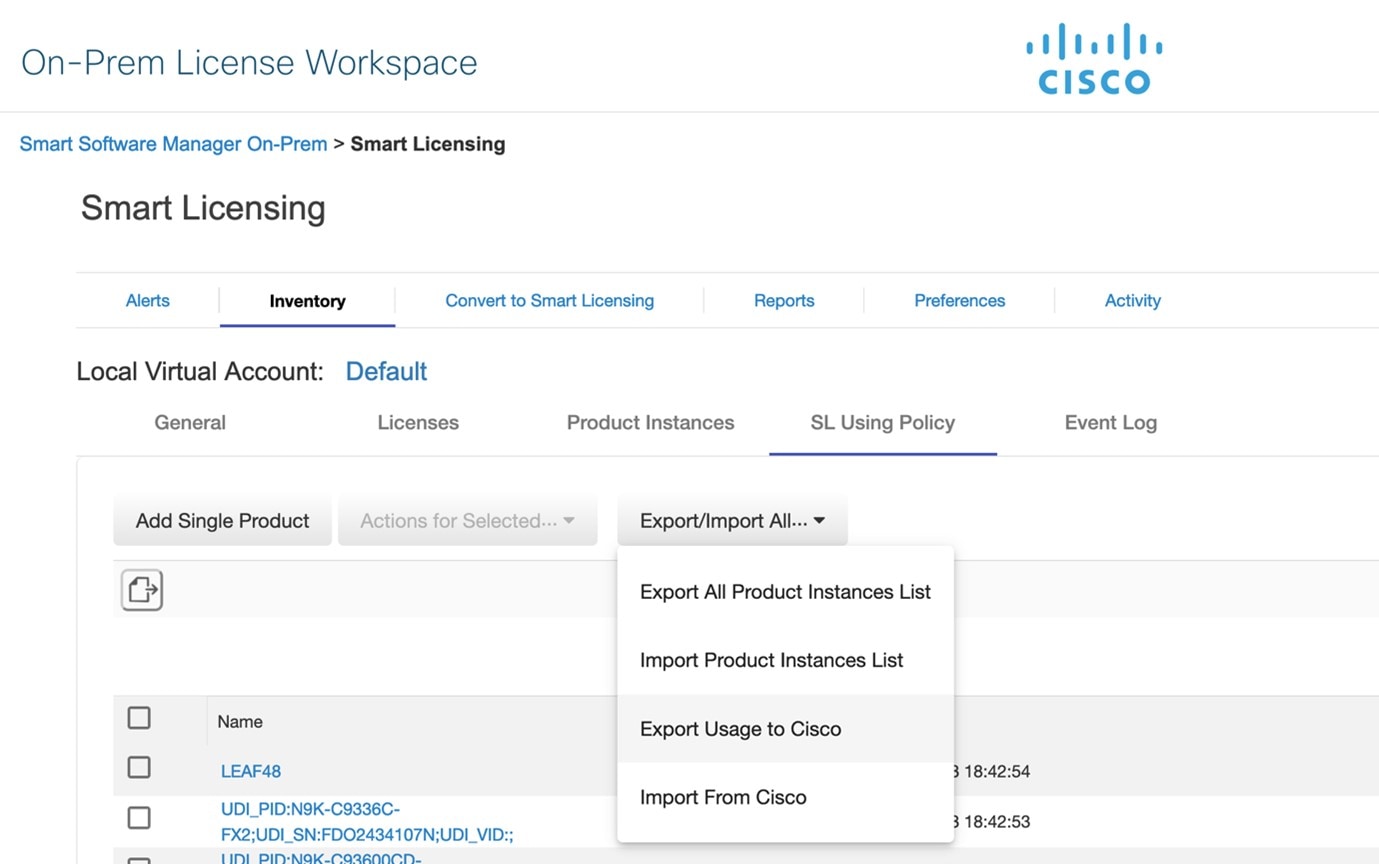

      Next, from the Export/Import All drop-down menu, select Export Usage to Cisco and download the exported report onto your system.

    2. To upload the downloaded report and generate the ACK report, go to the respective CSSM On-Prem account and navigate to Reports > Usage Data Files > Upload Usage Data File. Click the Upload Usage Data button. The Upload Usage Data dialog box opens.

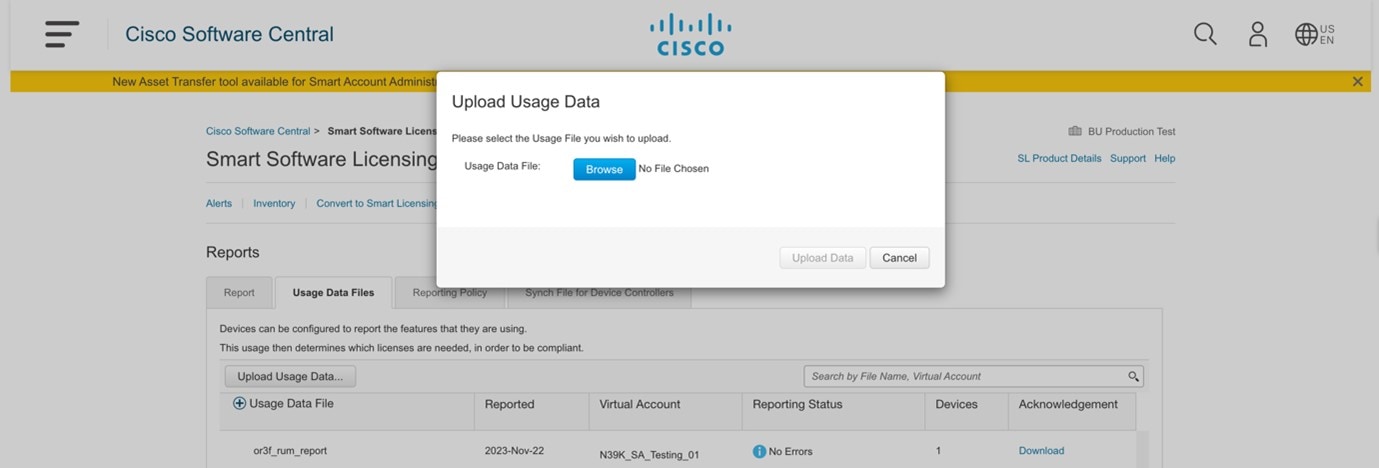

    3. In the Upload Usage Data dialog box, click the Browse button and select the report from your system (downloaded earlier) that you want to upload and then click the Upload Data button.

      Wait for a while as it takes some time to process. Ignore the errors that appear, if any. The file is uploaded to the Usage Data Files tab.

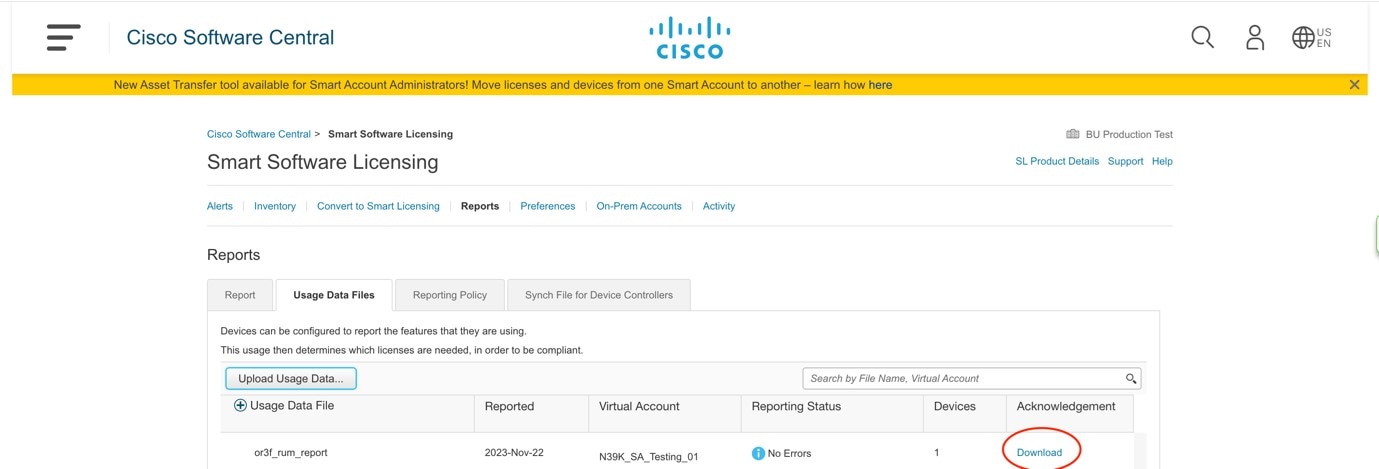

    4. To download the ACK report for the uploaded Usage Data File, select the file and click the Download link in the Acknowledgment column.

    5. Upload the downloaded ACK file to On-Prem. To do so, navigate to Smart Software Manager On-Prem > Smart Licensing > Inventory > SL Using Policy.

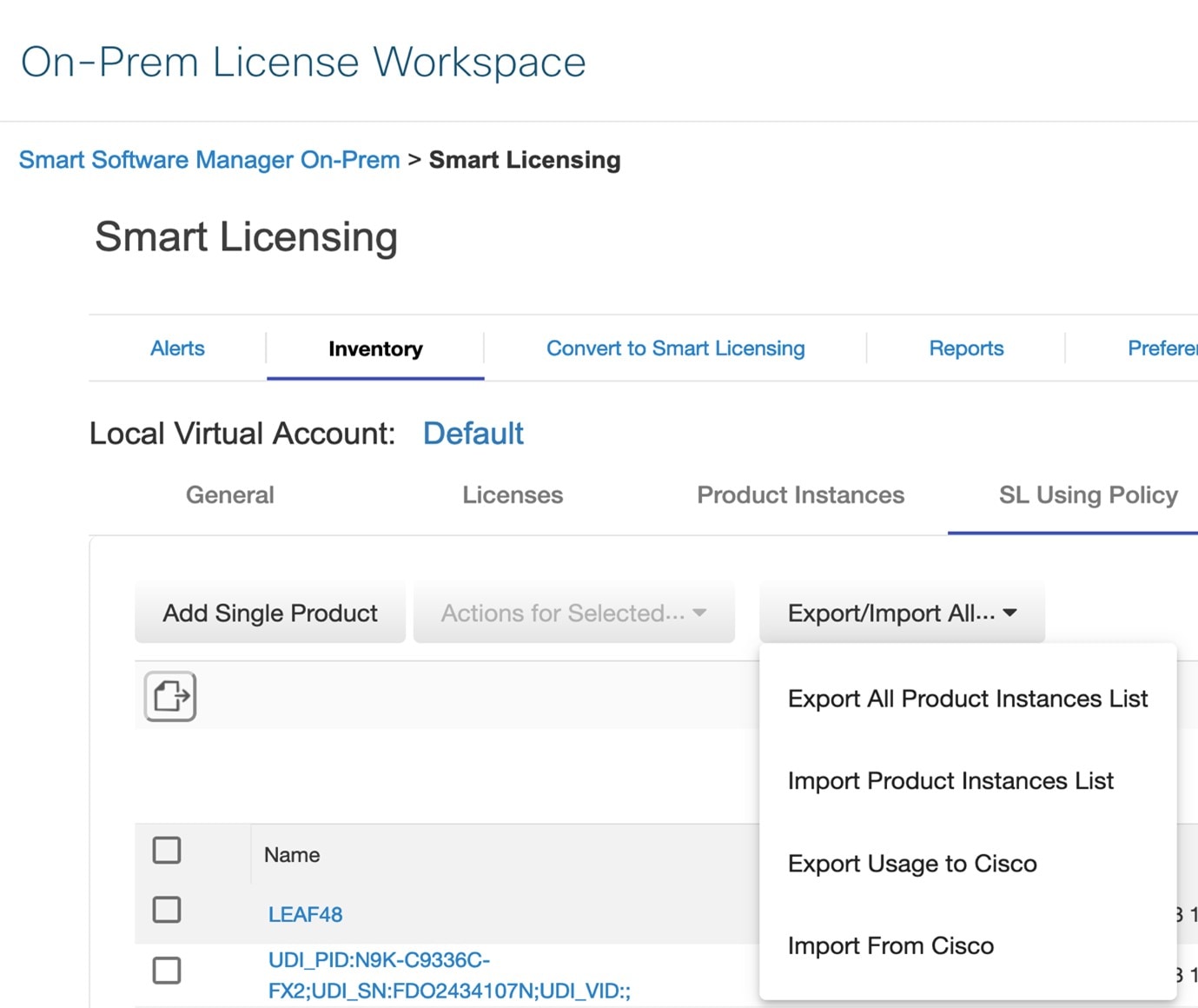

      Then, from the Export/Import All drop-down menu, select Import From Cisco and upload the downloaded acknowledgment report.

    6. After the report is uploaded, the respective devices reflect the received acknowledgment status.


    Note

    Not receiving acknowledgment does not affect any function of the switch. You can receive syslog for not reporting, if the reporting period is expired or near to expiry as per the configured policy. If you do not receive an acknowledgment, you can contact the Cisco technical support representative.

System Message Overview

The system software sends system messages to the console (and, optionally, to a logging server on another system). Not all system messages mean problems with your system. Some messages are informational, and others can help diagnose problems with communications lines, internal hardware, or the system software.

How to Read System Messages

System log messages can contain up to 80 characters. Each system message begins with a percent sign (%) and is structured as follows:

Figure 1.

%FACILITY

Two or more uppercase letters that show the facility to which the message refers. A facility can be a hardware device, a protocol, or a module of the system software.

SEVERITY

A single-digit code from 0 to 7 that reflects the severity of the condition. The lower the number, the more serious the situation.

Table 1. Message Severity Levels
Severity Level Description
0 – emergency System is unusable.
1 – alert Immediate action required.
2 – critical

Critical condition.
3 – error

Error condition.
4 – warning

Warning condition.
5 – notification

Normal but significant condition.
6 – informational

Informational message only.
7 - debugging

Message that appears during debugging only.

MNEMONIC

A code that uniquely identifies the message.

Message-text

Message-text is a text string describing the condition. This portion of the message sometimes contains detailed information about the event, including terminal port numbers, network addresses, or addresses that correspond to locations in the system memory address space. Because the information in these variable fields changes from message to message, it is represented here by short strings enclosed in square brackets ([ ]). A decimal number, for example, is represented as [dec].

Table 2. Variable Fields in Messages
Severity Level Description
[char]

Single character
[chars]

Character string
[dec]

Decimal number
[enet]

Ethernet address (for example, 0000.FEED.00C0)
[hex]

Hexadecimal number
[inet]

Internet address (for example, 10.0.2.16)
[int]

Integer
[node]

Address or node name
[t-line]

Terminalline number in octal (or in decimal if the decimal-TTY service is enabled)
[clock]

Clock (for example, 01:20:08 UTC Tue Mar 2 1993

System Messages

This section provides the list of SLP-related system messages you may encounter, possible reasons for failure (in case it is a failure message), and recommended action (if action is required).

For all error messages, if you are not able to solve the problem, contact your Cisco technical support representative with the following information:

  • The message, exactly as it appears on the console or in the system log.

  • The output from the show license tech support and show license history message commands.

SLP-related system messages:

Error Message %LICMGR-3-LOG_SMART_LIC_POLICY_INSTALL_FAILED: The installation of a new licensing policy has failed: [chars].

Explanation: A policy was installed, but an error was detected while parsing the policy code, and installation failed. [chars] is the error string with details of the failure.

Possible reasons for failure include:

  • A signature mismatch: This means that the system clock is not accurate.

  • A timestamp mismatch: This means the system clock on the product instance is not synchronized with CSSM.

Recommended Action:

For both possible failure reasons, ensure that the system clock is accurate and synchronized with CSSM. Configure the ntp server command in global configuration mode. For example:

Device(config)# ntp server 198.51.100.100 version 2 prefer

If the above does not work and policy installation still fails, contact your Cisco technical support representative.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-3-LOG_SMART_LIC_AUTHORIZATION_INSTALL_FAILED: The install of a new licensing authorization code has failed on [chars]: [chars].

This message is not applicable to Cisco Nexus Switches, because there are no enforced or export-controlled licenses on these product instances.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-3-LOG_SMART_LIC_COMM_FAILED: Communications failure with the [chars] : [chars]

Explanation: Smart Licensing communication either with CSSM or with CSLU failed. The first [chars] is the currently configured transport type, and the second [chars] is the error string with details of the failure. This message appears for every communication attempt that fails.

Possible reasons for failure include:

  • CSSM or CSLU is not reachable: This means that there is a network reachability problem.

  • 404 host not found: This means that the CSSM server is down.

For topologies where the product instance initiates the sending of RUM reports (Connected to CSSM Through CSLU: Product Instance-Initiated Communication, Connected Directly to CSSM, and CSLU Disconnected from CSSM: Product Instance-Initiated Communication) if this communication failure message coincides with scheduled reporting (license smart usage interval interval_in_days global configuration command), the product instance attempts to send out the RUM report for up to four hours after the scheduled time has expired. If it is still unable to send out the report (because the communication failure persists), the system resets the interval to 15 minutes. Once the communication failure is resolved, the system reverts the reporting interval to the value that you last configured.

Recommended Action:

Troubleshooting steps are provided for when CSSM is not reachable and when CSLU is not reachable. If CSSM is not reachable and the configured transport type is smart:

  1. Check if the smart URL is configured correctly. Use the show license status command in privileged EXEC mode, to check if the URL is exactly as follows: https://smartreceiver.cisco.com/licservice/license. If it is not, reconfigure the license smart url smart smart_URL command in global configuration mode.

  2. Check DNS resolution. Verify that the product instance can ping smartreceiver.cisco.com or the nslookup translated IP. The following example shows how to ping the translated IP:
    Device# ping 171.70.168.183 Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 171.70.168.183, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/2 ms

If CSSM is not reachable and the configured transport type is callhome :

  1. Check if the URL is entered correctly. Use the show license status command in privileged EXEC mode, to check if the URL is exactly as follows: https://tools.cisco.com/its/service/oddce/services/DDCEService.

  2. Check if Call Home profile CiscoTAC-1 is active and destination URL is correct. Use the show call-home profile all command in privileged EXEC mode:
    Current smart-licensing transport settings: Smart-license messages: enabled
Profile: CiscoTAC-1 (status: ACTIVE)
Destination  URL(s): https://tools.cisco.com/its/service/oddce/services/DDCEService

  3. Check DNS Resolution. Verify that the product instance can ping tools.cisco.com, or the nslookup translated IP.

    Device# ping tools.cisco.com Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 173.37.145.8, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 41/41/42 ms

    If the above does not work check the following: if the product instance is set, if the product instance IP network is up. To ensure that the network is up, configure the no shutdown command in interface configuration mode.

    Check if the device is subnet that is masked with a subnet IP, and if the DNS IP is configured.

  4. Verify that the HTTPs client source interface is correct.

    Use the show ip http client command in privileged EXEC mode to display current configuration. Use ip http client source-interface command in global configuration mode to reconfigure it. In case the above does not work, double-check your routing rules, and firewall settings.

If CSLU is not reachable:

  • Check if CSLU discovery works.

    • Zero-touch DNS discovery of cslu-local or DNS discovery of your domain.

      In the show license all command output, check if the Last ACK received: field. If this has a recent timestamp, it means that the product instance has connectivity with CSLU. If it is not, proceed with the following checks:

      Check if the product instance can ping cslu-local . A successful ping confirms that the product instance is reachable.

      If the above does not work, configure the name server with an entry where hostname cslu-local is mapped to the CSLU IP address (the Windows host where you installed CSLU). Configure the ip domain name domain-name and ip name-server server-address commands in global configuration mode. Here the CSLU IP is 192.168.0.1 and name-server creates entry cslu-local.example.com :

      Device(config)# ip domain name example.com
      Device(config)# ip name-server 192.168.0.1

    • CSLU URL is configured.

      In the show license all command output, under the Transport: header check the following: The Type: must be cslu and Cslu address: must have the hostname or the IP address of the Windows host where you have installed CSLU. Check if the rest of the address is configured as shown below and check if the port number is 8182.
      Transport:
Type: cslu
Cslu address: http://192.168.0.1:8182/cslu/v1/pi

      If it is not, configure the license smart transport cslu and license smart url cslu http://<cslu_ip_or_host>:8182/cslu/v1/pi commands in global configuration mode.

If the above does not work and policy installation still fails, contact your Cisco technical support representative.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-3-LOG_SMART_LIC_COMM_RESTORED: Communications with the [chars] restored. [chars] - depends on the transport type
-  Cisco Smart Software Manager (CSSM)
-  Cisco Smart License utility (CSLU)
Smart Agent communication with either the Cisco Smart Software Manager (CSSM) or the Cisco Smart License
utility (CSLU) has been restored. No action required.

Explanation: Product instance communication with either the CSSM or CSLU is restored.

Recommended Action: No action required.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-3-LOG_SMART_LIC_POLICY_REMOVED: The licensing policy has been removed.

Explanation: A previously installed licensing policy has been removed. The Cisco default policy is then automatically effective. This may cause a change in the behavior of smart licensing.

Possible reasons for failure include:

If you have entered the license smart factory reset command in privileged EXEC mode all licensing information including the policy is removed.

Recommended Action:

If the policy was removed intentionally, then no further action is required.

If the policy was removed inadvertently, you can reapply the policy. Depending on the topology you have implemented, follow the corresponding method to retrieve the policy:

  • Connected Directly to CSSM:

    Enter show license status , and check field Trust Code Installed: . If trust is established, then CSSM will automatically return the policy again. The policy is automatically re-installed on product instances of the corresponding Virtual Account.

    If trust has not been established, complete these tasks: Generating a New Token for a Trust Code from CSSM and Installing a Trust Code. When you have completed these tasks, CSSM will automatically return the policy again. The policy is then automatically installed on all product instances of that Virtual Account.

  • Connected to CSSM Through CSLU:

    • For product instance-initiated communication), enter the license smart sync command in privileged EXEC mode. The synchronization request causes CSLU to push the missing information (a policy or authorization code) to the product instance.

  • CSLU Disconnected from CSSM:

    • For product instance-initiated communication), enter the license smart sync command in privileged EXEC mode. The synchronization request causes CSLU to push the missing information (a policy or authorization code) to the product instance. Then complete these tasks in the given order: Download All For Cisco (CSLU Interface) > Uploading Usage Data to CSSM and Downloading an ACK > Upload From Cisco (CSLU Interface).

  • No Connectivity to CSSM and No CSLU

    If you are in an entirely air-gapped network, from a workstation that has connectivity to the internet and CSSM complete this task: Downloading a Policy File from CSSM.

    Then complete this task on the product instance: Installing a File on the Switch.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-3-LOG_SMART_LIC_TRUST_CODE_INSTALL_FAILED: The install of a new licensing trust code has failed on [chars]: [chars].

Explanation: Trust code installation has failed. The first [chars] is the UDI where trust code installation was attempted. The second [chars] is the error string with details of the failure.

Possible reasons for failure include:

  • A trust code is already installed: Trust codes are node-locked to the UDI of the product instance. If the UDI is already registered, and you try to install another one, installation fails.

  • Smart Account-Virtual Account mismatch: This means the Smart Account or Virtual Account (for which the token ID was generated) does not include the product instance on which you installed the trust code. The token generated in CSSM, applies at the Smart Account or Virtual Account level, and applies only to all product instances in that account.

  • A signature mismatch: This means that the system clock is not accurate.

  • Timestamp mismatch: This means the product instance time is not synchronized with CSSM and can cause installation to fail.

Recommended Action:

  • A trust code is already installed: If you want to install a trust code despite an existing trust code on the product instance, re-configure the license smart trust idtoken id_token_value{local|all}[force] command in privileged EXEC mode, and be sure to include the force keyword this time. Entering the force keyword sets a force flag in the message sent to CSSM to create a new trust code even if one exists.

  • Smart Account-Virtual Account mismatch: Log in to the CSSM Web UI at https://software.cisco.com/software/smart-licensing/alerts and click Smart Software Licensing > Inventory > Product Instances.

  • Check if the product instance on which you want to generate the token is listed in the selected Virtual Account. If it is, proceed to the next step. If not, check and select the correct Smart Account and Virtual Account. Then complete these tasks again: Generating a New Token for a Trust Code from CSSM and Installing a Trust Code.

  • Timestamp mismatch and signature mismatch: Configure the ntp server command in global configuration mode. For example:

    Device(config)# ntp server 198.51.100.100 version 2 prefer

--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-4-LOG_SMART_LIC_REPORTING_NOT_SUPPORTED: The CSSM OnPrem that this product instance is connected to is down rev and does not support the enhanced policy and usage reporting mode.

Explanation: Cisco Smart Software Manager On-Prem (formerly known as Cisco Smart Software Manager satellite) is not supported in the SLP environment. The product instance behaves as follows:

  • Stop sending registration renewals and authorization renewals.

  • Start recording usage and saving RUM reports locally.

Recommended Action: Refer to and implement one of the supported topologies instead. See: Supported Topologies.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-6-LOG_SMART_LIC_POLICY_INSTALL_SUCCESS: A new licensing policy was successfully installed.

Explanation: A policy was installed in the following way:

  • As part of an ACK response.

Recommended Action: No action is required. If you want to know which policy is applied (the policy in-use) and its reporting requirements, enter the show license all command in privileged EXEC mode.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-6-LOG_SMART_LIC_AUTHORIZATION_INSTALL_SUCCESS: A new licensing authorization code was successfully installed on: [chars].

This message is not applicable to Cisco Nexus Switches, because there are no enforced or export-controlled licenses on these product instances.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-6-LOG_SMART_LIC_AUTHORIZATION_REMOVED: A licensing authorization code has been removed from [chars]

Explanation: [chars] is the UDI where the authorization code was installed. The authorization code has been removed. This removes the licenses from the product instance and may cause change in the behavior of smart licensing and the features using licenses.

Recommended Action: No action is required. If you want to see the current state of the license, enter the show license all command in privileged EXEC mode.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-6-LOG_SMART_LIC_REPORTING_REQUIRED: A Usage report acknowledgement will be required in [dec] days.

Explanation: This is an alert which means that RUM reporting to Cisco is required. [dec] is the amount of time (in days) left to meet this reporting requirements.

Recommended Action: Ensure that RUM reports are sent within the requested time.

  • If the product instance is directly connected to CSSM, or to CSLU and the product instance is configured to initiate communication complete this step on the product instance, the product instance will automatically send usage information at the scheduled time.

  • If it is not sent at the scheduled time, because of technical difficulties, you can license smart sync command in privileged EXEC mode. For syntax details, see the license smart (privileged EXEC) in the Command Reference.

  • If the product instance is connected to CSLU, but CSLU is disconnected from CSSM, complete these tasks: Download All For Cisco (CSLU Interface), Uploading Usage Data to CSSM and Downloading an ACK, and Upload From Cisco (CSLU Interface).

  • If the product instance is disconnected from CSSM and you are not using CSLU either, enter the license smart save usage command in privileged EXEC mode, to save the required usage information in a file. Then, from a workstation where you have connectivity to CSSM, complete these tasks: Uploading Usage Data to CSSM and Downloading an ACK > Installing a File on the Product Instance.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------

Error Message %LICMGR-6-LOG_SMART_LIC_TRUST_CODE_INSTALL_SUCCESS: A new licensing trust code was successfully installed on [chars].

Explanation: [chars] is the UDI where the trust code was successfully installed.

Recommended Action: No action is required. If you want to verify that the trust code is installed, enter the show license status command in privileged EXEC mode. Look for the updated timestamp under header Trust Code Installed: in the output.


--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------
