Connector Specifications

10/100/1000 Ports (Including PoE)

All 10/100/1000 ports use standard RJ-45 connectors and Ethernet pinouts.

Module Connectors

Figure 2. Duplex LC Cable Connector

Figure 3. Simplex LC Cable Connector

Figure 4. Copper SFP Module LC Connector

Console Cables


Switch Name	Supported Console Cable

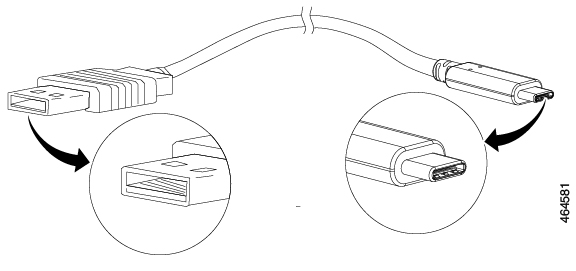

Cisco Catalyst 9500X Series Switches	USB Type A to Type C (CAB-USBC-4M-GR)

The USB console port uses a USB Type A to Type C cable. These cables are not supplied with the switch; you have to order them separately.

The USB-C console port uses a USB Type A to Type C cable for console connections.

Cables and Adapters

Transceiver Module Network Cables

For cabling specifications, refer to the following notes:

Each port must match the wavelength specifications on the other end of the cable, and the cable must not exceed the stipulated cable length. Copper 1000BASE-T SFP module transceivers use standard four twisted-pair, Category 5 cable at lengths up to 328 feet (100 meters).

Cable Pinouts

Figure 6. Four Twisted-Pair Straight-Through Cable Schematic

Figure 7. Four Twisted-Pair Semi-Cross Cable Schematic

Figure 8. Two Twisted-Pair Straight-Through Cable Schematic

Figure 9. Two Twisted-Pair Crossover Cable Schematic

Identifying a Crossover Cable

To identify a crossover cable, compare the two modular ends of the cable. Hold the cable ends side-by-side, with the tab at the back. The wire connected to the pin on the outside of the left plug should be a different color from the wire connected to the pin on the inside of the right plug.

Console Port Adapter Pinouts

The RS-232 console port uses an 8-pin RJ-45 connector. Use an RJ-45-to-DB-9 adapter cable to connect the switch console port to a console PC. You need to provide a RJ-45-to-DB-25 female DTE adapter to connect the switch console port to a terminal.

Table 1. Console Port Signaling with a DB-9 Adapter
Switch Console  Port (DTE)	RJ-45-to-DB-9 Terminal Adapter	Console Device
Signal	DB-9 Pin	Signal
TxD	2	RxD
GND	5	GND
GND	5	GND
RxD	3	TxD

Table 2. Console Port Signaling with a DB-25 Adapter
Switch Console Port (DTE)	RJ-45-to-DB-25 Terminal Adapter	Console Device
Signal	DB-25 Pin	Signal
TxD	3	RxD
GND	7	GND
GND	7	GND
RxD	2	TxD
