Event Interfaces and Events

Event Interfaces and Events

This chapter describes the CTI OS Client Interface Library event publications mechanism. Programs written to take advantage of CTI interfaces are generally event driven, meaning that a code module in the application is executed when an external event arrives. The CIL interface provides a rich set of event interfaces and events for use by client programmers.

Events are generated asynchronously, either by the telephony equipment (for example, phone, PBX, and ACD) or by the CTI environment (CTI Server, or CTI OS Server). Each event passes an Arguments structure of key-value pairs that contains all of the event parameters. These parameters are discussed in greater detail in this chapter.

Event Publication Model


Note

The CIL event interfaces discussed in this section and the following sections apply only to the C++, COM, and VB interfaces. For more information about a discussion of Java CIL counterpart events and event handling in the Java CIL, see Events in Java CIL. For more information about a discussion of .NET CIL event handling, see Events in .NET CIL.

The Client Interface Library provides a publisher-subscriber model for notifying clients of events. Client applications using the CIL can subscribe to one or more of the CIL event interfaces. For more information and examples on how to subscribe and unsubscribe for events, see Building Your Custom CTI Application

The published CIL event interfaces are organized around the different classes of CTI objects that the CIL provides. The event interfaces described in this chapter are:

  • ISessionEvents. This interface publishes the events that relate to actions on the Session object.

  • ICallEvents. This interface publishes the events that relate to actions on Call objects.

  • IAgentEvents. This interface publishes the events that relate to actions on Agent objects.

  • ISkillGroupEvents. This interface publishes the events that relate to actions on SkillGroup objects.

  • IButtonEnablementEvents. This interface publishes the events that relate to changes in the enable-disable status of softphone buttons.

  • ISilentMonitorEvents. This interface sends events to subscribers of the Silent Monitor interface.

  • IMonitoredAgentEventsInterface. This interface fires Agent events to a supervisor for his team members.

  • IMonitoredCallEventsInterface. This interface sends Call events to a supervisor for one of his agent team members.

  • LogEventsAdapter (Java only). This class provides the default implementation for the message handlers in ILogEvents.

  • IGenericEvents. This interface sends generic events to subscribers of the IGenericEvents interface.

The remainder of this chapter provides the detailed description of each event interface available from the CIL.


Note

The data type listed for each keyword is the standardized data type discussed in the section CTI OS CIL Data Types in CIL Coding Conventions For more information about the appropriate language specific types for these keywords, see Table 1.

ISessionEvents Interface

The Session object fires events on the ISessionEvents interface. The following events are published to subscribers of the ISessionEvents interface.

OnConnection

The OnConnection event is generated after the Connect method succeeds. It returns the name of the connected server and the connection time of day. The client application need not take any special action but can use it to display connection status.

Syntax


C++: void OnConnection(Arguments& args)
COM: void OnConnection (IArguments * args)
VB:  session_OnConnection (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 1. ISession Event Parameters

Keyword

Type

Description

EventTime

INT

Integer value with time of day expressed in milliseconds.

CurrentServer

STRING

Name or TCP/IP address of the current connected CTI OS server.

OnConnectionClosed

The OnConnectionClosed message is generated when a connection is terminated by the client. This message has no fields. This event indicates successful completion of an action that the client (CIL or application using the CIL) initiated. By contrast, the OnConnectionFailure event is generated when the connection terminated for reasons other than that the client closed the connection.

OnConnectionFailure

The OnConnectionFailure event is generated when an established connection fails. It returns the name of the failed connected server and the failure time of day. Retry is automatic and is followed by an OnConnection event when connection is successfully reestablished. The client application need not take any special action but can use this event to display connection status.

Syntax

C++
void OnConnectionFailure(Arguments& args)
COM
void OnConnectionFailure (IArguments * args)
VB
session_OnConnectionFailure (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 2. OnConnectionFailure Event Parameters

Keyword

Type

Description

EventTime

INT

Integer value with time of day expressed in milliseconds.

FailedServer

STRING

Name or TCP/IP address of the server that failed to respond. See ReasonCode.

ReasonCode

SHORT

Reason code 0 : eProtocolMismatch

Reason code 1 : eMissedHeartbeats

Reason code 2 : eTransportError

Reason code 3 : eConnectFail

Reason code 4 : eOtherError

OnConnectionRejected

The OnConnectionRejected event indicates that the client tried to make a connection using incompatible versions of the CTI OS Server and CTI OS CIL.

Syntax


C++:  void OnConnectionRejected (Arguments& args)
COM:  void OnConnectionRejected (IArguments * args)
VB:   Session_OnConnectionRejected (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Not currently used, reserved for future use.

OnCTIOSFailure

The OnCTIOSFailure event indicates that the CTI Server fired either a FailureConf or a SystemEvent.


Note

CTI OS CIL sends the disconnect request to CTI OS Server when the login attempt fails. Hence, CTI OS Server closes the client connection.

Syntax


C++:  void OnCTIOSFailure (Arguments& args)
COM:  void OnCTIOSFailure (IArguments * args)
VB:   Session_OnCTIOSFailure (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 3. OnCTIOSFailure Event Parameters

Keyword

Type

Description

FailureCode

INT

A value according to an enumerated value, as shown immediately following this table.

SystemEventID

INT

Present only if FailureCode equals ServerConnectionStatus. Contains a value according to an enumerated value, as shown immediately following this table.

SystemEventArg1

INT

Present only if SystemEventID equals SysPeripheralOnline or SysPeripheralOffline. Contains the peripheral ID of the affected peripheral.

ErrorMessage

STRING

An error message.

Following are the enumerated values for FailureCode:

enum enumCTIOS_FailureCode
{
eDriverOutOfService = 1,
eServiceNotSupported = eDriverOutOfService + 1,
eOperationNotSupported = eServiceNotSupported + 1,
eInvalidPriviledge = eOperationNotSupported + 1,
eUnknownRequestID = eInvalidPriviledge + 1,
eUnknownEventID = eUnknownRequestID + 1,
eUnknownObjectID = eUnknownEventID + 1,
eRequiredArgMissing = eUnknownObjectID + 1,
eInvalidObjectState = eRequiredArgMissing + 1,
eServerConnectionStatus = eInvalidObjectState + 1,
eInconsistentAgentData = eServerConnectionStatus + 1,
eAgentAlreadyLoggedIn = eInconsistentAgentData + 1,
eForcedNotReadyForConfigError = eAgentAlreadyLoggedIn + 1
eMonitorModeConnectionDenied = eForcedNotReadyForConfigError + 1
};

Following are the enumerated values for SystemEventID:

enum enumCTIOS_SystemEventID
{ eSysCentralControllerOnline = 1,
eSysCentralControllerOffline = 2,
eSysPeripheralOnline = 3,
eSysPeripheralOffline = 4,
eSysTextFYI = 5,
eSysPeripheralGatewayOffline = 6,
eSysCtiServerOffline = 7,
eSysCTIOSServerOnline = 8,
eSysHalfHourChange = 9,
eSysInstrumentOutOfService = 10,
eSysInstrumentBackInService = 11,
eSysCtiServerDriverOnline = eSysInstrumentBackInService + 1,
eSysCtiServerDriverOffline = eSysCtiServerDriveOnline + 1,
eSysCTIOSServerOffline = eSysCtiServerDriverOffline + 1,
eSysCTIOSServerOnline = eSysCTIOSServerOffline + 1,
eSysAgentSummaryStatusOnline = eSysCTIOSServerOnline + 1,
eSysAgentSummaryStatusOffline = eSysAgentSummaryStatusOnline + 1
}

Remarks

See the descriptions of the CtiOs_Enums.FailureCode and CtiOs_Enums.SystemEvent interfaces in the Javadoc for information on Java CIL enumerations.

OnCurrentAgentReset

The OnCurrentAgentReset message is generated when the current agent is removed from the session.

Syntax

C++
void OnCurrentAgentReset(Arguments& args)
COM
void OnCurrentAgentReset (IArguments * args)
VB
session_OnCurrentAgentReset (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 4. OnCurrentAgentReset Parameters

Keyword

Type

Description

UniqueObjectID

STRING

Unique object ID (if any) of the old current agent that was just removed.

OnCurrentCallChanged

The OnCurrentCallChanged message is generated when the current call changes to another call.

Syntax

C++
void OnCurrentCallChanged(Arguments& args)
COM
void OnCurrentCallChanged (IArguments * args)
VB
session_OnCurrentCallChanged (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 5. OnCurrentCallChanged Parameters
Keyword Type Description

UniqueObjectID

STRING

Unique object ID (if any) of the new current call.

OnFailure Event

Not supported.

OnGlobalSettingsDownloadConf

You can configure the client after you are in the CTI OS Server and then download this configuration to each CTI OS client desktop. When an application executes the RequestDesktopSettings method call on the Session, an eGlobalSettingsDownloadRequest event is sent to the server.

In response, the server sends an OnGlobalSettingsDownloadConf event back to the calling application. The Arguments object passed as a parameter in this event contains the Desktop Settings configuration information. The Arguments object is an array that can contain up to seven elements, each of which has the value of a nested Arguments array in a hierarchy that closely matches that of the CTI OS server configuration in the Windows registry.

Each of these Arguments arrays is a packed version of the configuration contained in the CTI OS Server. For more information, see CTI OS System Manager Guide for Cisco Unified ICM.

This section describes the contents of the Arguments array returned in the OnGlobalSettingsDownloadConf event. Custom applications can add values at the lowest level under each key. Custom values added in this way are passed to the client in this event. This section also identifies which keys and values in the CTI OS registry are passed to the client in this event.

For more information about what is available and how to configure these items, see the following sections in the CTI OS System Manager Guide for Cisco Unified ICM:

  • MainScreen

  • Defining Connection Profiles

  • Declaring ECC Variables

  • Configuring the Call Appearance Grid

  • Automatic Agent Statistics Grid Configuration

  • Automatic Skill Group Statistics Grid Configuration

Syntax

C++
void OnGlobalSettingsDownloadConf(Arguments & args)
COM
void OnGlobalSettingsDownloadConf(IArguments * args)
VB
session_OnGlobalSettingsDownloadConf(ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

An Arguments array containing the Enterprise Desktop Settings configuration from a CTI OS server. For more information about the Enterprise Desktop Settings values listed below, see the CTI OS System Manager Guide for Cisco Unified ICM.

The following are the top level elements in the Enterprise Desktop Settings registry key. The CTI OS server passes configuration data for these elements to the client in the OnGlobalSettingsConf event:

  • ECC (Expanded Call Context) variables

  • Grid

  • IPCCSilentMonitor

  • Login

  • ScreenPreferences

  • SoundPreferences

Other keys or values that are added to the EnterpriseDesktopSettings/All Desktops key in the CTI OS server registry are passed to the client in the DesktopSettings Arguments array as empty Arguments arrays.

The following sections describe the contents of the args array:

  • ECC – Arguments array that contains the Expanded Call Context (ECC) variables declared on the CTI OS server in the "ECC/Name" registry subtree (the following figure).

    The CTI OS server does not send any registry information contained in the CTI OS registry keys representing the ECC scalar and array names. Thus the ECC Arguments arrays are empty in the OnGlobalSettingsDownloadConf event, regardless of the contents of those keys.

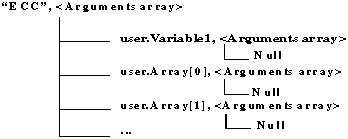

    Figure 1. ECC Arguments Array

    ECC arguments array

    Each ECC scalar configured in the CTI OS server registry is represented as an empty Arguments array with keyword "user.<name>", where <name> is the ECC name as configured on CTI OS server.

    Each ECC array configured in the CTI OS server registry is represented as multiple empty Arguments arrays with keywords "user.<name>[0]" to "user.<name>[n-1]", where <name> is the ECC name as configured on the CTI OS server and n is the size of the array as configured on the CTI OS server.

  • Grid – Arguments array contains information from the CTI OS server registry's Grid subtree. The grid element contains an Arguments array of up to three Arguments arrays:

    • AgentStatistics

    • CallAppearance

    • SkillGroupStatistics

    Each of these arrays contains the keyword "columns," an Arguments array that contains multiple nested Arguments arrays with key=<column_number>, where <column_number> corresponds to the name of a key within the Columns/Number registry subtree.

    The configuration information for any key or value added to the SkillGroupStatistics, AgentStatistics, or CallAppearance registry keys is not passed to the client in the OnGlobalSettingsDownloadConf event.

    The value for each column number in the AgentStatistics and SkillGroupStatistics element is an Arguments array containing the following key-value pairs:

    Table 6. Agent Statistics Column Number: Key Values

    Keyword

    Data Type

    Type

    string

    Header

    string

    Custom values1

    custom

    1 Other registry values added to the <column_number> registry key are passed in the OnGlobalSettingsDownloadConf event. Subkeys added to the <column_number> registry key are not passed in this event.

    The value for each column number in the CallAppearance element is an Arguments array containing the following key-value pairs:

    Table 7. CallAppearance Column Number: Key Values

    Keyword

    Data Type

    Type

    string

    Header

    string

    editable

    boolean

    maxchars

    integer

    Custom values2

    custom

    2 Other registry values added to the <column_number> registry key are passed in the OnGlobalSettingsDownloadConf event. Subkeys added to the <column_number> registry key are not passed in this event.

    You can add custom keys in the CTI OS Server registry's Grid subtree at the same level as the SkillGroupStatistics, AgentStatistics, and CallAppearance keys. The Grid Arguments array (see the following figure) within this event contain items corresponding to these custom keys. Any custom element that you add must follow the same hierarchy in the registry as that used by the existing top level elements.

    The custom element hierarchy format is as follows:

    Figure 2. Grid Arguments Array

    Grid arguments array

  • IPCCSilentMonitor – Arguments array that contains configuration information from the CTI OS server registry's IPCCSilentMonitor/ Name subtree.

    The IPCCSilentMonitor Arguments array contains a nested Arguments array with key="settings." This array contains the following key-value pairs:

    Table 8. IPCCSilentMonitor: Key Values

    Keyword

    Value

    MediaTerminationPort

    integer

    HeartBeatInterval

    integer

    TOS

    boolean

    MonitoringIPPort

    integer

    HeartbeatTimeout

    integer

    CCMBasedSilentMonitor

    boolean

    Configuration information for registry values added to the IPCCSilentMonitor/Settings registry key is passed to the client in the OnGlobalSettingsConf event. Configuration information for subkeys added to the Settings registry key is not passed in this event.

    You can add custom keys to the CTI OS registry in the IPCCSilentMonitor subtree at the same level as the Settings key. The IPCCSilentMonitor Arguments array within this event contain items corresponding to these custom keys. Any custom element that you add must follow the same hierarchy in the registry as that used by the existing top level elements.

    Two silent monitoring types are supported for Unified CCE:

    • CTI OS based

    • CCM based

    You configure the silent Monitor type used by CTI OS using the CCMBasedSilentMonitor registry key.

    If CCMBasedSilentMonitor is present and set to true, CTI OS is using Call Manager's silent monitor implementation. When this is the case, supervisor applications must initiate silent monitor using the Agent.SuperviseCall() method. Agent applications do not need to do anything. If CCMBasedSilentMonitor is not present or set to 0, CTI OS implementation of silent monitor is in use. When this is the case, supervisor and agent applications must invoke silent monitor using the SilentMonitorManager object.

    The format of the IPCCSilentMonitor Arguments array is shown in the following figure.

    Figure 3. IPCCSilentMonitor Arguments Array

    IPCCSilentMonitor Arguments Array

  • Login – Arguments array that contains the information from the CTI OS server registry's Login subtree. This array contains a nested Arguments array with key="ConnectionProfiles" and with an Arguments array value for each connection profile. The keyword of each array is the name for the Connection Profile listed in the CTI OS server's registry. The value is another Arguments array.

    The following key-value pairs are contained in each connection profile Arguments array:

    Table 9. Unified CCE Agent Statistics: Key Values

    Keyword

    Value

    CtiOsA

    string

    CtiOsB

    string

    PortA

    integer

    PortB

    integer

    Heartbeat

    integer

    MaxHeartbeats

    integer

    AutoLogin

    boolean

    WarnIfAlreadyLoggedIn

    boolean

    ShowFieldBitMask

    integer

    RejectIfAlreadyLoggedIn

    boolean

    PeripheralID

    integer

    IPCCSilentMonitorEnabled

    boolean

    TOS

    boolean

    SwitchCapabilityBitMask

    integer

    WarnIfSilentMonitored

    boolean

    RasCallMode3

    integer

    3

    Applicable only to RAS enabled Unified CCE Profiles

    Configuration information for keys or values that are added to the Login registry key in the CTI OS server's registry does not appear in the Login Arguments array.

    The format of the Login Arguments array is shown in the following figure.

    Figure 4. Login Arguments Array

    Login arguments array

    SilentMonitorService Subkey

    The <profile_name>/SilentMonitorService subkey contains parameters that clients use to connect to one of a set of silent monitor services. It contains the following keys:


    Note

    The SilentMonitorService subkey is only applicable to CTI OS based silent monitor.

    Table 10. SilentMonitorService Parameters

    Keyword

    Value

    Description

    ListenPort

    integer

    Port on which the silent monitor service is listening for incoming connections.

    TOS

    integer

    QOS setting for the connection.

    HeartbeatInterval

    integer

    Amount of time in milliseconds between heartbeats.

    HeartbeatRetries

    integer

    Number of missed heartbeats before the connection is abandoned.

    Cluster

    A key that contains a list of silent monitor services to which the CIL tries to connect. The CIL randomly chooses one of the services in this list. This key contains two subkeys:

    • 1 - index of the first silent monitor service
    • N - index of the Nth silent monitor service

    All subkeys contain the following keyword:

    • SilentMonitorService - host name or IP adress of the silent monitor service.

    The following figure illustrates the hierarchy of the SilentMonitorService subkey.

    Figure 5. SilentMonitorService Subkey Hierarchy

    SilentMonitorService subkey hierarchy

  • ScreenPreferences – Arguments array that contains the information configured in the CTI OS server registry's ScreenPreferences/Name subtree. The ScreenPreferences array contains an element MainScreen, which is an Arguments array that contains the following key-value pairs:

    Table 11. ScreenPreferences: Key Values

    Keyword

    Value

    AgentStatisticsIntervalSec

    integer

    BringToFrontOnCall

    boolean

    FlashOnCall

    boolean

    RecordingEnabled

    boolean

    You can add custom keys to the CTI OS registry in the ScreenPreferences subtree at the same level as the "MainScreen" key. The ScreenPreferences Arguments array within this event contains items corresponding to these custom keys. Any custom key that you add must follow the same hierarchy in the registry as that used by the existing top level keys.

    Registry values added to the MainScreen registry key on the CTI OS server are passed to the client in the OnGlobalSettingsDownloadConf event. Subkeys added to the MainScreen registry key are not passed in this event.

    The format of the ScreenPreferences Arguments array is shown in the following figure.

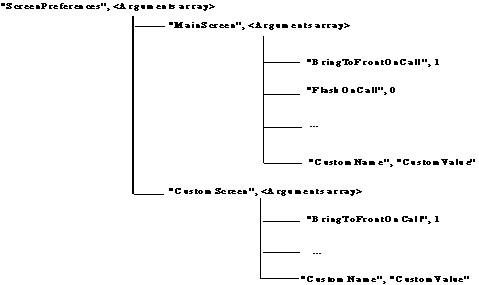

    Figure 6. ScreenPreferences Arguments Array

    Screenpreferences arguments array

  • SoundPreferences – Arguments array that contains information configured on the CTI OS server in the SoundPreferences/Name subtree. This array includes a nested Arguments array that includes a setting for each sound, including .wav files to be played, and whether or not each one is mute. It can also include custom name/value pairs for a custom application.

    The SoundPreferences array contains the following key-value pairs:

    Table 12. SoundPreferences: Key Values

    Keyword

    Value

    Subtree

    DTMF*

    Arguments array

    SoundPreferences/Name/DTMF

    DialTone*

    Arguments array

    SoundPreferences/Name/DialTone

    OriginatingTone*

    Arguments array

    SoundPreferences/Name/OriginatingTone

    RingInTone*

    Arguments array

    SoundPreferences/Name/RingInTone

    All*

    Arguments array

    SoundPreferences/Name/All

    * Registry values added to this registry key in the CTI OS server registry are included in the Arguments array. Subkeys added to this registry key are not present.

    The DTMF, DialTone, OriginatingTone, RingInTone, and All arrays each contain the keyword Mute, which has a boolean value. Custom registry values added to the DialTone DTMF, DialTone, OriginatingTone, RingInTone, and All registry keys are present in the array. Subkeys added to the these registry keys are not present in the array.

    You can add custom keys in the SoundPreferences subtree at the same level as the All, DTMF, DialTone, OriginatingTone, and RingInTone keys. The SoundPreferences array contains items corresponding to these custom keys. Any custom element that you add must follow the same hierarchy in the registry as that used by the existing top level elements.

    The format of the SoundPreferences Arguments array is shown in the following figure.

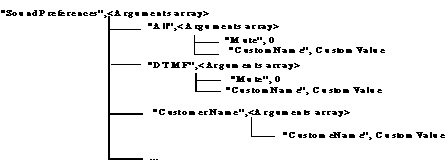

    Figure 7. SoundPreferences Arguments Array

    Soundpreferences arguments array

    This configuration is stored in the Windows System Registry database and many of the values are set when the CTI OS Server Setup is run. You can set custom configuration at a later time by using the Windows Registry Editor.

OnHeartbeat

The OnHeartbeat event is generated when a heartbeat response is received from a CTI OS server. It returns the time of day.

Syntax

C++
void OnHeartbeat(Arguments& args)
COM
void Onheartbeat (IArguments * args)
VB
session_OnHeartbeat (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 13.
Keyword Type Description

EventTime

INT

Integer value with time of day expressed in milliseconds.

OnMissingHeartbeat

The OnMissingHeartbeat event is generated when an expected heartbeat is not received. It returns the number of consecutive heartbeats missed and time of day. When the number of heartbeats missed equals or exceeds the maximum number of heartbeats allowed (set in the MaxHeartbeats property), an OnConnectionFailure event is generated instead of an OnMissingHeartbeat event, and the CIL automatically attempts to reconnect to the CTI OS server, alternating between the CtiosA and CtiosB servers passed as parameters in the Connect method.

Syntax

C++
void OnMissingHeartbeat(Arguments& args)
COM
void OnMissingHeartbeat (IArguments * args)
VB
session_OnMissingHeartbeat (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 14. OnMissingHeartbeat Parameters

Keyword

Type

Description

EventTime

INT

Integer value with time of day expressed in milliseconds.

Consecutive MissedHeartbeats

INT

Integer value with the number of heartbeats missed.

HeartbeatInterval

INT

Integer value with the heartbeat interval, in milliseconds.

OnMonitorModeEstablished

The OnMonitorModeEstablished event is generated when Monitor Mode is established.

Syntax

C++
void OnMonitorModeEstablished(Arguments& args)
COM
void OnMonitorModeEstablished (IArguments * args)
VB
session_OnMonitorModeEstablished (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 15. OnMonitorModeEstablished Parameters

Keyword

Type

Description

CIL ConnectionID

STRING

ID of the client connection on the server.

StatusSystem

ARGUMENTS

Arguments array containing the following elements:

  • StatusCTIServer
  • StatusCtiServerDriver
  • StatusCentralController
  • StatusPeripherals (Arguments array with a peripheral ID for each key and a boolean true/false value indicating if that peripheral is online.)

OnSnapshotDeviceConf

The OnSnapshotDeviceConf confirmation message is fired to the client as part of a snapshot operation. For AgentMode clients, the OnSnapshotDeviceConf arrives at startup time, after the OnQueryAgentStateConf message. The OnSnapshotDeviceConf indicates the number of calls present at the device, and their UniqueObjectIDs.

Syntax

C++
void OnSnapshotDeviceConf (Arguments & args);
COM
HRESULT OnSnapshotDeviceConf ([in] IArguments * args);
VB
OnSnapshotDeviceConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 16. OnSnapshotDeviceConf Parameters

Keyword

Description

Type

UniqueObjectID

Unique ID of the device object on the server. There are no device objects in the CIL, so this keyword cannot be used to retrieve a device object at this point.

STRING

NumCalls

The number of active calls associated with this device, up to a maximum of 16.

SHORT

ValidCalls

An Arguments array containing the list of calls on the device. The Unique ObjectID of each call is a key in the Arguments object. The value is a boolean indicating if the call is valid. Calls not listed are not valid calls on the device.

ARGUMENTS

Remarks

The CIL uses this event to rectify the list of calls on a device when logging in after a failover, in case the status of calls on the device changes during the failure period. An example of such a scenario is an agent talking on a call on a hardphone and a CTI failure occurs. The agent hangs up the call before CTI is recovered. After CTI and the CIL recover, they use the snapshot to discover that the call it currently has is no longer on the device. CTI then fires an EndCall event to remove the call from its call list.

OnSnapshotSkillGroupList

Not supported.

OnTranslationRoute

The OnTranslationRoute event is a pre-call indication. The event indicates the pending arrival of a call, and provides early access to the call context information. From a call flow perspective, this event can be used to begin an application or database lookup for the call context data before the call actually arrives at the agent's teleset.

The contact is uniquely identified by the ICMEnterpriseUniqueID, which is a field based on the Unified ICM 64-bit unique key (RouterCallKeyDay and RouterCallKeyCallID). This event does not indicate the creation of a Call object on the CTI OS server—only that the contact is being tracked. This is sufficient to get and set data, which enables some powerful data-prefetching applications. When a OnCallBeginEvent follows for this same contact, the ICMEnterpriseUniqueID field is sent with the call data. At that point, a custom application can set the call data on the appropriate call object.

Syntax

C++
void OnTranslationRoute(Arguments& args)
COM
oid OnTranslationRoute(IArguments * args)
VB
session_OnTranslationRoute(ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.
Table 17. OnTranslationRoute Parameters

Keyword

Type

Description

ICMEnterpriseUniqueID

STRING

This string is a globally unique key for this contact, which corresponds to the Unified ICM 64 bit key. You can use this parameter to match this contact to a follow-on call event.

RouterCallKeyDay

INT

Together with the RouterCallKeyCallID field forms the unique 64-bit key for locating this call's records in the Unified ICM database. Only provided for Post-routed and Translation-routed calls.

RouterCalKeyCallID

INT

The call key created by the Unified ICM . The Unified ICM resets this counter at midnight.

RouterCallKey SequenceNumber

INT

Together with RouterCallKeyDay and RouterCallKeyCallID fields forms the TaskID.

NumNamedVariables

SHORT

Number of Named variables.

NumNamedArrays

SHORT

Number of Named Arrays.

ANI

STRING

The calling line ID of the caller.

UserToUserInfo

STRING

The ISDN user-to-user information element.

DNIS

STRING

The DNIS number to which this call will arrive on the ACD/PBX.

DialedNumber

STRING

The number dialed.

CallerEnteredDigits

STRING

The digits entered by the caller in response to VRU prompting.

CallVariable1

STRING

Call-related variable data.

...

STRING

...

CallVariable10

STRING

Call-related variable data.

ECC

ARGUMENTS

A nested Arguments structure of key-value pairs for all of the ECC data arriving with this call.

ICallEvents Interface

The Call object fires events on the ICallEvents interface. The following events are published to subscribers of the ICallEvents interface.


Note

Many of the parameters that CTI OS receives from the CTI Server are inconsequential to most customer applications. The most important parameters for doing a screenpop are included with the events described in this section. The more inconsequential parameters are suppressed at the CTI OS Server, to minimize network traffic to the clients. However, you can enable the complete set of available event arguments by setting the following registry setting:


Note

[HKLM\Cisco Systems\CTIOS\Server\CallObject\MinimizeEventArgs = 0].

OnAgentPrecallEvent


Note

The OnAgentPrecallEvent event is applicable to Unified CCE only. The equivalent on all other TDM events is TranslationRouteEvent.

The OnAgentPrecallEvent event is a pre-call indication that indicates the pending arrival of a call and provides early access to the call context information. From a call flow perspective, you can use this event to begin an application or database lookup for the call context data before the call actually arrives at the agent's teleset.

The contact is uniquely identified by the ICMEnterpriseUniqueID, which is a field based on the Unified ICM 64-bit unique key (RouterCallKeyDay and RouterCallKeyCallID). This event does not indicate the creation of a Call object on the CTI OS server—only that the contact is being tracked. This is sufficient to get and set data, which enables some powerful data-prefetching applications. When an OnCallBeginEvent follows for this same contact, the ICMEnterpriseUniqueID field is sent along with the call data. At that point, a custom application can set the call data on the appropriate call object.

Syntax

C++
void OnAgentPrecallEvent(Arguments& args)
COM
void OnAgentPrecallEvent (IArguments * args)
VB
session_OnAgentPrecallEvent (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.
Table 18. OnAgentPrecallEvent Parameters

Keyword

Type

Description

ICMEnterpriseUniqueID

STRING

This string is a globally unique key for this contact, which corresponds to the Unified ICM 64 bit key. You can use this parameter to match this contact to a follow-on call event.

RouterCallKeyDay

INT

Together with the RouterCallKeyCallID field forms the unique 64-bit key for locating this call's records in the Unified ICM database. Only provided for Post-routed and Translation-routed calls.

RouterCalKeyCallID

INT

The call key created by the Unified ICM. The Unified ICM resets this counter at midnight.

AgentInstrument

STRING

The agent instrument that the call is routed to.

NumNamedVariables

SHORT

Number of Named variables.

NumNamedArrays

SHORT

Number of Named Arrays.

ServiceNumber

INT

The service that the call is attributed to, as known to the peripheral.

ServiceID

INT

The Unified ICM ServiceID of the service that the call is attributed to.

SkillGroupNumber

INT

An optional, user-defined number of the agent SkillGroup the call is attributed to, as known to the peripheral.

SkillGroupID

INT

The system-assigned identifier of the agent SkillGroup the call is attributed to.

SkillGroupPriority

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

ANI

STRING

The calling line ID of the caller.

UserToUserInfo

STRING

The ISDN user-to-user information element.

DNIS

STRING

The DNIS number to which this call will arrive on the ACD/PBX.

DialedNumber

STRING

The number dialed.

CallerEnteredDigits

STRING

The digits entered by the caller in response to VRU prompting.

CallVariable1

STRING

Call-related variable data.

...

STRING

...

CallVariable10

STRING

Call-related variable data.

ECC

ARGUMENTS

A nested Arguments structure of key-value pairs for all of the ECC data arriving with this call.

CallTypeIDTag

INT

Specifies CallType of the call and indicates that the agent is reserved via LegacyPreCall.

PreCallInvokeIDTag

INT

Specifies the invoking of the LegacyPreCall.

OnAgentPrecallAbortEvent


Note

The OnAgentPrecallAbortEvent event is applicable to Unified CCE only.

The OnAgentPrecallAbortEvent event is received only if a previously indicated routing (OnAgentPrecallEvent) decision is reversed. The contact is uniquely identified by the ICMEnterpriseUniqueID, which is a field based on the Unified ICM 64-bit unique key (RouterCallKeyDay and RouterCallKeyCallID). Upon receipt of an OnAgentPrecallAbortEvent, any data pre-fetch work that was started on an OnAgentPrecallEvent should be cleaned up.

Syntax

C++
void OnAgentPrecallAbortEvent(Arguments& args)
COM
void OnAgentPrecallAbortEvent (IArguments * args)
VB
session_OnAgentPrecallAbortEvent (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.
Table 19. OnAgentPrecallAbortEvent Parameters

Keyword

Type

Description

ICMEnterpriseUniqueID

STRING

This string is a globally unique key for this contact, which corresponds to the Unified ICM 64 bit key. You can use This parameter to match this contact to a follow-on call event.

RouterCallKeyDay

INT

Together with the RouterCallKey CallID field forms the unique 64-bit key for locating this call's records in the Unified ICM database. Only provided for Post-routed and Translation- routed calls.

RouterCalKeyCallID

INT

The call key created by the Unified ICM. The Unified ICM resets this counter at midnight.

AgentInstrument

STRING

The agent instrument that the call will be routed to.

OnAlternateCallConf

The OnAlternateCallConf event is fired to the client to indicate that an Alternate request was received by the CTI Server

Syntax

C++
void OnAlternateCallConf (Arguments & args);
COM
HRESULT OnAlternateCallConf ([in] IArguments * args);
VB
Session_ OnAlternateCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 20. OnAlternateCallConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnAnswerCallConf

The OnAnswerCallConf event is fired to the client to indicate that an Answer request was received by the CTI Server.

Syntax

C++
void OnAnswerCallConf (Arguments & args);
COM
HRESULT OnAnswerCallConf ([in] IArguments * args);
VB
Session_ OnAnswerCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 21. OnAnswerCallConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnCallBegin

The OnCallBegin event is generated at the first association between a call and the CTI Client. The event passes the call identifier and the initial call context data. The ConnectionCallID identifies the call. This message always precedes any other event messages for that call.

Subsequent changes to the call context data (if any) are signaled by an OnCallDataUpdate event containing the changed call data.


Note

There can be multiple calls with the same ConnectionCallID value.

Syntax

C++
void OnCallBegin(Arguments& args)
COM
void OnCallBegin (IArguments * args)
VB
session_OnCallBegin (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 22. OnCallBegin Parameters

Keyword

Type

Description

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the call activity occurred.

PeripheralType

SHORT

The type of the peripheral.

CallType

SHORT

The general classification of the call type.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

RouterCallKeyDay

INT

Together with the RouterCallKeyCallID field forms the unique 64-bit key for locating this call's records in the Unified ICM database. Only provided for Post-routed and Translation-routed calls.

RouterCalKeyCallID

INT

The call key created by the Unified ICM . The Unified ICM resets this counter at midnight.

RouterCallKey SequenceNumber

INT

Together with RouterCallKeyDay and RouterCallKeyCallID fields forms the TaskID.

ConnectionCallID

UINT

The Call ID value assigned to this call by the peripheral or the Unified ICM .

ANI (optional)

STRING

The calling line ID of the caller.

DNIS (optional)

STRING

The DNIS provided with the call.

UserToUserInfo (Optional)

STRING

The ISDN user-to-user information element. unspecified, up to 131 bytes.

DialedNumber (Optional)

STRING

The number dialed.

CallerEnteredDigits (Optional)

STRING

The digits entered by the caller in response to VRU prompting.

ServiceNumber (Optional)

INT

The service that the call is attributed to, as known to the peripheral. May contain the special value NULL_SERVICE when not applicable or not available.

ServiceID (Optional)

INT

The Unified ICM ServiceID of the service that the call is attributed to. May contain the special value NULL_SERVICE when not applicable or not available.

SkillGroupNumber (Optional)

INT

An optional, user-defined number of the agent SkillGroup the call is attributed to, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID (Optional)

INT

The system-generated identifier of the agent SkillGroup the call is attributed to. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupPriority (Optional)

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

CallWrapupData (Optional)

STRING

Call-related wrap-up data.

CallVariable1 (Optional)

STRING

Call-related variable data.

...

STRING

...

CallVariable10 (Optional)

STRING

Call-related variable data.

CallStatus (optional)

SHORT

The current status of the call.

ECC (optional)

ARGUMENTS

Arguments array that contains all of the Expanded Call Context variables in use; for example: user.ArrayVariable[0]user.ArrayVariable[1] ...user.ArrayVariable[n]user.ScalarVariable

CTIClients (optional)

ARGUMENTS

Arguments array that contains the information about the number of clients that are using the Call object; for example:

CTIClient[1]

CTIClientSignatureCTIClientTimestamp

ICMEnterprise UniqueID (optional)

STRING

Required only when the call is pre-routed.

OnCallCleared

An OnCallCleared event is generated when the voice portion of all parties on a call is terminated, normally when the last device disconnects from a call. With this event the connection status becomes LCS_NULL.


Note

If the CallCleared event is received after having received a CallFailed event, the event does not include a CallStatus because it is important to preserve the fact that the call failed (maintaining the CallStatus of LSC_Fail). Because of this exception, the CallStatus of the CallCleared event is optional.

Syntax

C++
void OnCallDelivered(Arguments& args)
COM
void OnCallCleared (IArguments * args)
VB
session_OnCallCleared (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.
Table 23. OnCallCleared Parameters

Keyword

Type

Description

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when this call is the current call.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

CallStatus

SHORT

The current status of the call.

ICMEnterprise UniqueID (Optional)

STRING

Required only when the call is pre-routed.

OnCallConnectionCleared

An OnCallConnectionCleared event is generated when a party drops from a call. With this event the connection status becomes LCS_NULL.


Note

If the CallConnectionCleared event is received after having received a CallFailed event, the event does not include a CallStatus because it is important to preserve the fact that the call failed (maintaining the CallStatus of LSC_Fail). Because of this exception, the CallStatus of the CallConnectionCleared event is optional.

Syntax

C++
void OnCallConnectionCleared(Arguments& args)
COM
void OnCallConnectionCleared (IArguments * args)
VB
session_OnCallConectionCleared (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.
Table 24. OnCallConnectionCleared Parameters

Keyword

Type

Description

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when this call is the current call.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

CallStatus

SHORT

The current status of the call.

ICMEnterprise UniqueID (Optional)

STRING

Required only when the call is pre-routed.

OnCallConferenced

The joining of calls into a conference call or the adding of a new call joining a conference can generate an OnCallConferenced event. With this event, the connections at the controller's device merge to become one connection with a status of LCS_CONNECT, and the status of the connections at the original caller's device and at the consulted device remain unchanged.

Syntax

C++
void OnCallConferenced(Arguments& args)
COM
void OnCallConferenced (IArguments * args)
VB
session_OnCallConferenced (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 25. OnCallConferenced Parameters

Keyword

Type

Description

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the call activity occurred.

PeripheralType

SHORT

The type of the peripheral.

CallType

SHORT

The general classification of the call type.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

RouterCallKeyDay

INT

Together with the RouterCallKeyCallID field forms the unique 64-bit key for locating this call's records in the Unified ICM database. Only provided for Post-routed and Translation-routed calls.

RouterCalKeyCallID

INT

The call key created by the Unified ICM. The Unified ICM resets this counter at midnight.

ConnectionCallID

UINT

The Call ID value assigned to this call by the peripheral or the Unified ICM.

ANI (optional)

STRING

The calling line ID of the caller.

DNIS (optional)

STRING

The DNIS provided with the call.

UserToUserInfo (Optional)

STRING

The ISDN user-to-user information element. unspecified, up to 131 bytes.

DialedNumber (Optional)

STRING

The number dialed.

CallerEnteredDigits (Optional)

STRING

The digits entered by the caller in response to VRU prompting.

ServiceNumber (Optional)

INT

The service that the call is attributed to, as known to the peripheral. May contain the special value NULL_SERVICE when not applicable or not available.

ServiceID (Optional)

INT

The Unified ICM ServiceID of the service that the call is attributed to. May contain the special value NULL_SERVICE when not applicable or not available.

SkillGroupNumber (Optional)

INT

An optional, user-defined number of the agent SkillGroup the call is attributed to, as known to the peripheral. as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID (Optional)

INT

The system-assigned identifier of the agent SkillGroup the call is attributed to. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupPriority (Optional)

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

CallWrapupData (Optional)

STRING

Call-related wrap-up data.

CallVariable1 (Optional)

STRING

Call-related variable data.

...

STRING

...

CallVariable10 (Optional)

STRING

Call-related variable data.

CallStatus (optional)

SHORT

The current status of the call.

ECC (optional)

ARGUMENTS

Arguments array that contains all of the Expanded Call Context variables in use; for example: user.ArrayVariable[0]user.ArrayVariable[1] ...user.ArrayVariable[n]user.ScalarVariable

CTIClients (Optional)

ARGUMENTS

Arguments array that contains the information about the number of clients that are using the Call object; for example:

CTIClient[1]

CTIClientSignatureCTIClientTimestamp

ICMEnterpriseUnique ID (Optional)

STRING

Required only when the call is pre-routed.

OnCallDataUpdate

Changes to the call context data generate an OnCallDataUpdate event. Only the changed items are in the event argument array. The initial call context is provided in the OnCallBegin event.

Syntax

C++
void OnCallDataUpdate(Arguments& args)
COM
void OnCallDataUpdate (IArguments * args)
VB
session_OnCallDataUpdate (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 26. OnCallUpdate Parameters

Keyword

Type

Description

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the call activity occurred.

PeripheralType

SHORT

The type of the peripheral.

CallType

SHORT

The general classification of the call type.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

RouterCallKeyDay

INT

Together with the RouterCallKeyCallID field forms the unique 64-bit key for locating this call's records in the Unified ICM database. Only provided for Post-routed and Translation-routed calls.

RouterCalKeyCallID

INT

The call key created by the Unified ICM. The Unified ICM resets this counter at midnight.

RouterCallKey SequenceNumber

INT

Together with RouterCallKeyDay and RouterCallKeyCallID fields forms the TaskID.

ConnectionCallID

UINT

The Call ID value assigned to this call by the peripheral or the Unified ICM.

ANI (optional)

STRING

The calling line ID of the caller.

DNIS (optional)

STRING

The DNIS provided with the call.

UserToUserInfo (Optional)

STRING

The ISDN user-to-user information element. unspecified, up to 131 bytes.

DialedNumber (Optional)

STRING

The number dialed.

CallerEnteredDigits (Optional)

STRING

The digits entered by the caller in response to VRU prompting.

ServiceNumber (Optional)

INT

The service that the call is attributed to, as known to the peripheral. May contain the special value NULL_SERVICE when not applicable or not available.

ServiceID (Optional)

INT

The Unified ICM ServiceID of the service that the call is attributed to. May contain the special value NULL_SERVICE when not applicable or not available.

SkillGroupNumber (Optional)

INT

An optional, user-defined number of the agent SkillGroup the call is attributed to, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID (Optional)

INT

The system-assigned identifier of the agent SkillGroup the call is attributed to. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupPriority (Optional)

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

CallWrapupData (Optional)

STRING

Call-related wrap-up data.

CallVariable1 (Optional)

STRING

Call-related variable data.

...

STRING

...

CallVariable10 (Optional)

STRING

Call-related variable data.

CallStatus (optional)

SHORT

The current status of the call.

ECC (optional)

ARGUMENTS

Arguments array that contains all of the Expanded Call Context variables in use; for example: user.ArrayVariable[0]user.ArrayVariable[1]...user. ArrayVariable[n]user.ScalarVariable

CTIClients (Optional)

ARGUMENTS

Arguments array that contains the information about the number of clients that are using the Call object; for example:

CTIClient[1]

CTIClientSignatureCTIClientTimestamp

ICMEnterprise UniqueID (Optional)

STRING

Required only when the call is pre-routed.

OnCallDelivered

The OnCallDelivered event may be generated when the call arrives at the agent's teleset. Both parties (call connections) receive this event. With this event, the called party's connection status becomes LCS_ALERTING but the calling party's connection status remains LCS_INITIATE.


Note

With certain switches, when a call is made outside of the ACD, this event may not be received. For more information, see OnCallReachedNetwork.

Syntax

C++
void OnCallDelivered(Arguments& args)
COM
void OnCallDelivered (IArguments * args)
VB
session_OnCallDelivered (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 27. OnCallDelivered Parameters

Keyword

Type

Description

ServiceNumber

INT

The service that the call is attributed to, as known to the peripheral. May contain the special value NULL_SERVICE when not applicable or not available.

ServiceID

INT

The Unified ICM ServiceID of the service that the call is attributed to. May contain the special value NULL_SERVICE when not applicable or not available.

SkillGroupNumber (Optional)

INT

An optional, user-defined number of the agent SkillGroup the call is attributed to, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID (Optional)

INT

The system-assigned identifier of the agent SkillGroup the call is attributed to. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupPriority (Optional)

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

LineType

SHORT

Indicates the type of the teleset line.

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when this call is the current call. See Table 1.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

CallStatus

SHORT

The current status of the call.

ICMEnterpriseUniqueID (Optional)

STRING

Required only when the call is pre-routed.

TrunkNumber (optional)

INT

The number representing a trunk.

TrunkGroup Number (optional)

INT

The number representing a trunk group.

OnCallDequeuedEvent

The explicit removal of a call from the ACD queue can generate a OnCallDequeuedEvent message to the CTI Client.

Syntax

C++
void OnCallDequeuedEvent(Arguments& args)
COM
void OnCallDequeuedEvent (IArguments * args)
VB
session_OnCallDequeuedEvent (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 28. OnCallDequeuedEvent Parameters

Keyword

Type

Description

Connection DeviceID

INT

The identifier of the connection between the call and the device.

ConnectionDevice IDType

SHORT

Indicates the type of the connection identifier supplied in the ConnectionDeviceID.

LocalConnection State

SHORT

The state of the local end of the connection.

EventCause

SHORT

Indicates a reason or explanation for the occurrence of the event.

LineHandle

SHORT

Identifies the teleset line being used.

LineType

SHORT

Indicates the type of the teleset line.

ServiceID

INT

The Unified ICM ServiceID of the service that the call is attributed to.

ServiceNumber

INT

The service that the call is attributed to, as known to the peripheral.

NumQueued

SHORT

The number of calls in the queue for this service.

NumSkillGroups

SHORT

The number of Skill Groups that the call has been removed from, up to a maximum of 99.

OnCallDiverted

The removal of a call from one delivery target and forwarded to a different target can generate an OnCallDiverted event.

Syntax

C++
void OnCallDiverted(Arguments& args)
COM
void OnCallDiverted (IArguments * args)
VB
session_OnCallDiverted (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 29. OnCallDiverted Parameters

Keyword

Type

Description

UniqueObjectID

STRING

Unique reference generated for a call at client.

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the call activity occurred.

PeripheralType

SHORT

The type of the peripheral.

ConnectionDevice IDType

SHORT

Indicates the type of ConnectionDeviceID value.

Connection DeviceID

INT

The device identifier of the connection between the call and the device.

ConnectionCallID

UINT

The Call ID value assigned to this call by the peripheral or the Unified ICM.

ServiceNumber

INT

The service that the call is attributed to, as known to the peripheral. May contain the special value NULL_SERVICE when not applicable or not available.

ServiceID

INT

The Unified ICM ServiceID of the service that the call is attributed to. May contain the special value NULL_SERVICE when not applicable or not available.

DivertingDevice Type

SHORT

Indicates the type of the device identifier supplied in the DivertingDeviceID field.

CalledDeviceType

SHORT

Indicates the type of the device identifier supplied in the CalledDeviceID field.

LocalConnection State

SHORT

The state of the local end of the connection.

EventCause

SHORT

Indicates a reason or explanation for the occurrence of the event.

DivertingDeviceID (Optional)

STRING

The device identifier of the device from which the call was diverted.

CalledDeviceID (Optional)

STRING

The device identifier of the device to which the call was diverted.

OnCallEnd

The OnCallEnd event is generated when the association between a call and the CTI Client is dissolved. The OnCallEnd event is the last event received for a Call.

Syntax

C++
void OnCallEnd(Arguments& args)
COM
void OnCallEnd (IArguments * args)
VB
session_OnCallEnd (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 30. OnCallEnd Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

CallStatus (optional)

SHORT

The current status of the call.

ICMEnterprise UniqueID (optional)

STRING

Required only when the call is pre-routed.

OnCallEstablished

The OnCallEstablished event is generated when the call is answered at the agent's teleset. Both parties (call connections) receive this event when the call is answered. With this event, the call status of both parties becomes LCS_CONNECT.


Note

With certain switches, when a call is made outside of the ACD, this event may not be received. See OnCallReachedNetwork for more detail.

Syntax

C++
void OnCallEstablished(Arguments& args)
COM
void OnCallEstablished (IArguments * args)
VB
session_OnCallEstablished (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 31. OnCallEstablished Parameters

Keyword

Type

Description

ServiceNumber

INT

The service that the call is attributed to, as known to the peripheral. May contain the special value NULL_ SERVICE when not applicable or not available.

ServiceID

INT

The Unified ICM ServiceID of the service that the call is attributed to. May contain the special value NULL_SERVICE when not applicable or not available.

SkillGroupNumber (Optional)

INT

An optional, user-defined number of the agent SkillGroup the call is attributed to, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID (Optional)

INT

The system-assigned identifier of the agent SkillGroup the call is attributed to. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupPriority (Optional)

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

LineType

SHORT

Indicates the type of the teleset line.

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when this call is the current call. See Table 1.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

CallStatus

SHORT

The current status of the call.

ICMEnterpriseUniqueID (Optional)

STRING

Required only when the call is pre-routed.

TrunkNumber (optional)

INT

The number representing a trunk.

TrunkGroup Number (optional)

INT

The number representing a trunk group.

OnCallFailed

The OnCallFailed event is generated when a call is not completed. With this event the connection status becomes LCS_FAIL. This usually happens as a result of a MakeCall or a MakeConsultCall request, but can occur at any other point in the call's lifetime if the call fails on an ACD. In this case, you should perform any required cleanup prior to arrival of an EndCall event.


Note

The events (CallConnectionCleared and CallCleared) received after the CallFailed event does not include a CallStatus because, until the call has ended, it is important to preserve the fact that this is a failed call.

Syntax

C++
void OnCallFailed(Arguments& args)
COM
void OnCallFailed (IArguments * args)
VB
session_OnCallFailed (ByVal args As CtiosCLIENTLib.IArguments

Parameters

args

Arguments array containing the following fields.
Table 32. OnCallFailed Parameters

Keyword

Type

Description

EnablementMask

INT

Contains the bit mask that specifies what buttons can be enabled or disabled when this call is the current call.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

CallStatus

SHORT

The current status of the call.

OnCallHeld

Placing a call on hold at the agent's teleset can generate an OnCallHeld event. With this event the connection status becomes LCS_HELD.

Syntax

C++
void OnCallHeld(Arguments& args)
COM
void OnCallHeld (IArguments * args)
VB
session_OnCallHeld (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 33. OnCallHeld Parameters

Keyword

Type

Description

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when this call is the current call.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

CallStatus

SHORT

The current status of the call.

ICMEnterpriseUniqueID (Optional)

STRING

Required only when the call is pre-routed.

OnCallOriginated

The initiation of a call from the peripheral can generate an OnCallOriginated event. Only the connection making the call receives this event. With this event the connection status becomes LCS_INITIATE.

Syntax

C++
void OnCallOriginated(Arguments& args)
COM
void OnCallOriginated (IArguments * args)
VB
session_OnCallOriginated (ByVal args As CtiosCLIENTLib.IArguments

Parameters

args

Arguments array containing the following fields.

Table 34. OnCallOriginated Parameters

Keyword

Type

Description

ServiceNumber

INT

The service that the call is attributed to, as known to the peripheral. May contain the special value NULL_SERVICE when not applicable or not available.

ServiceID

INT

The Unified ICM ServiceID of the service that the call is attributed to. May contain the special value NULL_SERVICE when not applicable or not available.

SkillGroupNumber (Optional)

INT

The user-defined number of the agent SkillGroup the call is attributed to, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID (Optional)

INT

The system-assigned identifier of the agent SkillGroup the call is attributed to. May contain the special value NULL_SKILL_ GROUP when not applicable or not available.

SkillGroupPriority (Optional)

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

LineType

SHORT

Indicates the type of the teleset line.

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when this call is the current call.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

CallStatus

SHORT

The current status of the call.

OnCallQueuedEvent

The placing of a call in a queue pending the availability of some resource can generate an OnCallQueuedEvent message to the CTI Client. Clients with Client Events Service can receive this message when an outbound call is queued waiting for a trunk or other resource. Clients with All Events Service can also receive this message when inbound calls are queued.

Syntax

C++
void OnCallQueuedEvent(Arguments& args)
COM
void OnCallQueuedEvent (IArguments * args)
VB
session_OnCallQueuedEvent (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 35. OnCallQueuedEvent Parameters

Keyword

Type

Description

Connection DeviceID

INT

The identifier of the connection between the call and the device.

ConnectionDevice IDType

SHORT

Indicates the type of the connection identifier supplied in the ConnectionDeviceID.

QueuedDeviceID

STRING

The device identifier of the queuing device.

QueuedDeviceIDType

SHORT

Indicates the type of the device identifier supplied in the QueuedDeviceID.

CallingDeviceID

STRING

The device identifier of the calling device.

CallingDeviceIDType

SHORT

Indicates the type of the device identifier supplied in the CalledDeviceID.

CalledDeviceID

STRING

The device identifier of the called device.

CalledDeviceIDType

SHORT

Indicates the type of the device identifier supplied in the CalledDeviceID.

LastRedirectedDeviceID

STRING

The device identifier of the redirecting device.

LastRedirected DeviceIDType

SHORT

Indicates the type of the device identifier supplied in the LastRedirectDeviceID.

LocalConnection State

SHORT

The state of the local end of the connection.

EventCause

SHORT

Indicates a reason or explanation for the occurrence of the event.

LineHandle

SHORT

Identifies the teleset line being used.

LineType

SHORT

Indicates the type of the teleset line.

ServiceID

INT

The Unified ICM ServiceID of the service that the call is attributed to.

ServiceNumber

INT

The service that the call is attributed to, as known to the peripheral.

NumQueued

SHORT

The number of calls in the queue for this service.

NumSkillGroups

SHORT

The number of Skill Group queues that the call has queued to, up to a maximum of 50.

OnCallReachedNetworkEvent

The connection of an outbound call to another network can generate an OnCallReachedNetworkEvent. With some switches outside the ACD, this can be the last event the outbound connection receives. For these switches, you cannot assume that when the called party receives and answers the call that the OnCallDelivered and OnCallEstablished events is received.

Syntax

C++
void OnCallReachedNetworkEvent(Arguments& args)
COM
void OnCallReachedNetworkEvent (IArguments * args)
VB
session_OnCallReachedNetworkEvent (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 36. OnCallReachedNetworkEvent Parameters

Keyword

Type

Description

Connection DeviceID

STRING

The identifier of the connection between the call and the device.

ConnectionDevice IDType

SHORT

Indicates the type of the connection identifier supplied in the ConnectionDeviceID.

TrunkUsedDeviceID

STRING

The device identifier of the selected trunk.

TrunkUsedDeviceIDType

SHORT

Indicates the type of the device identifier supplied in the TrunkUsedDeviceID.

CalledDeviceID

STRING

The device identifier of the called device.

CalledDeviceIDType

SHORT

Indicates the type of the device identifier supplied in the CalledDeviceID.

LocalConnection State

SHORT

The state of the local end of the connection.

EventCause

SHORT

Indicates a reason or explanation for the occurrence of the event.

LineHandle

SHORT

Identifies the teleset line being used.

LineType

SHORT

Indicates the type of the teleset line.

TrunkNumber (optional)

INT

The number representing a trunk.

TrunkGroup Number (optional)

INT

The number representing a trunk group.

OnCallRetrieved

Resuming a call previously placed on hold at the agent's teleset can generate an OnCallRetrieved event. With this event the connection status becomes LCS_CONNECT.

Syntax

C++
void OnCallRetrieved(Arguments& args)
COM
void OnCallRetrieved (IArguments * args)
VB
session_OnCallRetrieved (ByVal args As CtiosCLIENTLib.IArguments

Parameters

args

Arguments array containing the following fields.

Table 37. OnCallRetrieved Parameters

Keyword

Type

Description

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when this call is the current call.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

CallStatus

SHORT

The current status of the call.

OnCallServiceInitiatedEvent

The initiation of telecommunications service ("dial tone") at the agent's teleset can generate an OnCallServiceInitiatedEvent to the CTI Client. However, when the call is made through the software, there is no way to detect the equivalent of the phone off hook. Therefore, after a call is made this event is received in sequence along with the OnCallOriginated and OnCallDelivered events. With this event the connection status becomes LCS_INITIATE.

Syntax

C++
void OnCallServiceInitiatedEvent(Arguments& args)
COM
void OnCallServiceInitiatedEvent (IArguments * args)
VB
session_OnCallServiceInitiatedEvent (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 38. OnCallServiceInitiatedEvent Parameters

Keyword

Type

Description

ServiceNumber

INT

The service that the call is attributed to, as known to the peripheral. May contain the special value NULL_SERVICE when not applicable or not available.

ServiceID

INT

The Unified ICM ServiceID of the service that the call is attributed to. May contain the special value NULL_SERVICE when not applicable or not available.

SkillGroupNumber (Optional)

INT

The optional, user-defined number of the agent SkillGroup the call is attributed to, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID (Optional)

INT

The system-assigned identifier of the agent SkillGroup the call is attributed to. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupPriority (Optional)

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

LineType

SHORT

Indicates the type of the teleset line.

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when this call is the current call.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

CallStatus

SHORT

The current status of the call.

OnCallStartRecordingConf

The OnCallStartRecordingConf event is fired to the client to indicate that the CTI server received a StartRecord request.

Syntax

C++
void OnCallStartRecordingConf (Arguments & args);
COM
HRESULT OnCallStartRecordingConf ([in] IArguments * args);
VB
Session_ OnCallStartRecordingConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 39. OnCallStartRecordingConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnCallStopRecordingConf

The OnCallStopRecordingConf event is fired to the client to indicate that a the CTI server received a StopRecord request.

Syntax

C++
void OnCallStopRecordingConf (Arguments & args);
COM
HRESULT OnCallStopRecordingConf ([in] IArguments * args);
VB
Session_ OnCallStopRecordingConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 40. OnCallStopRecordingConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnCallTransferred

The transfer of a call to another destination can generate an OnCallTransferred event. With this event the two connections at the controller's device end and the status of the connections at the original caller's device and the consulted device are unchanged.

Syntax

C++
void OnCallTransferred(Arguments& args)
COM
void OnCallTransferred (IArguments * args)
VB
session_OnCallTransferred (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 41. OnCallTransferred Parameters

Keyword

Type

Description

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the call activity occurred.

PeripheralType

SHORT

The type of the peripheral.

CallType

SHORT

The general classification of the call type.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

RouterCallKeyDay

INT

Together with the RouterCallKeyCallID field forms the unique 64-bit key for locating this call's records in the Unified ICM database. Only provided for Post-routed and Translation-routed calls.

RouterCalKeyCallID

INT

The call key created by the Unified ICM. The Unified ICM resets this counter at midnight.

ConnectionCallID

UINT

The Call ID value assigned to this call by the peripheral or the Unified ICM.

ANI (optional)

STRING

The calling line ID of the caller.

DNIS (optional)

STRING

The DNIS provided with the call.

UserToUserInfo (Optional)

STRING

The ISDN user-to-user information element. unspecified, up to 131 bytes.

DialedNumber (Optional)

STRING

The number dialed.

CallerEnteredDigits (Optional)

STRING

The digits entered by the caller in response to VRU prompting.

ServiceNumber (Optional)

INT

The service that the call is attributed to, as known to the peripheral. May contain the special value NULL_SERVICE when not applicable or not available.

ServiceID (Optional)

INT

The Unified ICM ServiceID of the service that the call is attributed to. May contain the special value NULL_SERVICE when not applicable or not available.

SkillGroupNumber (Optional)

INT

The optional, user-defined number of the agent SkillGroup the call is attributed to, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID (Optional)

INT

The system-assigned identifier of the agent SkillGroup the call is attributed to. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupPriority (Optional)

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

CallWrapupData (Optional)

STRING

Call-related wrap-up data.

CallVariable1 (Optional)

STRING

Call-related variable data.

...

STRING

...

CallVariable10 (Optional)

STRING

Call-related variable data.

CallStatus (Optional)

SHORT

The current status of the call.

ECC (optional)

ARGUMENTS

Arguments array that contains all of the Expanded Call Context variables in use; for example: user.ArrayVariable[0]user.ArrayVariable[1] ...user.ArrayVariable[n]user.ScalarVariable

CTIClients (Optional)

ARGUMENTS

Arguments array that contains the information about the number of clients that are using the Call object; for example:

CTIClient[1]

CTIClientSignatureCTIClientTimestamp

ICMEnterpriseUniqueID (Optional)

STRING

Required only when the call is pre-routed.

OnClearCallConf

The OnClearCallConf event is fired to the client to indicate that the CTI server received a Clear request.

Syntax

C++
void OnClearCallConf (Arguments & args);
COM
HRESULT OnClearCallConf ([in] IArguments * args);
VB
OnClearCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 42. OnClearCallConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnClearConnectionConf

The OnClearConnectionConf event is fired to the client to indicate that the CTI server received a ClearConnection request.

Syntax

C++
void OnClearConnectionConf (Arguments & args);
COM
HRESULT OnClearConnectionConf ([in] IArguments * args);
VB
Session_ OnClearConnectionConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 43. OnClearConnectionConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnConferenceCallConf

The OnConferenceCallConf event is fired to the client to indicate that the CTI server received a ConferenceCall or SingleStepConferenceCall request.

Syntax

C++
void OnConferenceCallConf (Arguments & args);
COM
HRESULT OnConferenceCallConf ([in] IArguments * args);
VB
Session_ OnConferenceCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 44. OnConferenceCallConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnConsultationCallConf

The OnConsultationCallConf event is fired to the client to indicate that the CTI server received a MakeConsultCall request.

Syntax

C++
void OnConsultationCallConf (Arguments & args);
COM
HRESULT OnConsultationCallConf ([in] IArguments * args);
VB
OnConsultationCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)Parameters

Parameters

args

Arguments array containing the following field.

Table 45. OnConsulationCallConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnControlFailureConf

The OnControlFailureConf event is generated when a request to the peripheral (the ACD) fails.

Syntax

C++
void OnControlFailureConf(Arguments& args)
COM
void OnControlFailureConf (IArguments * args)
VB
session_OnControlFailureConf (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 46. OnControlFailureConf Parameters

Keyword

Type

Description

PeripheralID

INT

Peripheral ID.

FailureCode

SHORT

Code ID.

PeripheralError Code

INT

Peripheral-specific error data, if available. Zero otherwise.

AgentID

STRING

Agent ID that represents a specific client.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

MessageType

INT

Contains the CTI OS Command Request ID that failed to execute. The message types included in this parameter are those to used to control Call, Agent State and Supervisor actions. For more information, see CTI OS Keywords and Enumerated Types.

ErrorMessage

STRING

String text containing the description of the failure.

OnHoldCallConf

The OnHoldCallConf event is fired to the client to indicate that the CTI server received a Hold request.

Syntax

C++
void OnHoldCallConf (Arguments & args);
COM
HRESULT OnHoldCallConf ([in] IArguments * args);
VB
Session_ OnHoldCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 47. OnHoldCallConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnMakePredictiveCallConf

Not supported.

OnReconnectCallConf

The OnReconnectCallConf event is fired to the client to indicate that the CTI server received a Reconnect request.

Syntax

C++
void OnReconnectCallConf (Arguments & args);
COM
HRESULT OnReconnectCallConf ([in] IArguments * args);
VB
OnReconnectCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 48. OnMakePredictiveCallConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnReleaseCallConf

Not supported.

OnRetrieveCallConf

The OnRetrieveCallConf event is fired to the client to indicate that the CTI server received a RetrieveCall request.

Syntax

C++
void OnRetrieveCallConf (Arguments & args);
COM
HRESULT OnRetrieveCallConf ([in] IArguments * args);
VB
Session_ OnRetrieveCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 49. OnReleaseCallConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnSendDTMFConf

The OnSendDTMFConf event is fired to the client to indicate that the CTI server received a SendDTMF request.

Syntax

C++
void OnSendDTMFConf (Arguments & args);
COM
HRESULT OnSendDTMFConf ([in] IArguments * args);
VB
Session_ OnSendDTMFConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Not used; reserved for future use.

OnSetCallDataConf

The OnSetCallDataConf event is fired to the client to indicate that the CTI server received a SetCallData request.

Syntax

C++
void OnSetCallConf (Arguments & args);
COM
HRESULT OnClearCallConf ([in] IArguments * args);
VB
OnClearCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 50. OnReleaseCallConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

OnSnapshotCallConf

The OnSnapshotCallConf event is generated when a SnapshotCall request for a specific call is successful. It contains all the information known about the specific connection at that point in time.

Syntax

C++
void OnSnapshotCallConf(Arguments& args)
COM
void OnSnapshotCallConf (IArguments * args)
VB
session_OnSnapshotCallConf (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 51. OnSnapShotCallConf Parameters

Keyword

Type

Description

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the call activity occurred.

CallType

SHORT

The general classification of the call type.

UniqueObjectID

STRING

An object ID that uniquely identifies the call object.

DialedNumber

STRING

The number dialed.

CallerEnteredDigits

STRING

The digits entered by the caller in response to VRU prompting.

CallWrapupData

STRING

Call-related wrap-up data.

CallVariable1 (Optional)

STRING

Call-related variable data.

...

STRING

...

CallVariable10 (Optional)

STRING

Call-related variable data.

CustomerPhone Number

STRING

The customer phone number associated with the call.

CustomerAccount Number

STRING

The customer account number associated with the call.

ECC

ARGUMENTS

Arguments array that contains all of the Expanded Call Context variables in use; for example: user.ArrayVariable[0]user.ArrayVariable[1] ...user.ArrayVariable[n]user.ScalarVariable

CTIClients (Optional)

ARGUMENTS

Arguments array that contains the information about the number of clients that are using the Call object; for example:

CTIClient[1]

CTIClientSignatureCTIClientTimestamp

RouterCallKeyDay

INT

Together with the RouterCallKeyCallID field forms the unique 64-bit key for locating this call's records in the Unified ICM database. Only provided for Post-routed and Translation-routed calls.

RouterCallKeyCallID

INT

The call key created by the Unified ICM. The Unified ICM resets this counter at midnight.

NumNamedVariables

SHORT

Number of Named variables.

NumNamedArrays

SHORT

Number of Named Arrays.

NumCallDevices

SHORT

Number of devices associated with the call.

CalledDeviceID

STRING

The device identifier of the called device.

ConnectionCallID

UINT

The Call ID value assigned to this call by the peripheral or the Unified ICM.

CallStatus

SHORT

The current status of the call.

The following fields appear if they have information in them.

ANI

STRING

The calling line ID of the caller.

UserToUserInfo

STRING

The ISDN user-to-user information element associated with the call.

DNIS

STRING

The DNIS provided with the call.

If the MinimizeEventArgs registry entry is set to 0, the SnapshotCallConf event contains the following additional fields.

Table 52. SnapshotCallConf Additional Fields

Keyword

Type

Description

ICMEnterpriseUnique ID

STRING

This string is a globally unique key for this contact, which corresponds to the Unified ICM 64 bit key. This parameter can be used to match this contact to a follow-on call event.

CallConnectionCallID (optional)

UINT

The CallID value assigned to the call.

CallConnectionDeviceID Type (optional)

SHORT

Indicates the type of the connection identifier supplied in the following CallConnectionDeviceID floating field. This field always immediately follows the corresponding CallConnectionCallID field.

CallConnectionDeviceID (optional)

STRING

The identifier of the call connection. This field always immediately follows the corresponding CallConnectionDeviceIDType field.

CallDeviceConnection State

SHORT

The active state of the call. This field always immediately follows the corresponding CallConnection DeviceID field.

CallDeviceType

SHORT

Indicates the type of the device identifier supplied in the CallDeviceID field.

OnTransferCallConf

The OnTransferCallConf event is fired to the client to indicate that the CTI server received a TransferCall or SingleStepTransferCall request.

Syntax

C++
void OnTransferCallConf (Arguments & args);
COM
HRESULT OnTransferCallConf ([in] IArguments * args);
VB
Session_ OnTransferCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following field.

Table 53. OnTransferCallConf Parameters

Keyword

Type

Description

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

IAgentEvents Interface

The Agent object fires events on the IAgentEvents interface. The following events are published to subscribers of the IAgentEvents interface.

OnAgentDeskSettingsConf

The OnAgentDeskSettingsConf event confirms successful completion of the request and provides the query response.

Syntax

C++
void OnAgentDeskSettings(Arguments& args)
COM
void OnAgentDeskSettings (IArguments * args)
VB
session_OnAgentDeskSettings (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 54. OnAgentDeskSettingsConf Parameters

Keyword

Type

Description

InvokeID

UINT

Set to the same value as the InvokeID from the corresponding request message.

PeripheralID

UINT

The Unified ICM PeripheralID of the ACD where the device is located.

DeskSettingsMask

UINT

A bitwise combination of the Boolean desk setting Masks listed in the table below.

WrapupData IncomingMode

UINT

Indicates whether the agent is allowed or required to enter wrap-up data after an inbound call: 0 = Required, 1 = Optional, 2 = Not allowed, 3 = Required With WrapupData.

WrapupData OutgoingMode

UINT

Indicates whether the agent is allowed or required to enter wrap-up data after an outbound call: 0 = Required, 1 = Optional, 2 = Not allowed.

LogoutNon ActivityTime

UINT

Number of seconds of non-activity at the desktop after which the Unified ICM automatically logs out the agent.

QualityRecordingRate

UINT

Indicates how frequently calls to the agent are recorded.

RingNoAnswer Time

UINT

Number of seconds a call can ring at the agent's station before being redirected.

SilentMonitor WarningMessage

UINT

Set for a warning message box to prompt on agent desktop when silent monitor starts.

SilentMonitor AudibleIndication

UINT

Set for an audio click at beginning of the silent monitor.

SupervisorAssist CallMethod

UINT

Set for PIM to create a blind conference call for supervisor assist request; otherwise creates consultative call.

EmergencyCall Method

UINT

Set for PIM to create a blind conference call for emergency call request; otherwise creates a consultative call.

AutoRecordOn Emergency

UINT

Set for automatically record when emergency call request.

RecordingMode

UINT

Set for the recording request to go through Call Manager/PIM.

WorkModeTimer

UINT

Auto Wrap-up time out.

RingNoAnswer DN

UINT

The dialed number identifier for new re-route destination in the case of ring no answer.

Table 55. DeskSettingsMasks values

Mask Name

Description

Numeric Value

DESK_AVAIL_AFTER_ INCOMING_MASK

Set for automatically consider the agent available after handling an incoming call.

0x00000001

DESK_AVAIL_AFTER_OUTGOING_MASK

Set for automatically consider the agent available after handling an outbound call.

0x00000002

DESK_AUTO_ ANSWER_ENABLED_ MASK

Set when calls to the agent are automatically answered.

0x00000004

DESK_IDLE_REASON_REQUIRED_MASK

Set when the agent must enter a reason before entering the Idle state.

0x00000008

DESK_LOGOUT_ REASON_REQUIRED_MASK

Set when the agent must enter a reason before logging out.

0x00000010

DESK_SUPERVISOR_ CALLS_ALLOWED_MASK

Set when the agent can initiate supervisor assisted calls.

0x00000020

DESK_AGENT_TO_ AGENT_CALLS_ ALLOWED

Set when calls to other agents are allowed.

0x00000040

DESK_OUTBOUND_ACCESS_INTERNATIONAL_MASK

Set when the agent can initiate international calls.

0x00000080

DESK_OUTBOUND_ACCESS_PUBLIC_NET_MASK

Set when the agent can initiate calls through the public network.

0x00000100

DESK_OUTBOUND_ACCESS_PRIVATE_NET_MASK

Set when the agent can initiate calls through the private network.

0x00000200

DESK_OUTBOUND_ACCESS_OPERATOR_ASSISTED_MASK

Set when the agent can initiate operator assisted calls.

0x00000400

DESK_OUTBOUND_ACCESS_PBX_MASK

Set when the agent can initiate outbound PBX calls.

0x00000800

DESK_NON_ACD_CALLS_ALLOWED_MASK

Set when the agent can place or handle non-ACD calls.

0x00001000

DESK_AGENT_CAN_SELECT_GROUP_MASK

Set when the agent can select which groups they are logged into.

0x00002000

OnAgentGreetingControlConf

The OnAgentGreetingControlConf event confirms the successful completion of the SetAgentGreetingAction request.

Syntax

C++
void OnAgentGreetingControlConf(Arguments& args)
COM
void OnAgentGreetingControlConf (IArguments * args)
VB
session_OnAgentGreetingControlConf (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 56. OnAgentIGreetingControlConfEvent Parameters

Keyword

Type

Description

MessageHeader

MHDR

Standard Message Header.

InvokeID

UINT

Set to the same value as the InvokeID from the corresponding request message.

OnAgentInfoEvent

The OnAgentInfoEvent event is generated as a response to a query to the Agent Name Lookup Service and carries the agent's name. The CTI OS server generates this query when it is configured to do agent name lookup. The OnAgentInfoEvent event is sent to the client if the server obtained the information.

Syntax

C++
void OnAgentInfoEvent(Arguments& args)
COM
void OnAgentInfoEvent (IArguments * args)
VB
session_OnAgentInfoEvent (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.
Table 57. OnAgentInfoEvent Parameters

Keyword

Type

Description

UniqueObjectID

STRING

A unique object ID for the Agent object.

AgentLastName

STRING

Agent's last name.

AgentFirstName

STRING

Agent's first name.

OnAgentStateChange

The OnAgentStateChange event is generated when the agent state at the ACD changes. This can be as a response to a Login, Logout, or SetAgentState request.

Syntax

C++
void OnAgentStateChange(Arguments& args)
COM
void OnAgentStateChange (IArguments * args)
VB
session_OnAgentStateChange (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 58. OnAgentIStateChange Parameters

Keyword

Type

Description

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the agent state change occurred.

PeripheralType

SHORT

The type of the peripheral.

AgentState

SHORT

One of the values in Table 2 representing the current overall state of the associated agent.

SkillGroupNumber

INT

The optional, user-defined number of the agent SkillGroup affected by the state change, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID

INT

The system-assigned identifier of the agent SkillGroup affected by the state change. May contain the special value NULL_SKILL_ GROUP when not applicable or not available.

StateDuration

INT

The number of seconds since the agent entered this state (typically 0).

SkillGroupPriority

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

EventReasonCode

SHORT

A peripheral-specific code indicating the reason for the state change.

SkillGroupState

SHORT

Values representing the current state of the associated agent with respect to the indicated Agent Skill Group.

AgentID

STRING

The agent's ACD login ID.

AgentExtension

STRING

The agent's ACD teleset extension.

CTIClientSignature (Optional)

STRING

The Client Signature of the CTI Client that is associated with this agent.

Enablement Mask

Contains the bit-mask that specifies what buttons can be enabled or disabled when the agent is on this state.

UniqueObjectID

STRING

A unique object ID for the Agent object.

AgentInstrument

STRING

The agent's ACD instrument number.

The following table provides the AgentState values.

Table 59. AgentState values

enum Value

Description

Numeric Value

eLogin

The agent has logged on to the ACD. It does not necessarily indicate that the agent is ready to accept calls.

0

eLogout

The agent has logged out of the ACD and cannot accept any additional calls.

1

eNotReady

The agent is unavailable for any call work.

2

eAvailable

The agent is ready to accept a call.

3

eTalking

The agent is currently talking on a call (inbound, outbound, or inside).

4

eWorkNotReady

The agent is performing after call work, but will not be ready to receive a call when completed.

5

eWorkReady

The agent is performing after call work, and will be ready to receive a call when completed.

6

eBusyOther

The agent is busy performing a task associated with another active SkillGroup.

7

eReserved

The agent is reserved for a call that will arrive at the ACD shortly.

8

eUnknown

The agent state is currently unknown.

9

eHold

The agent currently has all calls on hold.

10


Note

Not all switches support all the states listed in the above table, and you should not make any assumptions about which states are supported on a particular switch without verification.

OnAgentStatistics

The OnAgentStatistics event is fired to the client to indicate that the CTI server received a request to enable agent statistics (via the EnableAgentStatistics method). The arrival of events event is determined by the configuration on the server.

The table under Parameters details all the agent statistics that can be received. To optimize bandwidth, the default configuration on the server is set to minimize the agent statistics sent. Only the statistics that the Agent Statistics grid is configured for are sent to the client. For more information about on how to configure the agent statistics grid and minimize agent statistics, see CTI OS System Manager's Guide for Cisco Unified ICM/Contact Center Enterprise & Hosted.

Syntax

C++
void OnAgentStatistics (Arguments & args);
COM
HRESULT OnAgentStatistics ([in] IArguments * args);
VB
Session_ OnAgentStatistics (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 60. OnAgentStatistics Parameters

Keyword

Description

Type

PeripheralID

The Unified ICM PeripheralID of the ACD where the agent is located.

INT

AgentExtension (required)

The agent's ACD teleset extension.

STRING

AgentID (required)

The agent's ACD login ID.

STRING

AgentInstrument (required)

The agent's ACD instrument number.

STRING

The OnAgentStatistics event contains all the agent statistics fields necessary to display the statistics configured on the CTI OS server.

OnChatMessage

The OnChatMessage event is generated when an asynchronous text message is received from another user (agent).

Syntax

C++
void OnChatMessage(Arguments& args)
COM
void OnChatMessage (IArguments * args)
VB
session_OnChatMessage (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 61. OnChatMessage Parameters

Keyword

Type

Description

Distribution

STRING

Currently the only supported value is "agent".

AgentID

STRING

The AgentID of the message target.

Target

STRING

The AgentID of the message target.

Message

STRING

The text message provided by the sender.

Source

STRING

The AgentID of the message sender.

OnControlFailureConf

The OnControlFailureConf event is generated when the previously issued request, identified by the InvokeID field failed. It is sent in place of the corresponding confirmation message for that request.

Syntax

C++
void OnControlFailureConf(Arguments& args)
COM
void OnControlFailureConf (IArguments * args)
VB
session_OnControlFailureConf (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.
Table 62. OnControlFailureConf Parameters

Keyword

Type

Description

InvokeID

INT

InvokeID of the request that failed

FailureCode

SHORT

A value specifying the reason that the request failed. For a list of the Control Failure Code see the table below.

PeripheralError Code

INT

Peripheral-specific error data, if available. Zero otherwise.

AgentID

STRING

Agent ID that represents a specific client.

UniqueObjectID

STRING

An object ID that uniquely identifies the Call object.

MessageType

INT

Contains the CTI OS Command Request ID that failed to execute. The message types included in this parameter are those to used to control Call, Agent State and Supervisor actions. For more information, see CTI OS Keywords and Enumerated Types.

ErrorMessage

STRING

String text containing the description of the failure.

Table 63. Control Failure Codes

Status Code

Description

Value

E_CTI_NO_ERROR

No error occurred.

0

E_CTI_INVALID_ VERSION

The CTI Server does not support the protocol version number requested by the CTI client.

1

E_CTI_INVALID_ MESSAGE_ TYPE

A message with an invalid message type field was received.

2

E_CTI_INVALID_ FIELD_TAG

A message with an invalid floating field tag was received.

3

E_CTI_SESSION_ NOT_OPEN

No session is currently open on the connection.

4

E_CTI_SESSION_ ALREADY_ OPEN

A session is already open on the connection.

5

E_CTI_REQUIRED_ DATA_ MISSING

The request did not include one or more floating items that are required.

6

E_CTI_INVALID_ PERIPHERAL_ID

A message with an invalid PeripheralID value was received.

7

E_CTI_INVALID_ AGENT_ DATA

The provided agent data items are invalid.

8

E_CTI_AGENT_NOT_ LOGGED_ON

The indicated agent is not currently logged in.

9

E_CTI_DEVICE_IN_ USE

The indicated agent teleset is already associated with a different CTI client.

10

E_CTI_NEW_ SESSION_ OPENED

This session is being terminated due to a new session open request from the client.

11

E_CTI_FUNCTION_ NOT_ AVAILABLE

A request message was received for a function or service that was not granted to the client.

12

E_CTI_INVALID_ CALLID

A request message was received with an invalid CallID value.

13

E_CTI_PROTECTED_ VARIABLE

The CTI client cannot update the requested variable.

14

E_CTI_CTI_SERVER_ OFFLINE

The CTI Server cannot function normally. The CTI client closes the session upon receipt of this error.

15

E_CTI_TIMEOUT

The CTI Server failed to respond to a request message within the time-out period, or no messages were received from the CTI client within the IdleTimeout period.

16

E_CTI_UNSPECIFIED_FAILURE

An unspecified error occurred.

17

E_CTI_INVALID_ TIMEOUT

The IdleTimeout field contains a value that is less than 20 seconds (4 times the minimum heartbeat interval of 5 seconds).

18

E_CTI_INVALID_ SERVICE_MASK

The ServicesRequested field has unused bits set. All unused bit positions must be zero.

19

E_CTI_INVALID_ CALL_MSG_MASK

The CallMsgMask field has unused bits set. All unused bit positions must be zero.

20

E_CTI_INVALID_ AGENT_ STATE_ MASK

The AgentStateMask field has unused bits set. All unused bit positions must be zero.

21

E_CTI_INVALID_ RESERVED_ FIELD

A Reserved field has a non-zero value.

22

E_CTI_INVALID_ FIELD_ LENGTH

A floating field exceeds the allowable length for that field type.

23

E_CTI_INVALID_ DIGITS

A STRING field contains characters that are not digits ("0" through "9").

24

E_CTI_BAD_ MESSAGE_ FORMAT

The message is improperly constructed. This can be caused by omitted or incorrectly sized fixed message fields.

25

E_CTI_INVALID_ TAG_FOR_MSG_ TYPE

A floating field tag is present that specifies a field that does not belong in this message type.

26

E_CTI_INVALID_ DEVICE_ID_ TYPE

A DeviceIDType field contains an invalid value.

27

E_CTI_INVALID_ LCL_CONN_ STATE

A LocalConnectionState field contains an invalid value.

28

E_CTI_INVALID_ EVENT_ CAUSE

An EventCause field contains an invalid value.

29

E_CTI_INVALID_ NUM_ PARTIES

The NumParties field contains a value that exceeds the maximum (16).

30

E_CTI_INVALID_ SYS_ EVENT_ID

The SystemEventID field contains an invalid value.

31

E_CTI_ INCONSISTENT_ AGENT_DATA

The provided agent extension, agent ID, and/or agent instrument values are inconsistent with each other.

32

E_CTI_INVALID_ CONNECTION_ID_ TYPE

A ConnectionDeviceIDType field contains an invalid value.

33

E_CTI_INVALID_ CALL_TYPE

The CallType field contains an invalid value.

34

E_CTI_NOT_CALL_ PARTY

A CallDataUpdate or Release Call request specified a call that the client is not a party to.

35

E_CTI_INVALID_ PASSWORD

The ClientID and Client Password provided in an OPEN_REQ message is incorrect.

36

E_CTI_CLIENT_ DISCONNECTED

The client TCP/IP connection was disconnected without a CLOSE_REQ.

37

E_CTI_INVALID_ OBJECT_ STATE

An invalid object state value was provided.

38

E_CTI_INVALID_ NUM_ SKILL_GROUPS

An invalid NumSkillGroups value was provided.

39

E_CTI_INVALID_ NUM_LINES

An invalid NumLines value was provided.

40

E_CTI_INVALID_ LINE_TYPE

An invalid LineType value was provided.

41

E_CTI_INVALID_ ALLOCATION_STATE

An invalid AllocationState value was provided.

42

E_CTI_INVALID_ ANSWERING_ MACHINE

An invalid AnsweringMachine value was provided.

43

E_CTI_INVALID_ CALL_MANNER_ TYPE

An invalid CallMannerType value was provided.

44

E_CTI_INVALID_ CALL_PLACEMENT_ TYPE

An invalid CallPlacementType value was provided.

45

E_CTI_INVALID_ CONSULT_ TYPE

An invalid ConsultType value was provided.

46

E_CTI_INVALID_ FACILITY_ TYPE

An invalid FacilityType value was provided.

47

E_CTI_INVALID_ MSG_TYPE_ FOR_ VERSION

The provided MessageType is invalid for the opened protocol version.

48

E_CTI_INVALID_ TAG_FOR_ VERSION

A floating field tag value is invalid for the opened protocol version.

49

E_CTI_INVALID_ AGENT_WORK_ MODE

An invalid AgentWorkMode value was provided.

50

E_CTI_INVALID_ CALL_OPTION

An invalid call option value was provided.

51

E_CTI_INVALID_ DESTINATION_ COUNTRY

An invalid destination country value was provided.

52

E_CTI_INVALID_ ANSWER_DETECT_ MODE

An invalid answer detect mode value was provided.

53

E_CTI_MUTUALLY_ EXCLUS_DEVICEID_ TYPES

A peripheral monitor request cannot specify both a call and a device.

54

E_CTI_INVALID_ MONITORID

An invalid monitorID value was provided.

55

E_CTI_SESSION_ MONITOR_ ALREADY_EXISTS

A requested session monitor was already created.

56

E_CTI_SESSION_ MONITOR_IS_ CLIENTS

A client may not monitor its own session.

57

E_CTI_INVALID_ CALL_CONTROL_ MASK

An invalid call control mask value was provided.

58

E_CTI_INVALID_ FEATURE_MASK

An invalid feature mask value was provided.

59

E_CTI_INVALID_ TRANSFER_ CONFERENCE_ SETUP_MASK

An invalid transfer conference setup mask value was provided.

60

E_CTI_INVALID_ ARRAY_INDEX

An invalid named array index value was provided.

61

E_CTI_INVALID_ CHARACTER

An invalid character value was provided.

62

E_CTI_CLIENT_NOT_FOUND

There is no open session with a matching ClientID.

63

E_CTI_SUPERVISOR_NOT_FOUND

The agent's supervisor is unknown or does not have an open CTI session.

64

E_CTI_TEAM_NOT_ FOUND

The agent is not a member of an agent team.

65

E_CTI_NO_CALL_ ACTIVE

The specified agent does not have an active call.

66

E_CTI_NAMED_ VARIABLE_NOT_ CONFIGURED

The specified named variable is not configured in the Unified ICM database.

67

E_CTI_NAMED_ ARRAY_NOT_ CONFIGURED

The specified named array is not configured in the Unified ICM database.

68

E_CTI_INVALID_ CALL_VARIABLE_ MASK

The specified call variable mask in not valid.

69

E_CTI_ELEMENT_ NOT_FOUND

An internal error occurred manipulating a named variable or named array element.

70

E_CTI_INVALID_ DISTRIBUTION_TYPE

The specified distribution type is invalid.

71

E_CTI_INVALID_ SKILL_GROUP

The specified skill group is invalid.

72

E_CTI_TOO_MUCH_ DATA

The total combined size of named variables and named arrays cannot exceed the limit of 2000 bytes.

73

E_CTI_VALUE_TOO_LONG

The value of the specified named variable or named array element exceeds the maximum permissible length.

74

E_CTI_SCALAR_ FUNCTION_ON_ ARRAY

A NamedArray was specified with a NamedVariable tag.

75

E_CTI_ARRAY_ FUNCTION_ON_ SCALAR

A NamedVariable was specified with a NamedArray tag.

76

E_CTI_INVALID_ NUM_NAMED_ VARIABLES

The value in the NumNamedVariables field is different than the number of NamedVariable floating fields in the message.

77

E_CTI_INVALID_ NUM_NAMED_ ARRAYS

The value in the NumNamedArrays field is different than the number of NamedArray floating fields in the message.

78

OnEmergencyCall

The OnEmergencyCall event indicates that a CTI client (with Supervisory capabilities) is handling the indicated call as an emergency call. This event only applies to ACDs with Supervisor capabilities.

Syntax

C++
void OnEmergencyCall(Arguments& args)
COM
void OnEmergencyCall (IArguments * args)
VB
session_OnEmergencyCall (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 64. OnEmergencyCall Parameters

Keyword

Type

Description

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the call is located.

Connection CallID

INT

The Call ID value assigned to the call by the peripheral or the Unified ICM.

ConnectionDevice IDType

SHORT

Indicates the type of the connection identifier supplied in the ConnectionDeviceID floating field.

SessionID

INT

The CTI client SessionID of the CTI client making the notification.

Connection DeviceID

INT

The identifier of the connection between the call and the agent's device.

ClientID (required)

STRING

The ClientID of the client making the notification.

ClientAddress (Required)

STRING

The IP address of the client making the notification.

AgentExtension (Required)

STRING

The agent's teleset extension.

AgentID (required)

STRING

The agent's ACD login ID.

AgentInstrument (required)

STRING

The agent's ACD instrument number.

Remarks

Supported for use with Unified CCE only.

OnLogoutFailed

The OnLogoutFailed is always generated before (or with) an OnControlFailureConf event and is identical to it but is generated only when a Logout request fails.

Syntax


C++:  void OnLogoutFailed (Arguments& args)
COM:  void OnLogoutFailed (IArguments * args)
VB:   session_OnLogoutFailed (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.
Table 65. OnLogoutFailed Parameters

Keyword

Type

Description

InvokeID

INT

InvokeID of the request that failed.

FailureCode

SHORT

A value specifying the reason that the request failed. For a list of the Control Failure Codes see Table 1.

Peripheral ErrorCode

INT

Peripheral-specific error data, if available. Zero otherwise.

OnMakeCallConf

The OnMakeCallConf event confirms the successful completion of the MakeCall request. It conveys the information detailed in the table under Parameters.

Syntax

C++
C++: int OnMakeCallConf (Arguments & args);
COM
HRESULT OnMakeCallConf ([in] IArguments * args);
VB
Session_ OnMakeCallConf (ByVal args as CTIOSCLIENTLIB.IArguments)
Java
void OnMakeCallConf (Arguments args);

Parameters

args

Arguments array containing the following fields.
Table 66. OnMakeCallConf Parameters

Keyword

Description

Type

NewConnectionCallID

The Call ID value assigned to the call by the peripheral or the Unified ICM.

UINT

NewConnectionDevice IDType

Indicates the type of the connection identifier supplied in the New ConnectionDeviceID floating field.

SHORT

LineHandle

Identifies the teleset line used, if known. Otherwise this field is set to 0xffff.

SHORT

LineType

Indicates the type of the teleset line given in the LineHandle field.

SHORT

NewConnectionDeviceID (required)

The identifier of the connection between the call and the device.

STRING

OnNewAgentTeamMember

The OnNewAgentTeamMember event informs the supervisor about a new agent team member. The event is typically received in response to a RequestAgentTeamList request from the supervisor object. It is also received when CTI OS Server receives an AGENT_TEAM_CONFIG_EVENT indicating a change in agent team configuration (add/remove).

Syntax

C++
void OnNewAgentTeamMember (Arguments& args)
COM
void OnNewAgentTeamMember (IArguments * args)
VB
session_OnNewAgentTeamMember (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array that can contain the following fields. Not all fields are always returned. Skillgroup and AgentInstrument are not returned if the agent is not logged in.
Table 67. OnNewAgentTeamMember Parameters

Keyword

Type

Description

PeripheralID

STRING

The Unified ICM PeripheralID of the agent's ACD.

UniqueObjectID

STRING

Unique object ID of the Agent object for this agent.

AgentState

SHORT

One of the values in Table 2 representing the current state of the associated agent.

NumSkillGroups

INT

The number of skill groups that the agent is currently associated with, up to a maximum of 99.

AgentID

STRING

Agent's ACD login.

AgentExtension

STRING

Agent's ACD teleset extension.

AgentInstrument

STRING

Agent's ACD instrument number.

AgentLastName

STRING

Agent's last name.

AgentFirstName

STRING

Agent's first name.

AgentName

STRING

Agent's full name.

AgentAvailability Status

SHORT

The current status of the agent's availability to take a call.

EventReasonCode

SHORT

A peripheral-specific code indicating the reason for the change in agent state to NotReady.

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when the agent is on the state specified in the AgentState field.

SupervisorID

STRING

The ID of the agent's supervisor.

AgentFlags

INT

Used to describe the agent carried in this event. The possible values for this field as well as their meanings are as follows:

  • TeamMemberFlags.AGENT_FLAG_REGULAR_AGENT - Value is 0. The agent is a regular agent.
  • TeamMemberFlags.AGENT_FLAG_PRIMARY_SUPERVISOR - Value is 1. The agent is a primary supervisor.
  • TeamMemberFlags.AGENT_FLAG_TEMPORARY_AGENT - Value is 2. The agent is a temporary agent.
  • TeamMemberFlags.AGENT_FLAG_SUPERVISOR - Value is 4. The agent is a supervisor.

Skillgroup[1}

ARGUMENTS

Arguments array containing information about the agent's first skillgroup. The array contains the following arguments:

  • SkillGroupNumber
  • SkillGroupID
  • StateDuration
  • SkillGroupPriority

Skillgroup[n]

ARGUMENTS

Arguments array containing information about the agent's nth skillgroup.

ConfigOperation

USHORT

Used to describe a change to the team. The possible values for this field as well as their meanings are as follows:

  • TeamMemberFlags.CONFIG_OPERATION_ADD_AGENT - Value is 1 - The agent belongs to the team.
  • TeamMemberFlags.CONFIG_OPERATION_REMOVE_AGENT - Value is 2 - The agent no longer belongs to the team.

OnPostLogout

The OnPostLogout event is generated after the agent has logged out. Arrival of this event guarantees that the agent state event signalling the agent's transition to logout state was received and handled by all interested event listeners.

Syntax

C++
void OnPostLogout(Arguments& args)
COM
void OnPostLogout (IArguments * args)
VB
session_OnPostLogout (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 68. OnPostLogout Parameters

Keyword

Type

Description

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the agent state change occurred.

PeripheralType

SHORT

The type of the peripheral.

AgentState

SHORT

One of the values in Table 2 representing the current overall state of the associated agent.

SkillGroupNumber

INT

The optional, user-defined number of the agent SkillGroup affected by the state change, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID

INT

The system-assigned identifier of the agent SkillGroup affected by the state change. May contain the special value NULL_SKILL_ GROUP when not applicable or not available.

StateDuration

INT

The number of seconds since the agent entered this state (typically 0).

SkillGroupPriority

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

EventReasonCode

SHORT

A peripheral-specific code indicating the reason for the state change.

SkillGroupState

SHORT

Values representing the current state of the associated agent with respect to the indicated Agent Skill Group.

AgentID

STRING

The agent's ACD login ID.

AgentExtension

STRING

The agent's ACD teleset extension.

CTIClientSignature (Optional)

STRING

The Client Signature of the CTI Client that is associated with this agent.

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when the agent is on this state.

UniqueObjectID

STRING

A unique object ID for the Agent object.

AgentInstrument

STRING

The agent's ACD instrument number.

Remarks

When PG failover occurs, the client application can receive an OnPostLogout event with an EventReasonCode of CTIOS_FORCED_LOGOUT_REASON_CODE. For example, this can happen on an Unified CCE system after reconnecting to a different server during a failover, because there is a race condition of the PG logging the agent out and the client reconnecting to the other server before it happens. If this happens, the client application should not disconnect from CTI OS Server.

OnPreLogout

The OnPreLogout event just before the agent is logged out. It allows for any cleanup or logic that needs to be done before logout is completed.

Syntax

C++
void OnPreLogout(Arguments& args)
COM
void OnPreLogout (IArguments * args)
VB
session_OnPreLogout (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 69. OnPreLogout Parameters

Keyword

Type

Description

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the agent state change occurred.

PeripheralType

SHORT

The type of the peripheral.

AgentState

SHORT

One of the values in Table 2 representing the current overall state of the associated agent.

SkillGroupNumber

INT

The optional, user-defined number of the agent SkillGroup affected by the state change, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID

INT

The system-assigned identifier of the agent SkillGroup affected by the state change. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

StateDuration

INT

The number of seconds since the agent entered this state (typically 0).

SkillGroupPriority

SHORT

The priority of the skill group, or 0 when skill group priority is not applicable or not available.

EventReasonCode

SHORT

A peripheral-specific code indicating the reason for the state change.

SkillGroupState

SHORT

Values representing the current state of the associated agent with respect to the indicated Agent Skill Group.

AgentID

STRING

The agent's ACD login ID.

AgentExtension

STRING

The agent's ACD teleset extension.

CTIClientSignature (Optional)

STRING

The Client Signature of the CTI Client that is associated with this agent.

Enablement Mask

Contains the bit-mask that specifies what buttons can be enabled or disabled when the agent is on this state.

UniqueObjectID

STRING

A unique object ID for the Agent object.

AgentInstrument

STRING

The agent's ACD instrument number.

OnQueryAgentStateConf

The OnQueryAgentStateConf event is generated and returned by the server at login as a response to the QueryAgentState() request. A user cannot issue this request.

Syntax

C++
void OnQueryAgentStateConf(Arguments& args)
COM
void OnQueryAgentStateConf (IArguments * args)
VB
session_OnQueryAgentStateConf (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 70. OnQueryAgentStateConf Parameters

Keyword

Type

Description

AgentID

STRING

Agent's ACD login.

AgentExtension

STRING

Agent's ACD teleset extension.

AgentInstrument

STRING

Agent's ACD instrument number.

AgentState

SHORT

One of the values in Table 2 representing the current state of the associated agent.

NumSkillGroups

INT

The number of skill groups that the agent is currently associated with, up to a maximum of 20.

SkillGroup[j]

ARGUMENTS

Argument array that contains Skill Group information for the j-th element less than NumSkillGroups. The message contains NumSkillGroups elements of this type.

MRDID

INT

Media Routing Domain ID as configured in Unified ICM and the ARM client.

NumTasks

INT

The number of tasks currently assigned to the agent—this is the number that Unified ICM compares to the MaxTaskLimit to decide if the agent is available to be assigned additional tasks. This includes active tasks as well as those that are offered, paused, and in wrapup.

AgentMode

SHORT

The mode that the agent is not in when the login completes. ROUTABLE = 0, NOT ROUTABLE = 1

MaxTaskLimit

INT

The maximum number of tasks that the agent can simultaneously work on.

ICMAgentID

INT

The Unified ICM Skill Target ID, a unique agent identifier for Unified ICM.

Agent Availability Status

INT

An agent is available to work on a task in this Media Routing Domain if the agent meets all of these conditions:

  • The agent is routable for this Media Routing Domain.

  • The agent is not in Not Ready state for skill groups in other Media Routing Domain.

  • The agent is temp routable, meaning that the agent is not in Reserved, Active, Work-Ready, or Work-Not Ready state on a non-interruptible task in another Media Routing Domain.

  • The agent has not reached the maximum task limit for this Media Routing Domain.

An available agent is eligible to be assigned a task. Who can assign a task to the agent is determined by whether or not the agent is Routable.

An agent is ICMAvailable in MRD X if he is available in X and Routable with respect to X. An agent is ApplicationAvailable in MRD X if he is available in X and not Routable with respect to X. Otherwise an agent is NotAvailable in MRD X.

NOT AVAILABLE = 0,

ICM AVAILABLE = 1,

APPLICATION AVAILABLE=2

Each SkillGroup[j] field in the message contains the following information.

Table 71. SkillGroup Parameters

Keyword

Type

Description

SkillGroupNumber

INT

The optional, user-defined number of an agent SkillGroup queue that the call was added to, as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not applicable or not available.

SkillGroupID

INT

The system-assigned identifier of the agent SkillGroup the call is attributed to. May contain the special value NULL_SKILL_GROUP when not applicable or available.

SkillGroupPriority

SHORT

The priority of the skill group, or 0 when the skill group priority is not applicable or not available.

SkillGroupState

SHORT

One of the values representing the current state associated agent with respect to the skill group.

OnSetAgentModeEvent

The OnSetAgentModeEvent event indicates that the client made a successful AgentMode connection.

Syntax

C++
void OnSetAgentModeEvent (Arguments& args)
COM
void OnSetAgentModeEvent (IArguments * args)
VB
Session_OnSetAgentModeEvent (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 72. OnSetAgentModeEven Parameters

Keyword

Type

Description

PeripheralID

STRING

ID of the Unified ICM Peripheral ACD associated with the agent.

AgentID

STRING

The agent's ID.

UniqueObject ID

STRING

The new unique object ID for the Agent object.

ClientAgent TemporaryID

STRING

Temporary ID used before server passes the new unique object ID.

CIL ConnectionID

STRING

ID of the client's connection on the server.

StatusSystem

ARGUMENTS

Arguments array containing the following elements:

  • StatusCTIServer
  • StatusCtiServerDriver
  • StatusCentralController
  • StatusPeripherals (Arguments array with a peripheral ID for each key and a boolean true/false value indicating if that peripheral is online.)

OnSetAgentStateConf

The OnSetAgentStateConf confirmation message is fired to the client to indicate that the CTI server received the SetAgentState request. This confirmation message does not indicate that the agent has changed to the desired state; rather, the programmer should expect one or more OnAgentStateChange events to indicate the change of state.

Syntax

C++
int OnSetAgentStateConf (Arguments & args);
COM
HRESULT OnSetAgentStateConf ([out] IArguments * args);
VB
Session_ OnSetAgentStateConf (ByVal args as CTIOSCLIENTLIB.IArguments)
Java
void OnSetAgentStateConf (Arguments args);

Parameters

args

Not used; reserved for future use.

OnStartMonitoringAgent

The OnStartMonitoringAgent event is generated when a new agent is selected to be monitored in response to a StartMonitoringAgent() request.

Syntax

C++
void OnStartMonitoringAgent (Arguments& args)
COM
void OnStartMonitoringAgent (IArguments * args)
VB
session_OnStartMonitoringAgent (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 73. OnStartMonitoringAgent Parameters

Keyword

Type

Description

UniqueObjectID

STRING

Unique object ID for the supervisor object.

AgentReference

STRING

String containing the Agent ID for the agent to be monitored.

SupervisorID

STRING

String containing the supervisor's AgentID.

SupervisorKey

STRING

Supervisor's unique object ID.

BargedInCallID

STRING

If the supervisor has barged in on the agent's call, the unique object ID of that call.

Supervisor AgentState

STRING

The supervisor's agent state.

Remarks

This is a Supervisor specific event. It is supported for use with Unified CCE only.

OnStopMonitoringAgent

The OnStopMonitoringAgent event is generated when monitoring of an agent is dropped in response to a StopMonitoringAgent() request.

Syntax

C++
void OnStopMonitoringAgent (Arguments& args)
COM
void OnStopMonitoringAgent (IArguments * args)
VB
session_OnStopMonitoringAgent (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 74. OnStopMonitoringAgent Parameters

Keyword

Type

Description

UniqueObjectID

STRING

Unique object ID for the supervisor object.

AgentReference

STRING

String containing the Agent ID for the agent to be monitored.

SupervisorID

STRING

String containing the supervisor's AgentID.

SupervisorKey

STRING

Supervisor's unique object ID.

BargedInCallID

STRING

If the supervisor has barged in on the agent's call, the unique object ID of that call.

Supervisor AgentState

STRING

The supervisor's agent state.

Remarks

This is a Supervisor specific event. It is supported for use with Unified CCE only.

OnUserMessageConf

Not supported.

ISkillGroupEvents Interface

The SkillGroup object fires events on the ISkillGroupEvents interface. The following events are published to subscribers of the ISkillGroupEvents interface.

OnSkillGroupStatisticsUpdated

The OnSkillGroupStatisticsUpdated event is generated when skill group statistics are reported. You can connfigure the update frequency of OnSkillGroupStatisticsUpdated on the CTI OS server (for more information, see CTI OS System Manager's Guide for Cisco Unified ICM/Contact Center Enterprise & Hosted).

Syntax

C++
void OnSkillGroupStatisticsUpdated (Arguments& args)
COM
void OnSkillGroupStatisticsUpdated (IArguments * args)
VB
skillgroup_ OnSkillGroupStatisticsUpdated (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 75. OnSkillGroupStatisticsUpdated Parameters

Keyword

Type

Description

PeripheralID

INT

The Unified ICM PeripheralID of the ACD on which the agent resides.

SkillGroupNumber

INT

The optional, user-defined number of the agent skill group as known to the peripheral. May contain the special value NULL_SKILL_GROUP when not available.

SkillGroupID

INT

The system-assigned identifier of the skill group. May contain the special value NULL_SKILL_GROUP when not available.

The statistics event also contains all the statistics fields listed in Table 1 in a nested Arguments array named STATISTICS.

OnSkillInfoEvent

Provides information about a particular skill group. This event is sent to any client that has enabled skill group statistics.

Syntax

C++
void OnSkillInfoEvent(Arguments& args)
COM
void OnSkillInfoEvent(IArguments * args)
VB
skillgroup_OnSkillInfoEvent(ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 76. OnSkillInfoEVent Parameters

Keyword

Type

Description

SkillGroupNumber

INT

Skill group number.

SkillGroupName

STRING

Skill group name associated with the skill group number above.

IButtonEnablementEvents

This interface allows a client application to receive events that indicate what buttons you can enable on the user interface, given the current agent and current call states.

OnButtonEnablementChange

The OnButtonEnablementChange event is received by a client in agent mode whenever CIL receives an agent or call event that carries the EnablementMask field in its parameters. This event allows the client application to enable or disable elements on the user interface. The fields in the event are the same as in OnButtonEnablementChange.

C++
void OnButtonEnablementChange (Arguments& args)
COM
void OnButtonEnablementChange (IArguments * args)
VB
session_ OnButtonEnablementChange (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 77. OnButtonEnablementChange Parameters

Keyword

Type

Description

EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when this call is the current call. For more information, see the table below.

UniqueObjectID

STRING

ID of the object (for example, agent, call) that the event is meant for.

MessageID

INT

The event that triggered the button enablement change.


Note

The following table represents the C++/COM/VB enumerations. Enumerations for Java are in the description of CtiOs_Enums.ButtonEnablement in the Javadoc. Reference bits by the enumeration rather than the actual number in the bit mask.

Table 78. Table of Enablement Bits

Button

Bit Mask

DISABLE_ALL

0x00400000

ENABLE_ANSWER

0X00000001

ENABLE_RELEASE

0X00000002

ENABLE_HOLD

0X00000004

ENABLE_RETRIEVE

0X00000008

ENABLE_MAKECALL

0X00000010

ENABLE_TRANSFER_INIT

0X00000020

ENABLE_TRANSFER_COMPLETE

0X00000040

ENABLE_SINGLE_STEP_TRANSFER

0X00000080

ENABLE_CONFERENCE_INIT

0X00000100

ENABLE_CONFERENCE_COMPLETE

0X00000200

ENABLE_SINGLE_STEP_ CONFERENCE

0X00000400

ENABLE_ALTERNATE

0X00000800

ENABLE_RECONNECT

0X00001000

ENABLE_WRAPUP

0X00002000

ENABLE_INSIDE_MAKECALL

0X00004000

ENABLE_OUTSIDE_MAKECALL

0X00008000

ENABLE_SUPERVISOR_ASSIST

0X00010000

ENABLE_EMERGENCY_CALL

0X00020000

ENABLE_BAD_LINE_CALL

0X00040000

ENABLE_STATISTICS

0X00080000

ENABLE_CHAT

0X00100000

ENABLE_RECORD

0X00200000

ENABLE_LOGIN

0X01000000

ENABLE_LOGOUT

0X02000000

ENABLE_LOGOUT_WITH_REASON

0x04000000

ENABLE_READY

0X08000000

ENABLE_NOTREADY

0X10000000

ENABLE_NOTREADY_WITH_ REASON

0X20000000

ENABLE_WORKREADY

0X40000000

ENABLE_WORKNOTREADY

0x80000000

DISABLE_READY

0xF7FFFFFF

DISABLE_NOTREADY

0xCFFFFFFF

DISABLE_WORKREADY

0xBFFFFFFF

Supervisor Button Enablement Masks

ENABLE_SET_AGENT_LOGOUT

0x00000001

ENABLE_SET_AGENT_READY

0x00000002

ENABLE_SILENTMONITOR

0x00000004

ENABLE_BARGE_IN

0x00000004

ENABLE_INTERCEPT

0x00000008

ENABLE_CLEAR

0x00000010

ENABLE_START_SILENTMONITOR

0x00000020

ENABLE_STOP_SILENTMONITOR

0x00000040

DISABLE_SET_AGENT_LOGOUT

0xFFFFFFFE

DISABLE_SET_AGENT_READY

0xFFFFFFFD

DISABLE_SILENTMONITOR

0xFFFFFFFB

DISABLE_BARGE_IN

0xFFFFFFFB

DISABLE_INTERCEPT

0xFFFFFFF7

DISABLE_CLEAR

0xFFFFFFEF

DISABLE_START_SILENTMONITOR

0xFFFFFFDF

DISABLE_STOP_SILENTMONITOR

0xFFFFFFBF

DISABLE_SUPERVISE_CALL

DISABLE_BARGE_IN & DISABLE_INTERCEPT & DISABLE_CLEAR & DISABLE_SILENTMONITOR & DISABLE_START_SILENTMONITOR & DISABLE_STOP_SILENTMONITOR

DISABLE_SET_AGENT_STATE

DISABLE_SET_AGENT_ LOGOUT, DISABLE_SET_ AGENT_READY

DISABLE_ALL_AGENT_SELECT

DISABLE_BARGE_IN & DISABLE_INTERCEPT & DISABLE_CLEAR & DISABLE_SILENTMONITOR & DISABLE_START_SILENTMONITOR & DISABLE_STOP_SILENTMONITOR

OnSupervisorButtonChange

A client in agent mode working as supervisor receives the OnSupervisorButtonChange event whenever CIL receives a Monitored Agent, Monitored call event that carries the SupervisorBtnEnablementMask field in its parameters. This event allows the client application to enable or disable elements on the user interface. The fields in the event are the same as in OnButtonEnablementChange.

C++
void OnSupervisorButtonChange (Arguments& args)
COM
void OnSupervisorButtonChange (IArguments * args)
VB
session_ OnSupervisorButtonChange (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 79. OnSupervisorButtonChange Parameters

Keyword

Type

Description

SupervisorBtn EnablementMask

INT

Contains the bit-mask that specifies what buttons can be enabled or disabled when this call is the current call. For more information, see Table 2.

Remarks

Supported for use with Unified CCE only.

IMonitoredAgentEvents Interface


Note

The events in this section are supported for use with Unified CCE only.

This interface fires Agent events to a supervisor for his team members. IMonitoredAgentEvents are triggered by the supervisor sending a StartMonitoringAllAgentTeams request (for more information, see Agent Object). For more information about the event parameters, see the IAgentEvents interface.

The most common event handled is the OnMonitoredAgentStateChange event, which informs a supervisor of agent state changes of agents in the supervisor's team. All the parameters are the same as the regular OnAgentStateChange events, except for an additional keyword called CTIOS_MONITORED, which indicates that this event is for a monitored agent.

List of Monitored Agent events:

OnMonitoredAgentStateChange([in] IArguments *pIArguments);

OnMonitoredAgentInfoEvent([in] IArguments *pIArguments);

IMonitoredCallEvents Interface


Note

The events in this section are supported with Unified CCE only.

This interface fires Call events to a supervisor for one of his agent team members. When the supervisor sends a StartMonitoringAgent request (for more information, see Agent Object), the supervisor starts receiving MonitoredCallEvents for this "currently" monitored agent. Monitored call events are received until the supervisor sends a StopMonitoringAgent request for this agent.

The IMonitoredCallEvents interface includes OnMonitoredCallBegin, OnMonitoredCallEnd, and OnMonitoredCallDataUpdate as well as other call events (see list below). These events are described in detail for the ICallEventsInterface. The only difference is that the Arguments array contains an additional keyword call CTIOS_MONITORED, indicating that this event is for a monitored call.

List of Monitored Call events:

OnMonitoredCallBegin([in] IArguments *pIArguments);

OnMonitoredCallEnd([in] IArguments *pIArguments);

OnMonitoredCallDataUpdate([in] IArguments *pIArguments);

OnMonitoredCallDelivered([in] IArguments *pIArguments);

OnMonitoredCallEstablished([in] IArguments *pIArguments);

OnMonitoredCallHeld([in] IArguments *pIArguments);

OnMonitoredCallRetrieved([in] IArguments *pIArguments);

OnMonitoredCallCleared([in] IArguments *pIArguments);

OnMonitoredCallConnectionCleared([in] IArguments *pIArguments);

MonitoredCallReachedNetworkEvent([in] IArguments *pIArguments);

OnMonitoredCallOriginated([in] IArguments *pIArguments);

OnMonitoredCallFailed([in] IArguments *pIArguments);

OnMonitoredCallTransferred([in] IArguments *pIArguments);

OnMonitoredCallConferenced([in] IArguments *pIArguments);

OnMonitoredCallDiverted([in] IArguments *pIArguments);

OnMonitoredTranslationRoute([in] IArguments *pIArguments);

OnMonitoredCallAgentPrecallEvent([in] IArguments *pIArguments);

OnMonitoredCallAgentPrecallAbortEvent([in] IArguments *pIArguments);

MonitoredCallServiceInitiatedEvent([in] IArguments *pIArguments);

MonitoredCallQueuedEvent([in] IArguments *pIArguments);

MonitoredCallDequeuedEvent([in] IArguments *pIArguments);

ISilentMonitorEvents

The silent monitor manager object fires events on the ISilentMonitorEvents interface. The following events are published to subscribers of the ISilentMonitorEvents interface.


Note

The events in this section are supported with Unified CCE only.

Note

The following events apply only to CTI OS based silent monitor unless noted otherwise.

OnCallRTPStarted

The OnCallRTPStarted event indicates that an RTP media stream has started. This event accompanies the Call object in an Unified CCE environment.

Syntax

C++
void OnCallRTPStarted(Arguments& args)
COM
void OnCallRTPStarted (IArguments * args)
VB
session_OnCallRTPStarted (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 80. OnCallRTPStarted Parameters

Keyword

Type

Description

MonitorID

UINT

The Monitor ID of the device or call monitor that caused this message to be sent to the client, or zero if there is no monitor associated with the event (All Events Service).

PeripheralID

UINT

The Unified ICM PeripheralID of the ACD where the device is located.

ClientPort

UINT

The TCP/IP port number of the CTI Client connection.

Direction

USHORT

The direction of the event. One of the following values:

0: Input;

1: Output;

2: Bi-directional.

RTPType

USHORT

The type of the event. One of the following values:

0: Audio;

1: Video;

2: Data.

BitRate

UINT

The media bit rate, used for g.723 payload only.

EchoCancellation

USHORT

on/off.

PacketSize

UINT

In milliseconds.

PayloadType

USHORT

The audio codec type.

ConnectionDevice IDType

USHORT

Indicates the type of the connection identifier supplied in the ConnectionDeviceID floating field.

ConnectionCallID

UINT

The Call ID value assigned to this call by the peripheral or Unified ICM.

Connection DeviceID

STRING

The identifier of the connection between the call and the device.

ClientAddress

STRING

The IP address of the phone.

AgentID (optional)

STRING

The agent's ACD login ID.

AgentExtension (optional)

STRING

The agent's ACD teleset extension.

AgentInstrument (optional)

STRING

The agent's ACD instrument number.

OnCallRTPStopped

The OnCallRTPStopped event indicates that an RTP media has stopped. This event accompanies the Call object in an Unified CCE environment.

Syntax

C++
void OnCallRTPStopped(Arguments& args)
COM
void OnCallRTPStopped (IArguments * args)
VB
session_OnCallRTPStopped (ByVal args As CtiosCLIENTLib.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 81. OnCallRTPStopped Parameters

Keyword

Type

Description

MonitorID

UINT

The Monitor ID of the device or call monitor that caused this message to be sent to the client, or zero if there is no monitor associated with the event (All Events Service).

PeripheralID

UINT

The Unified ICM PeripheralID of the ACD where the device is located.

ClientPort

UINT

The TCP/IP port number of the CTI Client connection.

Direction

USHORT

The direction of the event. One of the following values:

0: Input;

1: Output;

2: Bi-directional.

RTPType

USHORT

The type of the event. One of the following values:

0: Audio;

1: Video;

2: Data.

BitRate

UINT

The media bit rate, used for g.723 payload only.

EchoCancellation

USHORT

on/off.

PacketSize

UINT

In milliseconds.

PayloadType

USHORT

The audio codec type.

ConnectionDevice IDType

USHORT

Indicates the type of the connection identifier supplied in the ConnectionDeviceID floating field.

ConnectionCallID

UINT

The Call ID value assigned to this call by the peripheral or Unified ICM.

Connection DeviceID

STRING

The identifier of the connection between the call and the device.

ClientAddress

STRING

The IP address of the phone.

AgentID (optional)

STRING

The agent's ACD login ID.

AgentExtension (optional)

STRING

The agent's ACD teleset extension.

AgentInstrument (optional)

STRING

The agent's ACD instrument number.

OnStartSilentMonitorConf

The OnStartSilentMonitorConf event is sent to the monitoring application to indicate that the CTI OS server has processed a StartSilentMonitorRequest.

Syntax

C++
void OnStartSilentMonitorConf (Arguments & args);
COM
HRESULT OnStartSilentMonitorConf ([in] Arguments* args);
VB
Session_ OnStartSilentMonitorConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 82. OnStartSilentMonitorConf Parameters

Keyword

Type

Description

MonitoredUniqueObjectID

STRING

Unique Object ID of the object being monitored.

AgentID

STRING

Agent ID of the agent to be monitored. This message contains either AgentID or DeviceID, but not both.

DeviceID

STRING

Device ID of the agent to be monitored. This message contains either AgentID or DeviceID, but not both.

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the silent monitor start was requested.

MonitoringIPAddress

STRING

TCP/IP address of the monitoring application.

MonitoringIPPort

INT

TCP/IP port of the monitoring application.

SMSessionKey

UNSIGNED SHORT

Unique identifier for the Silent Monitor Session.

HeartbeatInterval

INT

Heartbeat interval for the silent monitor session.

HeartbeatTimeout

INT

Timeout for no activity.

OriginatingServerID

STRING

TCP/IP Address:Port of the CTI OS server from which the request originated.

OriginatingClientID

STRING

Client Identification of the monitoring application.

OnSilentMonitorStartedEvent

For CTI OS Based Silent Monitor

The OnSilentMonitorStartedEvent event is fired to the subscriber to indicate that a silent monitor session has started on its behalf and that audio transmission to the monitoring client has started.

Syntax
C++
void OnSilentMonitorStartedEvent(Arguments & args);
COM
HRESULT OnSilentMonitorStartedEvent([in] Arguments* args);
VB
Session_ OnSilentMonitorStartedEvent(ByVal args as CTIOSCLIENTLIB.IArguments)
Parameters

args

Arguments array containing the following fields.

Table 83. OnSilentMonitorStartedEvent Parameters

Keyword

Type

Description

MonitoredUniqueObjectID

STRING

Unique Object ID of the object being monitored.

AgentID

STRING

Agent ID of the agent to be monitored. This message contains either AgentID or DeviceID, but not both.

DeviceID

STRING

Device ID of the agent to be monitored. This message contains either AgentID or DeviceID, but not both.

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where silent monitoring started.

MonitoringIPAddress

STRING

TCP/IP address of the monitoring application.

MonitoringIPPort

INT

TCP/IP port of the monitoring application.

SMSessionKey

UNSIGNED SHORT

Unique identifier for the Silent Monitor Session.

HeartbeatInterval

INT

Heartbeat interval for the silent monitor session.

HeartbeatTimeout

INT

Timeout for no activity.

OriginatingServerID

STRING

TCP/IP Address: Port of the CTI OS server from which the request originated.

OriginatingClientID

STRING

Client Identification of the monitoring application.

For CCM-Based Silent Monitor

When you configure CCM based silent monitor, this event tells the monitored application, for example an agent desktop, that it is being monitored. This event, in addition to call events for the silent monitor call, tells the monitoring application, for example a supervisor desktop, that silent monitor of the agent has begun.


Note

At failover, the desktop can receive multiple OnSilentMonitorStartedEvents.

Syntax
C++
void OnSilentMonitorStartedEvent(Arguments & args);
COM
HRESULT OnSilentMonitorStartedEvent([in] Arguments* args);
VB
Session_ OnSilentMonitorStartedEvent(ByVal args as CTIOSCLIENTLIB.IArguments)
Parameters

args

Arguments array containing the following fields.

Table 84. OnSilentMonitorStartedEvent

Keyword

Type

Description

SilentMonitorInitiatingAgentUID

STRING

Unique object ID of the agent that initiated silent monitor.

SilentMonitorInitiatingDeviceID

STRING

ID of the device that initiated silent monitor.

SilentMonitorTargetAgentUID

STRING

Unique object ID of the silently monitored agent.

SilentMonitorTargetDeviceID

STRING

ID of the silently monitored device.

SilentMonitorCallUID

STRING

Unique object ID of the silent monitor call.

OnSilentMonitorStartRequestedEvent

The OnSilentMonitorStartRequestedEvent event is fired to the subscriber to indicate that a silent monitor session request has arrived and that it will be established on its behalf if the DoDefaultMessageHandling parameter is set to True. The default behavior is to start sending audio and establish the session automatically. If the subscriber wishes to process the event by itself, they must set the DoDefaultMessageHandling parameter to False and invoke AcceptSilentMonitoring when it is ready to start the session and call ReportSMSessionStatus to the monitoring client.

CTI OS server generates this event whenever a remote application calls the StartSilentMonitorRequest method.

Syntax

C++
void OnSilentMonitorStartRequestedEvent(Arguments & args);
COM
HRESULT OnSilentMonitorStartRequestedEvent([in] Arguments* args);
VB
Session_ OnSilentMonitorStartRequestedEvent(ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 85. OnSilentMonitorStartRequestedEvent Parameters

Keyword

Type

Description

MonitoredUniqueObjectID

STRING

Unique Object ID of the object being monitored.

AgentID

STRING

Agent ID of the agent to be monitored. This message contains either AgentID or DeviceID, but not both.

DeviceID

STRING

Device ID of the agent to be monitored. This message contains either AgentID or DeviceID, but not both.

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the silent monitor start was requested.

MonitoringIPAddress

STRING

TCP/IP address of the monitoring application.

MonitoringIPPort

INT

TCP/IP port of the monitoring application.

SMSessionKey

UNSIGNED SHORT

Unique identifier for the Silent Monitor Session.

HeartbeatInterval

INT

Heartbeat interval for the silent monitor session.

HeartbeatTimeout

INT

Timeout for no activity.

OriginatingServerID

STRING

TCP/IP Address: Port of the CTI OS server from which the request originated.

OriginatingClientID

STRING

Client Identification of the monitoring application.

DoDefaultMessage Handling

BOOLEAN

When this parameter is set to True, it instructs the SilentMonitorManager to immediately start sending audio and establish the silent monitor session. If this parameter is set to False, it instructs the SilentMonitorManager to not send voice and to not establish the silent monitor session. In this case, it is the responsibility of the subscriber to report this status accordingly.

OnSilentMonitorSessionDisconnected

The OnSilentMonitorSessionDisconnected event is sent to the application to report errors if the connection fails between the monitoring and monitored clients.

Syntax

C++
void OnSilentMonitorSessionDisconnected (Arguments & args);
COM
HRESULT OnSilentMonitorSessionDisconnected ([in] Arguments* args);
VB
Session_ OnSilentMonitorSessionDisconnected (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 86. OnSilentMonitorSessionDisconnected Parameters

Keyword

Type

Description

MonitoredUniqueObjectID

STRING

Unique Object ID of the object being monitored.

SMSessionKey

UNSIGNED SHORT

Unique identifier for the Silent Monitor Session.

StatusCode

SHORT

One of the ISilentMonitorEvent status codes in Table 2.

OnSilentMonitorStopRequestedEvent

For CTI OS Based Silent Monitor

The OnSilentMonitorStopRequestedEvent event is fired to the subscriber to indicate that a silent monitor session was stopped on their behalf. CTI OS server generates this event whenever a remote application calls the StopSilentMonitorRequest method.

Syntax
C++
void OnSilentMonitorStopRequestedEvent(Arguments & args);
COM
HRESULT OnSilentMonitorStopRequestedEvent([in] Arguments* args);
VB
Session_ OnSilentMonitorStopRequestedEvent(ByVal args as CTIOSCLIENTLIB.IArguments)
Parameters

args

Arguments array containing the following fields.

Table 87. OnSilentMonitorStopRequestedEvent Parameters

Keyword

Type

Description

MonitoredUniqueObjectID

STRING

Unique Object ID of the object being monitored.

AgentID

STRING

Agent ID of the agent to be monitored. This message contains either AgentID or DeviceID, but not both.

DeviceID

STRING

Device ID of the agent to be monitored. This message contains either AgentID or DeviceID, but not both.

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where silent monitoring has stopped.

MonitoringIPAddress

STRING

TCP/IP address of the monitoring application.

SMSessionKey

UNSIGNED SHORT

Unique identifier for the Silent Monitor Session.

OriginatingServerID

STRING

TCP/IP Address:Port of the CTI OS server from which the request originated.

OriginatingClientID

STRING

Client Identification of the monitoring application.

For CCM-Based Silent Monitor

When CCM based silent monitor is configured this event tells the monitored application, for example an agent desktop, that it is no longer being monitored. This event in addition to call events for the silent monitor call tells the monitoring application, for example a supervisor desktop, that silent monitor of the agent has ended.

If an error occurs, the Disposition field is set to the error returned in OnControlFailure.

Syntax
C++
void OnSilentMonitorStopRequestedEvent(Arguments & args);
COM
HRESULT OnSilentMonitorStopRequestedEvent([in] Arguments* args);
VB
Session_ OnSilentMonitorStopRequestedEvent(ByVal args as CTIOSCLIENTLIB.IArguments)
Parameters

args

Arguments array containing the following fields.

Table 88. OnSilentMonitorStopRequestedEvent Parameters

Keyword

Type

Description

SilentMonitorInitiatingAgentUID

STRING

Unique object ID of the agent that initiated silent monitor.

SilentMonitorInitiatingDeviceID

STRING

ID of the device that initiated silent monitor.

SilentMonitorTargetAgentUID

STRING

Unique object ID of the silently monitored agent.

SilentMonitorTargetDeviceID

STRING

ID of the silently monitored device.

SilentMonitorCallUID

STRING

Unique object ID of the silent monitor call.

SilentMonitorCallDisposition

unsigned int

If the silent monitor session failed, the event cause carried by the call failed event is stored here.

If the silent monitor session was either terminated by the supervisor or the agent's call ended, this field is set to 0.

OnSilentMonitorStatusReportEvent

The OnSilentMonitorStatusReportEvent event indicates a change in status of a silent monitor session. This event is sent only to the monitoring application.

Syntax

C++
void OnSilentMonitorStatusReportEvent (Arguments & args);
COM
HRESULT OnSilentMonitorStatusReportEvent ([in] Arguments* args);
VB
Session_ OnSilentMonitorStatusReportEvent (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 89. OnSilentMonitorStatusReportEvent Parameters

Keyword

Type

Description

MonitoredUniqueObjectID

STRING

Unique Object ID of the object being monitored.

SMSessionKey

UNSIGNED SHORT

Unique identifier for the Silent Monitor Session.

StatusCode

SHORT

One of the ISilentMonitorEvent status codes in Table 2.

OriginatingServerID

STRING

TCP/IP Address:Port of the CTI OS server from which the request originated.

OriginatingClientID

STRING

Client Identification of the monitoring application.

TargetCILClientID

STRING

CIL Client ID of the monitoring application.

Table 90. ISilentMonitorEvent Status Codes

enum Value

Numeric Value (Hex)

General Codes

eSMStatusUnknown

-1

eSMStatusOK

0

eSMStatusFailed

0x00000001

eSMStatusComError

0x00000002

eSMStatusMonitorStarted

0x00000003

eSMStatusMonitorStopped

0x00000004

eSMStatusHeartbeatTimeout

0x00000005

eSMStatusOutOfMemory

0x00000006

eSMStatusPortUnavailable

0x00000007

eSMStatusIncorrectStateForThisAction

0x00000008

eSMStatusResourceError

0x00000009

eSMStatusRejectedBadParameter

0x0000000A

eSMStatusWinsockError

0x0000000B

eSMStatusMediaTerminationNotPresent

0x0000000C

eSMStatusIPPhoneInformatioNotAvailable

0x0000000D

eSMStatusMissingParameter

0x0000000E

eSMStatusSessionNotFound

0x0000000F

eSMStatusSessionAlreadyExists

0x00000010

eSMStatusDisconnected

0x00000011

eSMStatusInvalidStateForAction

0x00000012

eSMStatusInProgress

0x00000013

eSMStatusMaxSessionsExceeded

0x00000014

eSMStatusCCMSilentMonitor

0x00000015

Silent Monitor Session Codes

eSMStatusSessionTerminatedAbnormally

0x10000000

eSMStatusRejectedAlreadyInSession

0x10000001

eSMStatusRejectedWinPcapNotPresent

0x10000002

eSMStatusWinPcapError

0x10000003

eSMStatusMediaUnknownCodec

0x10000004

eSMStatusIncorrectSessionMode

0x10000005

eSMStatusPeerSilentMonitorNotEnabled

0x10000006

eSMStatusSilentMonitorNotEnabled

0x10000007

eSMStatusNoResponseFromPeer

0x10000008

eSMStatusPeerLoggedOut

0x10000009

eSMStatusSessionTerminatedByMonitoredClient

0x1000000A

eSMStatusSessionTerminatedByMonitoringClient

0x1000000B

eSMStatusNoRTPPacketsReceivedFormIPPhone

0x1000000C

eSMStatusSessionConnectionToDelegateLost

0x1000000D

eSMStatusMTError

0x20000000

Voice Capture-Specific Codes

eSMStatusWPNoPacketsReceived

0x30000000

eSMStatusWPFailedToOpenDevice

0x30000001

eSMStatusWPFailedToSetFilterExp

0x30000002

eSMStatusWPErrorInFilterExp

0x30000003

OnStopSilentMonitorConf

This OnStopSilentMonitorConf event is sent to the monitoring application to indicate that the CTI OS server has processed a StopSilentMonitorRequest.

Syntax

C++
void OnStopSilentMonitorConf (Arguments & args);
COM
HRESULT OnStopSilentMonitorConf ([in] Arguments* args);
VB
Session_ OnStopSilentMonitorConf (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 91. OnStopSilentMonitorConf Parameters

Keyword

Type

Description

MonitoredUniqueObjectID

STRING

Unique Object ID of the object being monitored.

AgentID

STRING

Agent ID of the agent to be monitored. This message contains either AgentID or DeviceID, but not both.

DeviceID

STRING

Device ID of the agent to be monitored. This message contains either AgentID or DeviceID, but not both.

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where the silent monitor start was requested.

MonitoringIPAddress

STRING

TCP/IP address of the monitoring application.

MonitoringIPPort

INT

TCP/IP port of the monitoring application.

SMSessionKey

UNSIGNED SHORT

Unique identifier for the Silent Monitor Session.

HeartbeatInterval

INT

Heartbeat interval for the silent monitor session.

HeartbeatTimeout

INT

Timeout for no activity.

OriginatingServerID

STRING

TCP/IP Address:Port of the CTI OS server from which the request originated.

OriginatingClientID

STRING

Client Identification of the monitoring application.

Keyword

Type

Description

MonitoredUniqueObjectID

STRING

Unique Object ID of the object being monitored.

AgentID

STRING

Agent ID of the agent who was monitored. This message contains either AgentID or DeviceID, but not both.

DeviceID

STRING

Device ID of the agent who was monitored. This message contains either AgentID or DeviceID, but not both.

PeripheralID

INT

The Unified ICM PeripheralID of the ACD where silent monitoring has stopped.

MonitoringIPAddress

STRING

TCP/IP address of the monitoring application.

SMSessionKey

UNSIGNED SHORT

Unique identifier for the Silent Monitor Session.

OriginatingServerID

STRING

TCP/IP Address:Port of the CTI OS server from which the request originated.

OriginatingClientID

STRING

Client Identification of the monitoring application.

OnRTPStreamTimedoutEvent

The OnRTPStreamTimedoutEvent event is sent to the monitored application to report that no RTP voice packets were received from the monitored IP Phone.

Syntax

C++
void OnRTPStreamTimedoutEvent (Arguments & args);
COM
HRESULT OnRTPStreamTimedoutEvent ([in] Arguments* args);
VB
Session_ OnRTPStreamTimedoutEvent (ByVal args as CTIOSCLIENTLIB.IArguments)

Parameters

args

Arguments array containing the following fields.

Table 92. OnRTPStreamlinedEvent Parameters

Keyword

Type

Description

MonitoredUniqueObjectID

STRING

Unique Object ID of the object being monitored.

SMSessionKey

UNSIGNED SHORT

Unique identifier for the Silent Monitor Session.

StatusCode

SHORT

One of the ISilentMonitorEvent status codes in Table 2.

IGenericEvents Interface

The IGenericEvents interface receives Generic events. Unlike other interfaces that have a callback method for each event, the IGenericEvents interface has one method that passes the CtiOs_Enums.EventID code and the Arguments for the event.

OnEvent

Passes the eventID code and arguments for generic events received by the IGenericEvents interface.

Syntax

Java
void OnEvent(int iEventID, Arguments rArgs
.NET
void OnEvent(int iEventID, Cisco.CtiOs.Cil.EventPublisher.EventPublisherEventArgs args)

Java Adapter Classes

The CTI OS Java CIL contains the same adapter classes as the C++ CIL plus the LogEventsAdapter class. This class provides the default implementation for the message handlers in ILogEvents.

This section lists the methods available in the CTI OS Java CIL for event subscription and unsubscription.

IAllInOne

The following methods subscribe and unsubscribe the CTI OS Session Object for the IAllInOne interface:

Methods

  • int addAllInOneEventListener(IAllInOne allInOneEvents)
  • int removeAllInOneEventListener(IAllInOne allInOneEvents)

IAgentEvents

The following methods subscribe and unsubscribe the CTI OS Session Object for the IAgentEventsinterface:

Methods

  • int addAgentEventListener(IAgentEvents agentEvents)
  • int removeAgentEventListener(IAgentEvents agentEvents)

IButtonEnablementEvents

The following methods subscribe and unsubscribe the CTI OS Session Object for the IButtonEnablementEvents interface:

Methods

  • int addButtonEnablementEventListener(IButtonEnablementEvents buttonEvents)
  • int removeButtonEnablementEventListener(IButtonEnablementEvents buttonEvents)

ICallEvents

The following methods subscribe and unsubscribe the CTI OS Session Object for the ICallEvents interface:

Methods

  • int addCallEventListener (ICallEvents callEvents)
  • int removeCallEventListener (ICallEvents callEvents)

ISkillGroupEvents

The following methods subscribe and unsubscribe the CTI OS Session Object for the ISkillGrouEvents interface:

Methods

  • int addSkillGroupEventListener (ISkillGroupEvents skillGroupEvents)
  • int removeSkillGroupEventListener (ISkillGroupEvents skillGroupEvents)

Events in Java CIL

To subscribe for events in the Java CIL, use the AddEventListener method. This method has the following syntax:

int AddEventListener(IGenericEvents Listener, int iListID)

where Listener is the IGenericEvents object that subscribes for events and iListID is the ID of the subscriber list to add this listener to. Java subscriber list IDs are part of the CtiOs_Enums.SubscriberList interface; each C++/COM/VB event interface has a corresponding Java subscriber list (for example, C++/COM/VB ISessionEvents corresponds to Java eSessionList). For more information about the CtiOs_Enums.SubscriberList interface, see the Javadoc file.

The IGenericEvents interface, though it contains the C++/COM/VB events documented in this chapter, does not have a callback method for each event. Instead, the OnEvent method passes the event ID code and arguments for each event. The OnEvent method has the following syntax:

void OnEvent(int iEventID, Arguments rArgs)

where iEventID is the event ID code for the event and rArgs is the arguments for the event. The arguments for each Java event are the same as for the corresponding C++/COM/VB event. For more information about the IGenericEvents interface, see the Javadoc file.

To unsubscribe for events in the Java CIL, use the RemoveEventListener method. This method has the following syntax:

int RemoveEventListener(IGenericEvents Listener, int iListID)

where Listener is the IGenericEvents object that is unsubscribing for events and iListID is the ID of the subscriber list to remove this listener from.

Events in .NET CIL

To subscribe for events in the .NET CIL, use the AddEventListener method. This method has the following syntax:

CilError AddEventListener(IGenericEvents Listener, int iListID)

where Listener is the IGenericEvents object that subscribes for events and iListID is the ID of the subscriber list to add this listener to. Subscriber list IDs for .NET are part of the CtiOs_Enums.SubscriberList interface; each C++/COM/VB event interface has a corresponding .NET subscriber list (for example, C++/COM/VB ISessionEvents corresponds to .NET eSessionList).

The IGenericEvents interface, though it contains the C++/COM/VB events documented in this chapter, does not have a callback method for each event. Instead, the OnEvent method passes the event ID code and arguments for each event. The OnEvent method has the following syntax:

void OnEvent(Object sender, Cisco.CtiOs.Cil.EventPublisher.EventPublisherEventArgs eventArgs)

where, sender is a null object and eventArgs contains the eventID and arguments for the event. The arguments for each .NET event are the same as for the corresponding C++/COM/VB event.

The EventPublisherEventArgs class is a data type that defines the information passed to receivers of the event. This information includes the event ID and an Arguments array containing the arguments for the event. Therefore, event handling code must extract the event arguments from the EventPublisherEventArgs object as shown in the following sample code snippet, which uses the .NET CIL:

Arguments args = eventArgs.rArgs;EventID receivedEvent = (EventID) eventArgs.iEventID;
switch(receivedEvent)
{
case EventID.eQueryAgentStatisticsConf:
ProcessQueryConf(args);
break;
...
}

To unsubscribe for events in the .NET CIL, use the RemoveEventListener method.

This method has the following syntax:

CilError RemoveEventListener(IGenericEvents Listener, int iListID)

where Listener is the IGenericEvents object that is unsubscribing for events and iListID is the ID of the subscriber list from which to remove this listener.

Event Parameters

Amount of Nonessential Call Object Parameters

The MinimizeEventArgs registry value controls the amount of nonessential Call object parameters that are sent to the client. When MinimizeEventArgs is set to 1, a minimal set of nonessential Call object parameters are sent to the CTI OS Client. When the MinimizeEventArgs registry value is set to 0, the CTI OS server sends to CTI OS Clients the event parameters listed in Table 6-90.

The MinimizeEventArgs value is located under the following registry key:

HKEY_LOCAL_MACHINE\SOFTWARE\Cisco Systems, Inc.\Ctios\<Customer-Instancename>\CTIOS1\Server\CallObject
Table 93. MinimizeEventArgs Event Parameters

Event Name

Parameters

eCallRetrievedEvent

CTIOS_RETRIEVINGDEVICEID

CTIOS_RETRIEVINGDEVICEIDFULL

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_CALLSTATUS*

CTIOS_FILTERTARGET**

eCallHeldEvent

CTIOS_HOLDINGDEVICEID

CTIOS_HOLDINGDEVICEIDFULL

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eCallConnectionClearedEvent

CTIOS_RELEASINGDEVICEID

CTIOS_RELEASINGDEVICEIDFULL

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eCallTransferredEvent

CTIOS_PRIMARYCALLID

CTIOS_SECONDARYCALLID

CTIOS_TRANSFERRINGDEVICEID

CTIOS_TRANSFERRINGDEVICEIDFULL

CTIOS_TRANSFERREDDEVICEID

CTIOS_TRANSFERREDDEVICEIDFULL

CTIOS_NUMPARTIES

ConnectedParty[PartyNumber]

CTIOS_ISTRANSFERCONTROLLER

GenerateCallDataUpdateArgs()***

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eCallConferencedEvent

CTIOS_PRIMARYCALLID

CTIOS_SECONDARYCALLID

CTIOS_CONTROLLERDEVICEID

CTIOS_CONTROLLERDEVICEIDFULL

CTIOS_ADDEDPARTYDEVICEID

CTIOS_ADDEDPARTYDEVICEIDFULL

CTIOS_PRIMARYDEVICEID

CTIOS_PRIMARYDEVICEIDFULL

CTIOS_SECONDARYDEVICEID

CTIOS_SECONDARYDEVICEIDFULL

CTIOS_NUMPARTIES

ConnectedParty[PartyNumber]

GenerateCallDataUpdateArgs()***

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eCallBeginEvent,

eCallDataUpdateEvent

GenerateCallDataUpdateArgs()***

CTIOS_DEVICEID

CTIOS_DIVERTINGDEVICEID

CTIOS_DIVERTINGDEVICEIDFULL

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eCallDivertedEvent

GenerateCallDataUpdateArgs()***

CTIOS_DIVERTINGDEVICEID

CTIOS_DIVERTINGDEVICEIDFULL

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eSnapshotCallConf

Includes all the parameters except for:

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_CALLCONNECTIONCALLID

CTIOS_CALLCONNECTIONDEVICEIDTYPE

CTIOS_CALLCONNECTIONDEVICEID

CTIOS_CALLDEVICECONNECTIONSTATE

CTIOS_CALLDEVICETYPE

eCallEstablishedEvent

CTIOS_ANSWERINGDEVICEID

CTIOS_ANSWERINGDEVICEIDFULL

CTIOS_CALLINGDEVICEID

CTIOS_CALLINGDEVICEIDFULL

CTIOS_CALLEDDEVICEID

CTIOS_CALLEDDEVICEIDFULL

CTIOS_SKILLGROUPID

CTIOS_SKILLGROUPNUMBER

CTIOS_SKILLGROUPPRIORITY

CTIOS_SERVICEID

CTIOS_SERVICENUMBER

CTIOS_LINETYPE

CTIOS_MEASUREDCALLQTIME

CTIOS_CAMPAIGNID

CTIOS_QUERYRULEID

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eCallDeliveredEvent

CTIOS_ALERTINGDEVICEID

CTIOS_ALERTINGDEVICEIDFULL

CTIOS_CALLINGDEVICEID

CTIOS_CALLEDDEVICEID

CTIOS_CALLINGDEVICEIDFULL

CTIOS_CALLEDDEVICEIDFULL

CTIOS_SKILLGROUPID

CTIOS_SKILLGROUPNUMBER

CTIOS_SKILLGROUPPRIORITY

CTIOS_SERVICEID

CTIOS_SERVICENUMBER

CTIOS_LINETYPE

CTIOS_MEASUREDCALLQTIME

CTIOS_CAMPAIGNID

CTIOS_QUERYRULEID

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eCallServiceInitiatedEvent,

eCallOriginatedEvent,

eCallQueuedEvent,

eCallDequeuedEvent

CTIOS_CALLINGDEVICEIDFULL

CTIOS_CALLEDDEVICEIDFULL

CTIOS_CALLINGDEVICEID

CTIOS_CALLEDDEVICEID

CTIOS_SKILLGROUPID

CTIOS_SKILLGROUPNUMBER

CTIOS_SKILLGROUPPRIORITY

CTIOS_SERVICEID

CTIOS_SERVICENUMBER

CTIOS_LINETYPE

CTIOS_MEASUREDCALLQTIME

CTIOS_CAMPAIGNID

CTIOS_QUERYRULEID

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eControlFailureConf

CTIOS_PERIPHERALERRORCODE

CTIOS_ERRORMESSAGE

CTIOS_FAILURECODE

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eFailureConf,

eFailureEvent,

eCallFailedEvent

CTIOS_ERRORMESSAGE

CTIOS_FAILURECODE

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

eCallEndEvent

CTIOS_DEVICEID

CTIOS_ENABLEMENTMASK

CTIOS_ICMENTERPRISEUNIQUEID

CTIOS_UNIQUEOBJECTID

CTIOS_DEVICEUNIQUEOBJECTID

CTIOS_FILTERTARGET**

CTIOS_CALLSTATUS*

* If the eCallFailedEvent notification is received, the CTIOS_CALLSTATUS parameter is not added to any more events for the call ID specified in the eCallFailedEvent.

** If there is an agent on the device, then CTIOS_FILTERTARGET is added to all events listed in table 6-90.

*** The GenerateCallDataUpdateArgs() method adds the following parameters to the event:

CTIOS_PERIPHERALID, CTIOS_PERIPHERALTYPE, CTIOS_CALLTYPE, CTIOS_UNIQUEOBJECTID, CTIOS_ROUTERCALLKEYDAY, CTIOS_ROUTERCALLKEYCALLID, CTIOS_CONNECTIONCALLID, CTIOS_ANI, CTIOS_USERTOUSERINFO, CTIOS_DNIS, CTIOS_DIALEDNUMBER, CTIOS_CALLERENTEREDDIGITS, CTIOS_SERVICENUMBER, CTIOS_SERVICEID, CTIOS_SKILLGROUPNUMBER, CTIOS_SKILLGROUPPRIORITY, CTIOS_CALLWRAPUPDATA, CTIOS_CAMPAIGNID, CTIOS_QUERYRULEID, CTIOS_CALLVARIABLE1, CTIOS_CALLVARIABLE2, CTIOS_CALLVARIABLE3, CTIOS_CALLVARIABLE4, CTIOS_CALLVARIABLE5, CTIOS_CALLVARIABLE6, CTIOS_CALLVARIABLE7, CTIOS_CALLVARIABLE8, CTIOS_CALLVARIABLE9, CTIOS_CALLVARIABLE10, CTIOS_CUSTOMERPHONENUMBER, CTIOS_CUSTOMERACCOUNTNUMBER, CTIOS_NUMNAMEDVARIABLES, CTIOS_NUMNAMEDARRAYS, CTIOS_ECC, CTIOS_CTICLIENTS
