Hardware Features

This chapter describes the hardware features of Cisco Wireless 9176D1 Wi-Fi 7 Access Pointand contains the following sections:

Access Point Views, Ports, and Connectors

Cisco Wireless 9176D1 Wi-Fi 7 Access Point has multiple options that you can use to power the AP. For information about connectors and ports for the AP models, see Connectors and Ports on the AP.

Connectors and Ports on the AP

The following figures show the available ports on the AP:

CW9176D1 Face View

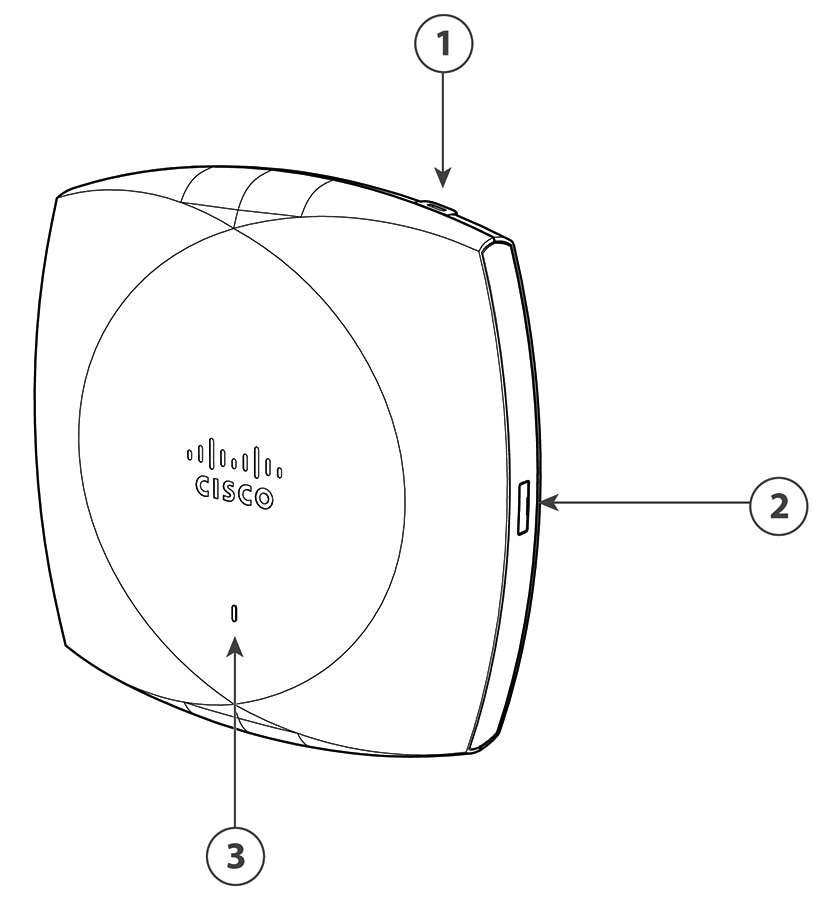

Figure 1. CW9176D1 Face View

1

Kensington lock slot

2

USB 2.0 port

3

Status LED

For information on the LEDs status, see LED Status Indications.

CW9176D1 Top View

Figure 2. CW9176D1Top View with Connectors and Ports

1

GPS external port

5

Ethernet port 0

2

Security hasp for padlocking AP to mounting bracket

6

Kensington lock slot

3

Reset button

For information about how to use the Reset button, see the Using the Mode Button section

4

RJ-45 console port

Default baud rate is 115200.
