MDS 9000 Core with Brocade and McData Edge Topology (Interop Mode 1)
This chapter describes how to set up a basic core-edge topology with an MDS 9000 switch configured for interop mode 1 at the core, and two Brocade switches and one McData switch at the edge. All devices are connected to the edge switches. However, all traffic must flow through the core switch to reach its destination.
This chapter includes the following sections:
•Specifications
•Expected Topology Behavior
•Configuration
•Verification
•Zoning
Specifications
The following switches and code levels were used for this example configuration:
•MDS 9509 running MDS SAN-OS Release 1.0(1)
•Brocade 3800 Version 3.0.2
•Brocade 3200 Version 3.0.2
•McData 3032 Version 04.01.00 12
The example configuration uses MDS 9509 switches in the core, and Brocade 3200, Brocade 3800, and McData 3032 switches on the edge.
Figure 4-1 shows the topology used for this example configuration.

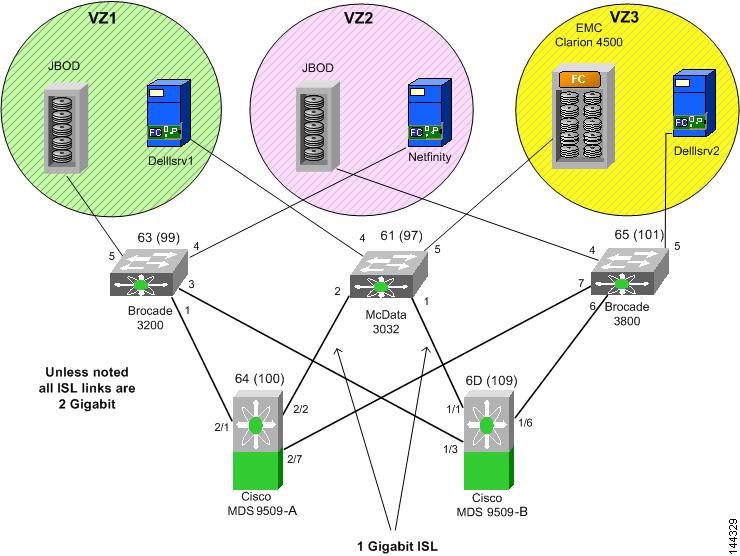

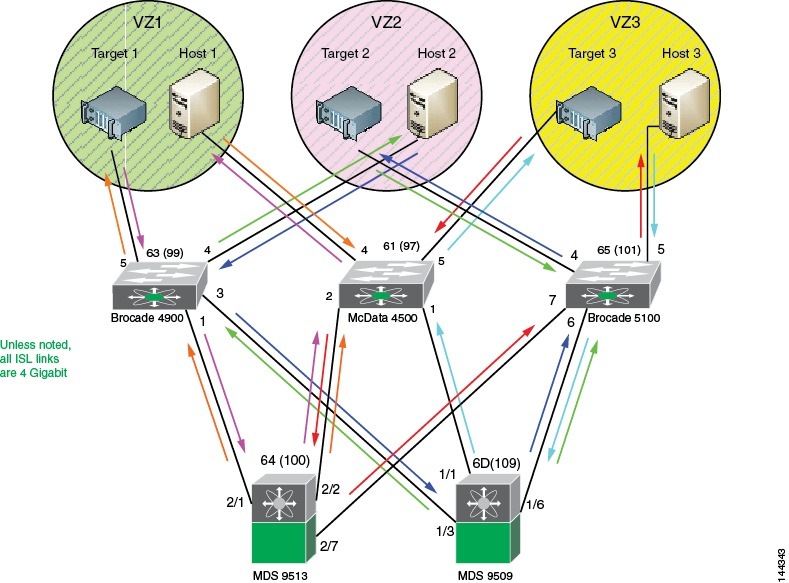

Figure 4-1 Dual MDS 9509 Switch Core with Brocade and McData Switch Edge Topology
Note The VZ1 JBOD is an arbitrated loop with three public drives, and the VZ2 JBOD is an arbitrated loop with seven private drives.
Expected Topology Behavior
This section covers the Fibre Channel services and features that act differently in this topology (Figure 4-1) as compared to a homogeneous, single-vendor implementation.
This section includes the following topics:
•Zoning
•FSPF
•Trunking and PortChannels
•Domain IDs
Zoning
All zone members will be pWWNs in the core-edge topology because the Brocade domain/port nomenclature is not a valid form (per the FC standard), and the McData switch only supports zone members based upon pWWNs. When a zone set (or configuration, in Brocade terminology) activation is made at the core, the zone set activation reaches all switches at the same time because all the switches are one hop away (except for the other core switch, which is two hops away).
The edge switches provide all of the zone security, because the MDS 9000 switch does not check the source or destination of the frame when traversing E ports. Brocade switches only check the zoning information on the egress port of the fabric.
Note After two active zone sets successfully merge, always copy the active zone set to the full zone set database prior to modifying it on the MDS 9000 switch.
FSPF
All links within the topology appear with the link cost of 500, except for the two paths leading to the McData 3032 switches. These paths are running at 1 Gbps and appear with a cost of 1000.
The Brocade switches load balance their routes using source and destination; the ingress edge switch uses the same core switch for all traffic that has the same source and destination pair. If the Brocade switch could load balance using source/destination/ox-id, then it could choose either of the two core switches for the route through the fabric. The two-level core does not allow the MDS 9000 switch, which can load balance using source/destination/ox-id, to load balance across multiple edge switches.
Trunking and PortChannels
The lack of MDS 9000 switch-to-MDS 9000-switch connections prohibits the topology from containing TE ports or PortChannels. While in interop mode, the Brocade switches do not support trunked ports of any type. Only standard E ports are used for the ISLs.
Domain IDs
The domain IDs are limited to the 97 to 127 range due to a restriction imposed by McData's inability to handle IDs outside of that range. While Brocade switches and MDS 9000 switches can handle domain IDs outside of this range, their implementation of interoperability mode includes this limitation.
Domain ID modifications can be handled in two ways, disruptively or nondisruptively:
•Disruptive—This event impacts the entire switch. When changing domain IDs, Brocade and McData both require the entire switch to be taken offline and/or rebooted.
•Nondisruptive—This event is limited to the VSAN where the event is taking place. Only the MDS 9000 switch can perform this action, as the domain manager process for this VSAN is restarted and not the entire switch. This requires any device logged into the VSAN to log into the fabric again to obtain a new FC ID.
Configuration
This section describes the configuration process and includes the following topics:
•Configuring the McData 3032 Switch
•Configuring the MDS 9000 Switch and the Brocade Switches
Configuring the McData 3032 Switch
In this example, the McData 3032 switch is configured for interop mode using Telnet and the CLI. The switch is placed in an offline state, the default zone is set to deny, the domain ID is set, and timers are altered to match the fabric.
Follow these steps to configure the McData 3032 switch.
Step 1 Display current switch information.
R_A_TOV: 100 <==== must match other fabric switches
E_D_TOV: 20 <==== must match other fabric switches
Rerouting Delay: Disabled
Operating Mode: Open Systems
Interop Mode: McDATA Fabric 1.0 <==== non interop mode
World Wide Name: 10:00:08:00:88:60:A0:DB
Insistent Domain ID: Disabled
Step 2 Alter the timers, RA_TOV and ED_TOV, if needed. These options are listed in the config switch menu.
bbCredit - Set the buffer to buffer credit value for the switch
commadelim - Toggle comma-delimited display mode
domainRSCN - Set the Domain RSCN state for the switch
edTOV - Set the E_D_TOV for the switch
insistDomainId - Set the Insistent Domain ID state for the switch
interopMode - Set the Interoperability mode for the switch
login - Login to CLI under different access rights
prefDomainId - Set the preferred domain id for the switch
priority - Set the switch priority
raTOV - Set the R_A_TOV for the switch
rerouteDelay - Enable or disable the reroute delay
root - Move back to root level
show - Display the switch configuration
speed - Set the switch operating speed
Step 3 Set the switch offline. The switch must be offline before changing the mode to interop.
Config.Switch> interopmode open
Error 45: Not Allowed While Switch Online
Note To change to interop mode, the switch must be set to offline.
Maint.System> setOnlineState 0
State: Offline <==== switch is now offline
Rerouting Delay: Disabled
Operating Mode: Open Systems
Interop Mode: McDATA Fabric 1.0
World Wide Name: 10:00:08:00:88:60:A0:DB
Insistent Domain ID: Disabled
Step 4 Set the default zone to deny, and set the mode to interop. As shown in this example, the switch cannot be set to interop mode without first setting the default zone to deny.
Config.Switch> interopmode open
Error 81: Default Zone Enabled
Config.Zoning> setDefZoneState 0
Config.Switch> interopmode open
State: Offline <==== still offline
Rerouting Delay: Disabled
Operating Mode: Open Systems
Interop Mode: Open Fabric 1.0 <==== now in interop mode
World Wide Name: 10:00:08:00:88:60:A0:DB
Insistent Domain ID: Disabled
Step 5 Set the preferred domain ID, with an offset of 0x60. In this example, the McData switch is domain ID 0x61 (97). The FC_IDs for nodes on this switch are 61xxxx.
Config.Switch> prefDomainId 1
Maint.System> setonlinestate 1
State: Online <==== online
Rerouting Delay: Disabled
Operating Mode: Open Systems
Interop Mode: Open Fabric 1.0 <==== interop mode
World Wide Name: 10:00:08:00:88:60:A0:DB
Insistent Domain ID: Disabled
Configuring the MDS 9000 Switch and the Brocade Switches
See "MDS 9000 Core with Brocade Edge Topology (Interop Mode 1)," for examples of how to set the MDS 9000 switch and Brocade switches to interop mode.
Verification
This section highlights the commands used to verify that the fabric is up and running in interoperability mode. It includes the following topics:
•Verifying the MDS 9509 Switch
•Verifying the Brocade 3800 Switch
•Verifying the Brocade 3200 Switch
•Verifying the McData 3032 Switch
Verifying the MDS 9509 Switch
The following examples show the commands used to verify the configuration of the first MDS 9509 switch (MDS 9509-A) (see Figure 4-1).
Cisco Storage Area Networking Operating System (SAN-OS) Software
TAC support: http://www.cisco.com/tac
Copyright (c) 1986-2002 by cisco Systems, Inc.
kickstart: version 1.0(1) [build 1.0(0.260c)] [gdb]
system: version 1.0(1) [build 1.0(0.260c)] [gdb]
bootflash: 503808 blocks (block size 512b)
slot0: 0 blocks (block size 512b)
kickstart compile time: 11/7/2002 21:00:00
system compile time: 11/7/2002 20:00:00
-------------------------------------------------------------------------------
Interface Vsan Admin Admin Status Oper Oper Port-channel
-------------------------------------------------------------------------------
fc2/1 1 auto on up E 2 --
fc2/2 1 auto off up E 1 --
fc2/3 1 auto on notConnected -- -- --
fc2/4 1 auto on down -- -- --
fc2/5 1 auto on notConnected -- -- --
fc2/6 1 auto on down -- -- --
fc2/7 1 auto on up E 2 --
fc2/8 1 auto on notConnected -- -- --
fc2/9 1 auto on notConnected -- -- --
fc2/10 1 auto on fcotAbsent -- -- --
fc2/11 1 SD -- up SD 1 --
fc2/12 1 auto on notConnected -- -- --
fc2/13 1 auto on down -- -- --
fc2/14 4094 auto on down -- -- --
fc2/15 4094 auto on fcotAbsent -- -- --
fc2/16 1 auto on notConnected -- -- --
-------------------------------------------------------------------------------
Interface Status IP Address Speed MTU
-------------------------------------------------------------------------------
sup-fc0 up -- 1 Gbps 2596
-------------------------------------------------------------------------------
Interface Status IP Address Speed MTU
-------------------------------------------------------------------------------
mgmt0 up 6.1.1.96/24 100 Mbps 1500
Building Configuration ...
switchport trunk mode off
ip address 6.1.1.96 255.255.255.0
vsan 4094 interface fc2/14
vsan 4094 interface fc2/15
aaa accounting logsize 30000
boot system curr-isan.img_1419289659 sup-1
boot kickstart curr-ks.img_3653485566 sup-1
boot system curr-isan.img_1419289659 sup-2
boot kickstart curr-ks.img_3653485566 sup-2
fcdomain priority 254 vsan 1
fcdomain fabric-name 41:6e:64:69:61:6d:6f:21 vsan 1
fcdomain domain 100 preferred vsan 1
name:VSAN0001 state:active
interoperability mode:yes
loadbalancing:src-id/dst-id/oxid
MDS9509A# sh fcdomain vsan 1
The local switch is a Subordinated Switch.
Local switch run time information:
Local switch WWN: 20:01:00:05:30:00:51:1f
Running fabric name: 10:00:00:60:69:50:0c:fe
Current domain ID: 0x64(100)
Local switch configuration information:
Auto-reconfiguration: Disabled
Contiguous-allocation: Disabled
Configured fabric name: 41:6e:64:69:61:6d:6f:21
Configured domain ID: 0x64(100) (preferred)
Principal switch run time information:
Interface Role RCF-reject
---------------- ------------- ------------
fc2/1 Downstream Disabled
fc2/2 Downstream Disabled
---------------- ------------- ------------
MDS9509A# sh fcdomain domain-list vsan 1
--------- -----------------------
0x61(97) 10:00:08:00:88:60:a0:db
0x63(99) 10:00:00:60:69:c0:0c:1d
0x64(100) 20:01:00:05:30:00:51:1f [Local]
0x65(101) 10:00:00:60:69:50:0c:fe [Principal]
0x6d(109) 20:01:00:05:30:00:47:9f
--------- -----------------------
MDS9509A# sh fspf internal route vsan 1
---------------------------
VSAN Number Dest Domain Route Cost Next hops
-----------------------------------------------
MDS9509A# sh fcns data vsan 1
--------------------------------------------------------------------------
FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE
--------------------------------------------------------------------------
0x610813 N 10:00:00:00:c9:24:3d:90 (Emulex) scsi-fcp
0x610a13 N 50:06:01:60:88:02:90:cb scsi-fcp
0x630400 N 10:00:00:00:c9:24:3f:75 (Emulex) scsi-fcp
0x6305e2 NL 21:00:00:20:37:a7:ca:b7 (Seagate) scsi-fcp
0x6305e4 NL 21:00:00:20:37:a7:c7:e0 (Seagate) scsi-fcp
0x6305e8 NL 21:00:00:20:37:a7:c7:df (Seagate) scsi-fcp
0x6504dc NL 21:00:00:20:37:28:34:9e (Seagate) scsi-fcp
0x6504e0 NL 21:00:00:20:37:28:23:8a (Seagate) scsi-fcp
0x6504e1 NL 21:00:00:20:37:28:31:70 (Seagate) scsi-fcp
0x6504e2 NL 21:00:00:20:37:28:28:c2 (Seagate) scsi-fcp
0x6504e4 NL 21:00:00:20:37:28:2f:46 (Seagate) scsi-fcp
0x6504e8 NL 21:00:00:20:37:28:26:0d (Seagate) scsi-fcp
0x6504ef NL 21:00:00:20:37:28:2e:65 (Seagate) scsi-fcp
0x650500 N 10:00:00:e0:69:f0:43:9f (JNI)
Total number of entries = 14
The following examples show the commands used to verify the configuration of the second MDS 9509 switch (MDS 9509-B) (see Figure 4-1).
Cisco Storage Area Networking Operating System (SAN-OS) Software
TAC support: http://www.cisco.com/tac
Copyright (c) 1986-2002 by cisco Systems, Inc.
kickstart: version 1.0(1) [build 1.0(0.260c)] [gdb]
system: version 1.0(1) [build 1.0(0.260c)] [gdb]
bootflash: 503808 blocks (block size 512b)
slot0: 0 blocks (block size 512b)
kickstart compile time: 11/7/2002 21:00:00
system compile time: 11/7/2002 21:00:00
Interface Vsan Admin Admin Status Oper Oper Port-channel
-------------------------------------------------------------------------------
fc1/1 1 auto on up E 1 --
fc1/2 1 auto on fcotAbsent -- -- --
fc1/3 1 auto on up E 2 --
fc1/4 1 auto on notConnected -- -- --
fc1/5 1 auto on notConnected -- -- --
fc1/6 1 auto on up E 2 --
fc1/7 1 auto on fcotAbsent -- -- --
fc1/8 1 auto on fcotAbsent -- -- --
fc1/9 1 auto on notConnected -- -- --
fc1/10 1 SD -- fcotAbsent -- -- --
fc1/11 1 auto off fcotAbsent -- -- --
fc1/12 1 auto on notConnected -- -- --
fc1/13 1 auto on fcotAbsent -- -- --
fc1/14 1 auto on notConnected -- -- --
fc1/15 1 auto on fcotAbsent -- -- --
fc1/16 1 auto on fcotAbsent -- -- --
-------------------------------------------------------------------------------
Interface Status IP Address Speed MTU
-------------------------------------------------------------------------------
sup-fc0 up -- 1 Gbps 2596
-------------------------------------------------------------------------------
Interface Status IP Address Speed MTU
-------------------------------------------------------------------------------
mgmt0 up 6.1.1.95/24 100 Mbps 1500
Building Configuration ...
switchport trunk mode off
ip address 6.1.1.95 255.255.255.0
aaa accounting logsize 30000
boot system bootflash:/m9200-ek9-mzg.1.0.0.260c.bin
boot kickstart bootflash:/m9200-ek9-kickstart-mzg.1.0.0.260c.bin
fcdomain fabric-name 41:6e:64:69:61:6d:6f:21 vsan 1
fcdomain domain 109 preferred vsan 1
name:VSAN0001 state:active
interoperability mode:yes
loadbalancing:src-id/dst-id/oxid
MDS9509B# sh fcdomain vsan 1
The local switch is a Subordinated Switch.
Local switch run time information:
Local switch WWN: 20:01:00:05:30:00:47:9f
Running fabric name: 10:00:00:60:69:50:0c:fe
Current domain ID: 0x6d(109)
Local switch configuration information:
Auto-reconfiguration: Disabled
Contiguous-allocation: Disabled
Configured fabric name: 41:6e:64:69:61:6d:6f:21
Configured domain ID: 0x6d(109) (preferred)
Principal switch run time information:
Interface Role RCF-reject
---------------- ------------- ------------
fc1/3 Non-principal Disabled
fc1/6 Non-principal Disabled
---------------- ------------- ------------
MDS9509B# sh fcdomain domain-list vsan 1
--------- -----------------------
0x61(97) 10:00:08:00:88:60:a0:db
0x63(99) 10:00:00:60:69:c0:0c:1d
0x64(100) 20:01:00:05:30:00:51:1f
0x65(101) 10:00:00:60:69:50:0c:fe [Principal]
0x6d(109) 20:01:00:05:30:00:47:9f [Local]
--------- -----------------------
MDS9509B# sh fspf internal route vsan 1
---------------------------
VSAN Number Dest Domain Route Cost Next hops
-----------------------------------------------
MDS9509B# sh fcns data vsan 1
--------------------------------------------------------------------------
FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE
--------------------------------------------------------------------------
0x610813 N 10:00:00:00:c9:24:3d:90 (Emulex) scsi-fcp
0x610a13 N 50:06:01:60:88:02:90:cb scsi-fcp
0x630400 N 10:00:00:00:c9:24:3f:75 (Emulex) scsi-fcp
0x6305e2 NL 21:00:00:20:37:a7:ca:b7 (Seagate) scsi-fcp
0x6305e4 NL 21:00:00:20:37:a7:c7:e0 (Seagate) scsi-fcp
0x6305e8 NL 21:00:00:20:37:a7:c7:df (Seagate) scsi-fcp
0x6504dc NL 21:00:00:20:37:28:34:9e (Seagate) scsi-fcp
0x6504e0 NL 21:00:00:20:37:28:23:8a (Seagate) scsi-fcp
0x6504e1 NL 21:00:00:20:37:28:31:70 (Seagate) scsi-fcp
0x6504e2 NL 21:00:00:20:37:28:28:c2 (Seagate) scsi-fcp
0x6504e4 NL 21:00:00:20:37:28:2f:46 (Seagate) scsi-fcp
0x6504e8 NL 21:00:00:20:37:28:26:0d (Seagate) scsi-fcp
0x6504ef NL 21:00:00:20:37:28:2e:65 (Seagate) scsi-fcp
0x650500 N 10:00:00:e0:69:f0:43:9f (JNI)
Total number of entries = 14
Verifying the Brocade 3800 Switch
The following examples show the commands used to verify the configuration of the Brocade 3800 switch (see Figure 4-1).
B3800_IBM_SAN:admin> version
Made on: Thu Jan 10 17:41:15 PST 2002
Flash: Thu Jan 10 17:42:37 PST 2002
BootProm: Wed May 23 12:37:30 PDT 2001
B3800_IBM_SAN:admin> licenseshow
B3800_IBM_SAN:admin> switchshow
switchName: B3800_IBM_SAN
switchWwn: 10:00:00:60:69:50:0c:fe
port 4: id N1 Online L-Port 7 private, 1 phantom
port 5: id N1 Online F-Port 10:00:00:e0:69:f0:43:9f
port 6: id N2 Online E-Port 20:01:00:05:30:00:47:9f
port 7: id N2 Online E-Port 20:01:00:05:30:00:51:1f (downstream)
B3800_IBM_SAN:admin> topologyshow
5 domains in the fabric; Local Domain ID: 101
Domain Metric Hops Out Port In Ports Flags Bandwidth Name
-----------------------------------------------------------------------
97 1500 2 6 0x00000020 D 2 (Gbs) Unreachable
99 1000 2 7 0x00000020 D 2 (Gbs) "3200_TOP"
100 500 1 7 0x00000070 D 2 (Gbs) Unreachable
109 500 1 6 0x000000b0 D 2 (Gbs) Unreachable
B3800_IBM_SAN:admin> nsshow
Type Pid COS PortName NodeName TTL(sec)
NL 6504dc; 3;21:00:00:20:37:28:34:9e;20:00:00:20:37:28:34:9e; na
FC4s: FCP [SEAGATE ST118202FC FDF6]
Fabric Port Name: 20:04:00:60:69:50:0c:fe
NL 6504e0; 3;21:00:00:20:37:28:23:8a;20:00:00:20:37:28:23:8a; na
FC4s: FCP [SEAGATE ST118202FC FDF6]
Fabric Port Name: 20:04:00:60:69:50:0c:fe
NL 6504e1; 3;21:00:00:20:37:28:31:70;20:00:00:20:37:28:31:70; na
FC4s: FCP [SEAGATE ST118202FC FDF6]
Fabric Port Name: 20:04:00:60:69:50:0c:fe
NL 6504e2; 3;21:00:00:20:37:28:28:c2;20:00:00:20:37:28:28:c2; na
FC4s: FCP [SEAGATE ST118202FC FDF6]
Fabric Port Name: 20:04:00:60:69:50:0c:fe
NL 6504e4; 3;21:00:00:20:37:28:2f:46;20:00:00:20:37:28:2f:46; na
FC4s: FCP [SEAGATE ST118202FC FDF6]
Fabric Port Name: 20:04:00:60:69:50:0c:fe
NL 6504e8; 3;21:00:00:20:37:28:26:0d;20:00:00:20:37:28:26:0d; na
FC4s: FCP [SEAGATE ST118202FC FDF6]
Fabric Port Name: 20:04:00:60:69:50:0c:fe
NL 6504ef; 3;21:00:00:20:37:28:2e:65;20:00:00:20:37:28:2e:65; na
FC4s: FCP [SEAGATE ST118202FC FDF6]
Fabric Port Name: 20:04:00:60:69:50:0c:fe
N 650500; 3;10:00:00:e0:69:f0:43:9f;10:00:00:e0:69:f0:43:9f; na
Fabric Port Name: 20:05:00:60:69:50:0c:fe
The Local Name Server has 8 entries }
B3800_IBM_SAN:admin> nsallshow
610813 610a13 630400 6305e2 6305e4 6305e8 6504dc 6504e0
6504e1 6504e2 6504e4 6504e8 6504ef 65050014 Nx_Ports in the Fabric }
B3800_IBM_SAN:admin> urouteshow
In Port Domain Out Port Metric Hops Flags Next (Dom, Port)
----------------------------------------------------------------------------
4 97 7 1500 2 D 100,65798
5 97 6 1500 2 D 109,65541
6 100 7 500 1 D 100,65798
7 109 6 500 1 D 109,65541
You can use Fabric Manager and Device Manager to verify the current state of the fabric.
Figure 4-2 shows the fabric topology using Fabric Manager.
Figure 4-2 MDS 9509 Switch Fabric Manager Map

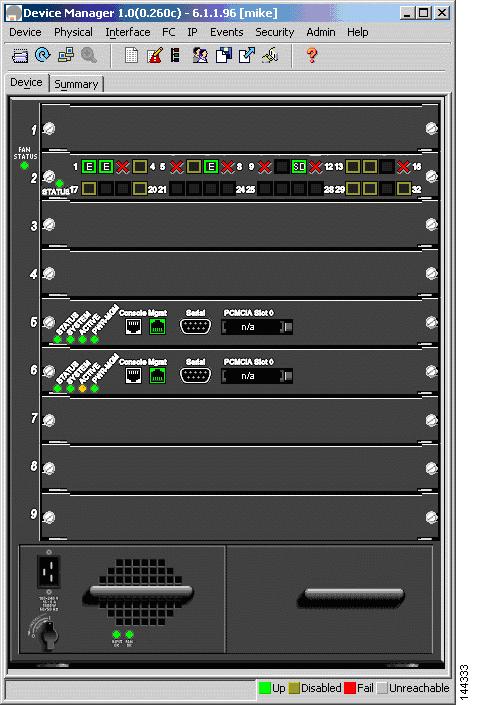

Figure 4-3 shows the Cisco Device Manager on an MDS 9509 switch in the example topology. This shows which ports are active E ports.
Figure 4-3 MDS 9509 Switch Device Manager

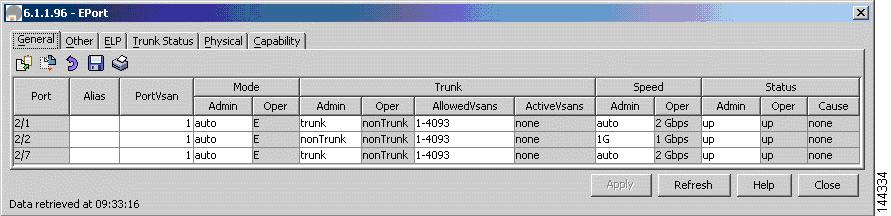

Figure 4-4 shows the status of the E ports and can verify link speed.
Figure 4-4 MDS 9509 Switch E ports

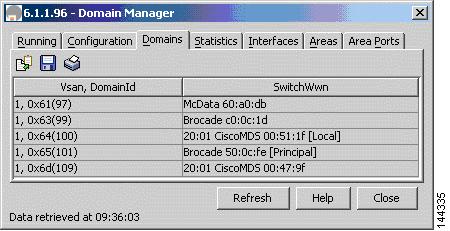

Figure 4-5 shows the domain ID of the switches in the fabric.
Figure 4-5 MDS 9509 Switch Domain Manager

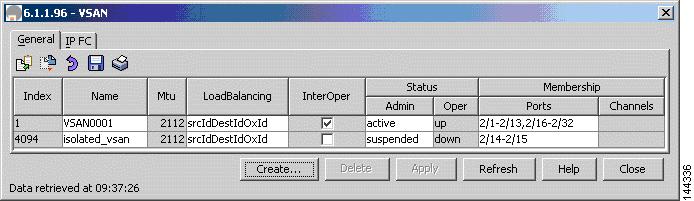

Figure 4-6 shows that VSAN 1 is operating in interop mode.
Figure 4-6 VSAN 1 Operating in Interop Mode on an MDS 9509 Switch
Figure 4-7 shows the MDS 9509 switch name server. This shows the edge devices that have registered.
Figure 4-7 MDS 9509 Switch Name Server Showing McData and Brocade Devices

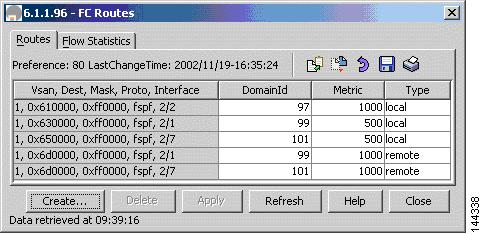

Figure 4-8 shows the FSPF routes as calculated by this switch.
Figure 4-8 MDS 9509 Switch Showing FC Routes
Verifying the Brocade 3200 Switch
The following examples show the commands used to verify the configuration of the Brocade 3200 switch (see Figure 4-1).
Made on: Thu Jan 10 17:41:15 PST 2002
Flash: Thu Jan 10 17:42:37 PST 2002
BootProm: Tue Oct 30 10:24:38 PST 2001
3200_TOP:admin> licenseshow
3200_TOP:admin> switchshow
switchWwn: 10:00:00:60:69:c0:0c:1d
port 1: id N2 Online E-Port 20:01:00:05:30:00:51:1f (upstream)
port 3: id N2 Online E-Port 20:01:00:05:30:00:47:9f
port 4: id N1 Online F-Port 10:00:00:00:c9:24:3f:75
port 5: id N1 Online L-Port 3 public
3200_TOP:admin> topologyshow
5 domains in the fabric; Local Domain ID: 99
Domain Metric Hops Out Port In Ports Flags Bandwidth Name
-----------------------------------------------------------------------
97 1500 2 1 0x00000020 D 2 (Gbs) Unreachable
100 500 1 1 0x00000038 D 2 (Gbs) Unreachable
101 1000 2 1 0x00000020 D 2 (Gbs) "B3800_IBM_SAN"
109 500 1 3 0x00000032 D 2 (Gbs) Unreachable
Type Pid COS PortName NodeName TTL(sec)
N 630400; 2,3;10:00:00:00:c9:24:3f:75;20:00:00:00:c9:24:3f:75; na
Fabric Port Name: 20:04:00:60:69:c0:0c:1d
NL 6305e2; 3;21:00:00:20:37:a7:ca:b7;20:00:00:20:37:a7:ca:b7; na
FC4s: FCP [SEAGATE ST318451FC 0001]
Fabric Port Name: 20:05:00:60:69:c0:0c:1d
NL 6305e4; 3;21:00:00:20:37:a7:c7:e0;20:00:00:20:37:a7:c7:e0; na
FC4s: FCP [SEAGATE ST318451FC 0001]
Fabric Port Name: 20:05:00:60:69:c0:0c:1d
NL 6305e8; 3;21:00:00:20:37:a7:c7:df;20:00:00:20:37:a7:c7:df; na
FC4s: FCP [SEAGATE ST318451FC 0001]
Fabric Port Name: 20:05:00:60:69:c0:0c:1d
The Local Name Server has 4 entries }
3200_TOP:admin> nsallshow
610813 610a13 630400 6305e2 6305e4 6305e8 6504dc 6504e0
6504e1 6504e2 6504e4 6504e8 6504ef 650500
14 Nx_Ports in the Fabric }
3200_TOP:admin> urouteshow
In Port Domain Out Port Metric Hops Flags Next (Dom, Port)
----------------------------------------------------------------------------
1 109 3 500 1 D 109,65538
3 100 1 500 1 D 100,65792
4 97 3 1500 2 D 109,65538
5 97 1 1500 2 D 100,65792
Verifying the McData 3032 Switch
Issue the show switch command to show current switch information.
Rerouting Delay: Disabled
Operating Mode: Open Systems
Interop Mode: Open Fabric 1.0 Interop mode
World Wide Name: 10:00:08:00:88:60:A0:DB
Insistent Domain ID: Disabled
Issue the show system command to show current system information.
Description: Fibre Channel Switch
Location: End User Premise (please configure)
Date/Time: 11/19/2002 16:41:11
Firmware Version: 04.01.00 12
Issue the show port status command to verify that the correct ports are online and are of type E port or F port.
Port State Type Attached WWN Beaconing Reason
---- ------------------ ----- ----------------------- --------- ------
0 No Light gPort 00:00:00:00:00:00:00:00 Off
1 Online ePort 20:01:00:05:30:00:47:9F Off
2 Online ePort 20:01:00:05:30:00:51:1F Off
3 Not Installed gPort 00:00:00:00:00:00:00:00 Off
4 Online fPort 10:00:00:00:C9:24:3D:90 Off
5 Inactive gPort 00:00:00:00:00:00:00:00 Off 28
6 Online fPort 50:06:01:60:88:02:90:CB Off
7 Not Installed gPort 00:00:00:00:00:00:00:00 Off
8 Not Installed gPort 00:00:00:00:00:00:00:00 Off
9 Not Installed gPort 00:00:00:00:00:00:00:00 Off
10 Not Installed gPort 00:00:00:00:00:00:00:00 Off
11 Not Installed gPort 00:00:00:00:00:00:00:00 Off
12 No Light gPort 00:00:00:00:00:00:00:00 Off
13 Not Installed gPort 00:00:00:00:00:00:00:00 Off
14 Not Installed gPort 00:00:00:00:00:00:00:00 Off
15 Not Installed gPort 00:00:00:00:00:00:00:00 Off
16 Not Installed gPort 00:00:00:00:00:00:00:00 Off
17 Not Installed gPort 00:00:00:00:00:00:00:00 Off
18 No Light gPort 00:00:00:00:00:00:00:00 Off
19 Not Installed gPort 00:00:00:00:00:00:00:00 Off
20 Not Installed gPort 00:00:00:00:00:00:00:00 Off
21 Not Installed gPort 00:00:00:00:00:00:00:00 Off
22 No Light gPort 00:00:00:00:00:00:00:00 Off
23 Not Installed gPort 00:00:00:00:00:00:00:00 Off
24 Not Installed gPort 00:00:00:00:00:00:00:00 Off
25 No Light gPort 00:00:00:00:00:00:00:00 Off
26 No Light gPort 00:00:00:00:00:00:00:00 Off
27 Not Installed gPort 00:00:00:00:00:00:00:00 Off
28 Not Installed gPort 00:00:00:00:00:00:00:00 Off
29 No Light gPort 00:00:00:00:00:00:00:00 Off
30 No Light gPort 00:00:00:00:00:00:00:00 Off
31 Not Installed gPort 00:00:00:00:00:00:00:00 Off
28: Optics Speed Conflict
The show nameserver command shows that the EMC Clarion 4500 and Dellsrv1 host have logged into the McData switch.
Type Port Id Port Name Node Name COS FC4 Types
---- ------- ----------------------- ----------------------- --- ----------
fPort 610813 20:00:00:00:C9:24:3D:90 10:00:00:00:C9:24:3D:90 2-3 2
fPort 610A13 50:06:01:60:11:02:90:CB 50:06:01:60:88:02:90:CB 3 2
1. ISO/IEC 8802-2 LLC/SNAP
Port BB Crdt RxFldSz COS Port Name Node Name
---- ------- ------- --- ----------------------- -----------------------
4 64 2048 2-3 20:00:00:00:C9:24:3D:90 10:00:00:00:C9:24:3D:90
6 4 1024 3 50:06:01:60:11:02:90:CB 50:06:01:60:88:02:90:CB
To view the FSPF routes used by the McData 3032 switch, use the WebTools GUI (see Figure 4-9 and Figure 4-10). There is no command line display available to show this information.
Figure 4-9 McData 3032 Switch FSPF Routes

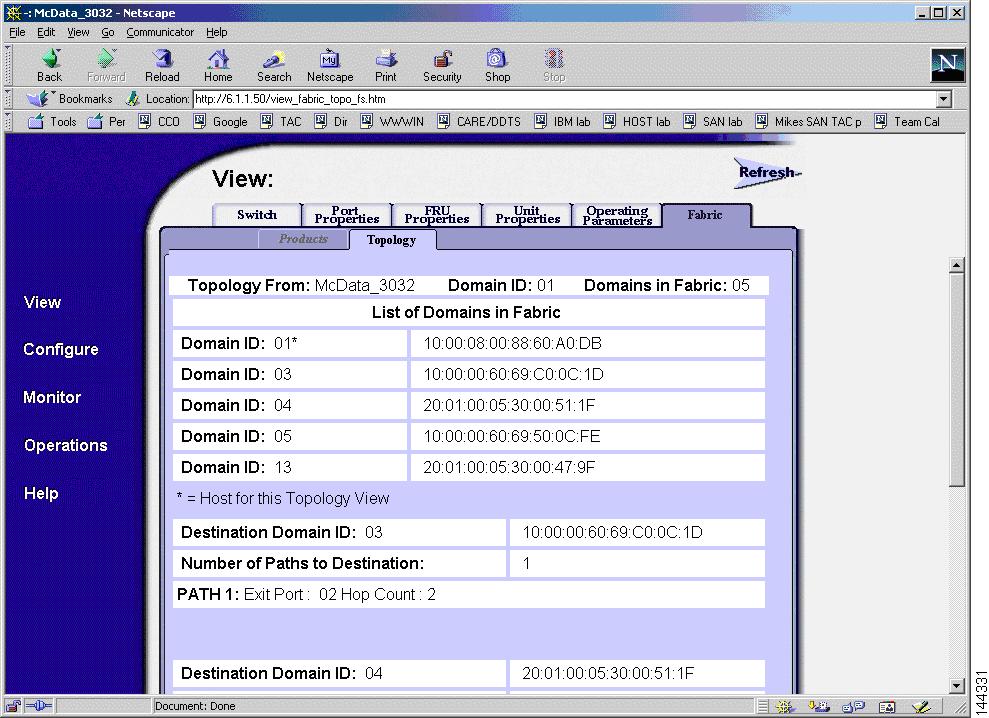

Figure 4-10 McData 3032 Switch Topology View
Zoning
In this section, the zones and zone sets are created using the Fabric Manager (see Figure 4-11.) The Fabric Manager is also used to verify the zoning, along with the Brocade and McData switch command line displays.
This section includes the following topics:
•Verifying Zoning with Fabric Manager
•Verifying Zoning with the Brocade 3800 Switch
•Verifying Zoning with the Brocade 3200 Switch
•Verifying Zoning with the McData 3032 Switch
Figure 4-11 Configuring Zones in Fabric Manager
Verifying Zoning with Fabric Manager
Figure 4-12 shows the zone VZ1 on the Fabric Manager.

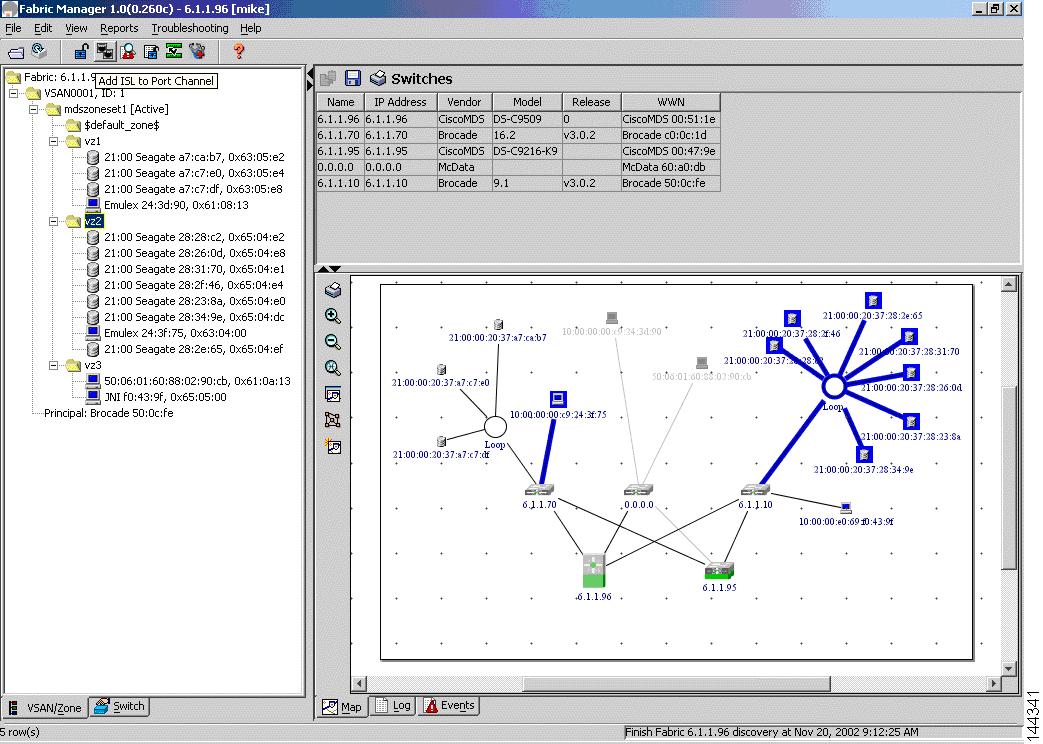

Figure 4-12 Highlighting Zone VZ1 in Fabric Manager
Figure 4-13 shows the zone VZ2 on the Fabric Manager.
Figure 4-13 Highlighting Zone VZ2 in Fabric Manager
Figure 4-14 shows the zone VZ3 on the Fabric Manager.

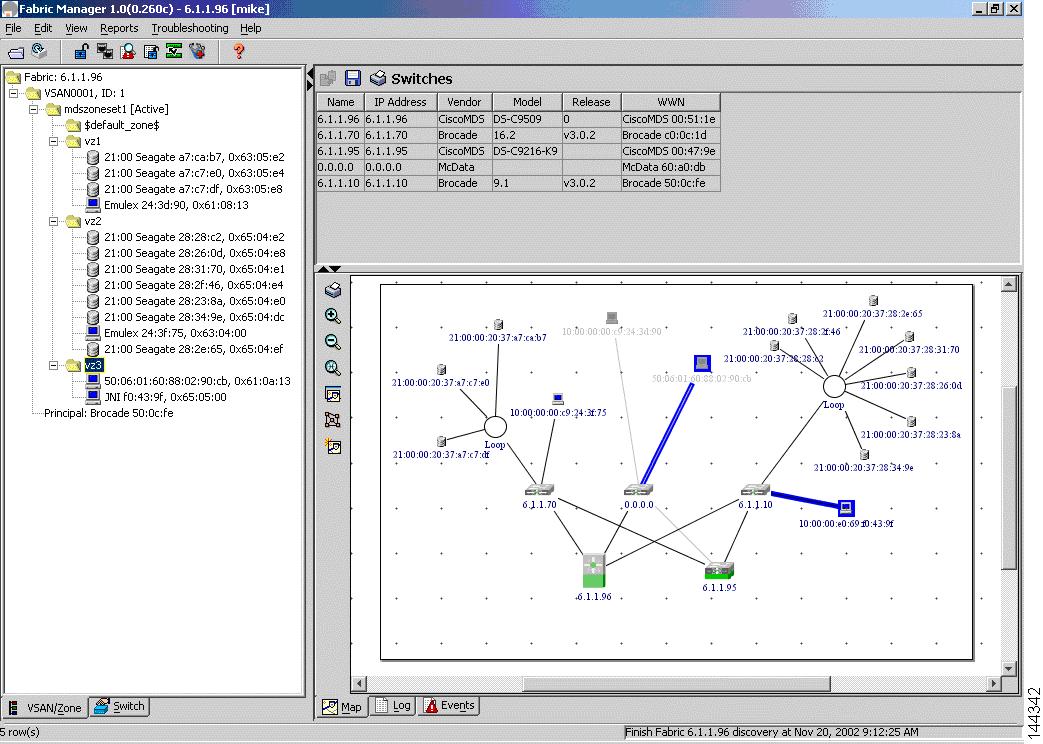

Figure 4-14 Highlighting Zone VZ3 in Fabric Manager
Verifying Zoning with the Brocade 3800 Switch
The following examples show the commands used to verify zoning for the Brocade 3800 switch (see Figure 4-1).
B3800_IBM_SAN:admin> cfgshow
zone: vz1 21:00:00:20:37:a7:ca:b7
zone: vz2 21:00:00:20:37:28:28:c2
zone: vz3 50:06:01:60:88:02:90:cb
Verifying Zoning with the Brocade 3200 Switch
The following examples show the commands used to verify zoning for the Brocade 3200 switch (see Figure 4-1).
zone: vz1 21:00:00:20:37:a7:ca:b7
zone: vz2 21:00:00:20:37:28:28:c2
zone: vz3 50:06:01:60:88:02:90:cb
Verifying Zoning with the McData 3032 Switch
The following examples show the commands used to verify zoning for the McData 3032 switch in the configuration (see Figure 4-1).
Default Zone Enabled: False
Zone Member: 21:00:00:20:37:A7:CA:B7
Zone Member: 21:00:00:20:37:A7:C7:E0
Zone Member: 21:00:00:20:37:A7:C7:DF
Zone Member: 10:00:00:00:C9:24:3D:90
Zone Member: 21:00:00:20:37:28:28:C2
Zone Member: 21:00:00:20:37:28:26:0D
Zone Member: 21:00:00:20:37:28:31:70
Zone Member: 21:00:00:20:37:28:2F:46
Zone Member: 21:00:00:20:37:28:23:8A
Zone Member: 21:00:00:20:37:28:34:9E
Zone Member: 10:00:00:00:C9:24:3F:75
Zone Member: 21:00:00:20:37:28:2E:65
Zone Member: 50:06:01:60:88:02:90:CB
Zone Member: 10:00:00:E0:69:F0:43:9F
Figure 4-15 shows the FSPF traffic flow in this multi-vendor fabric.
Figure 4-15 Data Flow of Dual MDS 9509 Switch Core with Brocade and McData Switch Edge Topology
