Cisco MDS 9000 Family Switch-to-Switch Interoperability Configuration Guide - MDS 9000 Core with Brocade Edge Topology (Interop Mode 1) [Cisco MDS 9000 Series Multilayer Switches]

This chapter describes how to set up a basic core-edge topology with two MDS 9000 switches configured for interop mode 1 at the core and three Brocade switches at the edge. All devices are connected to the edge switches. However, all traffic must flow through the core switch to reach its destination.

This chapter includes the following sections:

•Specifications

•Expected Topology Behavior

•Configuration

•Verification

•Zoning

Specifications

The following switches and code levels were used for this example configuration:

•MDS 9509 running SAN-OS Release 1.0(1)

•Brocade 3800 Version 3.0.2

•Brocade 3200 Version 3.0.2

•Brocade 2400 Version 2.4.1h

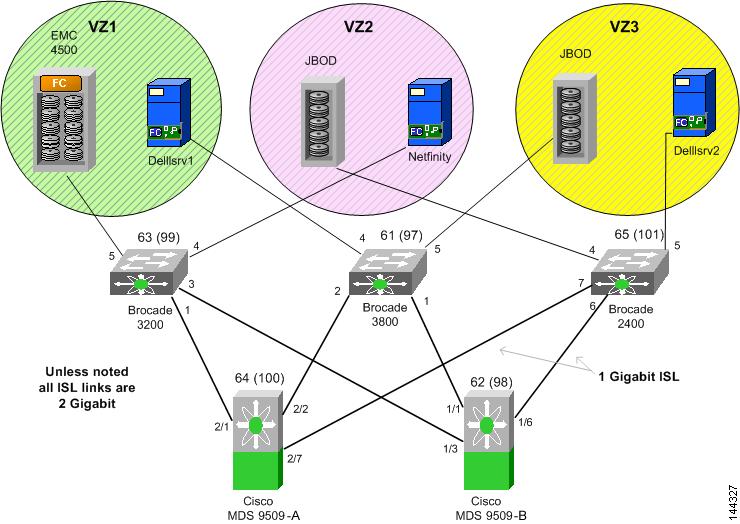

Figure 3-1 shows the topology used for this example configuration.

Figure 3-1 Dual MDS 9509 Core with Brocade Edge Topology

Expected Topology Behavior

This section covers the Fibre Channel services and features that act differently in this topology (Figure 3-1) as compared to a homogeneous, single-vendor implementation. It covers the specifics that relate to this topology as outlined in the Fibre Channel Features Affected by Interoperability section in "Interoperability Overview" .

This section includes the following topics:

•Zoning

•FSPF

•Trunking and PortChannels

•Domain IDs

Zoning

All zone members will be pWWNs in the core-edge topology using standard interop mode because the Brocade domain/port nomenclature is not a valid form (per the FC standard). When a zone set (or configuration in Brocade terminology) is made at the core, the zone merge request reaches all switches at the same time because all the switches are one hop away (except for the other core switch which is two hops away).

The Brocade edge switches provide all of the zone security because the MDS 9000 switch does not check the source or destination of the frame when traversing E ports. Brocade switches only check the zoning information on the egress port of the fabric.

Note After two active zone sets successfully merge, always copy the active zone set to the full zone set database prior to modifying it on the MDS 9000 switch.

FSPF

All links within the topology appear with the link cost of 500, except for the two paths leading to the Brocade 2400. These paths are running at 1 Gbps and appear with a cost of 1000.

The Brocade switches load balance their routes using source/destination; the ingress edge switch uses the same core switch for all traffic that has the same source/destination pair. If the Brocade switch could load balance using source/destination/ox-id, then it could choose either of the two core switches for the route through the fabric. The two-level core does not allow the MDS 9000 switch, which can load balance using source/destination/ox-id, to load balance across multiple edge switches.

Trunking and PortChannels

The lack of MDS 9000 switch-to-MDS 9000-switch connections prohibit the topology from containing TE ports or PortChannels. While in interop mode, the Brocade switches do not support trunked ports of any type. Only standard E ports are used for the ISLs.

Domain IDs

The domain IDs are restricted to the 97 to 127 range to reflect McData's inability to use IDs outside of that range. A McData switch is not present in this configuration, but the decision to have a single interoperability mode for the Brocade and MDS 9000 switch causes this side effect. While Brocade switches and MDS 9000 switches can handle domain IDs outside of this range, their implementation of interoperability mode includes this limitation.

Domain ID modifications can be handled in two ways, disruptively or nondisruptively:

•Disruptive—This event impacts the entire switch. When changing domain IDs, Brocade requires the entire switch to be taken offline and/or rebooted.

•Nondisruptive—This event is limited to the VSAN where the event is taking place. Only the MDS 9000 switch can perform this action, as the domain manager process for this VSAN is restarted and not the entire switch. This restart requires any devices logged into the VSAN to log into the fabric again to obtain a new FC ID.

Configuration

This section describes the configuration process and includes the following topics:

•Configuring the MDS 9509 Switch

•Configuring the Brocade 3800 Switch

•Configuring the Brocade 3200 Switch

•Configuring the Brocade 2400 Switch

Configuring the MDS 9509 Switch

Follow these steps to configure the first MDS 9509 switch (MDS 9509-A) in the example.

Step 1 Place the VSAN of the E port(s) that connects to the OEM switch in interoperability mode.

MDS9509# config t

MDS9509(config)# vsan database

MDS9509(config-vsan-db)# vsan 1 interop

Step 2 Assign a domain ID in the range of 97 (0x61) through 127 (0x7F). This is a limitation imposed by the McData switches. In interop mode, the fabric is limited to a total of 31 switches. In the MDS 9509 switch, the default is to request an ID from the principal switch. If the preferred keyword is used, the MDS 9509 switch requests a specific ID, but still joins the fabric if the principal switch assigns a different ID. If the static keyword is used, the MDS 9509 switch does not join the fabric unless the principal switch agrees and assigns the requested ID.

MDS9509# config t

MDS9509(config)# fcdomain domain 100 preferred vsan 1

Step 3 Change the Fibre Channel timers if they have been changed from the system defaults. The FC error detect (ED_TOV) and resource allocation (RA_TOV) timers for MDS 9000 switches, Brocade, and McData switches, default to the same values. The RA_TOV defaults to 10 seconds, and the ED_TOV defaults to 2 seconds. These values can be changed. According to the FC-SW2 standard, these timer values must be the same on each switch in the fabric.

MDS9509# config t

MDS9509(config)# fctimer e_d_tov ?

  <1000-100000>  E_D_TOV in milliseconds(1000-100000)

MDS9509(config)# fctimer r_a_tov ?

  <5000-100000>  R_A_TOV in milliseconds(5000-100000)

Step 4 After making changes to the domain, restart the MDS 9000 switch domain manager function for the altered VSAN. To do this, suspend and then resume the VSAN:

MDS9509(config)# vsan database

MDS9509(config-vsan-db)# vsan 1 suspend

MDS9509(config-vsan-db)# no vsan 1 suspend

Configuring the second MDS 9509 switch (MDS 9509-B) in interoperability mode follows the same procedure as the first with the exception of choosing a different preferred domain ID.

Follow these steps to configure the second MDS 9509 switch (MDS 9509-B) in the example.

Step 1 Place the VSAN of the E port(s) that connects to the OEM switch in interoperability mode.

MDS9509B# config t

MDS9509B(config)# vsan database

MDS9509B(config-vsan-db)# vsan 1 interop

Step 2 Assign a domain ID in the range of 97 (0x61) through 127 (0x7F).

MDS9509B# config t

MDS9509B(config)# fcdomain domain 98 preferred vsan 1

Step 3 Change the Fibre Channel timers if they have been changed from the system defaults. According to the FC-SW2 standard, these values must be the same on each switch in the fabric.

MDS9509B# config t

MDS9509B(config)# fctimer e_d_tov ?

  <1000-100000>  E_D_TOV in milliseconds(1000-100000)

MDS9509B(config)# fctimer r_a_tov ?

  <5000-100000>  R_A_TOV in milliseconds(5000-100000)

Step 4 Restart the MDS 9000 switch domain manager function for the altered VSAN. To do this, suspend and then resume the VSAN.

MDS9509(config)# vsan database

MDS9509(config-vsan-db)# vsan 1 suspend

MDS9509(config-vsan-db)# no vsan 1 suspend

Configuring the Brocade 3800 Switch

Follow these steps to configure the Brocade 3800 switch in interoperability mode.

Step 1 Disable the switch. This is a disruptive process.

B3800_IBM_SAN:admin> switchdisable

Step 2 Enter the configuration dialog.

B3800_IBM_SAN:admin> configure

Configure...

Fabric parameters (yes, y, no, n): [no] y

Domain: (1..239) [1] 97  <==== Assign domain id in the 97-127 range

BB credit: (1..27) [16]

R_A_TOV: (4000..120000) [10000]  <==== Must match other switches in the fabric

E_D_TOV: (1000..5000) [2000]  <==== Must match other switches in the fabric

WAN_TOV: (0..2000) [0]

MAX_HOPS: (7..13) [7]

WAN_RTT_DLY_MAX: (0..9500) [200]

Data field size: (256..2112) [2112]

Sequence Level Switching: (0..1) [0]

Disable Device Probing: (0..1) [0]

Suppress Class F Traffic: (0..1) [0]

SYNC IO mode: (0..1) [0]

VC Encoded Address Mode: (0..1) [0]

Core Switch PID Format: (0..1) [0]

Per-frame Route Priority: (0..1) [0]

Long Distance Fabric: (0..1) [0]

Virtual Channel parameters (yes, y, no, n): [no]

Zoning Operation parameters (yes, y, no, n): [no]

RSCN Transmission Mode (yes, y, no, n): [no]

NS Operation Parameters (yes, y, no, n): [no] y

Pre-zoned responses Mode

(0 = Standard Mode, 1 = Pre-zoning On): (0..1) [0]  <==== Confirm standard mode

  Arbitrated Loop parameters (yes, y, no, n): [no]

  System services (yes, y, no, n): [no]

  Portlog events enable (yes, y, no, n): [no]

Committing configuration...done.

Step 3 Disable platform management services. Failure to disable this service isolates E ports that connect to non-Brocade switches:

B3800_IBM_SAN:admin> msPlMgmtDeactivate

This will erase all Platform entries. Are you sure?  (yes, y, no, n): [no] y

Committing configuration...done.

Request Fabric to Deactivate Platform Management services....

Done.

Step 4 Set interoperability mode to on at the command line and then reboot.

B3800_IBM_SAN:admin> interopmode 1 <==== Set interop mode on

Committing configuration...done.

interopMode is 1

NOTE: It is recommended that you boot this switch for this change to take effect

Note Do not ignore this warning message. Anomalies were experienced that required a switch reboot.

B3800_IBM_SAN:admin> fastboot

To return to non-interop mode, you must disable the switch. Reconfigure the switch and set interoperability mode equal to 0, and then reboot.

Configuring the Brocade 3200 Switch

Follow these steps to configure the Brocade 3200 switch in interoperability mode.

Step 1 Disable the switch. This is a disruptive process.

3200_TOP:admin> switchdisable

Step 2 Enter the configuration dialog.

3200_TOP:admin> configure

Configure...

Fabric parameters (yes, y, no, n): [no] y

Domain: (1..239) [1] 99   <==== Assign domain id in the 97-127 range

BB credit: (1..27) [16]

R_A_TOV: (4000..120000) [10000]  <==== Must match other switches in the fabric

E_D_TOV: (1000..5000) [2000]  <==== Must match other switches in the fabric

WAN_TOV: (0..2000) [0]

 MAX_HOPS: (7..13) [7]

WAN_RTT_DLY_MAX: (0..9500) [200]

Data field size: (256..2112) [2112]

Sequence Level Switching: (0..1) [0]

Disable Device Probing: (0..1) [0]

Suppress Class F Traffic: (0..1) [0]

SYNC IO mode: (0..1) [0]

VC Encoded Address Mode: (0..1) [0]

Core Switch PID Format: (0..1) [0]

Per-frame Route Priority: (0..1) [0]

Long Distance Fabric: (0..1) [0]

Virtual Channel parameters (yes, y, no, n): [no]

Zoning Operation parameters (yes, y, no, n): [no]

RSCN Transmission Mode (yes, y, no, n): [no]

NS Operation Parameters (yes, y, no, n): [no] y

Pre-zoned responses Mode

(0 = Standard Mode, 1 = Pre-zoning On): (0..1) [0]  <==== Confirm standard mode

  Arbitrated Loop parameters (yes, y, no, n): [no]

  System services (yes, y, no, n): [no]

  Portlog events enable (yes, y, no, n): [no]

Committing configuration...done.

Step 3 Disable platform management services. Failure to disable this service isolates E ports that connect to non-Brocade switches.

3200_TOP:admin> msPlMgmtDeactivate

This will erase all Platform entries. Are you sure?  (yes, y, no, n): [no] y

Committing configuration...done.

Request Fabric to Deactivate Platform Management services....

Done.

Step 4 Set interoperability mode to on at the command line and then reboot.

3200_TOP:admin> interopmode 1  Set interop mode on

Committing configuration...done.

interopMode is 1

NOTE: It is recommended that you boot this switch to make this change take effect

Note Do not ignore the warning message. Anomalies were experienced that required a switch reboot.

3200_TOP:admin> fastboot

To return to non-interop mode, disable the switch. Reconfigure the switch, set interoperability mode equal to 0, and then reboot.

Configuring the Brocade 2400 Switch

Follow these steps to configure the Brocade 2400 switch in interoperability mode.

Step 1 Disable the switch. This is a disruptive process.

B2400_IBM_SAN:admin> switchdisable

Step 2 Enter into the configuration dialog.

B2400_IBM_SAN:admin> configure

Configure...

  Fabric parameters (yes, y, no, n): [no] y

  Domain: (1..239) [97] 101 <==== Assign domain id in the 97-127 range

  BB credit: (1..27) [16]

  R_A_TOV: (4000..120000) [10000]  <==== Must match other switches in the fabric

  E_D_TOV: (1000..5000) [2000]  <==== Must match other switches in the fabric

  Data field size: (256..2112) [2112]

  Sequence Level Switching: (0..1) [0]

  Disable Device Probing: (0..1) [0]

  Suppress Class F Traffic: (0..1) [0]

  SYNC IO mode: (0..1) [0]

  VC Encoded Address Mode: (0..1) [0]

  Core Switch PID Format: (0..1) [0]

  Per-frame Route Priority: (0..1) [0]

  Long Distance Fabric: (0..1) [0]

  Virtual Channel parameters (yes, y, no, n): [no]

  Switch Operating Mode (yes, y, no, n): [no] y

    Interoperability Mode: (0..1) [0] 1 <==== Set interopmode on

  Zoning Operation parameters (yes, y, no, n): [no] y

    Standard Mode: (0..1) [0] 1  <==== Set standard mode on

    Enable TransactZoneManagement: (0..1) [1]

    Disable NodeName Zone Checking: (0..1) [0]

  Arbitrated Loop parameters (yes, y, no, n): [no]

  System services (yes, y, no, n): [no]

  Portlog events enable (yes, y, no, n): [no]

Committing configuration...done.

Step 3 Disable platform management services. Failure to disable this service isolates E ports that connect to non-Brocade switches.

B2400_IBM_SAN:admin> msPlMgmtDeactivate

This will erase all Platform entries. Are you sure?  (yes, y, no, n): [no] y

Committing configuration...done.

Request Fabric to Deactivate Platform Management services....

Done.

Step 4 Reboot the switch.

B2400_IBM_SAN:admin> fastboot

To return to non-interop mode, you must disable the switch. Reconfigure the switch, set interoperability mode equal to 0, and then reboot.

Verification

This section highlights the commands used to verify that the fabric is up and running in interoperability mode, and it includes the following topics:

•Verifying the MDS 9509 Switch

•Verifying the Brocade 3800 Switch

•Verifying the Brocade 3200 Switch

•Verifying the Brocade 2400 Switch

The example configuration now includes the paths for frame flow as a result of the FSPF algorithm. (See Figure 3-2.)

Figure 3-2 Data Flow of Dual MDS 9509 Core with Brocade Edge Topology

Verifying the MDS 9509 Switch

The following examples show the configuration for the first MDS 9509 switch (MDS (9509-A).

MDS9509# show version

Copyright (c) 2001-2005

Cisco Systems, Inc.

Software

  kickstart: version 1.0(1) [build 1.0(0.253e)] [gdb]

  System:    version 1.0(1) [build 1.0(0.253e)] [gdb]

Hardware

  RAM 1932864 kB

  bootflash: 503808 blocks (block size 512b)

  slot0:          0 blocks (block size 512b)

  Compile Time: 10/26/2002 2:00:00

MDS9509# show interface brief

Interface  Vsan   Admin  Admin   Status           Oper  Oper   Port-channel

                  Mode   Trunk                    Mode  Speed

                         Mode                           (Gbps)

--------------------------------------------------------------------

fc2/1      1      auto   on      up               E     2      --

fc2/2      1      auto   on      up               E     2      --

fc2/3      1      auto   on      fcotAbsent       --    --     --

fc2/4      1      auto   on      down             --    --     --

fc2/5      1      auto   on      down             --    --     --

fc2/6      1      auto   on      down             --    --     --

fc2/7      1      auto   on      up               E     1      --

fc2/8      1      auto   on      fcotAbsent       --    --     --

fc2/9      1      auto   on      down             --    --     --

fc2/10     1      auto   on      down             --    --     --

MDS9509# show run

Building Configuration ...

 interface fc2/1

no shutdown

 interface fc2/2

no shutdown

 interface fc2/3

 interface fc2/4

 interface fc2/5

 interface fc2/6

 interface fc2/7

no shutdown

 interface fc2/8

 interface fc2/9

 interface fc2/10

<snip>

interface fc2/32

 interface mgmt0

ip address 6.1.1.96 255.255.255.0

switchport encap default

no shutdown

vsan database

vsan 1 interop

boot system bootflash:/m9500-isan-253e.bin sup-1

boot kickstart bootflash:/m9500-kickstart-253e.bin sup-1

boot system bootflash:/m9500-isan-253e.bin sup-2

boot kickstart bootflash:/m9500-kickstart-253e.bin sup-2

callhome

fcdomain domain 100 preferred vsan 1

ip route 6.1.1.0 255.255.255.0 6.1.1.1

ip routing

line console

  databits 5

  speed 110

logging linecard

ssh key rsa 512 force

ssh server enable

switchname MDS9509

username admin password 5 $1$Li8/fBYX$SNc72.xt4nTXpSnR9OUFB/  role network-admin

MDS9509# show vsan 1

vsan 1 information

         name:VSAN0001  state:active

         interoperability mode:yes  <==== verify mode

         loadbalancing:src-id/dst-id/oxid

         operational state:up

MDS9509# show fcdomain vsan 1

The local switch is a Subordinated Switch.

Local switch run time information:

        State: Stable

        Local switch WWN:    20:01:00:05:30:00:51:1f

        Running fabric name: 10:00:00:60:69:22:32:91

        Running priority: 128

        Current domain ID: 0x64(100)  <==== verify domain id

Local switch configuration information:

        State: Enabled

        Auto-reconfiguration: Disabled

        Contiguous-allocation: Disabled

        Configured fabric name: 41:6e:64:69:61:6d:6f:21

        Configured priority: 128

        Configured domain ID: 0x64(100) (preferred)

Principal switch run time information:

        Running priority: 2

Interface               Role          RCF-reject

----------------    -------------    ------------

fc2/1               Downstream       Disabled

fc2/2               Downstream       Disabled

fc2/7               Upstream         Disabled

----------------    -------------    ------------

MDS9509# show fcdomain domain-list vsan 1

Number of domains: 5

Domain ID              WWN

---------    -----------------------

 0x61(97)    10:00:00:60:69:50:0c:fe

 0x62(98)    20:01:00:05:30:00:47:9f

 0x63(99)    10:00:00:60:69:c0:0c:1d

0x64(100)    20:01:00:05:30:00:51:1f [Local]

0x65(101)    10:00:00:60:69:22:32:91 [Principal]

---------    -----------------------

MDS9509# show fspf internal route vsan 1

FSPF Unicast Routes

---------------------------

 VSAN Number  Dest Domain   Route Cost    Next hops

-----------------------------------------------

           1     0x61(97)          500      fc2/2

           1     0x62(98)         1000      fc2/1

                                            fc2/2

           1     0x63(99)          500      fc2/1

           1    0x65(101)         1000      fc2/7

MDS9509# show fcns data vsan 1

VSAN 1:

------------------------------------------------------------------

FCID 			TYPE  PWWN                    (VENDOR) FC4-TYPE:FEATURE

------------------------------------------------------------------

0x610400    N     10:00:00:00:c9:24:3d:90 (Emulex)     scsi-fcp

0x6105dc    NL    21:00:00:20:37:28:31:6d (Seagate)    scsi-fcp

0x6105e0    NL    21:00:00:20:37:28:24:7b (Seagate)    scsi-fcp

0x6105e1    NL    21:00:00:20:37:28:22:ea (Seagate)    scsi-fcp

0x6105e2    NL    21:00:00:20:37:28:2e:65 (Seagate)    scsi-fcp

0x6105e4    NL    21:00:00:20:37:28:26:0d (Seagate)    scsi-fcp

0x630400    N     10:00:00:00:c9:24:3f:75 (Emulex)     scsi-fcp

0x630500    N     50:06:01:60:88:02:90:cb              scsi-fcp

0x6514e2    NL    21:00:00:20:37:a7:ca:b7 (Seagate)    scsi-fcp

0x6514e4    NL    21:00:00:20:37:a7:c7:e0 (Seagate)    scsi-fcp

0x6514e8    NL    21:00:00:20:37:a7:c7:df (Seagate)    scsi-fcp

0x651500    N     10:00:00:e0:69:f0:43:9f (JNI)

Total number of entries = 12

Note The MDS 9509 switch name server shows both local and remote entries and does not time out the entries.

The following example shows the configuration for the second MDS 9509 switch (MDS 9509-B).

MDS9509B# show ver

Copyright (c) 2001-2005

Cisco Systems, Inc.

Software

  kickstart: version 1.0(1) [build 1.0] [gdb]

  System:    version 1.0(1) [build 1.0] [gdb]

Hardware

  RAM 963116 kB

  bootflash: 503808 blocks (block size 512b)

  slot0:          0 blocks (block size 512b)

  Compile Time: 10/26/2002 2:00:00

MDS9509B# show int brief

------------------------------------------------------------------

Interface  Vsan   Admin  Admin   Status           Oper  Oper   Port-channel

                  Mode   Trunk                    Mode  Speed

                         Mode                           (Gbps)

------------------------------------------------------------------

fc1/1      1      auto   on      up               E     2      --

fc1/2      1      auto   on      fcotAbsent       --    --     --

fc1/3      1      auto   on      up               E     2      --

fc1/4      1      auto   on      down             --    --     --

fc1/5      1      auto   on      down             --    --     --

fc1/6      1      auto   on      up               E     1      --

fc1/7      1      auto   on      fcotAbsent       --    --     --

fc1/8      1      auto   on      fcotAbsent       --    --     --

fc1/9      1      auto   on      down             --    --     --

MDS9509B# show run

Building Configuration ...

 interface fc1/1

no shutdown

 interface fc1/2

 interface fc1/3

switchport speed 2000

no shutdown

 interface fc1/4

 interface fc1/5

 interface fc1/6

switchport speed 1000

no shutdown

 interface fc1/7

 interface fc1/8

 interface fc1/9

<snip>

 interface mgmt0

ip address 6.1.1.95 255.255.255.0

no shutdown

vsan database

vsan 1 interop

boot system bootflash:/m9500-isan.bin

boot kickstart bootflash:/m9500-kickstart.bin

callhome

fcdomain domain 98 preferred vsan 1

line console

  databits 5

  speed 110

logging linecard

switchname MDS9509B

username admin password 5 MF7UQdWLEqUFE  role network-admin

MDS9509B# show vsan 1

vsan 1 information

         name:VSAN0001  state:active

         interoperability mode:yes  <==== verify interoperability

         loadbalancing:src-id/dst-id/oxid

         operational state:up

MDS9509B# show fcdomain vsan 1

The local switch is a Subordinated Switch.

Local switch run time information:

        State: Stable

        Local switch WWN:    20:01:00:05:30:00:47:9f

        Running fabric name: 10:00:00:60:69:22:32:91

        Running priority: 128

        Current domain ID: 0x62(98)  <==== verify domain

Local switch configuration information:

        State: Enabled

        Auto-reconfiguration: Disabled

        Contiguous-allocation: Disabled

        Configured fabric name: 41:6e:64:69:61:6d:6f:21

        Configured priority: 128

        Configured domain ID: 0x62(98) (preferred)

Principal switch run time information:

        Running priority: 2

Interface               Role          RCF-reject

----------------    -------------    ------------

fc1/1               Upstream         Disabled

fc1/3               Non-principal    Disabled

fc1/6               Non-principal    Disabled

----------------    -------------    ------------

MDS9509B# show fcdomain domain-list vsan 1

Number of domains: 5

Domain ID              WWN

---------    -----------------------

 0x61(97)    10:00:00:60:69:50:0c:fe

 0x62(98)    20:01:00:05:30:00:47:9f [Local]

 0x63(99)    10:00:00:60:69:c0:0c:1d

0x64(100)    20:01:00:05:30:00:51:1f

0x65(101)    10:00:00:60:69:22:32:91 [Principal]

---------    -----------------------

MDS9509B# show fspf internal route vsan 1

FSPF Unicast Routes

---------------------------

 VSAN Number  Dest Domain   Route Cost    Next hops

-----------------------------------------------

           1    0x61(97)           500        fc1/1

           1    0x63(99)           500        fc1/3

           1    0x64(100)         1000        fc1/1

                                              fc1/3

           1    0x65(101)         1000        fc1/6

MDS9509B# show fcns data vsan 1

VSAN 1:

------------------------------------------------------------------

FCID		TYPE  PWWN                    (VENDOR)  FC4-TYPE:FEATURE

------------------------------------------------------------------

0x610400    N     10:00:00:00:c9:24:3d:90 (Emulex)     scsi-fcp

0x6105dc    NL    21:00:00:20:37:28:31:6d (Seagate)    scsi-fcp

0x6105e0    NL    21:00:00:20:37:28:24:7b (Seagate)    scsi-fcp

0x6105e1    NL    21:00:00:20:37:28:22:ea (Seagate)    scsi-fcp

0x6105e2    NL    21:00:00:20:37:28:2e:65 (Seagate)    scsi-fcp

0x6105e4    NL    21:00:00:20:37:28:26:0d (Seagate)    scsi-fcp

0x630400    N     10:00:00:00:c9:24:3f:75 (Emulex)     scsi-fcp

0x630500    N     50:06:01:60:88:02:90:cb              scsi-fcp

0x6514e2    NL    21:00:00:20:37:a7:ca:b7 (Seagate)    scsi-fcp

0x6514e4    NL    21:00:00:20:37:a7:c7:e0 (Seagate)    scsi-fcp

0x6514e8    NL    21:00:00:20:37:a7:c7:df (Seagate)    scsi-fcp

0x651500    N     10:00:00:e0:69:f0:43:9f (JNI)

Total number of entries = 12

Verifying the Brocade 3800 Switch

The following examples show the configuration for the Brocade 3800 switch.

B3800_IBM_SAN:admin> version

Kernel:     5.3.1

Fabric OS:  v3.0.2

Made on:    Thu Jan 10 17:41:15 PST 2002

Flash:      Thu Jan 10 17:42:37 PST 2002

BootProm:   Wed May 23 12:37:30 PDT 2001

B3800_IBM_SAN:admin> licenseshow

R99yydyQzcSAAzz1:

    Web license

    Zoning license

    Fabric license

SSbdSSQRR9TTceT8:

    QuickLoop license

B3800_IBM_SAN:admin> switchshow

switchName:	B3800_IBM_SAN

switchType:	9.1

switchState:	Online

switchMode:	Interop  <==== verify mode

switchRole:	Subordinate

switchDomain:	97  <==== verify domain

switchId:	fffc61

switchWwn:	10:00:00:60:69:50:0c:fe

switchBeacon:	OFF

Zoning:      	OFF

port  0: -- N2 No_Module

port  1: id 2G Online       E-Port 20:01:00:05:30:00:47:9f (downstream)

port  2: id 2G Online       E-Port 20:01:00:05:30:00:51:1f (upstream)

port  3: id 1G No_Light

port  4: id N1 Online       F-Port 10:00:00:00:c9:24:3d:90

port  5: id N1 Online       L-Port 5 private, 1 phantom

port  6: -- N2 No_Module

port  7: -- N2 No_Module

port  8: id N2 No_Light

port  9: -- N2 No_Module

port 10: id N2 No_Light

port 11: id N2 No_Light

port 12: -- N2 No_Module

port 13: -- N2 No_Module

port 14: id N2 No_Light

port 15: id N2 No_Light

B3800_IBM_SAN:admin> topologyshow

5 domains in the fabric; Local Domain ID: 97

Domain   Metric   Hops  Out Port  In Ports   Flags  Bandwidth   Name

-----------------------------------------------------------------------

98        500     1       1     0x00000034    D     2 (Gbs)   Unreachable

99       1000     2       2     0x00000020    D     2 (Gbs)   "3200_TOP"

                          1     0x00000010    D     2 (Gbs)

100       500     1       2     0x00000032    D     2 (Gbs)   Unreachable

101      1500     2       2     0x00000020    D     2 (Gbs)  "BR2400_IBM_SAN"

                          1     0x00000010    D     2 (Gbs)

B3800_IBM_SAN:admin> interopmode

interopMode is 1

B3800_IBM_SAN:admin> nsshow

 Type Pid    COS     PortName                NodeName                 TTL(sec)

 N    610400;    2,3;10:00:00:00:c9:24:3d:90;20:00:00:00:c9:24:3d:90; na

    FC4s: FCP

    Fabric Port Name: 20:04:00:60:69:50:0c:fe

 NL   6105dc;      3;21:00:00:20:37:28:31:6d;20:00:00:20:37:28:31:6d; na

    FC4s: FCP [SEAGATE ST118202FC      FDF6]

    Fabric Port Name: 20:05:00:60:69:50:0c:fe

 NL   6105e0;      3;21:00:00:20:37:28:24:7b;20:00:00:20:37:28:24:7b; na

    FC4s: FCP [SEAGATE ST118202FC      FDF6]

    Fabric Port Name: 20:05:00:60:69:50:0c:fe

 NL   6105e1;      3;21:00:00:20:37:28:22:ea;20:00:00:20:37:28:22:ea; na

    FC4s: FCP [SEAGATE ST118202FC      FDF6]

    Fabric Port Name: 20:05:00:60:69:50:0c:fe

 NL   6105e2;      3;21:00:00:20:37:28:2e:65;20:00:00:20:37:28:2e:65; na

    FC4s: FCP [SEAGATE ST118202FC      FDF6]

    Fabric Port Name: 20:05:00:60:69:50:0c:fe

 NL   6105e4;      3;21:00:00:20:37:28:26:0d;20:00:00:20:37:28:26:0d; na

    FC4s: FCP [SEAGATE ST118202FC      FDF6]

    Fabric Port Name: 20:05:00:60:69:50:0c:fe

The Local Name Server has 6 entries }

B3800_IBM_SAN:admin> nsallshow

  610400 6105dc 6105e0 6105e1 6105e2 6105e4 630400 630500

  6514e2 6514e4 6514e8 651500

12 Nx_Ports in the Fabric }

Note The Brocade remote name server entries time out of the cache after 900 seconds (15 minutes).

B3800_IBM_SAN:admin> urouteshow

Local Domain ID: 97

In Port  Domain   Out Port  Metric Hops    Flags    Next (Dom, Port)

--------------------------------------------------------------------

   1 100       2        500    1       D          100,65793

   2  98       1        500    1       D           98,65536

   4  98       1        500    1       D           98,65536

      99       1       1000    2       D           98,65536

     100       2        500    1       D          100,65793

     101       1       1500    2       D           98,65536

   5  98       1        500    1       D           98,65536

      99       2       1000    2       D          100,65793

     100       2        500    1       D          100,65793

     101       2       1500    2       D          100,65793

Verifying the Brocade 3200 Switch

The following examples show the configuration for the Brocade 3200 switch.

3200_TOP:admin> version

Kernel:     5.3.1

Fabric OS:  v3.0.2

Made on:    Thu Jan 10 17:41:15 PST 2002

Flash:      Thu Jan 10 17:42:37 PST 2002

BootProm:   Tue Oct 30 10:24:38 PST 2001

3200_TOP:admin> licenseshow

R9bdbybzSQSAcecJ:

    Web license

bQyecQdSbScRzfd7:

    Zoning license

RbbSed9RRSSccTfd:

    QuickLoop license

b99dde9cSdcAAeer:

    Fabric license

3200_TOP:admin> switchshow

switchName:	3200_TOP

switchType:	16.2

switchState:	Online

switchMode:	Interop  <==== Verify mode

switchRole:	Subordinate

switchDomain:	99  <==== Verify domain

switchId:	fffc63

switchWwn:	10:00:00:60:69:c0:0c:1d

switchBeacon:	OFF

Zoning:      	OFF

port  0: id N2 No_Light

port  1: id N2 Online       E-Port 20:01:00:05:30:00:51:1f (upstream)

port  2: id N2 No_Light

port  3: id 2G Online       E-Port 20:01:00:05:30:00:47:9f

port  4: id N1 Online       F-Port 10:00:00:00:c9:24:3f:75

port  5: id N1 Online       F-Port 50:06:01:60:88:02:90:cb

port  6: id N2 No_Light

port  7: -- N2 No_Module

3200_TOP:admin> topologyshow

5 domains in the fabric; Local Domain ID: 99

Domain   Metric  Hops  Out Port  In Ports   Flags   Bandwidth   Name

------------------------------------------------------------------

97        1000    2          1   0x00000020    D      2 (Gbs)   "B3800_IBM_SAN"

                             3   0x00000010    D      2 (Gbs)

98         500    1          3   0x00000032    D      2 (Gbs)   Unreachable

100        500    1          1   0x00000038    D      2 (Gbs)   Unreachable

101       1500    2          1   0x00000020    D      2 (Gbs)  "BR2400_IBM_SAN"

                             3   0x00000010    D      2 (Gbs)

3200_TOP:admin> interopmode

interopMode is 1

3200_TOP:admin> nsallshow

{  610400 6105dc 6105e0 6105e1 6105e2 6105e4 630400 630500

  6514e2 6514e4 6514e8 651500

12 Nx_Ports in the Fabric }

Note The Brocade remote name server entries time out of the cache after 900 seconds (15 minutes).

3200_TOP:admin> urouteshow

Local Domain ID: 99

In Port  Domain  Out Port  Metric  Hops    Flags    Next (Dom, Port)

--------------------------------------------------------------------

   1  98      3       500     1      D           98,65538

   3 100      1       500     1      D          100,65792

   4  97      3      1000     2      D           98,65538

      98      3       500     1      D           98,65538

     100      1       500     1      D          100,65792

     101      3      1500     2      D           98,65538

   5  97      1      1000     2      D          100,65792

      98      3       500     1      D           98,65538

     100      1       500     1      D          100,65792

     101      1      1500     2      D          100,65792

Verifying the Brocade 2400 Switch

The following examples show the configuration for the Brocade 2400 switch.

BR2400_IBM_SAN:admin> version

Kernel:     5.3.1

Fabric OS:  v2.4.1h

Made on:    Fri Dec 7 15:14:10 PST 2001

Flash:      Fri Dec 7 15:15:10 PST 2001

BootProm:   Thu Jun 17 15:20:39 PDT 1999

BR2400_IBM_SAN:admin> licenseshow

R9dedRQRyRSAefek:

    Fabric license

yzbyzbccSz0cB1Z:

    Release v2.2 license

SccydbdycSTddzet:

    Web license

    Zoning license

    SES license

bdzzdeyRdcce00e1:

    QuickLoop license

BR2400_IBM_SAN:admin> switchshow

switchName:	BR2400_IBM_SAN

switchType:	3.4

switchState:	Online

switchRole:	Principal

switchDomain:	101       <==== verify domain

switchId:	fffc65

switchWwn:	10:00:00:60:69:22:32:91

switchBeacon:	OFF

port  0: id  No_Light

port  1: sw  No_Light

port  2: --  No_Module

port  3: sw  No_Light

port  4: cu  Online        L-Port  3 public

port  5: sw  Online        F-Port  10:00:00:e0:69:f0:43:9f

port  6: id  Online        E-Port  20:01:00:05:30:00:47:9f

port  7: sw  Online        E-Port  20:01:00:05:30:00:51:1f (downstream)

BR2400_IBM_SAN:admin> topologyshow

5 domains in the fabric; Local Domain ID: 101

Domain    Metric  Hops  Out Port  In Ports    Flags    Name

-----------------------------------------------------------------

  97      1500     2       7      0x00000020  D      "B3800_IBM_SAN"

                           6      0x00000010  D

  98      1000     1       6      0x000000b0  D      Unreachable

  99      1500     2       7      0x00000020  D      "3200_TOP"

                           6      0x00000010  D

 100      1000     1       7      0x00000070  D      Unreachable

BR2400_IBM_SAN:admin> interopmode

interopMode is 1

BR2400_IBM_SAN:admin> nsshow

The Local Name Server has 4 entries {

 Type Pid    COS     PortName                NodeName                 TTL(sec)

 NL   6514e2;      3;21:00:00:20:37:a7:ca:b7;20:00:00:20:37:a7:ca:b7; na

    FC4s: FCP [SEAGATE ST318451FC      0001]

    Fabric Port Name: 20:04:00:60:69:22:32:91

 NL   6514e4;      3;21:00:00:20:37:a7:c7:e0;20:00:00:20:37:a7:c7:e0; na

    FC4s: FCP [SEAGATE ST318451FC      0001]

    Fabric Port Name: 20:04:00:60:69:22:32:91

 NL   6514e8;      3;21:00:00:20:37:a7:c7:df;20:00:00:20:37:a7:c7:df; na

    FC4s: FCP [SEAGATE ST318451FC      0001]

    Fabric Port Name: 20:04:00:60:69:22:32:91

 N    651500;      3;10:00:00:e0:69:f0:43:9f;10:00:00:e0:69:f0:43:9f; na

    Fabric Port Name: 20:05:00:60:69:22:32:91

BR2400_IBM_SAN:admin> nsallshow

36 Nx_Ports in the Fabric {

  610400 610400 610400 6105dc 6105dc 6105dc 6105e0 6105e0

  6105e0 6105e1 6105e1 6105e1 6105e2 6105e2 6105e2 6105e4

  6105e4 6105e4 630400 630400 630400 630500 630500 630500

  6514e2 6514e2 6514e2 6514e4 6514e4 6514e4 6514e8 6514e8

  6514e8 651500 651500 651500

Note Due to a display anomaly, the Brocade 2400 switch in this example shows each edge device three times.

Note The Brocade remote name server entries time out of the cache after 900 seconds (15 minutes).

BR2400_IBM_SAN:admin> urouteshow

Local Domain ID: 101

In Port    Domain    Out Port    Metric    Hops    Flags    Next (Dom, Port)

----------------------------------------------------------------------------

   4        97          6        1500       2       D           98,65541

            98          6        1000       1       D           98,65541

            99          6        1500       2       D           98,65541

           100          7        1000       1       D          100,65798

   5        97          7        1500       2       D          100,65798

            98          6        1000       1       D           98,65541

            99          7        1500       2       D          100,65798

           100          7        1000       1       D          100,65798

   6       100          7        1000       1       D          100,65798

   7        98          6        1000       1       D           98,65541

Zoning

In this example, the zone is created on the MDS 9509 switch and the zone set is activated. After activation, the verification process confirms that the Brocade switches properly learn the zones and zone sets. In Brocade terminology, the zone set is known as the configuration. On Brocade switches, the MDS 9509 switch active zone set is known as the effective configuration.

The example shows how to use the name server database as a tool when building the zones. When predefining zones, you may use pWWNs of equipment not attached, or in the name server database.

Zones that are defined while the switch is in interop mode must be zoned by pWWN. Zoning by alias or FC ID is not permitted while the Brocade switch is operating in interop mode. This limits the Brocade 2100, 2400, 2800 and 3800 switches to soft zoning. The Brocade 3900 and 12000 switches continue to implement hardware enforced zoning. The MDS 9509 switch always implements hardware enforced zoning.

Creating Zones on the MDS 9509 Switch

Follow these steps to create zones on the MDS 9509 switch.

Step 1 Display the name server database to see the pWWN information.

MDS9509# show fcns data vsan 1

VSAN 1:

-----------------------------------------------------------------------

FCID        TYPE  PWWN                    (VENDOR)     FC4-TYPE:FEATURE

-----------------------------------------------------------------------

0x610400    N     10:00:00:00:c9:24:3d:90 (Emulex)        scsi-fcp

0x6105dc    NL    21:00:00:20:37:28:31:6d (Seagate)       scsi-fcp

0x6105e0    NL    21:00:00:20:37:28:24:7b (Seagate)       scsi-fcp

0x6105e1    NL    21:00:00:20:37:28:22:ea (Seagate)       scsi-fcp

0x6105e2    NL    21:00:00:20:37:28:2e:65 (Seagate)       scsi-fcp

0x6105e4    NL    21:00:00:20:37:28:26:0d (Seagate)       scsi-fcp

0x630400    N     10:00:00:00:c9:24:3f:75 (Emulex)        scsi-fcp

0x630500    N     50:06:01:60:88:02:90:cb                 scsi-fcp

0x6514e2    NL    21:00:00:20:37:a7:ca:b7 (Seagate)       scsi-fcp

0x6514e4    NL    21:00:00:20:37:a7:c7:e0 (Seagate)       scsi-fcp

0x6514e8    NL    21:00:00:20:37:a7:c7:df (Seagate)       scsi-fcp

0x651500    N     10:00:00:e0:69:f0:43:9f (JNI)

Total number of entries = 12

MDS9509#

Step 2 Now that the pWWNs are visible, use tools like cut and paste to create the zones.

MDS9509# conf t

Enter configuration commands, one per line.  End with CNTL/Z.

MDS9509(config)# zone name vz1 vsan 1

MDS9509(config-zone)# member pwwn 50:06:01:60:88:02:90:cb

MDS9509(config-zone)# member pwwn 10:00:00:00:c9:24:3d:90

MDS9509(config-zone)# exit

MDS9509(config)#

MDS9509(config)# zone name vz2 vsan 1

MDS9509(config-zone)#

MDS9509(config-zone)# member pwwn 10:00:00:00:c9:24:3f:75

MDS9509(config-zone)# member pwwn 21:00:00:20:37:a7:ca:b7

MDS9509(config-zone)# member pwwn 21:00:00:20:37:a7:c7:e0

MDS9509(config-zone)# member pwwn 21:00:00:20:37:a7:c7:df

MDS9509(config-zone)#

MDS9509(config-zone)# exit

MDS9509(config)#

MDS9509(config)# zone name vz3 vsan 1

MDS9509(config-zone)#

MDS9509(config-zone)# member pwwn 10:00:00:e0:69:f0:43:9f

MDS9509(config-zone)# member pwwn 21:00:00:20:37:28:31:6d

MDS9509(config-zone)# member pwwn 21:00:00:20:37:28:24:7b

MDS9509(config-zone)# member pwwn 21:00:00:20:37:28:22:ea

MDS9509(config-zone)# member pwwn 21:00:00:20:37:28:2e:65

MDS9509(config-zone)# member pwwn 21:00:00:20:37:28:26:0d

MDS9509(config-zone)#

MDS9509(config-zone)# exit

MDS9509(config)#

MDS9509(config)#

MDS9509(config)# zoneset name mdscore vsan 1

MDS9509(config-zoneset)# member vz1

MDS9509(config-zoneset)# member vz2

MDS9509(config-zoneset)# member vz3

MDS9509(config-zoneset)# exit

MDS9509(config)#

At this point, we have created three zones (VZ1, VZ2 and VZ3). We have also created a zone set named MDSCORE.

Step 3 Activate the zone set MDSCORE.

MDS9509(config)# zoneset activate name mdscore vsan 1

Zoneset Activation initiated. check zone status

MDS9509(config)#

MDS9509(config)#

MDS9509(config)# exit

Step 4 View each switch in the fabric to verify that zoning is in place.

a. Show the zone and zone set. The running config on the MDS 9509 switch shows the zone and zone set because they were created on this switch.

MDS9509# show zoneset active

zoneset name mdscore vsan 1

  zone name vz1 vsan 1

  * fcid 0x630500 [pwwn 50:06:01:60:88:02:90:cb]

  * fcid 0x610400 [pwwn 10:00:00:00:c9:24:3d:90]

zone name vz2 vsan 1

  * fcid 0x630400 [pwwn 10:00:00:00:c9:24:3f:75]

  * fcid 0x6514e2 [pwwn 21:00:00:20:37:a7:ca:b7]

  * fcid 0x6514e4 [pwwn 21:00:00:20:37:a7:c7:e0]

  * fcid 0x6514e8 [pwwn 21:00:00:20:37:a7:c7:df]

  zone name vz3 vsan 1

  * fcid 0x651500 [pwwn 10:00:00:e0:69:f0:43:9f]

  * fcid 0x6105dc [pwwn 21:00:00:20:37:28:31:6d]

  * fcid 0x6105e0 [pwwn 21:00:00:20:37:28:24:7b]

  * fcid 0x6105e1 [pwwn 21:00:00:20:37:28:22:ea]

  * fcid 0x6105e2 [pwwn 21:00:00:20:37:28:2e:65]

  * fcid 0x6105e4 [pwwn 21:00:00:20:37:28:26:0d]

  zone name $default_zone$ vsan 1

b. Show the active zone set on the second MDS 9509 switch (MDS 9509-B). (The running config does not show this information because the zone was not created on this MDS 9509 switch.)

MDS9509B# show zoneset active

zoneset name mdscore vsan 1

  zone name vz1 vsan 1

  * fcid 0x630500 [pwwn 50:06:01:60:88:02:90:cb]

  * fcid 0x610400 [pwwn 10:00:00:00:c9:24:3d:90]

  zone name vz2 vsan 1

  * fcid 0x630400 [pwwn 10:00:00:00:c9:24:3f:75]

  * fcid 0x6514e2 [pwwn 21:00:00:20:37:a7:ca:b7]

  * fcid 0x6514e4 [pwwn 21:00:00:20:37:a7:c7:e0]

  * fcid 0x6514e8 [pwwn 21:00:00:20:37:a7:c7:df]

  zone name vz3 vsan 1

  * fcid 0x651500 [pwwn 10:00:00:e0:69:f0:43:9f]

  * fcid 0x6105dc [pwwn 21:00:00:20:37:28:31:6d]

  * fcid 0x6105e0 [pwwn 21:00:00:20:37:28:24:7b]

  * fcid 0x6105e1 [pwwn 21:00:00:20:37:28:22:ea]

  * fcid 0x6105e2 [pwwn 21:00:00:20:37:28:2e:65]

  * fcid 0x6105e4 [pwwn 21:00:00:20:37:28:26:0d]

  zone name $default_zone$ vsan 1

c. Show the configuration on the Brocade 3200 switch. There is a defined configuration and an effective configuration.

3200_TOP:admin> cfgshow

Defined configuration:

 cfg:     Interop     Dell; Netfinity

 zone:    Dell  10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb

 zone:    Netfinity

          10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7;

          21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df

Effective configuration:

 cfg:     mdscore

 zone:    vz1    50:06:01:60:88:02:90:cb

                 10:00:00:00:c9:24:3d:90

 zone:	    vz2    10:00:00:00:c9:24:3f:75

                 21:00:00:20:37:a7:ca:b7

                 21:00:00:20:37:a7:c7:e0

                 21:00:00:20:37:a7:c7:df

 zone:    vz3    10:00:00:e0:69:f0:43:9f

                 21:00:00:20:37:28:31:6d

                 21:00:00:20:37:28:24:7b

                 21:00:00:20:37:28:22:ea

                 21:00:00:20:37:28:2e:65

                 21:00:00:20:37:28:26:0d

d. Show the configuration on the Brocade 3800 switch.

B3800_IBM_SAN:admin> cfgshow

Defined configuration:

 cfg:     Interop     Dell; Netfinity

 zone:    Dell  10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb

 zone:    Netfinity

          10:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7;

          21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df

Effective configuration:

 cfg:     mdscore

 zone:    vz1    50:06:01:60:88:02:90:cb

                 10:00:00:00:c9:24:3d:90

 zone:    vz2    10:00:00:00:c9:24:3f:75

                 21:00:00:20:37:a7:ca:b7

                 21:00:00:20:37:a7:c7:e0

                 21:00:00:20:37:a7:c7:df

 zone:    vz3    10:00:00:e0:69:f0:43:9f

                 21:00:00:20:37:28:31:6d

                 21:00:00:20:37:28:24:7b

                 21:00:00:20:37:28:22:ea

                 21:00:00:20:37:28:2e:65

                 21:00:00:20:37:28:26:0d

e. Show the configuration on the Brocade 2400 switch.

BR2400_IBM_SAN:admin> cfgshow

Defined configuration:

 cfg:     Interop     Dell; Netfinity

 zone:    Dell  10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb

 zone:    Netfinity

          10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7;

          21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df

Effective configuration:

 cfg:     mdscore

 zone:    vz1    50:06:01:60:88:02:90:cb

                 10:00:00:00:c9:24:3d:90

 zone:    vz2    10:00:00:00:c9:24:3f:75[c7]

                 21:00:00:20:37:a7:ca:b7

                 21:00:00:20:37:a7:c7:e0

                 21:00:00:20:37:a7:c7:df

 zone:    vz3    10:00:00:e0:69:f0:43:9f

                 21:00:00:20:37:28:31:6d

                 21:00:00:20:37:28:24:7b

                 21:00:00:20:37:28:22:ea[ff]

                 21:00:00:20:37:28:2e:65[fc]

                 21:00:00:20:37:28:26:0d

All switches in the fabric now have the correct zoning information.

Creating Zones on the Brocade 3800 Switch

The next example shows how to create the zones and a zone set on the Brocade 3800 switch, activate the zone set, and verify that each switch in the fabric has the correct zoning in place. The zone members in this example are the same as used in the previous example, but the zone names and zone set name are different.

Step 1 Clear the zoning configuration. If this command is issued and this switch is part of the fabric, all switches will have no zoning in effect.

B3800_IBM_SAN:admin> cfgclear

Do you really want to clear all configurations?  (yes, y, no, n): [no] yes

Clearing All zoning configurations...

B3800_IBM_SAN:admin> cfgshow

Defined configuration:

 no configuration defined

Effective configuration:

 no configuration in effect

Step 2 Create the zones. In this example, the zones are named vz11, vz22, and vz33.

B3800_IBM_SAN:admin> zonecreate :"vz11", "10:00:00:00:c9:24:3d:90;
50:06:01:60:88:02:90:cb"

B3800_IBM_SAN:admin> zonecreate "vz22", "10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7;
21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df"

Due to command line limitations, and the number of members, zone vz33 is created with some members, and the rest are added.

B3800_IBM_SAN:admin> zonecreate "vz33", "10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d;
21:00:00:20:37:28:24:7b;

21:00:00:20:37:28:22:ea"

B3800_IBM_SAN:admin> zoneadd "vz33", "21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d"

Step 3 Check the zones before making them active.

B3800_IBM_SAN:admin> zoneshow

Defined configuration:

 zone:  vz11  10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb

 zone:  vz22  10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7;

              21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df

 zone:  vz33  10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d;

              21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea;

              21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d

Effective configuration:

 no configuration in effect

Step 4 Create the configuration. When the configuration is activated, it is known on the MDS 9509 switch as the active zone set.

B3800_IBM_SAN:admin> cfgcreate "mdscore1", "vz11; vz22; vz33"

Step 5 Activate the configuration.

B3800_IBM_SAN:admin> cfgenable "mdscore1"

zone config "mdscore1" is in effect

Updating flash ...

Step 6 Check the display on the Brocade 3800 switch.

B3800_IBM_SAN:admin> cfgshow

Defined configuration:

 cfg:     mdscore1

          vz11; vz22; vz33

 zone:  vz11  10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb

 zone:  vz22  10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7;

              21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df

 zone:  vz33  10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d;

              21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea;

              21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d

Effective configuration:

 cfg:     mdscore1

 zone:  vz11  10:00:00:00:c9:24:3d:90

              50:06:01:60:88:02:90:cb

 zone:  vz22  10:00:00:00:c9:24:3f:75

              21:00:00:20:37:a7:ca:b7

              21:00:00:20:37:a7:c7:e0

              21:00:00:20:37:a7:c7:df

 zone:  vz33  10:00:00:e0:69:f0:43:9f

              21:00:00:20:37:28:31:6d

              21:00:00:20:37:28:24:7b

              21:00:00:20:37:28:22:ea

              21:00:00:20:37:28:2e:65

              21:00:00:20:37:28:26:0d

The new configuration is in effect and defined.

Step 7 Look at the other switches in the fabric.

a. Display the configuration on the Brocade 3200 switch.

3200_TOP:admin> cfgshow

Defined configuration:

 cfg:     mdscore1

        vz11; vz22; vz33

 zone:  vz11  10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb

 zone:  vz22  10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7;

              21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df

 zone:  vz33  10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d;

              21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea;

              21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d

Effective configuration:

 cfg     mdscore1

 zone:  vz11  10:00:00:00:c9:24:3d:90

              50:06:01:60:88:02:90:cb

 zone:  vz22  10:00:00:00:c9:24:3f:75

              21:00:00:20:37:a7:ca:b7

              21:00:00:20:37:a7:c7:e0

              21:00:00:20:37:a7:c7:df

 zone:  vz33  10:00:00:e0:69:f0:43:9f

              21:00:00:20:37:28:31:6d

              21:00:00:20:37:28:24:7b

              21:00:00:20:37:28:22:ea

              21:00:00:20:37:28:2e:65

              21:00:00:20:37:28:26:0d

b. Display the configuration on the other Brocade 3800 switch.

B3800_IBM_SAN:admin> cfgshow

Defined configuration:

 cfg:     mdscore1

          vz11; vz22; vz33

 zone:  vz11  10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb

 zone:  vz22  10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7;

              21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df

 zone:  vz33  10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d;

              21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea;

              21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d

Effective configuration:

 cfg:     mdscore1

 zone:  vz11  10:00:00:00:c9:24:3d:90

              50:06:01:60:88:02:90:cb

 zone:  vz22  10:00:00:00:c9:24:3f:75

              21:00:00:20:37:a7:ca:b7

              21:00:00:20:37:a7:c7:e0

              21:00:00:20:37:a7:c7:df

 zone:  vz33  10:00:00:e0:69:f0:43:9f

              21:00:00:20:37:28:31:6d

              21:00:00:20:37:28:24:7b

              21:00:00:20:37:28:22:ea

              21:00:00:20:37:28:2e:65

              21:00:00:20:37:28:26:0d

c. Display the configuration on the Brocade 2400 switch.

BR2400_IBM_SAN:admin> cfgshow

Defined configuration:

 cfg:     mdscore1

          vz11; vz22; vz33

 zone:  vz11  10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb

 zone:  vz22  10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7;

              21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df

 zone:  vz33  10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d;

              21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea;

              21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d

Effective configuration:

 cfg:     mdscore1

 zone:  vz11  10:00:00:00:c9:24:3d:90

              50:06:01:60:88:02:90:cb[6]

 zone:  vz22  10:00:00:00:c9:24:3f:75

              21:00:00:20:37:a7:ca:b7

              21:00:00:20:37:a7:c7:e0

              21:00:00:20:37:a7:c7:df[29]

 zone:  vz33  10:00:00:e0:69:f0:43:9f

              21:00:00:20:37:28:31:6d

              21:00:00:20:37:28:24:7b

              21:00:00:20:37:28:22:ea

              21:00:00:20:37:28:2e:65

              21:00:00:20:37:28:26:0d

d. Show the active zone set on the first MDS 9509 switch (MDS 9509-A).

MDS9509# show zoneset active

zoneset name mdscore1 vsan 1

  zone name vz11 vsan 1

  * fcid 0x610400 [pwwn 10:00:00:00:c9:24:3d:90]

  * fcid 0x630500 [pwwn 50:06:01:60:88:02:90:cb]

  zone name vz22 vsan 1

  * fcid 0x630400 [pwwn 10:00:00:00:c9:24:3f:75]

  * fcid 0x6514e2 [pwwn 21:00:00:20:37:a7:ca:b7]

  * fcid 0x6514e4 [pwwn 21:00:00:20:37:a7:c7:e0]

  * fcid 0x6514e8 [pwwn 21:00:00:20:37:a7:c7:df]

  zone name vz33 vsan 1

  * fcid 0x651500 [pwwn 10:00:00:e0:69:f0:43:9f]

  * fcid 0x6105dc [pwwn 21:00:00:20:37:28:31:6d]

  * fcid 0x6105e0 [pwwn 21:00:00:20:37:28:24:7b]

  * fcid 0x6105e1 [pwwn 21:00:00:20:37:28:22:ea]

  * fcid 0x6105e2 [pwwn 21:00:00:20:37:28:2e:65]

  * fcid 0x6105e4 [pwwn 21:00:00:20:37:28:26:0d]

  zone name $default_zone$ vsan 1

MDS9509# show zone vsan 1

zone name vz1 vsan 1

  pwwn 50:06:01:60:88:02:90:cb

  pwwn 10:00:00:00:c9:24:3d:90

zone name vz2 vsan 1

  pwwn 10:00:00:00:c9:24:3f:75

  pwwn 21:00:00:20:37:a7:ca:b7

  pwwn 21:00:00:20:37:a7:c7:e0

  pwwn 21:00:00:20:37:a7:c7:df

zone name vz3 vsan 1

  pwwn 10:00:00:e0:69:f0:43:9f

  pwwn 21:00:00:20:37:28:31:6d

  pwwn 21:00:00:20:37:28:24:7b

  pwwn 21:00:00:20:37:28:22:ea

  pwwn 21:00:00:20:37:28:2e:65

  pwwn 21:00:00:20:37:28:26:0d

Note The show zone command displays the zones that were created earlier on this switch.

e. Check the running configuration on the MDS 9509 switch.

MDS9509# show run

Building Configuration...

 interface fc2/1

no shutdown

<snip>

zone name vz1 vsan 1

  member pwwn 50:06:01:60:88:02:90:cb

  member pwwn 10:00:00:00:c9:24:3d:90

zone name vz2 vsan 1

  member pwwn 10:00:00:00:c9:24:3f:75

  member pwwn 21:00:00:20:37:a7:ca:b7

  member pwwn 21:00:00:20:37:a7:c7:e0

  member pwwn 21:00:00:20:37:a7:c7:df

zone name vz3 vsan 1

  member pwwn 10:00:00:e0:69:f0:43:9f

  member pwwn 21:00:00:20:37:28:31:6d

  member pwwn 21:00:00:20:37:28:24:7b

  member pwwn 21:00:00:20:37:28:22:ea

  member pwwn 21:00:00:20:37:28:2e:65

  member pwwn 21:00:00:20:37:28:26:0d

zoneset name mdscore vsan 1

  member vz1

  member vz2

  member vz3

<snip>

MDS9509#

Note The running configuration and the active zone set are different.

f. Show the active zone set on the second MDS 9509 switch (MDS 9509-B).

MDS9509B# show zoneset active

zoneset name mdscore1 vsan 1

  zone name vz11 vsan 1

  * fcid 0x610400 [pwwn 10:00:00:00:c9:24:3d:90]

  * fcid 0x630500 [pwwn 50:06:01:60:88:02:90:cb]

  zone name vz22 vsan 1

  * fcid 0x630400 [pwwn 10:00:00:00:c9:24:3f:75]

  * fcid 0x6514e2 [pwwn 21:00:00:20:37:a7:ca:b7]

  * fcid 0x6514e4 [pwwn 21:00:00:20:37:a7:c7:e0]

  * fcid 0x6514e8 [pwwn 21:00:00:20:37:a7:c7:df]

  zone name vz33 vsan 1

  * fcid 0x651500 [pwwn 10:00:00:e0:69:f0:43:9f]

  * fcid 0x6105dc [pwwn 21:00:00:20:37:28:31:6d]

  * fcid 0x6105e0 [pwwn 21:00:00:20:37:28:24:7b]

  * fcid 0x6105e1 [pwwn 21:00:00:20:37:28:22:ea]

  * fcid 0x6105e2 [pwwn 21:00:00:20:37:28:2e:65]

  * fcid 0x6105e4 [pwwn 21:00:00:20:37:28:26:0d]

  zone name $default_zone$ vsan 1

The zone set (configuration) created on the Brocade 3800 switch is now active and effective in all switches in the fabric.

The zones created on the MDS 9509 switch are propagated to the Brocade switches. Although the cfgshow command does not show these zones under a defined configuration, if the switch is isolated and rebooted, then the correct zone configuration is effective.

On the MDS switch, the active zone configuration is always saved to memory. It is not displayed in the running configuration. If the switch is isolated and rebooted, the last active zone set is reinstated as the current active zone set.

Changes to the zones or zone set while the switch is isolated will need to pass a zone merge validation when the ISLs are activated.

	Cisco MDS 9000 Family Switch-to-Switch Interoperability Configuration Guide
	MDS 9000 Core with Brocade Edge Topology (Interop Mode 1)
Cisco MDS 9000 Family Switch-to-Switch Interoperability Configuration Guide Index Preface Interoperability Overview Interoperability Limitations MDS 9000 Core with Brocade Edge Topology (Interop Mode 1) MDS 9000 Core with Brocade and McData Edge Topology (Interop Mode 1) MDS 9000 Switch and McData Dual Core Topology (Interop Mode 1) MDS 9000 Core with Brocade 3900/12000 Edge Toplogy MDS 9000 Legacy Switch Interop Mode 2 MDS 9000 Legacy Switch Interop Mode 3 MDS 9000 Legacy Switch Interop Mode 4 MDS 9020 Switch Interoperability Interoperability with Inter-VSAN Routing IBM BladeCenter Standards Perspectives Caveats	Download this chapter MDS 9000 Core with Brocade Edge Topology (Interop Mode 1) Download the complete book Full Book PDF (PDF - 3 MB) Feedback Table Of Contents MDS 9000 Core with Brocade Edge Topology (Interop Mode 1) Specifications Expected Topology Behavior Zoning FSPF Trunking and PortChannels Domain IDs Configuration Configuring the MDS 9509 Switch Configuring the Brocade 3800 Switch Configuring the Brocade 3200 Switch Configuring the Brocade 2400 Switch Verification Verifying the MDS 9509 Switch Verifying the Brocade 3800 Switch Verifying the Brocade 3200 Switch Verifying the Brocade 2400 Switch Zoning Creating Zones on the MDS 9509 Switch Creating Zones on the Brocade 3800 Switch MDS 9000 Core with Brocade Edge Topology (Interop Mode 1) This chapter describes how to set up a basic core-edge topology with two MDS 9000 switches configured for interop mode 1 at the core and three Brocade switches at the edge. All devices are connected to the edge switches. However, all traffic must flow through the core switch to reach its destination. This chapter includes the following sections: •Specifications •Expected Topology Behavior •Configuration •Verification •Zoning Specifications The following switches and code levels were used for this example configuration: •MDS 9509 running SAN-OS Release 1.0(1) •Brocade 3800 Version 3.0.2 •Brocade 3200 Version 3.0.2 •Brocade 2400 Version 2.4.1h Figure 3-1 shows the topology used for this example configuration. Figure 3-1 Dual MDS 9509 Core with Brocade Edge Topology Expected Topology Behavior This section covers the Fibre Channel services and features that act differently in this topology (Figure 3-1) as compared to a homogeneous, single-vendor implementation. It covers the specifics that relate to this topology as outlined in the Fibre Channel Features Affected by Interoperability section in "Interoperability Overview" . This section includes the following topics: •Zoning •FSPF •Trunking and PortChannels •Domain IDs Zoning All zone members will be pWWNs in the core-edge topology using standard interop mode because the Brocade domain/port nomenclature is not a valid form (per the FC standard). When a zone set (or configuration in Brocade terminology) is made at the core, the zone merge request reaches all switches at the same time because all the switches are one hop away (except for the other core switch which is two hops away). The Brocade edge switches provide all of the zone security because the MDS 9000 switch does not check the source or destination of the frame when traversing E ports. Brocade switches only check the zoning information on the egress port of the fabric. Note After two active zone sets successfully merge, always copy the active zone set to the full zone set database prior to modifying it on the MDS 9000 switch. FSPF All links within the topology appear with the link cost of 500, except for the two paths leading to the Brocade 2400. These paths are running at 1 Gbps and appear with a cost of 1000. The Brocade switches load balance their routes using source/destination; the ingress edge switch uses the same core switch for all traffic that has the same source/destination pair. If the Brocade switch could load balance using source/destination/ox-id, then it could choose either of the two core switches for the route through the fabric. The two-level core does not allow the MDS 9000 switch, which can load balance using source/destination/ox-id, to load balance across multiple edge switches. Trunking and PortChannels The lack of MDS 9000 switch-to-MDS 9000-switch connections prohibit the topology from containing TE ports or PortChannels. While in interop mode, the Brocade switches do not support trunked ports of any type. Only standard E ports are used for the ISLs. Domain IDs The domain IDs are restricted to the 97 to 127 range to reflect McData's inability to use IDs outside of that range. A McData switch is not present in this configuration, but the decision to have a single interoperability mode for the Brocade and MDS 9000 switch causes this side effect. While Brocade switches and MDS 9000 switches can handle domain IDs outside of this range, their implementation of interoperability mode includes this limitation. Domain ID modifications can be handled in two ways, disruptively or nondisruptively: •Disruptive—This event impacts the entire switch. When changing domain IDs, Brocade requires the entire switch to be taken offline and/or rebooted. •Nondisruptive—This event is limited to the VSAN where the event is taking place. Only the MDS 9000 switch can perform this action, as the domain manager process for this VSAN is restarted and not the entire switch. This restart requires any devices logged into the VSAN to log into the fabric again to obtain a new FC ID. Configuration This section describes the configuration process and includes the following topics: •Configuring the MDS 9509 Switch •Configuring the Brocade 3800 Switch •Configuring the Brocade 3200 Switch •Configuring the Brocade 2400 Switch Configuring the MDS 9509 Switch Follow these steps to configure the first MDS 9509 switch (MDS 9509-A) in the example. Step 1 Place the VSAN of the E port(s) that connects to the OEM switch in interoperability mode. MDS9509# config t MDS9509(config)# vsan database MDS9509(config-vsan-db)# vsan 1 interop Step 2 Assign a domain ID in the range of 97 (0x61) through 127 (0x7F). This is a limitation imposed by the McData switches. In interop mode, the fabric is limited to a total of 31 switches. In the MDS 9509 switch, the default is to request an ID from the principal switch. If the preferred keyword is used, the MDS 9509 switch requests a specific ID, but still joins the fabric if the principal switch assigns a different ID. If the static keyword is used, the MDS 9509 switch does not join the fabric unless the principal switch agrees and assigns the requested ID. MDS9509# config t MDS9509(config)# fcdomain domain 100 preferred vsan 1 Step 3 Change the Fibre Channel timers if they have been changed from the system defaults. The FC error detect (ED_TOV) and resource allocation (RA_TOV) timers for MDS 9000 switches, Brocade, and McData switches, default to the same values. The RA_TOV defaults to 10 seconds, and the ED_TOV defaults to 2 seconds. These values can be changed. According to the FC-SW2 standard, these timer values must be the same on each switch in the fabric. MDS9509# config t MDS9509(config)# fctimer e_d_tov ? <1000-100000> E_D_TOV in milliseconds(1000-100000) MDS9509(config)# fctimer r_a_tov ? <5000-100000> R_A_TOV in milliseconds(5000-100000) Step 4 After making changes to the domain, restart the MDS 9000 switch domain manager function for the altered VSAN. To do this, suspend and then resume the VSAN: MDS9509(config)# vsan database MDS9509(config-vsan-db)# vsan 1 suspend MDS9509(config-vsan-db)# no vsan 1 suspend Configuring the second MDS 9509 switch (MDS 9509-B) in interoperability mode follows the same procedure as the first with the exception of choosing a different preferred domain ID. Follow these steps to configure the second MDS 9509 switch (MDS 9509-B) in the example. Step 1 Place the VSAN of the E port(s) that connects to the OEM switch in interoperability mode. MDS9509B# config t MDS9509B(config)# vsan database MDS9509B(config-vsan-db)# vsan 1 interop Step 2 Assign a domain ID in the range of 97 (0x61) through 127 (0x7F). MDS9509B# config t MDS9509B(config)# fcdomain domain 98 preferred vsan 1 Step 3 Change the Fibre Channel timers if they have been changed from the system defaults. According to the FC-SW2 standard, these values must be the same on each switch in the fabric. MDS9509B# config t MDS9509B(config)# fctimer e_d_tov ? <1000-100000> E_D_TOV in milliseconds(1000-100000) MDS9509B(config)# fctimer r_a_tov ? <5000-100000> R_A_TOV in milliseconds(5000-100000) Step 4 Restart the MDS 9000 switch domain manager function for the altered VSAN. To do this, suspend and then resume the VSAN. MDS9509(config)# vsan database MDS9509(config-vsan-db)# vsan 1 suspend MDS9509(config-vsan-db)# no vsan 1 suspend Configuring the Brocade 3800 Switch Follow these steps to configure the Brocade 3800 switch in interoperability mode. Step 1 Disable the switch. This is a disruptive process. B3800_IBM_SAN:admin> switchdisable Step 2 Enter the configuration dialog. B3800_IBM_SAN:admin> configure Configure... Fabric parameters (yes, y, no, n): [no] y Domain: (1..239) [1] 97 <==== Assign domain id in the 97-127 range BB credit: (1..27) [16] R_A_TOV: (4000..120000) [10000] <==== Must match other switches in the fabric E_D_TOV: (1000..5000) [2000] <==== Must match other switches in the fabric WAN_TOV: (0..2000) [0] MAX_HOPS: (7..13) [7] WAN_RTT_DLY_MAX: (0..9500) [200] Data field size: (256..2112) [2112] Sequence Level Switching: (0..1) [0] Disable Device Probing: (0..1) [0] Suppress Class F Traffic: (0..1) [0] SYNC IO mode: (0..1) [0] VC Encoded Address Mode: (0..1) [0] Core Switch PID Format: (0..1) [0] Per-frame Route Priority: (0..1) [0] Long Distance Fabric: (0..1) [0] Virtual Channel parameters (yes, y, no, n): [no] Zoning Operation parameters (yes, y, no, n): [no] RSCN Transmission Mode (yes, y, no, n): [no] NS Operation Parameters (yes, y, no, n): [no] y Pre-zoned responses Mode (0 = Standard Mode, 1 = Pre-zoning On): (0..1) [0] <==== Confirm standard mode Arbitrated Loop parameters (yes, y, no, n): [no] System services (yes, y, no, n): [no] Portlog events enable (yes, y, no, n): [no] Committing configuration...done. Step 3 Disable platform management services. Failure to disable this service isolates E ports that connect to non-Brocade switches: B3800_IBM_SAN:admin> msPlMgmtDeactivate This will erase all Platform entries. Are you sure? (yes, y, no, n): [no] y Committing configuration...done. Request Fabric to Deactivate Platform Management services.... Done. Step 4 Set interoperability mode to on at the command line and then reboot. B3800_IBM_SAN:admin> interopmode 1 <==== Set interop mode on Committing configuration...done. interopMode is 1 NOTE: It is recommended that you boot this switch for this change to take effect Note Do not ignore this warning message. Anomalies were experienced that required a switch reboot. B3800_IBM_SAN:admin> fastboot To return to non-interop mode, you must disable the switch. Reconfigure the switch and set interoperability mode equal to 0, and then reboot. Configuring the Brocade 3200 Switch Follow these steps to configure the Brocade 3200 switch in interoperability mode. Step 1 Disable the switch. This is a disruptive process. 3200_TOP:admin> switchdisable Step 2 Enter the configuration dialog. 3200_TOP:admin> configure Configure... Fabric parameters (yes, y, no, n): [no] y Domain: (1..239) [1] 99 <==== Assign domain id in the 97-127 range BB credit: (1..27) [16] R_A_TOV: (4000..120000) [10000] <==== Must match other switches in the fabric E_D_TOV: (1000..5000) [2000] <==== Must match other switches in the fabric WAN_TOV: (0..2000) [0] MAX_HOPS: (7..13) [7] WAN_RTT_DLY_MAX: (0..9500) [200] Data field size: (256..2112) [2112] Sequence Level Switching: (0..1) [0] Disable Device Probing: (0..1) [0] Suppress Class F Traffic: (0..1) [0] SYNC IO mode: (0..1) [0] VC Encoded Address Mode: (0..1) [0] Core Switch PID Format: (0..1) [0] Per-frame Route Priority: (0..1) [0] Long Distance Fabric: (0..1) [0] Virtual Channel parameters (yes, y, no, n): [no] Zoning Operation parameters (yes, y, no, n): [no] RSCN Transmission Mode (yes, y, no, n): [no] NS Operation Parameters (yes, y, no, n): [no] y Pre-zoned responses Mode (0 = Standard Mode, 1 = Pre-zoning On): (0..1) [0] <==== Confirm standard mode Arbitrated Loop parameters (yes, y, no, n): [no] System services (yes, y, no, n): [no] Portlog events enable (yes, y, no, n): [no] Committing configuration...done. Step 3 Disable platform management services. Failure to disable this service isolates E ports that connect to non-Brocade switches. 3200_TOP:admin> msPlMgmtDeactivate This will erase all Platform entries. Are you sure? (yes, y, no, n): [no] y Committing configuration...done. Request Fabric to Deactivate Platform Management services.... Done. Step 4 Set interoperability mode to on at the command line and then reboot. 3200_TOP:admin> interopmode 1 Set interop mode on Committing configuration...done. interopMode is 1 NOTE: It is recommended that you boot this switch to make this change take effect Note Do not ignore the warning message. Anomalies were experienced that required a switch reboot. 3200_TOP:admin> fastboot To return to non-interop mode, disable the switch. Reconfigure the switch, set interoperability mode equal to 0, and then reboot. Configuring the Brocade 2400 Switch Follow these steps to configure the Brocade 2400 switch in interoperability mode. Step 1 Disable the switch. This is a disruptive process. B2400_IBM_SAN:admin> switchdisable Step 2 Enter into the configuration dialog. B2400_IBM_SAN:admin> configure Configure... Fabric parameters (yes, y, no, n): [no] y Domain: (1..239) [97] 101 <==== Assign domain id in the 97-127 range BB credit: (1..27) [16] R_A_TOV: (4000..120000) [10000] <==== Must match other switches in the fabric E_D_TOV: (1000..5000) [2000] <==== Must match other switches in the fabric Data field size: (256..2112) [2112] Sequence Level Switching: (0..1) [0] Disable Device Probing: (0..1) [0] Suppress Class F Traffic: (0..1) [0] SYNC IO mode: (0..1) [0] VC Encoded Address Mode: (0..1) [0] Core Switch PID Format: (0..1) [0] Per-frame Route Priority: (0..1) [0] Long Distance Fabric: (0..1) [0] Virtual Channel parameters (yes, y, no, n): [no] Switch Operating Mode (yes, y, no, n): [no] y Interoperability Mode: (0..1) [0] 1 <==== Set interopmode on Zoning Operation parameters (yes, y, no, n): [no] y Standard Mode: (0..1) [0] 1 <==== Set standard mode on Enable TransactZoneManagement: (0..1) [1] Disable NodeName Zone Checking: (0..1) [0] Arbitrated Loop parameters (yes, y, no, n): [no] System services (yes, y, no, n): [no] Portlog events enable (yes, y, no, n): [no] Committing configuration...done. Step 3 Disable platform management services. Failure to disable this service isolates E ports that connect to non-Brocade switches. B2400_IBM_SAN:admin> msPlMgmtDeactivate This will erase all Platform entries. Are you sure? (yes, y, no, n): [no] y Committing configuration...done. Request Fabric to Deactivate Platform Management services.... Done. Step 4 Reboot the switch. B2400_IBM_SAN:admin> fastboot To return to non-interop mode, you must disable the switch. Reconfigure the switch, set interoperability mode equal to 0, and then reboot. Verification This section highlights the commands used to verify that the fabric is up and running in interoperability mode, and it includes the following topics: •Verifying the MDS 9509 Switch •Verifying the Brocade 3800 Switch •Verifying the Brocade 3200 Switch •Verifying the Brocade 2400 Switch The example configuration now includes the paths for frame flow as a result of the FSPF algorithm. (See Figure 3-2.) Figure 3-2 Data Flow of Dual MDS 9509 Core with Brocade Edge Topology Verifying the MDS 9509 Switch The following examples show the configuration for the first MDS 9509 switch (MDS (9509-A). MDS9509# show version Copyright (c) 2001-2005 Cisco Systems, Inc. Software kickstart: version 1.0(1) [build 1.0(0.253e)] [gdb] System: version 1.0(1) [build 1.0(0.253e)] [gdb] Hardware RAM 1932864 kB bootflash: 503808 blocks (block size 512b) slot0: 0 blocks (block size 512b) Compile Time: 10/26/2002 2:00:00 MDS9509# show interface brief Interface Vsan Admin Admin Status Oper Oper Port-channel Mode Trunk Mode Speed Mode (Gbps) -------------------------------------------------------------------- fc2/1 1 auto on up E 2 -- fc2/2 1 auto on up E 2 -- fc2/3 1 auto on fcotAbsent -- -- -- fc2/4 1 auto on down -- -- -- fc2/5 1 auto on down -- -- -- fc2/6 1 auto on down -- -- -- fc2/7 1 auto on up E 1 -- fc2/8 1 auto on fcotAbsent -- -- -- fc2/9 1 auto on down -- -- -- fc2/10 1 auto on down -- -- -- MDS9509# show run Building Configuration ... interface fc2/1 no shutdown interface fc2/2 no shutdown interface fc2/3 interface fc2/4 interface fc2/5 interface fc2/6 interface fc2/7 no shutdown interface fc2/8 interface fc2/9 interface fc2/10 <snip> interface fc2/32 interface mgmt0 ip address 6.1.1.96 255.255.255.0 switchport encap default no shutdown vsan database vsan 1 interop boot system bootflash:/m9500-isan-253e.bin sup-1 boot kickstart bootflash:/m9500-kickstart-253e.bin sup-1 boot system bootflash:/m9500-isan-253e.bin sup-2 boot kickstart bootflash:/m9500-kickstart-253e.bin sup-2 callhome fcdomain domain 100 preferred vsan 1 ip route 6.1.1.0 255.255.255.0 6.1.1.1 ip routing line console databits 5 speed 110 logging linecard ssh key rsa 512 force ssh server enable switchname MDS9509 username admin password 5 $1$Li8/fBYX$SNc72.xt4nTXpSnR9OUFB/ role network-admin MDS9509# show vsan 1 vsan 1 information name:VSAN0001 state:active interoperability mode:yes <==== verify mode loadbalancing:src-id/dst-id/oxid operational state:up MDS9509# show fcdomain vsan 1 The local switch is a Subordinated Switch. Local switch run time information: State: Stable Local switch WWN: 20:01:00:05:30:00:51:1f Running fabric name: 10:00:00:60:69:22:32:91 Running priority: 128 Current domain ID: 0x64(100) <==== verify domain id Local switch configuration information: State: Enabled Auto-reconfiguration: Disabled Contiguous-allocation: Disabled Configured fabric name: 41:6e:64:69:61:6d:6f:21 Configured priority: 128 Configured domain ID: 0x64(100) (preferred) Principal switch run time information: Running priority: 2 Interface Role RCF-reject ---------------- ------------- ------------ fc2/1 Downstream Disabled fc2/2 Downstream Disabled fc2/7 Upstream Disabled ---------------- ------------- ------------ MDS9509# show fcdomain domain-list vsan 1 Number of domains: 5 Domain ID WWN --------- ----------------------- 0x61(97) 10:00:00:60:69:50:0c:fe 0x62(98) 20:01:00:05:30:00:47:9f 0x63(99) 10:00:00:60:69:c0:0c:1d 0x64(100) 20:01:00:05:30:00:51:1f [Local] 0x65(101) 10:00:00:60:69:22:32:91 [Principal] --------- ----------------------- MDS9509# show fspf internal route vsan 1 FSPF Unicast Routes --------------------------- VSAN Number Dest Domain Route Cost Next hops ----------------------------------------------- 1 0x61(97) 500 fc2/2 1 0x62(98) 1000 fc2/1 fc2/2 1 0x63(99) 500 fc2/1 1 0x65(101) 1000 fc2/7 MDS9509# show fcns data vsan 1 VSAN 1: ------------------------------------------------------------------ FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE ------------------------------------------------------------------ 0x610400 N 10:00:00:00:c9:24:3d:90 (Emulex) scsi-fcp 0x6105dc NL 21:00:00:20:37:28:31:6d (Seagate) scsi-fcp 0x6105e0 NL 21:00:00:20:37:28:24:7b (Seagate) scsi-fcp 0x6105e1 NL 21:00:00:20:37:28:22:ea (Seagate) scsi-fcp 0x6105e2 NL 21:00:00:20:37:28:2e:65 (Seagate) scsi-fcp 0x6105e4 NL 21:00:00:20:37:28:26:0d (Seagate) scsi-fcp 0x630400 N 10:00:00:00:c9:24:3f:75 (Emulex) scsi-fcp 0x630500 N 50:06:01:60:88:02:90:cb scsi-fcp 0x6514e2 NL 21:00:00:20:37:a7:ca:b7 (Seagate) scsi-fcp 0x6514e4 NL 21:00:00:20:37:a7:c7:e0 (Seagate) scsi-fcp 0x6514e8 NL 21:00:00:20:37:a7:c7:df (Seagate) scsi-fcp 0x651500 N 10:00:00:e0:69:f0:43:9f (JNI) Total number of entries = 12 Note The MDS 9509 switch name server shows both local and remote entries and does not time out the entries. The following example shows the configuration for the second MDS 9509 switch (MDS 9509-B). MDS9509B# show ver Copyright (c) 2001-2005 Cisco Systems, Inc. Software kickstart: version 1.0(1) [build 1.0] [gdb] System: version 1.0(1) [build 1.0] [gdb] Hardware RAM 963116 kB bootflash: 503808 blocks (block size 512b) slot0: 0 blocks (block size 512b) Compile Time: 10/26/2002 2:00:00 MDS9509B# show int brief ------------------------------------------------------------------ Interface Vsan Admin Admin Status Oper Oper Port-channel Mode Trunk Mode Speed Mode (Gbps) ------------------------------------------------------------------ fc1/1 1 auto on up E 2 -- fc1/2 1 auto on fcotAbsent -- -- -- fc1/3 1 auto on up E 2 -- fc1/4 1 auto on down -- -- -- fc1/5 1 auto on down -- -- -- fc1/6 1 auto on up E 1 -- fc1/7 1 auto on fcotAbsent -- -- -- fc1/8 1 auto on fcotAbsent -- -- -- fc1/9 1 auto on down -- -- -- MDS9509B# show run Building Configuration ... interface fc1/1 no shutdown interface fc1/2 interface fc1/3 switchport speed 2000 no shutdown interface fc1/4 interface fc1/5 interface fc1/6 switchport speed 1000 no shutdown interface fc1/7 interface fc1/8 interface fc1/9 <snip> interface mgmt0 ip address 6.1.1.95 255.255.255.0 no shutdown vsan database vsan 1 interop boot system bootflash:/m9500-isan.bin boot kickstart bootflash:/m9500-kickstart.bin callhome fcdomain domain 98 preferred vsan 1 line console databits 5 speed 110 logging linecard switchname MDS9509B username admin password 5 MF7UQdWLEqUFE role network-admin MDS9509B# show vsan 1 vsan 1 information name:VSAN0001 state:active interoperability mode:yes <==== verify interoperability loadbalancing:src-id/dst-id/oxid operational state:up MDS9509B# show fcdomain vsan 1 The local switch is a Subordinated Switch. Local switch run time information: State: Stable Local switch WWN: 20:01:00:05:30:00:47:9f Running fabric name: 10:00:00:60:69:22:32:91 Running priority: 128 Current domain ID: 0x62(98) <==== verify domain Local switch configuration information: State: Enabled Auto-reconfiguration: Disabled Contiguous-allocation: Disabled Configured fabric name: 41:6e:64:69:61:6d:6f:21 Configured priority: 128 Configured domain ID: 0x62(98) (preferred) Principal switch run time information: Running priority: 2 Interface Role RCF-reject ---------------- ------------- ------------ fc1/1 Upstream Disabled fc1/3 Non-principal Disabled fc1/6 Non-principal Disabled ---------------- ------------- ------------ MDS9509B# show fcdomain domain-list vsan 1 Number of domains: 5 Domain ID WWN --------- ----------------------- 0x61(97) 10:00:00:60:69:50:0c:fe 0x62(98) 20:01:00:05:30:00:47:9f [Local] 0x63(99) 10:00:00:60:69:c0:0c:1d 0x64(100) 20:01:00:05:30:00:51:1f 0x65(101) 10:00:00:60:69:22:32:91 [Principal] --------- ----------------------- MDS9509B# show fspf internal route vsan 1 FSPF Unicast Routes --------------------------- VSAN Number Dest Domain Route Cost Next hops ----------------------------------------------- 1 0x61(97) 500 fc1/1 1 0x63(99) 500 fc1/3 1 0x64(100) 1000 fc1/1 fc1/3 1 0x65(101) 1000 fc1/6 MDS9509B# show fcns data vsan 1 VSAN 1: ------------------------------------------------------------------ FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE ------------------------------------------------------------------ 0x610400 N 10:00:00:00:c9:24:3d:90 (Emulex) scsi-fcp 0x6105dc NL 21:00:00:20:37:28:31:6d (Seagate) scsi-fcp 0x6105e0 NL 21:00:00:20:37:28:24:7b (Seagate) scsi-fcp 0x6105e1 NL 21:00:00:20:37:28:22:ea (Seagate) scsi-fcp 0x6105e2 NL 21:00:00:20:37:28:2e:65 (Seagate) scsi-fcp 0x6105e4 NL 21:00:00:20:37:28:26:0d (Seagate) scsi-fcp 0x630400 N 10:00:00:00:c9:24:3f:75 (Emulex) scsi-fcp 0x630500 N 50:06:01:60:88:02:90:cb scsi-fcp 0x6514e2 NL 21:00:00:20:37:a7:ca:b7 (Seagate) scsi-fcp 0x6514e4 NL 21:00:00:20:37:a7:c7:e0 (Seagate) scsi-fcp 0x6514e8 NL 21:00:00:20:37:a7:c7:df (Seagate) scsi-fcp 0x651500 N 10:00:00:e0:69:f0:43:9f (JNI) Total number of entries = 12 Verifying the Brocade 3800 Switch The following examples show the configuration for the Brocade 3800 switch. B3800_IBM_SAN:admin> version Kernel: 5.3.1 Fabric OS: v3.0.2 Made on: Thu Jan 10 17:41:15 PST 2002 Flash: Thu Jan 10 17:42:37 PST 2002 BootProm: Wed May 23 12:37:30 PDT 2001 B3800_IBM_SAN:admin> licenseshow R99yydyQzcSAAzz1: Web license Zoning license Fabric license SSbdSSQRR9TTceT8: QuickLoop license B3800_IBM_SAN:admin> switchshow switchName: B3800_IBM_SAN switchType: 9.1 switchState: Online switchMode: Interop <==== verify mode switchRole: Subordinate switchDomain: 97 <==== verify domain switchId: fffc61 switchWwn: 10:00:00:60:69:50:0c:fe switchBeacon: OFF Zoning: OFF port 0: -- N2 No_Module port 1: id 2G Online E-Port 20:01:00:05:30:00:47:9f (downstream) port 2: id 2G Online E-Port 20:01:00:05:30:00:51:1f (upstream) port 3: id 1G No_Light port 4: id N1 Online F-Port 10:00:00:00:c9:24:3d:90 port 5: id N1 Online L-Port 5 private, 1 phantom port 6: -- N2 No_Module port 7: -- N2 No_Module port 8: id N2 No_Light port 9: -- N2 No_Module port 10: id N2 No_Light port 11: id N2 No_Light port 12: -- N2 No_Module port 13: -- N2 No_Module port 14: id N2 No_Light port 15: id N2 No_Light B3800_IBM_SAN:admin> topologyshow 5 domains in the fabric; Local Domain ID: 97 Domain Metric Hops Out Port In Ports Flags Bandwidth Name ----------------------------------------------------------------------- 98 500 1 1 0x00000034 D 2 (Gbs) Unreachable 99 1000 2 2 0x00000020 D 2 (Gbs) "3200_TOP" 1 0x00000010 D 2 (Gbs) 100 500 1 2 0x00000032 D 2 (Gbs) Unreachable 101 1500 2 2 0x00000020 D 2 (Gbs) "BR2400_IBM_SAN" 1 0x00000010 D 2 (Gbs) B3800_IBM_SAN:admin> interopmode interopMode is 1 B3800_IBM_SAN:admin> nsshow { Type Pid COS PortName NodeName TTL(sec) N 610400; 2,3;10:00:00:00:c9:24:3d:90;20:00:00:00:c9:24:3d:90; na FC4s: FCP Fabric Port Name: 20:04:00:60:69:50:0c:fe NL 6105dc; 3;21:00:00:20:37:28:31:6d;20:00:00:20:37:28:31:6d; na FC4s: FCP [SEAGATE ST118202FC FDF6] Fabric Port Name: 20:05:00:60:69:50:0c:fe NL 6105e0; 3;21:00:00:20:37:28:24:7b;20:00:00:20:37:28:24:7b; na FC4s: FCP [SEAGATE ST118202FC FDF6] Fabric Port Name: 20:05:00:60:69:50:0c:fe NL 6105e1; 3;21:00:00:20:37:28:22:ea;20:00:00:20:37:28:22:ea; na FC4s: FCP [SEAGATE ST118202FC FDF6] Fabric Port Name: 20:05:00:60:69:50:0c:fe NL 6105e2; 3;21:00:00:20:37:28:2e:65;20:00:00:20:37:28:2e:65; na FC4s: FCP [SEAGATE ST118202FC FDF6] Fabric Port Name: 20:05:00:60:69:50:0c:fe NL 6105e4; 3;21:00:00:20:37:28:26:0d;20:00:00:20:37:28:26:0d; na FC4s: FCP [SEAGATE ST118202FC FDF6] Fabric Port Name: 20:05:00:60:69:50:0c:fe The Local Name Server has 6 entries } B3800_IBM_SAN:admin> nsallshow { 610400 6105dc 6105e0 6105e1 6105e2 6105e4 630400 630500 6514e2 6514e4 6514e8 651500 12 Nx_Ports in the Fabric } Note The Brocade remote name server entries time out of the cache after 900 seconds (15 minutes). B3800_IBM_SAN:admin> urouteshow Local Domain ID: 97 In Port Domain Out Port Metric Hops Flags Next (Dom, Port) -------------------------------------------------------------------- 1 100 2 500 1 D 100,65793 2 98 1 500 1 D 98,65536 4 98 1 500 1 D 98,65536 99 1 1000 2 D 98,65536 100 2 500 1 D 100,65793 101 1 1500 2 D 98,65536 5 98 1 500 1 D 98,65536 99 2 1000 2 D 100,65793 100 2 500 1 D 100,65793 101 2 1500 2 D 100,65793 Verifying the Brocade 3200 Switch The following examples show the configuration for the Brocade 3200 switch. 3200_TOP:admin> version Kernel: 5.3.1 Fabric OS: v3.0.2 Made on: Thu Jan 10 17:41:15 PST 2002 Flash: Thu Jan 10 17:42:37 PST 2002 BootProm: Tue Oct 30 10:24:38 PST 2001 3200_TOP:admin> licenseshow R9bdbybzSQSAcecJ: Web license bQyecQdSbScRzfd7: Zoning license RbbSed9RRSSccTfd: QuickLoop license b99dde9cSdcAAeer: Fabric license 3200_TOP:admin> switchshow switchName: 3200_TOP switchType: 16.2 switchState: Online switchMode: Interop <==== Verify mode switchRole: Subordinate switchDomain: 99 <==== Verify domain switchId: fffc63 switchWwn: 10:00:00:60:69:c0:0c:1d switchBeacon: OFF Zoning: OFF port 0: id N2 No_Light port 1: id N2 Online E-Port 20:01:00:05:30:00:51:1f (upstream) port 2: id N2 No_Light port 3: id 2G Online E-Port 20:01:00:05:30:00:47:9f port 4: id N1 Online F-Port 10:00:00:00:c9:24:3f:75 port 5: id N1 Online F-Port 50:06:01:60:88:02:90:cb port 6: id N2 No_Light port 7: -- N2 No_Module 3200_TOP:admin> topologyshow 5 domains in the fabric; Local Domain ID: 99 Domain Metric Hops Out Port In Ports Flags Bandwidth Name ------------------------------------------------------------------ 97 1000 2 1 0x00000020 D 2 (Gbs) "B3800_IBM_SAN" 3 0x00000010 D 2 (Gbs) 98 500 1 3 0x00000032 D 2 (Gbs) Unreachable 100 500 1 1 0x00000038 D 2 (Gbs) Unreachable 101 1500 2 1 0x00000020 D 2 (Gbs) "BR2400_IBM_SAN" 3 0x00000010 D 2 (Gbs) 3200_TOP:admin> interopmode interopMode is 1 3200_TOP:admin> nsallshow { 610400 6105dc 6105e0 6105e1 6105e2 6105e4 630400 630500 6514e2 6514e4 6514e8 651500 12 Nx_Ports in the Fabric } Note The Brocade remote name server entries time out of the cache after 900 seconds (15 minutes). 3200_TOP:admin> urouteshow Local Domain ID: 99 In Port Domain Out Port Metric Hops Flags Next (Dom, Port) -------------------------------------------------------------------- 1 98 3 500 1 D 98,65538 3 100 1 500 1 D 100,65792 4 97 3 1000 2 D 98,65538 98 3 500 1 D 98,65538 100 1 500 1 D 100,65792 101 3 1500 2 D 98,65538 5 97 1 1000 2 D 100,65792 98 3 500 1 D 98,65538 100 1 500 1 D 100,65792 101 1 1500 2 D 100,65792 Verifying the Brocade 2400 Switch The following examples show the configuration for the Brocade 2400 switch. BR2400_IBM_SAN:admin> version Kernel: 5.3.1 Fabric OS: v2.4.1h Made on: Fri Dec 7 15:14:10 PST 2001 Flash: Fri Dec 7 15:15:10 PST 2001 BootProm: Thu Jun 17 15:20:39 PDT 1999 BR2400_IBM_SAN:admin> licenseshow R9dedRQRyRSAefek: Fabric license yzbyzbccSz0cB1Z: Release v2.2 license SccydbdycSTddzet: Web license Zoning license SES license bdzzdeyRdcce00e1: QuickLoop license BR2400_IBM_SAN:admin> switchshow switchName: BR2400_IBM_SAN switchType: 3.4 switchState: Online switchRole: Principal switchDomain: 101 <==== verify domain switchId: fffc65 switchWwn: 10:00:00:60:69:22:32:91 switchBeacon: OFF port 0: id No_Light port 1: sw No_Light port 2: -- No_Module port 3: sw No_Light port 4: cu Online L-Port 3 public port 5: sw Online F-Port 10:00:00:e0:69:f0:43:9f port 6: id Online E-Port 20:01:00:05:30:00:47:9f port 7: sw Online E-Port 20:01:00:05:30:00:51:1f (downstream) BR2400_IBM_SAN:admin> topologyshow 5 domains in the fabric; Local Domain ID: 101 Domain Metric Hops Out Port In Ports Flags Name ----------------------------------------------------------------- 97 1500 2 7 0x00000020 D "B3800_IBM_SAN" 6 0x00000010 D 98 1000 1 6 0x000000b0 D Unreachable 99 1500 2 7 0x00000020 D "3200_TOP" 6 0x00000010 D 100 1000 1 7 0x00000070 D Unreachable BR2400_IBM_SAN:admin> interopmode interopMode is 1 BR2400_IBM_SAN:admin> nsshow The Local Name Server has 4 entries { Type Pid COS PortName NodeName TTL(sec) NL 6514e2; 3;21:00:00:20:37:a7:ca:b7;20:00:00:20:37:a7:ca:b7; na FC4s: FCP [SEAGATE ST318451FC 0001] Fabric Port Name: 20:04:00:60:69:22:32:91 NL 6514e4; 3;21:00:00:20:37:a7:c7:e0;20:00:00:20:37:a7:c7:e0; na FC4s: FCP [SEAGATE ST318451FC 0001] Fabric Port Name: 20:04:00:60:69:22:32:91 NL 6514e8; 3;21:00:00:20:37:a7:c7:df;20:00:00:20:37:a7:c7:df; na FC4s: FCP [SEAGATE ST318451FC 0001] Fabric Port Name: 20:04:00:60:69:22:32:91 N 651500; 3;10:00:00:e0:69:f0:43:9f;10:00:00:e0:69:f0:43:9f; na Fabric Port Name: 20:05:00:60:69:22:32:91 } BR2400_IBM_SAN:admin> nsallshow 36 Nx_Ports in the Fabric { 610400 610400 610400 6105dc 6105dc 6105dc 6105e0 6105e0 6105e0 6105e1 6105e1 6105e1 6105e2 6105e2 6105e2 6105e4 6105e4 6105e4 630400 630400 630400 630500 630500 630500 6514e2 6514e2 6514e2 6514e4 6514e4 6514e4 6514e8 6514e8 6514e8 651500 651500 651500 } Note Due to a display anomaly, the Brocade 2400 switch in this example shows each edge device three times. Note The Brocade remote name server entries time out of the cache after 900 seconds (15 minutes). BR2400_IBM_SAN:admin> urouteshow Local Domain ID: 101 In Port Domain Out Port Metric Hops Flags Next (Dom, Port) ---------------------------------------------------------------------------- 4 97 6 1500 2 D 98,65541 98 6 1000 1 D 98,65541 99 6 1500 2 D 98,65541 100 7 1000 1 D 100,65798 5 97 7 1500 2 D 100,65798 98 6 1000 1 D 98,65541 99 7 1500 2 D 100,65798 100 7 1000 1 D 100,65798 6 100 7 1000 1 D 100,65798 7 98 6 1000 1 D 98,65541 Zoning In this example, the zone is created on the MDS 9509 switch and the zone set is activated. After activation, the verification process confirms that the Brocade switches properly learn the zones and zone sets. In Brocade terminology, the zone set is known as the configuration. On Brocade switches, the MDS 9509 switch active zone set is known as the effective configuration. The example shows how to use the name server database as a tool when building the zones. When predefining zones, you may use pWWNs of equipment not attached, or in the name server database. Zones that are defined while the switch is in interop mode must be zoned by pWWN. Zoning by alias or FC ID is not permitted while the Brocade switch is operating in interop mode. This limits the Brocade 2100, 2400, 2800 and 3800 switches to soft zoning. The Brocade 3900 and 12000 switches continue to implement hardware enforced zoning. The MDS 9509 switch always implements hardware enforced zoning. Creating Zones on the MDS 9509 Switch Follow these steps to create zones on the MDS 9509 switch. Step 1 Display the name server database to see the pWWN information. MDS9509# show fcns data vsan 1 VSAN 1: ----------------------------------------------------------------------- FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE ----------------------------------------------------------------------- 0x610400 N 10:00:00:00:c9:24:3d:90 (Emulex) scsi-fcp 0x6105dc NL 21:00:00:20:37:28:31:6d (Seagate) scsi-fcp 0x6105e0 NL 21:00:00:20:37:28:24:7b (Seagate) scsi-fcp 0x6105e1 NL 21:00:00:20:37:28:22:ea (Seagate) scsi-fcp 0x6105e2 NL 21:00:00:20:37:28:2e:65 (Seagate) scsi-fcp 0x6105e4 NL 21:00:00:20:37:28:26:0d (Seagate) scsi-fcp 0x630400 N 10:00:00:00:c9:24:3f:75 (Emulex) scsi-fcp 0x630500 N 50:06:01:60:88:02:90:cb scsi-fcp 0x6514e2 NL 21:00:00:20:37:a7:ca:b7 (Seagate) scsi-fcp 0x6514e4 NL 21:00:00:20:37:a7:c7:e0 (Seagate) scsi-fcp 0x6514e8 NL 21:00:00:20:37:a7:c7:df (Seagate) scsi-fcp 0x651500 N 10:00:00:e0:69:f0:43:9f (JNI) Total number of entries = 12 MDS9509# Step 2 Now that the pWWNs are visible, use tools like cut and paste to create the zones. MDS9509# conf t Enter configuration commands, one per line. End with CNTL/Z. MDS9509(config)# zone name vz1 vsan 1 MDS9509(config-zone)# member pwwn 50:06:01:60:88:02:90:cb MDS9509(config-zone)# member pwwn 10:00:00:00:c9:24:3d:90 MDS9509(config-zone)# exit MDS9509(config)# MDS9509(config)# zone name vz2 vsan 1 MDS9509(config-zone)# MDS9509(config-zone)# member pwwn 10:00:00:00:c9:24:3f:75 MDS9509(config-zone)# member pwwn 21:00:00:20:37:a7:ca:b7 MDS9509(config-zone)# member pwwn 21:00:00:20:37:a7:c7:e0 MDS9509(config-zone)# member pwwn 21:00:00:20:37:a7:c7:df MDS9509(config-zone)# MDS9509(config-zone)# exit MDS9509(config)# MDS9509(config)# zone name vz3 vsan 1 MDS9509(config-zone)# MDS9509(config-zone)# member pwwn 10:00:00:e0:69:f0:43:9f MDS9509(config-zone)# member pwwn 21:00:00:20:37:28:31:6d MDS9509(config-zone)# member pwwn 21:00:00:20:37:28:24:7b MDS9509(config-zone)# member pwwn 21:00:00:20:37:28:22:ea MDS9509(config-zone)# member pwwn 21:00:00:20:37:28:2e:65 MDS9509(config-zone)# member pwwn 21:00:00:20:37:28:26:0d MDS9509(config-zone)# MDS9509(config-zone)# exit MDS9509(config)# MDS9509(config)# MDS9509(config)# zoneset name mdscore vsan 1 MDS9509(config-zoneset)# member vz1 MDS9509(config-zoneset)# member vz2 MDS9509(config-zoneset)# member vz3 MDS9509(config-zoneset)# exit MDS9509(config)# At this point, we have created three zones (VZ1, VZ2 and VZ3). We have also created a zone set named MDSCORE. Step 3 Activate the zone set MDSCORE. MDS9509(config)# zoneset activate name mdscore vsan 1 Zoneset Activation initiated. check zone status MDS9509(config)# MDS9509(config)# MDS9509(config)# exit Step 4 View each switch in the fabric to verify that zoning is in place. a. Show the zone and zone set. The running config on the MDS 9509 switch shows the zone and zone set because they were created on this switch. MDS9509# show zoneset active zoneset name mdscore vsan 1 zone name vz1 vsan 1 * fcid 0x630500 [pwwn 50:06:01:60:88:02:90:cb] * fcid 0x610400 [pwwn 10:00:00:00:c9:24:3d:90] zone name vz2 vsan 1 * fcid 0x630400 [pwwn 10:00:00:00:c9:24:3f:75] * fcid 0x6514e2 [pwwn 21:00:00:20:37:a7:ca:b7] * fcid 0x6514e4 [pwwn 21:00:00:20:37:a7:c7:e0] * fcid 0x6514e8 [pwwn 21:00:00:20:37:a7:c7:df] zone name vz3 vsan 1 * fcid 0x651500 [pwwn 10:00:00:e0:69:f0:43:9f] * fcid 0x6105dc [pwwn 21:00:00:20:37:28:31:6d] * fcid 0x6105e0 [pwwn 21:00:00:20:37:28:24:7b] * fcid 0x6105e1 [pwwn 21:00:00:20:37:28:22:ea] * fcid 0x6105e2 [pwwn 21:00:00:20:37:28:2e:65] * fcid 0x6105e4 [pwwn 21:00:00:20:37:28:26:0d] zone name $default_zone$ vsan 1 b. Show the active zone set on the second MDS 9509 switch (MDS 9509-B). (The running config does not show this information because the zone was not created on this MDS 9509 switch.) MDS9509B# show zoneset active zoneset name mdscore vsan 1 zone name vz1 vsan 1 * fcid 0x630500 [pwwn 50:06:01:60:88:02:90:cb] * fcid 0x610400 [pwwn 10:00:00:00:c9:24:3d:90] zone name vz2 vsan 1 * fcid 0x630400 [pwwn 10:00:00:00:c9:24:3f:75] * fcid 0x6514e2 [pwwn 21:00:00:20:37:a7:ca:b7] * fcid 0x6514e4 [pwwn 21:00:00:20:37:a7:c7:e0] * fcid 0x6514e8 [pwwn 21:00:00:20:37:a7:c7:df] zone name vz3 vsan 1 * fcid 0x651500 [pwwn 10:00:00:e0:69:f0:43:9f] * fcid 0x6105dc [pwwn 21:00:00:20:37:28:31:6d] * fcid 0x6105e0 [pwwn 21:00:00:20:37:28:24:7b] * fcid 0x6105e1 [pwwn 21:00:00:20:37:28:22:ea] * fcid 0x6105e2 [pwwn 21:00:00:20:37:28:2e:65] * fcid 0x6105e4 [pwwn 21:00:00:20:37:28:26:0d] zone name $default_zone$ vsan 1 c. Show the configuration on the Brocade 3200 switch. There is a defined configuration and an effective configuration. 3200_TOP:admin> cfgshow Defined configuration: cfg: Interop Dell; Netfinity zone: Dell 10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb zone: Netfinity 10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7; 21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df Effective configuration: cfg: mdscore zone: vz1 50:06:01:60:88:02:90:cb 10:00:00:00:c9:24:3d:90 zone: vz2 10:00:00:00:c9:24:3f:75 21:00:00:20:37:a7:ca:b7 21:00:00:20:37:a7:c7:e0 21:00:00:20:37:a7:c7:df zone: vz3 10:00:00:e0:69:f0:43:9f 21:00:00:20:37:28:31:6d 21:00:00:20:37:28:24:7b 21:00:00:20:37:28:22:ea 21:00:00:20:37:28:2e:65 21:00:00:20:37:28:26:0d d. Show the configuration on the Brocade 3800 switch. B3800_IBM_SAN:admin> cfgshow Defined configuration: cfg: Interop Dell; Netfinity zone: Dell 10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb zone: Netfinity 10:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7; 21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df Effective configuration: cfg: mdscore zone: vz1 50:06:01:60:88:02:90:cb 10:00:00:00:c9:24:3d:90 zone: vz2 10:00:00:00:c9:24:3f:75 21:00:00:20:37:a7:ca:b7 21:00:00:20:37:a7:c7:e0 21:00:00:20:37:a7:c7:df zone: vz3 10:00:00:e0:69:f0:43:9f 21:00:00:20:37:28:31:6d 21:00:00:20:37:28:24:7b 21:00:00:20:37:28:22:ea 21:00:00:20:37:28:2e:65 21:00:00:20:37:28:26:0d e. Show the configuration on the Brocade 2400 switch. BR2400_IBM_SAN:admin> cfgshow Defined configuration: cfg: Interop Dell; Netfinity zone: Dell 10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb zone: Netfinity 10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7; 21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df Effective configuration: cfg: mdscore zone: vz1 50:06:01:60:88:02:90:cb 10:00:00:00:c9:24:3d:90 zone: vz2 10:00:00:00:c9:24:3f:75[c7] 21:00:00:20:37:a7:ca:b7 21:00:00:20:37:a7:c7:e0 21:00:00:20:37:a7:c7:df zone: vz3 10:00:00:e0:69:f0:43:9f 21:00:00:20:37:28:31:6d 21:00:00:20:37:28:24:7b 21:00:00:20:37:28:22:ea[ff] 21:00:00:20:37:28:2e:65[fc] 21:00:00:20:37:28:26:0d All switches in the fabric now have the correct zoning information. Creating Zones on the Brocade 3800 Switch The next example shows how to create the zones and a zone set on the Brocade 3800 switch, activate the zone set, and verify that each switch in the fabric has the correct zoning in place. The zone members in this example are the same as used in the previous example, but the zone names and zone set name are different. Step 1 Clear the zoning configuration. If this command is issued and this switch is part of the fabric, all switches will have no zoning in effect. B3800_IBM_SAN:admin> cfgclear Do you really want to clear all configurations? (yes, y, no, n): [no] yes Clearing All zoning configurations... B3800_IBM_SAN:admin> cfgshow Defined configuration: no configuration defined Effective configuration: no configuration in effect Step 2 Create the zones. In this example, the zones are named vz11, vz22, and vz33. B3800_IBM_SAN:admin> zonecreate :"vz11", "10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb" B3800_IBM_SAN:admin> zonecreate "vz22", "10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7; 21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df" Due to command line limitations, and the number of members, zone vz33 is created with some members, and the rest are added. B3800_IBM_SAN:admin> zonecreate "vz33", "10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d; 21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea" B3800_IBM_SAN:admin> zoneadd "vz33", "21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d" Step 3 Check the zones before making them active. B3800_IBM_SAN:admin> zoneshow Defined configuration: zone: vz11 10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb zone: vz22 10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7; 21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df zone: vz33 10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d; 21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea; 21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d Effective configuration: no configuration in effect Step 4 Create the configuration. When the configuration is activated, it is known on the MDS 9509 switch as the active zone set. B3800_IBM_SAN:admin> cfgcreate "mdscore1", "vz11; vz22; vz33" Step 5 Activate the configuration. B3800_IBM_SAN:admin> cfgenable "mdscore1" zone config "mdscore1" is in effect Updating flash ... Step 6 Check the display on the Brocade 3800 switch. B3800_IBM_SAN:admin> cfgshow Defined configuration: cfg: mdscore1 vz11; vz22; vz33 zone: vz11 10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb zone: vz22 10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7; 21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df zone: vz33 10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d; 21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea; 21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d Effective configuration: cfg: mdscore1 zone: vz11 10:00:00:00:c9:24:3d:90 50:06:01:60:88:02:90:cb zone: vz22 10:00:00:00:c9:24:3f:75 21:00:00:20:37:a7:ca:b7 21:00:00:20:37:a7:c7:e0 21:00:00:20:37:a7:c7:df zone: vz33 10:00:00:e0:69:f0:43:9f 21:00:00:20:37:28:31:6d 21:00:00:20:37:28:24:7b 21:00:00:20:37:28:22:ea 21:00:00:20:37:28:2e:65 21:00:00:20:37:28:26:0d The new configuration is in effect and defined. Step 7 Look at the other switches in the fabric. a. Display the configuration on the Brocade 3200 switch. 3200_TOP:admin> cfgshow Defined configuration: cfg: mdscore1 vz11; vz22; vz33 zone: vz11 10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb zone: vz22 10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7; 21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df zone: vz33 10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d; 21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea; 21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d Effective configuration: cfg mdscore1 zone: vz11 10:00:00:00:c9:24:3d:90 50:06:01:60:88:02:90:cb zone: vz22 10:00:00:00:c9:24:3f:75 21:00:00:20:37:a7:ca:b7 21:00:00:20:37:a7:c7:e0 21:00:00:20:37:a7:c7:df zone: vz33 10:00:00:e0:69:f0:43:9f 21:00:00:20:37:28:31:6d 21:00:00:20:37:28:24:7b 21:00:00:20:37:28:22:ea 21:00:00:20:37:28:2e:65 21:00:00:20:37:28:26:0d b. Display the configuration on the other Brocade 3800 switch. B3800_IBM_SAN:admin> cfgshow Defined configuration: cfg: mdscore1 vz11; vz22; vz33 zone: vz11 10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb zone: vz22 10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7; 21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df zone: vz33 10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d; 21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea; 21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d Effective configuration: cfg: mdscore1 zone: vz11 10:00:00:00:c9:24:3d:90 50:06:01:60:88:02:90:cb zone: vz22 10:00:00:00:c9:24:3f:75 21:00:00:20:37:a7:ca:b7 21:00:00:20:37:a7:c7:e0 21:00:00:20:37:a7:c7:df zone: vz33 10:00:00:e0:69:f0:43:9f 21:00:00:20:37:28:31:6d 21:00:00:20:37:28:24:7b 21:00:00:20:37:28:22:ea 21:00:00:20:37:28:2e:65 21:00:00:20:37:28:26:0d c. Display the configuration on the Brocade 2400 switch. BR2400_IBM_SAN:admin> cfgshow Defined configuration: cfg: mdscore1 vz11; vz22; vz33 zone: vz11 10:00:00:00:c9:24:3d:90; 50:06:01:60:88:02:90:cb zone: vz22 10:00:00:00:c9:24:3f:75; 21:00:00:20:37:a7:ca:b7; 21:00:00:20:37:a7:c7:e0; 21:00:00:20:37:a7:c7:df zone: vz33 10:00:00:e0:69:f0:43:9f; 21:00:00:20:37:28:31:6d; 21:00:00:20:37:28:24:7b; 21:00:00:20:37:28:22:ea; 21:00:00:20:37:28:2e:65; 21:00:00:20:37:28:26:0d Effective configuration: cfg: mdscore1 zone: vz11 10:00:00:00:c9:24:3d:90 50:06:01:60:88:02:90:cb[6] zone: vz22 10:00:00:00:c9:24:3f:75 21:00:00:20:37:a7:ca:b7 21:00:00:20:37:a7:c7:e0 21:00:00:20:37:a7:c7:df[29] zone: vz33 10:00:00:e0:69:f0:43:9f 21:00:00:20:37:28:31:6d 21:00:00:20:37:28:24:7b 21:00:00:20:37:28:22:ea 21:00:00:20:37:28:2e:65 21:00:00:20:37:28:26:0d d. Show the active zone set on the first MDS 9509 switch (MDS 9509-A). MDS9509# show zoneset active zoneset name mdscore1 vsan 1 zone name vz11 vsan 1 * fcid 0x610400 [pwwn 10:00:00:00:c9:24:3d:90] * fcid 0x630500 [pwwn 50:06:01:60:88:02:90:cb] zone name vz22 vsan 1 * fcid 0x630400 [pwwn 10:00:00:00:c9:24:3f:75] * fcid 0x6514e2 [pwwn 21:00:00:20:37:a7:ca:b7] * fcid 0x6514e4 [pwwn 21:00:00:20:37:a7:c7:e0] * fcid 0x6514e8 [pwwn 21:00:00:20:37:a7:c7:df] zone name vz33 vsan 1 * fcid 0x651500 [pwwn 10:00:00:e0:69:f0:43:9f] * fcid 0x6105dc [pwwn 21:00:00:20:37:28:31:6d] * fcid 0x6105e0 [pwwn 21:00:00:20:37:28:24:7b] * fcid 0x6105e1 [pwwn 21:00:00:20:37:28:22:ea] * fcid 0x6105e2 [pwwn 21:00:00:20:37:28:2e:65] * fcid 0x6105e4 [pwwn 21:00:00:20:37:28:26:0d] zone name $default_zone$ vsan 1 MDS9509# show zone vsan 1 zone name vz1 vsan 1 pwwn 50:06:01:60:88:02:90:cb pwwn 10:00:00:00:c9:24:3d:90 zone name vz2 vsan 1 pwwn 10:00:00:00:c9:24:3f:75 pwwn 21:00:00:20:37:a7:ca:b7 pwwn 21:00:00:20:37:a7:c7:e0 pwwn 21:00:00:20:37:a7:c7:df zone name vz3 vsan 1 pwwn 10:00:00:e0:69:f0:43:9f pwwn 21:00:00:20:37:28:31:6d pwwn 21:00:00:20:37:28:24:7b pwwn 21:00:00:20:37:28:22:ea pwwn 21:00:00:20:37:28:2e:65 pwwn 21:00:00:20:37:28:26:0d Note The show zone command displays the zones that were created earlier on this switch. e. Check the running configuration on the MDS 9509 switch. MDS9509# show run Building Configuration... interface fc2/1 no shutdown <snip> zone name vz1 vsan 1 member pwwn 50:06:01:60:88:02:90:cb member pwwn 10:00:00:00:c9:24:3d:90 zone name vz2 vsan 1 member pwwn 10:00:00:00:c9:24:3f:75 member pwwn 21:00:00:20:37:a7:ca:b7 member pwwn 21:00:00:20:37:a7:c7:e0 member pwwn 21:00:00:20:37:a7:c7:df zone name vz3 vsan 1 member pwwn 10:00:00:e0:69:f0:43:9f member pwwn 21:00:00:20:37:28:31:6d member pwwn 21:00:00:20:37:28:24:7b member pwwn 21:00:00:20:37:28:22:ea member pwwn 21:00:00:20:37:28:2e:65 member pwwn 21:00:00:20:37:28:26:0d zoneset name mdscore vsan 1 member vz1 member vz2 member vz3 <snip> MDS9509# Note The running configuration and the active zone set are different. f. Show the active zone set on the second MDS 9509 switch (MDS 9509-B). MDS9509B# show zoneset active zoneset name mdscore1 vsan 1 zone name vz11 vsan 1 * fcid 0x610400 [pwwn 10:00:00:00:c9:24:3d:90] * fcid 0x630500 [pwwn 50:06:01:60:88:02:90:cb] zone name vz22 vsan 1 * fcid 0x630400 [pwwn 10:00:00:00:c9:24:3f:75] * fcid 0x6514e2 [pwwn 21:00:00:20:37:a7:ca:b7] * fcid 0x6514e4 [pwwn 21:00:00:20:37:a7:c7:e0] * fcid 0x6514e8 [pwwn 21:00:00:20:37:a7:c7:df] zone name vz33 vsan 1 * fcid 0x651500 [pwwn 10:00:00:e0:69:f0:43:9f] * fcid 0x6105dc [pwwn 21:00:00:20:37:28:31:6d] * fcid 0x6105e0 [pwwn 21:00:00:20:37:28:24:7b] * fcid 0x6105e1 [pwwn 21:00:00:20:37:28:22:ea] * fcid 0x6105e2 [pwwn 21:00:00:20:37:28:2e:65] * fcid 0x6105e4 [pwwn 21:00:00:20:37:28:26:0d] zone name $default_zone$ vsan 1 The zone set (configuration) created on the Brocade 3800 switch is now active and effective in all switches in the fabric. The zones created on the MDS 9509 switch are propagated to the Brocade switches. Although the cfgshow command does not show these zones under a defined configuration, if the switch is isolated and rebooted, then the correct zone configuration is effective. On the MDS switch, the active zone configuration is always saved to memory. It is not displayed in the running configuration. If the switch is isolated and rebooted, the last active zone set is reinstated as the current active zone set. Changes to the zones or zone set while the switch is isolated will need to pass a zone merge validation when the ISLs are activated.
	Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks

Table Of Contents

MDS 9000 Core with Brocade Edge Topology (Interop Mode 1)

Specifications

Expected Topology Behavior

Zoning

FSPF

Trunking and PortChannels

Domain IDs

Configuration

Configuring the MDS 9509 Switch

Configuring the Brocade 3800 Switch

Configuring the Brocade 3200 Switch

Configuring the Brocade 2400 Switch

Verification

Verifying the MDS 9509 Switch

Verifying the Brocade 3800 Switch

Verifying the Brocade 3200 Switch

Verifying the Brocade 2400 Switch

Zoning

Creating Zones on the MDS 9509 Switch

Creating Zones on the Brocade 3800 Switch
