Install the Cisco ONS 15310-MA
This chapter provides procedures for installing the Cisco ONS 15310-MA shelf, cards, and fiber-optic cable. To view a summary of the tools and equipment required for installation, see the "Required Tools and Equipment" section.
Before You Begin
This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).
1.
C149 Unpack and Inspect the ONS 15310-MA Shelf Assembly—Complete this procedure before continuing with the "NTP-C150 Install the Shelf Assembly" procedure.
2. C150 Install the Shelf Assembly—Complete this procedure to install the shelf assembly in a rack before continuing with the "NTP-C151 Install the Power and Ground" procedure or before completing one of the following optional procedures.
3. C169 Install the Cable Management Bracket—As needed, complete this procedure to install the cable management bracket.
4. C166 Remove the Blank Sheet Metal Covers—As needed, complete this procedure to access the backplane.
5. C167 Install the EIAs—As needed, complete this procedure to install the electrical interface assemblies (EIAs) before continuing with the "NTP-C151 Install the Power and Ground" procedure.
6. C151 Install the Power and Ground—Complete this procedure before continuing with the "NTP-C152 Install the Fan-Tray Assembly" procedure.
7. C152 Install the Fan-Tray Assembly—Complete this procedure before continuing with the "NTP-C153 Install the CTX2500 Cards" procedure.
8. C153 Install the CTX2500 Cards—Complete this procedure to install the common- control/cross-connect cards.
9. C154 Install the Ethernet Cards—As needed, complete this procedure to install an Ethernet card.
10. C155 Install the Electrical Cards—As needed, complete this procedure to install an electrical card.
11. C156 Install the Filler Cards—As needed, complete this procedure to install a filler card (blank faceplate) in the expansion slot. If no Ethernet or electrical card is installed in the expansion slot, you must install a filler card.
12. C157 Install Wires to Alarm, Timing, Craft, LAN, and UDC Pin Connections—Complete this procedure to install cables for alarms, timing, LAN, craft, and user data channel (UDC) connections.
13. C158 Install the Electrical Cables—Complete this procedure to connect and route cables that will carry electrical traffic.
14. C173 Install the TST-DSX Card—As needed, complete this procedure to test the DS-1 and DS-3 wiring integrity between an ONS 15310-MA shelf and the associated digital signal cross-connect (DSX) wiring panel.
15. C159 Install and Remove SFPs—As needed, complete this procedure to install Small Form-factor Pluggables (SFPs) that provide a fiber-optic interface to the CTX2500 card.
16. C160 Install Optical Cables—Complete this procedure to connect and route cables that will carry optical traffic.
17. C164 Perform the Shelf Installation Acceptance Test—Complete this procedure to determine if you have correctly completed all other procedures in the chapter.
18. C161 Preprovision an SFP Slot—As needed, complete this procedure to preprovision SFPs, which provide a fiber-optic interface to the ONS 15310-MA and can be provisioned for various line rates.
19. C162 Preprovision a Card Slot—As needed, complete this procedure to preprovision an empty card slot with a card that will be installed later.
20. C163 Remove and Replace a Card—As needed, complete this procedure to remove and replace an ONS 15310-MA card.
21. C168 Install the Front Door—As needed, complete this procedure to install the front door.
22. C191 Install the Rear Cover—As needed, complete this procedure to install the rear cover.
 |
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
|
|
Warning Installation of the equipment must comply with local and national electrical codes. Statement 1074
|
|
Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040
|
Note The ONS 15310-MA is designed to comply with Telcordia GR-1089-CORE Type 2 and Type 4. Acceptable applications include Central Office Environments (COEs), Electronic Equipment Enclosures (EEEs), Controlled Environment Vaults (CEVs), huts, and Customer Premise Environments (CPEs).
Note The Cisco ONS 15310-MA is intended for use with telecommunications equipment only.
Required Tools and Equipment
You will need the following tools and equipment to install and test the ONS 15310-MA.
lncluded Materials
These materials are shipped with the ONS 15310-MA. The number in parentheses provides the quantity of the item included in the package.
•Ground lug (1)
•Screws: panhead, 10-32 x 0.375 (10)
•Screws: panhead, 10-32 x 0.37, green zinc (2)
•Screws: panhead, 12-24 x 0.75 (8)
•Screws: panhead, 10-32 x 0.31 (2)
•Screws: panhead, 8-32 x 0.31 (3)
•Kep nut: 10-32 x 0.170
•Rack mount bracket
•Interconnect plate
•Rack mount bracket for 19-inch rack
•Rack mount bracket for 23-inch rack
•Cable routing bracket
User-Supplied Materials
These materials and tools are required but are not supplied with the ONS 15310-MA.
•Equipment rack (26 inches total width for a 23-inch rack)
•Fuse and alarm panel
•Copper power cable (from fuse and alarm panel to assembly), #12 AWG
•Ground cable, #6 AWG stranded (minimum)
•Alarm In cable, unshielded cable terminated with a DB-37 connector
•Alarm Out cable, shielded cable terminated with a DB-25 connector
•Craft port serial cable, CAT-5 terminated with RJ-45
•BITS timing port cable, CAT-3/CAT-5 terminated with DB-9 connector
•User data channel (UDC) cable: EIA/TIA-232 port cable, CAT-5 terminated with RJ-45
•Management LAN cable, CAT-5 terminated with RJ-45
•Single-mode LC fiber jumpers with UPC polish (55 dB or better) for optical interfaces
•DS1 cabling, shielded, terminated to a 21-pair #26AWG cable, with dual 64-pin CHAMP connectors at far end with separate transmit and receive, straight termination (optional)
•Shielded coaxial cable terminated with BNC connectors for DS-3/EC-1 ports
•Tie wraps and/or lacing cord
•Labels
Tools Needed
The following tools are needed to complete the procedures in this chapter:
•#2 Phillips screw driver
•Medium slot head screw driver
•Small slot head screw driver
•Wire cutters
•Wire strippers
Test Equipment
The following test equipment is needed to complete the procedures in this chapter:
•Volt meter
•Power meter (for use with fiber optics only)
•Bit error rate (BER) tester, DS-1 and DS-3/EC-1
Note In this chapter, the terms "ONS 15310-MA" and "shelf assembly" are used interchangeably. In the installation context, these terms have the same meaning. Otherwise, shelf assembly refers to the physical steel enclosure that holds cards and connects power, and ONS 15310-MA refers to the entire system, both hardware and software.
NTP-C149 Unpack and Inspect the ONS 15310-MA Shelf Assembly
Step 1 Complete the "DLP-C1 Unpack and Verify the Shelf Assembly" task.
Step 2 Complete the "DLP-C2 Inspect the Shelf Assembly" task.
Step 3 Continue with the "NTP-C150 Install the Shelf Assembly" procedure.
Stop. You have completed this procedure.
NTP-C150 Install the Shelf Assembly
Note The ONS 15310-MA installations are suitable for Network Telecommunication facilities and locations where NEC are applicable.
|
Warning To prevent the system from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of 149°F (65°C). Statement 1047
|
Step 1 Complete the necessary rack mount task:
•C248 Mount a Single ONS 15310-MA in a Rack
•C249 Mount Dual ONS 15310-MA Shelf Assemblies in a Rack
Step 2 Continue with the "NTP-C169 Install the Cable Management Bracket" procedure.
Stop. You have completed this procedure.
NTP-C169 Install the Cable Management Bracket
|
Warning The covers are an integral part of the safety design of the product. Do not operate the unit without the covers installed. Statement 1077
|
Step 1 Line up the three screw holes on the rear of the bracket with the screw holes at the bottom of the ONS 15310-MA shelf assembly (Figure 2-1).

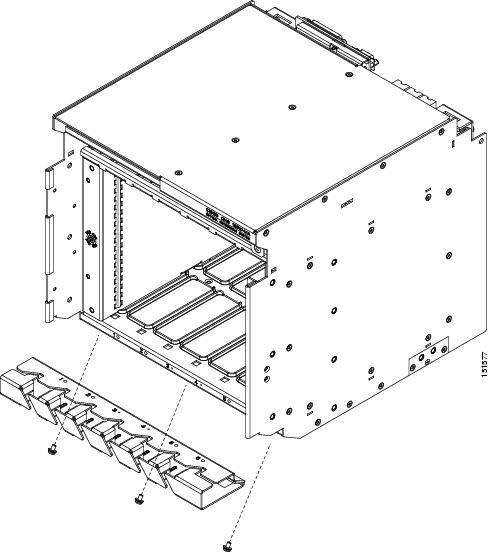

Figure 2-1 Installing the Standard Cable Management Bracket
Step 2 To secure the bracket to the shelf, use the screwdriver to install three 8-32 x 0.31 inch (0.79 cm) screws, torqued to 15 to 18 inch-lbs.
Step 3 If you are installing the extended bracket, install two 8-32 x 0.31 inch (0.79 cm) screws, torqued to 15 to 18 inch-lbs, through the top of the bracket directly into the ESD faceplates adjacent to Slots 1 and 6 on either side of shelf (Figure 2-2).
Figure 2-2 Installing the Extended Cable Management Bracket
Step 4 If you plan to install electrical interface assemblies (EIAs), continue with the "NTP-C166 Remove the Blank Sheet Metal Covers" procedure to access the backplane. If not, continue with the "NTP-C151 Install the Power and Ground" procedure.
Stop. You have completed this procedure.
NTP-C166 Remove the Blank Sheet Metal Covers
|
Warning The covers are an integral part of the safety design of the product. Do not operate the unit without the covers installed. Statement 1077
|
Step 1 Use a Phillips screwdriver to remove the five screws holding each sheet metal cover in place.
Figure 2-3 shows the screw locations of the sheet metal covers installed on the A-side and B-side of the ONS 15310-MA.

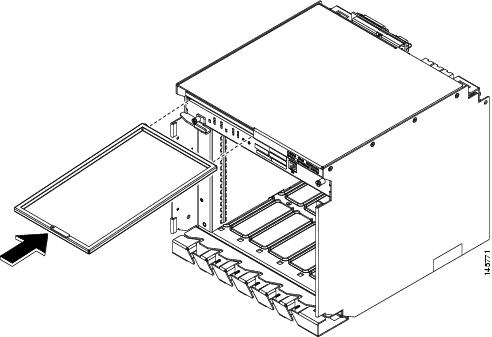

Figure 2-3 Blank Sheet Metal Covers
Step 2 Store the panels for later use. Attach the backplane cover(s) whenever EIA(s) are not installed.
Step 3 If you plan to install electrical interface assemblies (EIAs), continue with the "NTP-C167 Install the EIAs" procedure. If not, continue with the "NTP-C151 Install the Power and Ground" procedure.
Stop. You have completed this procedure.
NTP-C167 Install the EIAs
Connect only SELV services to the high-density EIAs on the ONS 15310-MA.
Step 1 Determine which high-density EIA is designed for installation on the B Side and which is designed for installation on the A Side (Figure 2-4).

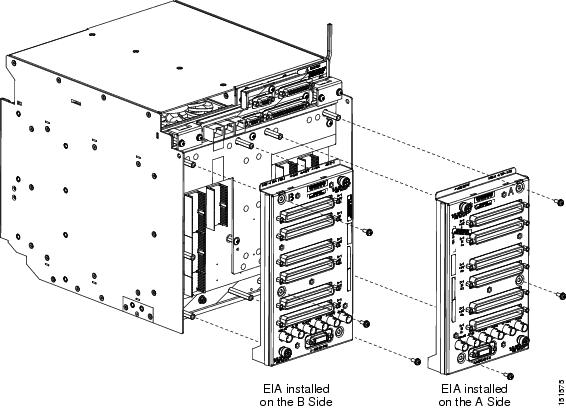

Figure 2-4 High-Density EIA Installation
Step 2 Align the connectors on the EIA you want to install with the mating connectors on the backplane, using the plastic guide posts on the connectors.
Do not firmly apply pressure to the EIA; this could damage the EIA and backplane connectors.
Step 3 Seat the EIA as flat as possible by gently exerting enough pressure with your hands to only partially seat the connectors. Do not try and fully insert the EIA.
Step 4 Locate the two jack screws on the EIA, which are found on the opposite corners (Figure 2-4). (For example, on the B-side EIA, the screws are located in the top right and bottom left corners.)
Step 5 Starting with either jack screw, tighten the thumb screw turn five full turns, then turn the other thumb screw five full turns (Figure 2-5). Alternate between the jack screws until the EIA is full seated onto the chassis and the jack screws are hand tight. The EIA is fully mated when both jack screws are fully threaded into the chassis.

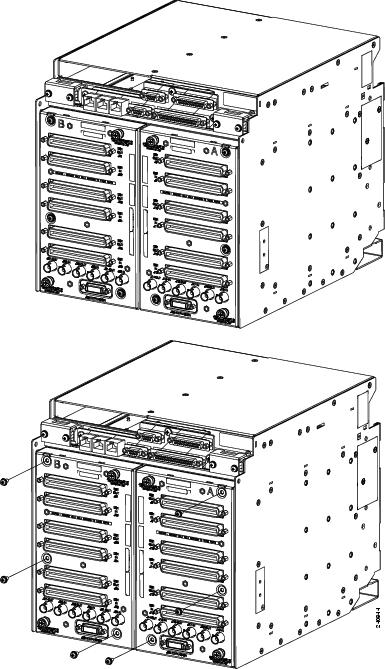

Figure 2-5 EIA Jack Screw
Threading one jack screw completely before threading the other jack screw might result in connector misalignment and damage to the EIA. Do not overtighten the jack screws.
Step 6 Install the remaining three 6-32 x 5/16-inch pan head screws onto the EIA and torque to 8 to 10 in-lbs.
Step 7 Repeat Steps 2 through 6 to install the other EIA, as necessary.
Step 8 Continue with the "NTP-C151 Install the Power and Ground" procedure.
Stop. You have completed this procedure.
NTP-C151 Install the Power and Ground
|
Warning Read the installation instructions before connecting the system to the power source. Statement 1004
|
|
Warning This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Statement 1028
|
|
Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit. Statement 1003
|
|
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
|
|
Warning Connect the unit only to DC power source that complies with the safety extra-low voltage (SELV) requirements under IEC 60950-1 based safety standards. Statement 1033
|
|
Warning A readily accessible two-poled disconnect device must be incorporated in the fixed wiring. Statement 1022
|
|
Warning Use copper conductors only. Statement 1025
|
Always use the supplied ESD wristband when working with a powered ONS 15310-MA. Plug the wristband cable into either of the ESD jacks, on the far left and right faceplates in the shelf.
Step 1 Verify that the proper fuse panel is installed (20-amp fuse per shelf minimum). If not, install one according to manufacturer instructions.
Step 2 Complete the "DLP-C250 Connect the Office Ground to the ONS 15310-MA" task.
Step 3 Complete the "DLP-C251 Connect Office Power to the ONS 15310-MA" task.
Step 4 Complete the "DLP-C252 Turn On and Verify Office Power to the ONS 15310-MA" task.
Step 5 Continue with the "NTP-C152 Install the Fan-Tray Assembly" procedure.
Stop. You have completed this procedure.
NTP-C152 Install the Fan-Tray Assembly
Do not operate an ONS 15310-MA without a fan-tray air filter. A fan-tray air filter is mandatory in order to comply with Telcordia GR-63-CORE.
You must place the edge of the air filter flush against the front of the fan-tray assembly compartment when installing the fan tray on top of the filter. Failure to do so could result in damage to the filter, the fan tray, or both.
Do not force a fan-tray assembly into place. Doing so can damage the connectors on the fan tray and/or the connectors on the back panel of the shelf assembly.
Step 1 Install the air filter. The air filter is installed internally in the slot at the top left of the shelf assembly (Figure 2-6). Pull the tab, located at the center of the front of the fan filter, toward you. Make sure the tab is facing up before you install the fan filter.
Figure 2-6 Installing the Fan-Tray Air Filter
Step 2 Slide the air filter into the bracket, and push the tab closed
Step 3 Pull the fan tray ejector all the way out.
Step 4 Use the ejector to slide the fan tray into the shelf assembly until the electrical plug at the rear of the tray plugs into the corresponding receptacle on the backplane.
Step 5 Close the ejector.
Step 6 Use a Phillips screwdriver to tighten the screws at either end of the fan-tray assembly.
Step 7 To verify that the tray has plugged into the backplane, look at the fan tray and listen to determine that the fans are running.
Figure 2-7 shows the location of the fan-tray assembly.

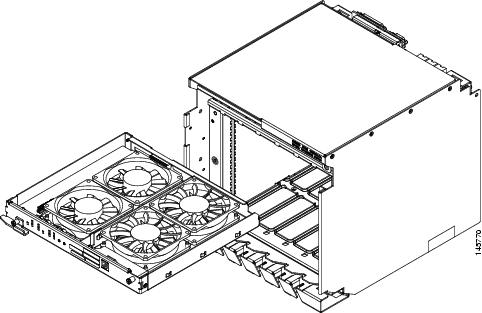

Figure 2-7 Installing the Fan-Tray Assembly
Step 8 Continue with the "NTP-C153 Install the CTX2500 Cards" procedure.
Stop. You have completed this procedure.
NTP-C153 Install the CTX2500 Cards
Purpose |
This procedure installs CTX2500 cards in the ONS 15310-MA. |
Tools/Equipment |
None |
Prerequisite Procedures |
|
Required/As Needed |
Required |
Onsite/Remote |
Onsite |
Security Level |
Retrieve or higher |
|
Warning Class I (CDRH) and Class 1M (IEC) laser products. Statement 1055
|
|
Warning Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure. Statement 1057
|
|
Warning The CRAFT ports of ONS15310-MA are intra-building ports used only for setup and maintenance purposes by trained personnel and are not connected during normal operation. Statement 1085
|
Do not install a CTX2500 card in an ONS 15310-MA if the ambient temperature exceeds 149 degrees F (65 degrees C).
Always use the supplied ESD wristband when working with a powered ONS 15310-MA. Plug the wristband cable into either of the ESD jacks, on the far left and right faceplates in the shelf.
Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.
Step 1 Install a CTX2500 card in Slot 3 or 4 (Figure 2-8):
a. Open the card ejector.
b. Use the ejector at the top of the card and firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot.
c. Verify that the card is inserted correctly and close the ejector on the card.
Note The CTX2500 cards are hot-pluggable, which means they can be inserted or removed without turning off the power to the ONS 15310-MA.

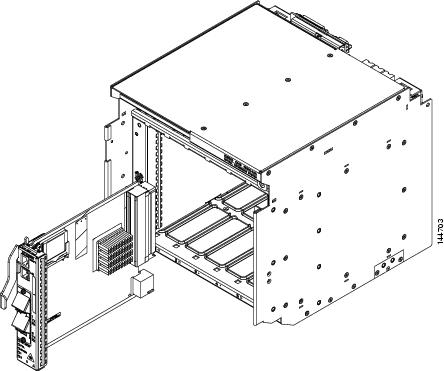

Figure 2-8 Installing a CTX2500 Card
Step 2 Verify the CTX2500 card LED activity:
a. The red FAIL LED turns on for 30 to 45 seconds. It then turns off for 5 seconds, and turns back on for 30 seconds.
b. The red FAIL LED blinks for 20 seconds, and turns off for 5 seconds.
c. All LEDs turn on for 2 seconds.
d. The ACT/STBY LED turns on. It is green if the card is active, or amber if the card is standby.
Step 3 When you log into CTC, verify that the card appears properly in CTC node view.
Step 4 As necessary, continue with the "NTP-C154 Install the Ethernet Cards" procedure.
Stop. You have completed this procedure.
NTP-C154 Install the Ethernet Cards
|
Warning The CRAFT ports of ONS15310-MA are intra-building ports used only for setup and maintenance purposes by trained personnel and are not connected during normal operation. Statement 1085
|
Do not install an Ethernet card in an ONS 15310-MA if the ambient temperature exceeds 149 degrees F (65 degrees C).
Always use the supplied ESD wristband when working with a powered ONS 15310-MA. Plug the wristband cable into either of the ESD jacks, on the far left and right faceplates in the shelf.
Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.
Step 1 Install an Ethernet card (CE-100T-8 or ML-100T-8) in a traffic card slot:
a. Open the card ejector.
b. Use the ejector at the top of the card and firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot.
c. Verify that the card is inserted correctly and close the ejector on the card.
Note The Ethernet cards are hot-pluggable, which means they can be inserted or removed without turning off the power to the ONS 15310-MA.
Step 2 Verify the Ethernet card LED activity:
a. Verify that the red FAIL LED is off.
b. Verify that the green ACT LED is on.
Step 3 When you log into CTC, verify that the card appears properly in CTC node view.
Step 4 As necessary, continue with the "NTP-C155 Install the Electrical Cards" procedure.
Stop. You have completed this procedure.
NTP-C155 Install the Electrical Cards
|
Warning The DS1/DS3 ports on the ONS15310-MA are intra-building ports and are suitable for connection only to shielded cabling grounded at both ends. Statement 1084
|
Ensure that the patch panel is grounded before installing the DS1-28 or DS1-84 electrical cards on the Cisco ONS 15310-MA chassis.
|
Warning When installing the unit, always make the ground connection first and disconnect it last. Statement 42.
|
Always use the supplied ESD wristband when working with a powered ONS 15310-MA. Plug the wristband cable into either of the ESD jacks, on the far left and right faceplates in the shelf.
Do not install an electrical card in an ONS 15310-MA if the ambient temperature exceeds 149 degrees F (65 degrees C).
Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.
Step 1 Install an electrical card (DS1-28/DS3-EC1-3 or DS1-84/DS3-EC1-3) in a traffic card slot:
a. Open the card ejector.
b. Use the ejector at the top of the card and firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot.
c. Verify that the card is inserted correctly and close the ejector on the card.
Note The electrical cards are hot-pluggable, which means they can be inserted or removed without turning off the power to the ONS 15310-MA.
Step 2 Verify the electrical card LED activity:
a. All LEDs (FAIL, ACT/STBY, DS1 SF, DS3 SF) turn on for 5 seconds, then turn off.
b. The green ACT/STBY and red FAIL LED turn on for 15 seconds.
c. The red FAIL LED flashes for 10 seconds, then becomes steady red for 30 seconds.
d. While the red FAIL LED is on, the ACT/STBY LED turns green for three seconds, then turns amber. During this time, the DS1 SF and DS3 SF LEDs are amber.
e. All LEDs turn off.
f. The ACT/STBY LED turns green (active) or amber (standby).
Step 3 When you log into CTC, verify that the card appears properly in CTC node view.
Step 4 As necessary, continue with the "NTP-C156 Install the Filler Cards" procedure.
Stop. You have completed this procedure.
NTP-C156 Install the Filler Cards
Make sure you install the appropriate filler card for the slot where you are installing the card. Filler card(s) for empty traffic card slots have the product ID 15310-EXP-FILLER, and filler cards for empty CTX2500 card slots have the product ID 15310-CTX-FILLER.
Step 1 Open the card ejector at the top of the card.
Step 2 Slide the card along the guide rails into the slot.
Step 3 Close the ejector by firmly pushing it downward.
Note The filler cards are hot-pluggable, so they can be inserted or removed without turning off the power to the ONS 15310-MA.
Step 4 When you log into CTC, verify that the card appears properly in CTC node view.
Step 5 Continue with the "NTP-C157 Install Wires to Alarm, Timing, Craft, LAN, and UDC Pin Connections" procedure.
Stop. You have completed this procedure.
NTP-C157 Install Wires to Alarm, Timing, Craft, LAN, and UDC Pin Connections
Always use the supplied ESD wristband when working with a powered ONS 15310-MA. Plug the wristband cable into either of the ESD jacks, on the far left and right faceplates in the shelf.
Step 1 Complete the "DLP-C253 Install External Alarm Cables on the ONS 15310-MA" task as needed. An alarm cable is necessary to provision external alarms and external controls.
Step 2 Complete the "DLP-C254 Install Timing Cables on the ONS 15310-MA" task as needed. Timing cables are necessary to provision external timing.
Step 3 Complete the "DLP-C255 Install the Serial Cable for TL1 Craft Interface on the ONS 15310-MA" task as needed. A craft cable is required to use Transaction Language One (TL1) through the craft interface.
Step 4 Complete the "DLP-C256 Install the UDC Cable on the ONS 15310-MA" task to enable UDC circuits. A UDC circuit allows you to create a dedicated data channel between nodes.
Step 5 Complete the "DLP-C257 Install the LAN Cable for the CTC Interface on the ONS 15310-MA" task to provide access to the CTC graphical user interface (GUI).
Step 6 Continue with the "NTP-C158 Install the Electrical Cables" procedure.
Stop. You have completed this procedure.
NTP-C158 Install the Electrical Cables
Purpose |
This procedure describes how to install the electrical DS-1 (64-pin Champ) and DS-3/EC-1 (coaxial) cables. To carry electrical traffic on the ONS 15310-MA, you must install electrical cables. |
Tools/Equipment |
Shielded coaxial cable terminated with BNC connectors for DS-3/EC-1 ports 64-pin Champ connector terminated to shielded, twisted-pair cable |
Prerequisite Procedures |
C157 Install Wires to Alarm, Timing, Craft, LAN, and UDC Pin Connections |
Required/As Needed |
As needed |
Onsite/Remote |
Onsite |
Security Level |
None |
Always use the supplied ESD wristband when working with a powered ONS 15310-MA. Plug the wristband cable into either of the ESD jacks, on the far left and right faceplates in the shelf.
Step 1 Complete the "DLP-C258 Install CHAMP Cables for DS-1 Connection" task as needed.
Step 2 Complete the "DLP-C259 Install DS-3/EC-1 Cables" task as needed.
Step 3 Complete the "DLP-C260 Route Cables" task as needed.
Step 4 If you need to verify the wiring continuity of DS-1 or DS-3 connections between the node and the DSX panel, continue with the "NTP-C173 Install the TST-DSX Card" procedure. Otherwise, continue with the "NTP-C159 Install and Remove SFPs" procedure.
Stop. You have completed this procedure.
NTP-C173 Install the TST-DSX Card
Note Used with a remote receiver, the TST-DSX card indicates whether the wiring connections are valid, which allows users to take corrective action prior to turning up service. The TST-DSX card is normally used in systems where there are no working services and likely no power applied. A hand-held remote receiver module is used with the TST-DSX card and is plugged into the DSX panel during testing using the provided cables. The receiver allows the user to initiate tests, display test status and errors, and store test results that can be transferred to a PC over an EIA-232 connection.
The goal of this procedure is to test the wiring between the DSX and an empty Cisco ONS 15310-MA shelf assembly. The wiring type is DS-1 or DS-3. There must be no DS-1 or DS-3 traffic on the side of the shelf being tested. The TST-DSX card disrupts service if it is plugged into a shelf side where a
DS-1 or DS-3 card is carrying traffic.
Step 1 Insert the TST-DSX card into one of the expansion slots on the shelf (either Side A, Slot 1 or 2, or Side B, Slot 5 or 6).
Step 2 If the shelf power is on, continue with Step 3. If the shelf power is not on, plug the supplied AC-to-DC adaptor into a wall outlet and plug the barrel connector of the power cable into the 48 VDC jack on the TST-DSX card faceplate.
Step 3 Set the TST-DSX card faceplate switch to the NORMAL position.
Step 4 Verify the state of the LEDs on the faceplate:
•POWER is steady on.
•ACTIVE blinks slowly, indicating that the TST-DSX is functional.
•LOOP is off.
Step 5 Verify that the backplane wiring and connectors have been installed.
Note If the ACTIVE LED is blinking rapidly, the Backplane Interface Connector (BIC) is not present.
Step 6 Turn on the power switch of the handheld receiver and observe the display.
The first display shows the receiver version number. The next display shows the following:
MANUAL TEST MODE
DS3; A; 310
The last display shows either the DS-1 or DS-3 test mode and the status of the test.
Step 7 If the display indicates 454 instead of 310 as the shelf mode, press the MENU key six times, press DISPLAY to change from 454 to 310 shelf mode, and then press the ENTER/ACCEPT key to save the setting.
Step 8 To change from one cable type to another (DS-1 or DS-3), press the MENU key once, press DISPLAY to change the setting, and then press ENTER/ACCEPT to store the setting.
Step 9 At the DSX wiring panel, insert an appropriate patch cord into the handheld receiver.
Step 10 Insert the other end of the patch cord into a port on the DSX wiring panel. The control unit's screen continuously shows the test result of any detected signal.
Note For more detailed information on using the TST-DSX card to verify and troubleshoot wiring between the ONS 15310-MA shelf and the DSX wiring panel, see the Cisco ONS 15310-CL and Cisco ONS 15310-MA Troubleshooting Guide.
Stop. You have completed this procedure.
NTP-C159 Install and Remove SFPs
Purpose |
This procedure installs and removes SFPs. SFPs are hot-swappable input/output devices that plug into SFP slots on the ONS 15310-MA faceplate to link the port with the fiber-optic network. SFPs are known as pluggable port modules (PPMs) in CTC. You can preprovision the multirate SFPs using the "DLP-C192 Provision a Multirate Pluggable Port Module" task. |
Tools/Equipment |
SFPs appropriate to the ONS 15310-MA. SFP types include OC-3, OC-12, OC-48, Ethernet, Gigabit Ethernet, and Fast Ethernet. Refer to the "Card Reference" chapter in the Cisco ONS 15310-CL and Cisco ONS 15310-MA Reference Manual for SFP compatibility. |
Prerequisite Procedures |
|
Required/As Needed |
As needed |
Onsite/Remote |
Onsite |
Security Level |
None |
|
Warning Class 1 laser product. Statement 1008
|
|
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
|
|
Warning For copper SFPs, the Ethernet ports of ONS15310-MA are intra-building ports and are suitable only for connecting to cat-5 shielded (STP) cabling grounded at both ends.
|
Step 1 Complete the "DLP-C16 Install SFP Connectors" task as needed.
Step 2 Complete the "DLP-C17 Remove SFP Connectors" task as needed.
Step 3 Continue with the "NTP-C160 Install Optical Cables" procedure.
Stop. You have completed this procedure.
NTP-C160 Install Optical Cables
|
Warning Class 1 laser product. Statement 1008
|
|
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
|
Always use the supplied ESD wristband when working with a powered ONS 15310-MA. Plug the wristband cable into either of the ESD jacks, on the far left and right faceplates in the shelf.
Note You can install the fiber immediately after installing the SFPs, or wait until you are ready to turn up the network. See Chapter 5 "Turn Up a Network."
Note Inspect and clean all fiber connectors thoroughly. See the "NTP-C109 Clean Fiber Connectors" procedure for instructions. Dust particles can degrade performance. Put caps on any fiber connectors that are not used.
Note To install fiber-optic cables in the ONS 15310-MA, a fiber cable with the corresponding connector type must be connected to the transmit and receive ports on the SFPs. On ONS 15310-MA ports, the transmit and receive fiber for each optical signal are contained within a single SFP port.
Step 1 Measure the optical receive levels using an optical power meter, compare the results with the allowable optical power levels for the installed SFPs, and attenuate accordingly. See Table 2-1 for the minimum and maximum levels for each SFP type.
Step 2 As needed, complete the "DLP-C18 Install Fiber-Optic Cables in a 1+1 Configuration" task.
Step 3 As needed, complete the "DLP-C19 Install Fiber-Optic Cables for Path Protection Configurations" task.
Step 4 As needed, gently route the fiber cables away from the shelf. You might want to use the optional tie-down bar.
Step 5 Continue with the "NTP-C164 Perform the Shelf Installation Acceptance Test" procedure.
Stop. You have completed this procedure.
NTP-C164 Perform the Shelf Installation Acceptance Test
Purpose |
Use this procedure to perform a shelf installation acceptance test. |
Tools/Equipment |
Voltmeter |
Prerequisite Procedures |
Applicable procedures in Chapter 2 "Install the Cisco ONS 15310-MA" |
Required/As Needed |
Required |
Onsite/Remote |
Onsite |
Security Level |
Retrieve or higher |
Step 1 Complete Table 2-2 by verifying that each procedure was completed.
|
|
|
|---|---|
C157 Install Wires to Alarm, Timing, Craft, LAN, and UDC Pin Connections |
|
Step 2 Check each wire and cable connection to make sure all cables are locked securely. If a wire or cable is loose, return to the appropriate procedure in this chapter to correct it.
Step 3 Complete the "DLP-C20 Measure Voltage" task.
Stop. You have completed this procedure.
NTP-C161 Preprovision an SFP Slot
Step 1 Complete the "DLP-C29 Log into CTC" task to log into an ONS 15310-MA on the network.
Step 2 Click the Alarms tab:
a. Verify that the alarm filter is not turned on. See the "DLP-C88 Disable Alarm Filtering" task as necessary.
b. Verify that no unexplained conditions appear on the network. If unexplained conditions appear, resolve them before continuing. Refer to the Cisco ONS 15310-CL and Cisco ONS 15310-MA Troubleshooting Guide.
c. Complete the "DLP-C223 Export CTC Data" task to export alarm and condition information.
Step 3 In node view, double-click the CTX2500 card.
Step 4 Click the Provisioning > Pluggable Port Modules tabs.
Step 5 In the Pluggable Port Modules pane, click Create. The Create PPM dialog box appears.
Step 6 In the Create PPM dialog box, complete the following:
•PPM—Click the slot number where the SFP is installed from the drop-down list.
•PPM Type—Click the number of ports supported by your SFP from the drop-down list. If only one port is supported, PPM (1 port) is the only option.
Step 7 Click OK. The newly created port appears on the Pluggable Port Modules pane. The row on the Pluggable Port Modules pane turns light blue and the Actual Equipment Type column lists the preprovisioned PPM as unknown until the actual SFP is installed. After the SFP is installed, the row on the pane turns white and the column lists the equipment name.
Step 8 Verify that the PPM appears in the list on the Pluggable Port Modules pane. If it does not, repeat Steps 5 through 7.
Step 9 Repeat Steps 5 through 8 to provision a second PPM.
Step 10 Click OK.
Step 11 When you are ready to install the SFP, complete the "DLP-C16 Install SFP Connectors" task. If you preprovisioned a multirate SFP, you must select the line rate using the "DLP-C193 Provision the Optical Line Rate" task.
Stop. You have completed this procedure.
NTP-C162 Preprovision a Card Slot
Step 1 Complete the "DLP-C29 Log into CTC" task at the node where you want to preprosivion the slot. If you are already logged in, continue with Step 2.
Step 2 Right-click the empty slot where you will later install a card.
Step 3 From the Add Card shortcut menu, navigate to Ethernet or DSn and choose the card type you want (CE-100T-8 or ML-100T-8 for Ethernet; DS1-28/DS3-EC1-3 or DS1-84/DS3-EC1-3 for DSn).
Note When you preprovision a slot, the card appears purple in the CTC shelf display. When you physically install a card in the slot, the card appears white in the CTC shelf display.
Stop. You have completed this procedure.
NTP-C163 Remove and Replace a Card
Purpose |
This procedure describes how to remove and replace cards in the ONS 15310-MA shelf. |
Tools/Equipment |
None |
Prerequisite Procedures |
C154 Install the Ethernet Cards |
Required/As Needed |
As needed |
Onsite/Remote |
Onsite |
Security Level |
Provisioning or higher |
Step 1 If you are not logged into CTC and you need to remove a card, continue with Step 3. When you log into CTC, troubleshoot the mismatched equipment (MEA) or Improper Removal (IMPRMVL) alarm using the Cisco ONS 15310-CL and Cisco ONS 15310-MA Troubleshooting Guide.
Step 2 If you are logged into CTC, on the node view shelf graphic right-click the card that you want to remove and choose Delete Card.
You cannot delete a card if any of the following conditions apply:
•The card is a CTX2500 card. To replace a CTX2500 card, refer to the Cisco ONS 15310-CL and Cisco ONS 15310-MA Troubleshooting Guide.
•The card is part of an optical protection group; see the "DLP-C138 Delete a Protection Group" task.
Note 1:1 electrical protection groups are created automatically in the ONS 15310-MA and can only be deleted after the protect card of a 1:1 protection group is deleted.
•The card has circuits; see the "DLP-C120 Delete Overhead Circuits" task and the "DLP-C115 Delete Circuits" task.
•The card is being used for timing; see the "DLP-C139 Change the Node Timing Source" task.
•The card has a data communications channel (DCC) termination; see the "DLP-C154 Delete a Section DCC Termination" task or the "DLP-C155 Delete a Line DCC Termination" task.
Note If you do not remove a card from the shelf after you delete it in CTC, it will reboot and reappear in CTC.
Step 3 Physically remove the card:
a. Open the card latches/ejectors.
b. Use the latches/ejectors to pull the card forward and away from the shelf.
Step 4 Insert the new card using one of the following procedures:
•C153 Install the CTX2500 Cards
•C154 Install the Ethernet Cards
•C155 Install the Electrical Cards
Stop. You have completed this procedure.
NTP-C168 Install the Front Door
Be careful not to crimp any fiber-optic cables that are connected to the optical cards. Some might not have the fiber boot attached.
Always use the supplied ESD wristband when working with a powered ONS 15310-MA. Plug the wristband cable into either of the ESD jacks, on the far left and right faceplates in the shelf.
Step 1 Place the door hinge flush against the inside of the ONS 15310-MA chassis flange on the left (Figure 2-9).

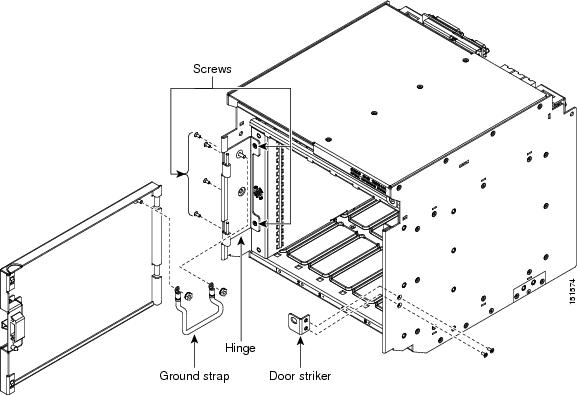

Figure 2-9 Installing the Front Door
Step 2 Line up the four screw holes on the door hinge with the corresponding screw holes on the flange of the shelf assembly. Make sure the other two holes on the hinge line up with the two holes on the ESD faceplate on the left side of the shelf.
Step 3 Approaching the shelf assembly from the left side, install four 4-40 screws to attach the door hinge to the chassis flange.
Step 4 Install two 4-40 screws through the hinge into the ESD faceplate.
Step 5 Attach the door striker to the right side of the chassis using the remaining two 4-40 screws.
Step 6 Slide the front door downward onto the hinge pins.
Step 7 Using the 5/16-inch nut driver, attach the ground cable to the threaded studs on the door and hinge with two hex nuts. Ensure the ground cable is looped or bent downward to avoid being pinched or caught when the door is closed.
Step 8 Close the front door.
Be careful not to crimp any cables that are connected to the installed cards.
Stop. You have completed this procedure.
NTP-C191 Install the Rear Cover
Always use the supplied ESD wristband when working with a powered ONS 15310-MA. For detailed instructions on how to wear the ESD wristband, refer to the
Cisco ONS Electrostatic Discharge (ESD) and Grounding Guide.
Note Connect all cables on the backplane before installing the rear cover.
Step 1 Using a #2 Phillips screw driver, remove the six panhead screws from the Electrical Interface Assemblies (EIAs) located on the A-side and B-side of the backplane Figure 2-10.
Figure 2-10 Removing the Panhead Screws
Step 2 Using the 1/4-inch nut driver, install the six hexagonal standoffs onto the mounting holes that held the six panhead screws.
Step 3 Align the holes on the rear cover with the hexagonal standoffs.

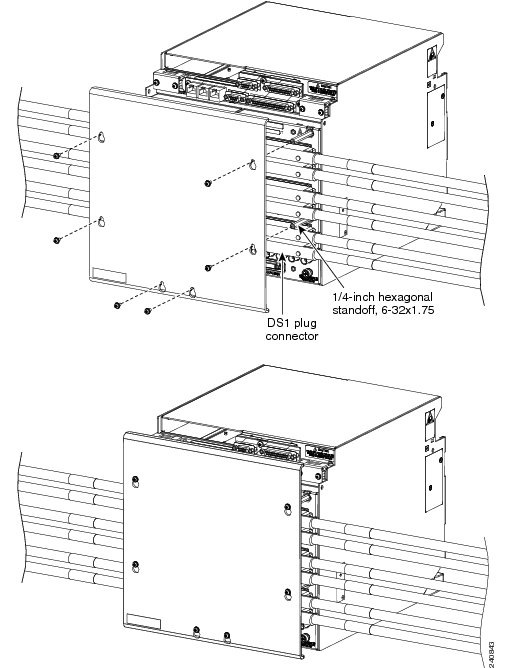

Figure 2-11 Installing the Rear Cover
Step 4 Install and tighten the six panhead screws onto the holes on the hexagonal standoffs.
Note You can also reverse the order of the procedure, and install the panhead screws onto the hexagonal standoffs first, place the rear cover on the standoffs, and finally tighten the panhead screws. The rear cover has oval cut-outs to allow this operation.
Stop. You have completed this procedure.
Feedback
