Configuring Easy Virtual Network Shared Services

This chapter describes how to use route replication and redistribution to share services in an Easy Virtual Network (EVN).

Prerequisites for Virtual IP Network Shared Services

  • Read the “Overview of Easy Virtual Networks” module.

  • Implement EVN based on the “Configuring Easy Virtual Networks” module.

Restrictions for Virtual IP Network Shared Services

  • Route replication is supported for Static, Enhanced Interior Gateway Routing Protocol (EIGRP), and Open Shortest Path First (OSPF) routes. It is not possible to replicate routes to and from Border Gateway Protocol (BGP), but that is not an issue because the BGP import and export method of copying routes between Virtual Routing and Forwarding (VRF) is available in a virtual network.

  • Inter-vrf redistribution for OSPFv2 (ipv4) is supported, but, OSPFv3 under ipv4 address-family is not supported

Information About Easy Virtual Network Shared Services

Shared Services in an Easy Virtual Network

There are some common services (such as database and application servers) that multiple virtual networks need to access. Sharing these services are beneficial because:

  • They are usually not duplicated for each group.

  • It is economical, efficient, and manageable.

  • Policies can be centrally deployed.

To achieve route separation, you could replicate the service, either physically or virtually, one service for each virtual network. However, that solution might not be cost effective or feasible. For a router that supports EVN, the solution is to perform route replication and route redistribution.

Route replication allows shared services because routes are replicated between virtual networks and clients who reside in one virtual network can reach prefixes that exist in another virtual network.

A shared services approach works best for Dynamic Name Systems (DNS), Dynamic Host Configuration Protocol (DHCP), and corporate communications. It is not a solution for sharing access to an Internet gateway.

Easy Virtual Network Shared Services Easier than VRF-Lite

Sharing servers in VRF-Lite requires route distinguishers (RDs), route targets with importing and exporting, and configuring BGP.

In an EVN environment, shared services are achieved with route replication, which is a simple deployment. Route replication requires no BGP, no RD, no route targets, and no import or export.

In summary, the BGP import and export method of copying routes between VRFs works with both VRF-Lite and EVN. However, route replication is the simpler alternative to enable sharing of common services across multiple virtual networks.

Route Replication Process in Easy Virtual Network

With shared services, clients and servers are located in different virtual networks. To achieve connectivity between clients and servers, routes must be exchanged among virtual networks. Depending on whether VRF-Lite or EVN is implemented, route exchanges among VRFs are accomplished in one of the following ways:

  • If VRF-Lite is implemented, route leaking is achieved via BGP by using the route import/export feature.

  • If EVN is implemented, route replication is supported directly by the Routing Information Base (RIB); there is no dependency on BGP. After routes are replicated from a different virtual network, those routes are propagated across each virtual network through existing redistribution into the Interior Gateway Protocol (IGP).

In the following route replication scenario, a router has two VRFs named Services and User-A. OSPF is configured:


router ospf 99 vrf services
 network 126.1.0.0 0.0.255.255 area 0
!
router ospf 98 vrf user-a
 network 126.1.0.0 0.0.255.255 area 0

Furthermore, route replication is configured for VRF User-A:


vrf definition user-a
 !
 address-family ipv4
 route-replicate from vrf services unicast ospf 99
 exit-address-family

In the scenario, the following RIB for the VRF Services contains four routes, three of which are replicated to the RIB for VRF User-A. Route replication creates a link to the source RIB, as shown in the figure below.

Configuring route replication allows mutual redistribution between virtual IP networks. In the case of shared services, you configure route replication within the VRF that needs access to shared services. Within each route-replicate command, you can optionally filter out routes with a route map to prevent a routing loop. That is, you do not want to redistribute routes back into the original routing protocol. You do not want a native route to show up as a replicated route.

Where to Implement Route Replication

We recommend implementing route replication on the router as close to the shared service as possible. Ideally, the router that is directly connected to the server subnet should be used, to eliminate the need to redistribute the host prefixes on the server VRF, and, thereby, avoid a potential routing loop.

Route Replication Behavior for Easy Virtual Network

This section describes the behavior of route replication for EVN, which differs from the behavior for Multi-Topology Routing. In an EVN environment:

  • The route-replicate command is accepted only under the address-family ipv4 command, which is configured under the vrf definition command.

  • The route-replicate command replicates routes into the base topology within the specified address family.

  • If all is specified as a source protocol, only one route-replicate command is allowed per VRF for a given destination topology.

  • The no route-replicate command is allowed to exclude a source protocol.

  • If all is specified as a source protocol, then connected routes are replicated (unlike in the Multi-Topology Routing version of the route-replicate command).

  • A replicated route inherits the administrative distance and source protocol of the source route.

Route Preference Rules After Route Replication in Easy Virtual Network

If a route is replicated, the following rule determines route preference:

  • If two routes are owned by the same protocol and have the same source VRF, and if one of the routes is NOT replicated, then the nonreplicated route is preferred.

If the above rule does not apply, the following rules determine route preference, in this order:

  1. Prefer the route with smaller administrative distance.

  2. Prefer the route with smaller default administrative distance.

  3. Prefer a non-replicated route over a replicated route.

  4. Compare original vrf-names. Prefer the route with the lexicographically smaller vrf-name.

  5. Compare original sub-address-families: Prefer unicast over multicast.

  6. Prefer the oldest route.

How to Share Services Using Easy Virtual Network

Configuring Route Replication to Share Services in Easy Virtual Network

Perform this task to replicate routes from one VRF to another. The examples in the task table are based on the figure below.

In this particular task, routes from VRF SERVICES are replicated to both VRF RED and VRF GREEN, and VRF RED and VRF GREEN are not allowed to share routes between them. In order to allow bidirectional traffic, routes from VRF RED and VRF GREEN are also replicated to VRF SERVICES.


Note

In a real EVN environment, there would also be route replication between VRF SERVICES and a third VRF, and maybe more VRFs. Such replication is left out of the following configuration task for the sake of brevity.

SUMMARY STEPS

  1. enable
  2. configure terminal
  3. vrf definition vrf-name
  4. vnet tag number
  5. description string
  6. address-family ipv4
  7. exit
  8. exit
  9. vrf definition vrf-name
  10. vnet tag number
  11. description string
  12. address-family ipv4
  13. exit
  14. exit
  15. interface type number
  16. vrf forwarding vrf-name
  17. ip address ip-address mask
  18. no shutdown
  19. exit
  20. router ospf process-id vrf vrf-name
  21. network ip-address wildcard-mask area area-id
  22. exit
  23. router ospf process-id [vrf vrf-name ]
  24. network ip-address wildcard-mask area area-id
  25. exit
  26. vrf definition vrf-name
  27. address-family ipv4
  28. route-replicate from [vrf vrf-name ] {multicast | unicast } {all | protocol-name } [route-map map-tag ]
  29. exit
  30. exit
  31. vrf definition vrf-name
  32. address-family ipv4
  33. route-replicate from [vrf vrf-name ] {multicast | unicast } {all | protocol-name } [route-map map-tag ]
  34. end
  35. show ip route vrf vrf-name

DETAILED STEPS

  Command or Action Purpose

Step 1

enable

Example:


Router> enable

Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2

configure terminal

Example:


Router# configure terminal

Enters global configuration mode.

Step 3

vrf definition vrf-name

Example:


Router(config)# vrf definition SERVICES

Defines a VRF and enters VRF configuration mode.

Step 4

vnet tag number

Example:


Router(config-vrf)# vnet tag 100

Specifies the global, numeric tag for the VRF.

  • The same tag number must be configured for the same VRF on each edge and trunk interface.

Step 5

description string

Example:


Router(config-vrf)# description shared services

(Optional) Describes a VRF to help the network administrator looking at the configuration file.

Step 6

address-family ipv4

Example:


Router(config-vrf)# address-family ipv4

Enters address family configuration mode to configure a routing session using standard IPv4 address prefixes.

Step 7

exit

Example:


Router(config-vrf-af)# exit

Exits to VRF configuration mode.

Step 8

exit

Example:


Router(config-vrf)# exit

Exits to global configuration mode.

Step 9

vrf definition vrf-name

Example:


Router(config)# vrf definition RED

Defines a VRF and enters VRF configuration mode.

Step 10

vnet tag number

Example:


Router(config-vrf)# vnet tag 200

Specifies the global, numeric tag for the VRF.

  • The same tag number must be configured for the same VRF on each edge and trunk interface.

Step 11

description string

Example:


Router(config-vrf)# description user of services

(Optional) Describes a VRF to help the network administrator looking at the configuration file.

Step 12

address-family ipv4

Example:


Router(config-vrf)# address-family ipv4

Enters address family configuration mode to configure a routing session using standard IP Version 4 address prefixes.

Step 13

exit

Example:


Router(config-vrf-af)# exit

Exits to VRF configuration mode.

Step 14

exit

Example:


Router(config-vrf)# exit

Exits to global configuration mode.

Step 15

interface type number

Example:


Router(config)# interface gigabitethernet 0/0/0

Configures an interface type and number and enters interface configuration mode.

Step 16

vrf forwarding vrf-name

Example:


Router(config-if)# vrf forwarding SERVICES

Associates a VRF instance with an interface.

Step 17

ip address ip-address mask

Example:


Router(config-if)# ip address 192.168.1.3 255.255.255.0

Sets a primary IP address for an interface.

Step 18

no shutdown

Example:


Router(config-if)# no shutdown

Restarts an interface.

Step 19

exit

Example:


Router(config-if)# exit

Exits to global configuration mode.

Step 20

router ospf process-id vrf vrf-name

Example:


Router(config)# router ospf 99 vrf SERVICES

Configures an OSPF routing process and enters router configuration mode.

  • This example uses OSPF; EIGRP is also available.

Step 21

network ip-address wildcard-mask area area-id

Example:


Router(config-router)# network 192.168.1.0 0.0.0.255 area 0

Defines the interfaces on which OSPF runs and the area ID for those interfaces.

Step 22

exit

Example:


Router(config-router)# exit

Exits to global configuration mode.

Step 23

router ospf process-id [vrf vrf-name ]

Example:


Router(config)# router ospf 98 vrf RED

Configures an OSPF routing process and enters router configuration mode.

Step 24

network ip-address wildcard-mask area area-id

Example:


Router(config-router)# network 192.168.1.0 0.0.0.255 area 0

Defines the interfaces on which OSPF runs and the area ID for those interfaces.

Step 25

exit

Example:


Router(config-router)# exit

Exits to the global configuration mode.

Step 26

vrf definition vrf-name

Example:


Router(config)# vrf definition RED

Defines a VRF and enters VRF configuration mode.

Step 27

address-family ipv4

Example:


Router(config-vrf)# address-family ipv4

Enters address family configuration mode to configure a routing session using standard IPv4 address prefixes.

Step 28

route-replicate from [vrf vrf-name ] {multicast | unicast } {all | protocol-name } [route-map map-tag ]

Example:


Router(config-vrf-af)# route replicate from vrf SERVICES unicast all

Replicates routes into the base topology within the specified address family.

  • If the all keyword is specified as a source protocol, only one route-replicate command is allowed per VRF for a given destination topology.

  • Use the connected keyword as a source protocol-name in order to replicate only connected routes.

Step 29

exit

Example:


Router(config-vrf-af)# exit

Exits to VRF configuration mode.

Step 30

exit

Example:


Router(config-vrf)# exit

Exits to global configuration mode.

Step 31

vrf definition vrf-name

Example:


Router(config)# vrf definition SERVICES

Defines a VRF and enters VRF configuration mode.

Step 32

address-family ipv4

Example:


Router(config-vrf)# address-family ipv4

Enters address family configuration mode to configure a routing session using standard IPv4 address prefixes.

Step 33

route-replicate from [vrf vrf-name ] {multicast | unicast } {all | protocol-name } [route-map map-tag ]

Example:


Router(config-vrf-af)# route replicate from vrf RED unicast all

Replicates routes into the base topology within the specified address family.

  • This is the reciprocal replication to Step 28 to allow bidirectional traffic.

Step 34

end

Example:


Router(config-vrf-af)# end

Exits configuration mode.

Step 35

show ip route vrf vrf-name

Example:


Router# show ip route vrf RED

(Optional) Displays routes, including those replicated, which are indicated by a plus sign (+).

Example

The following is sample output from the show ip route vrf command based on the task in the preceding task table:


Router# show ip route vrf RED

Routing Table: RED
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       + - replicated route, % - next hop override
Gateway of last resort is not set
	  192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks
C   +    192.168.1.0/24 is directly connected (SERVICES), GigabitEthernet0/0/0
L   +    192.168.1.3/32 is directly connected (SERVICES), GigabitEthernet0/0/0
Router#

What to Do Next

After you perform the “Configuring Route Replication to Share Services in Easy Virtual Network” task, you must configure VRF GREEN as per the figure above, noting that Router 3 has routes to 10.0.0.0/8 and 20.0.0.0/8 and Router 1 and Router 2 have a route to 192.168.1.0/24.

After the configuration is complete, Router 1 and Router 2 still do not have a route to the shared service residing on 192.168.1.1 and Router 4 does not have routes to 10.0.0.0/8 and 20.0.0.0/8. Such access requires the route redistribution performed in the next task, "Configuring Redistribution to Share Services in EVN".

Configuring Redistribution to Share Services in Easy Virtual Network

This task is based on the assumption that you also performed the task, Configuring Route Replication to Share Services in EVN.

The figure below shows the same networks we used in the figure above. In this task, we perform redistribution on Router 3 so that Router 1 and Router 2 have a route to the shared service residing on 192.168.1.1.

SUMMARY STEPS

  1. enable
  2. configure terminal
  3. router ospf process-id vrf vrf-name
  4. redistribute vrf vrf-name ospf process-id subnets
  5. redistribute vrf vrf-name ospf process-id subnets
  6. exit
  7. router ospf process-id vrf vrf-name
  8. redistribute vrf vrf-name ospf process-id subnets
  9. exit
  10. router ospf process-id vrf vrf-name
  11. redistribute vrf vrf-name ospf process-id subnets
  12. end
  13. show ip route vrf vrf-name

DETAILED STEPS

  Command or Action Purpose

Step 1

enable

Example:


Router> enable

Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2

configure terminal

Example:


Router# configure terminal

Enters global configuration mode.

Step 3

router ospf process-id vrf vrf-name

Example:


Router(config)# router ospf 99 vrf SERVICES

Configures an OSPF routing process and enters router configuration mode.

Step 4

redistribute vrf vrf-name ospf process-id subnets

Example:


Router(config-router)# redistribute vrf RED ospf 98 subnets

Redistributes routes from one routing domain into another routing domain.

Step 5

redistribute vrf vrf-name ospf process-id subnets

Example:


Router(config-router)# redistribute vrf GREEN ospf 97 subnets

Redistributes routes from one routing domain into another routing domain.

Step 6

exit

Example:


Router(config-router)# exit

Exits to global configuration mode.

Step 7

router ospf process-id vrf vrf-name

Example:


Router(config)# router ospf 98 vrf RED

Configures an OSPF routing process and enters router configuration mode.

Step 8

redistribute vrf vrf-name ospf process-id subnets

Example:


Router(config-router)# redistribute vrf SERVICES ospf 99 subnets

Redistributes routes from one routing domain into another routing domain.

Step 9

exit

Example:


Router(config-router)# exit

Exits to global configuration mode.

Step 10

router ospf process-id vrf vrf-name

Example:


Router(config)# router ospf 97 vrf GREEN

Configures an OSPF routing process and enters router configuration mode.

Step 11

redistribute vrf vrf-name ospf process-id subnets

Example:


Router(config-router)# redistribute vrf SERVICES ospf 99 subnets

Redistributes routes from one routing domain into another routing domain.

Step 12

end

Example:


Router(config-router)# end

Exits configuration mode.

Step 13

show ip route vrf vrf-name

Example:


Router# show ip route vrf RED

(Optional) Displays routes, including those replicated, which are indicated by a plus sign (+).

Configuration Example for Easy Virtual Network Shared Services

Example: Easy Virtual Network Route Replication and Route Redistribution in a Multicast Environment

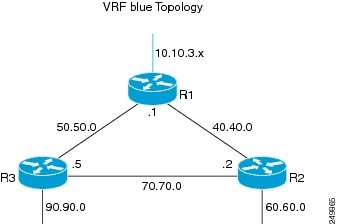

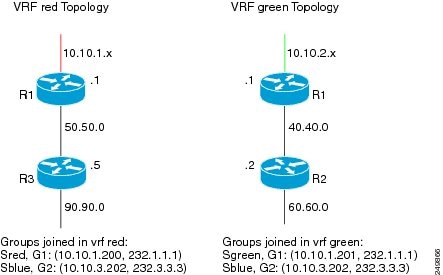

In the figures above there are three multicast streams:

  • Sred, G1: (10.10.1.200, 232.1.1.1)--Source and receivers in VRF red

  • Sgreen, G1: (10.10.2.201, 232.1.1.1)--Source and receivers in VRF green

  • Sblue, G2: (10.10.3.202, 232.3.3.3)--Source in blue and receivers in VRFs red and green.

The server-prefix in VRF blue (10.10.3.0/24) is replicated and distributed into VRFs red and green on R3 and R2.

Multicast group 232.3.3.3 with its source in VRF blue has receivers in both VRF red and VRF green. The stream is transmitted over the shared VRF (blue), and then replicated into VRF red on R3 and into VRF green on R2.

R1 Configuration


vrf definition blue
 vnet tag 4
 !
 address-family ipv4
 exit-address-family
!
vrf definition green
 vnet tag 3
 !
 address-family ipv4
 exit-address-family
!
vrf definition red
 vnet tag 2
 !
 address-family ipv4
 exit-address-family
!
vrf list vnet-list1
 member blue
 member red
!
vrf list vnet-list2
 member blue
 member green
!
vrf list vnet-list3
 member blue
!
ip multicast-routing distributed
ip multicast-routing vrf red distributed
ip multicast-routing vrf green distributed
ip multicast-routing vrf blue distributed
!
interface FastEthernet0/0/2
 vnet trunk list vnet-list1                           	 [vnet trunk for red and blue]
 ip address 50.50.0.1 255.255.255.0
 no ip redirects
 no ip proxy-arp
 ip pim sparse-dense-mode
 !
interface GigabitEthernet0/1/1
 vnet trunk list vnet-list2 				                             [vnet trunk for green and blue]
 ip address 40.40.0.1 255.255.255.0
 no ip redirects
 no ip proxy-arp
 ip pim sparse-dense-mode
!
interface GigabitEthernet0/1/3
 ip address 10.10.0.1 255.255.255.0
 no ip redirects
 no ip proxy-arp
 ip pim sparse-dense-mode
!
interface GigabitEthernet0/1/3.2
 vrf forwarding red
 encapsulation dot1Q 2
 ip address 10.10.1.1 255.255.255.0
 ip pim sparse-dense-mode
!
interface GigabitEthernet0/1/3.3
 vrf forwarding green
 encapsulation dot1Q 3
 ip address 10.10.2.1 255.255.255.0
 ip pim sparse-dense-mode
!
interface GigabitEthernet0/1/3.4
 vrf forwarding blue
 encapsulation dot1Q 4
 ip address 10.10.3.1 255.255.255.0
 ip pim sparse-dense-mode
!
router ospf 201 vrf red
 nsf
 redistribute connected subnets
 network 10.10.1.0 0.0.0.255 area 0
 network 50.50.0.0 0.0.0.255 area 0
!
router ospf 202 vrf green
 nsf
 network 10.10.2.0 0.0.0.255 area 0
 network 40.40.0.0 0.0.0.255 area 0
!
router ospf 203 vrf blue
 router-id 11.11.11.11
 nsf
 network 10.10.3.0 0.0.0.255 area 0
 network 40.40.0.0 0.0.0.255 area 0
 network 50.50.0.0 0.0.0.255 area 0
!
router ospf 200
 nsf
 redistribute connected subnets
 network 10.10.0.0 0.0.0.255 area 0
 network 40.40.0.0 0.0.0.255 area 0
 network 50.50.0.0 0.0.0.255 area 0
!
ip pim ssm default
ip pim vrf red ssm default
ip pim vrf green ssm default
ip pim vrf blue ssm default
!

R2 Configuration


vrf definition blue
 vnet tag 4
 !
 address-family ipv4
 exit-address-family
!
vrf definition green
 vnet tag 3
 !
 address-family ipv4
  route-replicate from vrf blue unicast all route-map blue-map
  [replicate routes from blue to green]
 exit-address-family
!
vrf definition red
 vnet tag 2
 !
 address-family ipv4
 exit-address-family
!
vrf list vnet-list1
 member blue
 member green
!
vrf list vnet-list2
member blue
!
ip multicast-routing distributed
ip multicast-routing vrf red distributed
ip multicast-routing vrf  green distributed
ip multicast-routing vrf blue distributed
!
interface FastEthernet0/0/6
 vnet trunk list vnet-list2		               		[vnet trunk for blue]
 ip address 70.70.0.2 255.255.255.0
 no ip redirects
 no ip proxy-arp
 ip pim sparse-dense-mode
!
interface GigabitEthernet0/1/2
 vnet trunk list vnet-list1				[vnet trunk for green and blue]
 ip address 40.40.0.2 255.255.255.0
 no ip redirects
 no ip proxy-arp
 ip pim sparse-dense-mode
!
interface GigabitEthernet0/1/4
 vnet trunk list vnet-list1				                            [vnet trunk for green and blue]
 ip address 60.60.0.2 255.255.255.0
 no ip redirects
 no ip proxy-arp
 ip pim sparse-dense-mode
!
router ospf 202 vrf green
 redistribute connected subnets
 redistribute vrf blue ospf 203 subnets route-map blue-map	 [redistribute routes replicated from blue in red]
 network 40.40.0.0 0.0.0.255 area 0
 network 60.60.0.0 0.0.0.255 area 0
!
router ospf 203 vrf blue
 router-id 22.22.22.22
 network 40.40.0.0 0.0.0.255 area 0
 network 60.60.0.0 0.0.0.255 area 0
 network 70.70.0.0 0.0.0.255 area 0
!
router ospf 200
 redistribute connected subnets
 network 40.40.0.0 0.0.0.255 area 0
 network 60.60.0.0 0.0.0.255 area 0
 network 70.70.0.0 0.0.0.255 area 0
!
ip pim ssm default
ip pim vrf red ssm default
ip pim vrf green ssm default
ip pim vrf blue ssm default
!
ip prefix-list server-prefix seq 5 permit 10.10.3.0/24
!
route-map blue-map permit 10
 match ip address prefix-list server-prefix
!

R3 Configuration


vrf definition blue
 vnet tag 4
 !
 address-family ipv4
 exit-address-family
!
vrf definition green
 vnet tag 3
 !
 address-family ipv4
 exit-address-family
!
vrf definition red
 vnet tag 2
 !
 address-family ipv4
  route-replicate from vrf blue unicast all route-map blue-map 	 [replicate routes from blue  to red]
 exit-address-family
!
vrf list vnet-list1
 member blue
 member red
!
vrf list vnet-list2
 member blue
!
ip multicast-routing distributed
ip multicast-routing vrf red distributed
ip multicast-routing vrf green distributed
ip multicast-routing vrf blue distributed
!
interface GigabitEthernet0/2/0
 vnet trunk list vnet-list1				                     [vnet trunk for red and blue]
 ip address 90.90.0.5 255.255.255.0
 no ip redirects
 no ip proxy-arp
 ip pim sparse-dense-mode
!
interface GigabitEthernet1/2/0
 vnet trunk list vnet-list1	                    			[vnet trunk for red and blue]
 ip address 50.50.0.5 255.255.255.0
 no ip redirects
 no ip proxy-arp
 ip pim sparse-dense-mode
!
interface FastEthernet2/0/0
 vnet trunk list vnet-list2				                      [vnet trunk for blue]
 ip address 70.70.0.5 255.255.255.0
 no ip redirects
 no ip proxy-arp
 ip pim sparse-dense-mode
!
router ospf 201 vrf red
 redistribute connected subnets
 redistribute vrf blue ospf 203 subnets route-map blue-map	     [redistribute routes replicated from blue in red]
 network 50.50.0.0 0.0.0.255 area 0
 network 90.90.0.0 0.0.0.255 area 0
!
router ospf 203 vrf blue
 router-id 55.55.55.55
 network 50.50.0.0 0.0.0.255 area 0
 network 70.70.0.0 0.0.0.255 area 0
 network 90.90.0.0 0.0.0.255 area 0
!
router ospf 200
 redistribute connected subnets
 network 50.50.0.0 0.0.0.255 area 0
 network 70.70.0.0 0.0.0.255 area 0
 network 90.90.0.0 0.0.0.255 area 0
!
ip pim ssm default
ip pim vrf red ssm default
ip pim vrf green ssm default
ip pim vrf blue ssm default
!
ip prefix-list server-prefix seq 5 permit 10.10.3.0/24
!
route-map blue-map permit 10
 match ip address prefix-list server-prefix
!

Additional References

Related Documents

Related Topic

Document Title

Cisco IOS commands

Cisco IOS Master Command List, All Releases

Easy Virtual Network commands

Easy Virtual Network Command Reference

Overview of Easy Virtual Network

“Overview of Easy Virtual Network” module in the Easy Virtual Network Configuration Guide

Configuring Easy Virtual Network

“Configuring Easy Virtual Network” module in the Easy Virtual Network Configuration Guide

Easy Virtual Network management and troubleshooting

“Easy Virtual Network Management and Troubleshooting” module in the Easy Virtual Network Configuration Guide

MIBs

MIB

MIBs Link

Any MIB that gives VRF information will continue to work with Easy Virtual Network. VRF-independent MIBs report information on every VRF in a system:

  • CISCO-MVPN-MIB

  • MPLS-VPN-MIB

  • CISCO-VRF-MIB

To locate and download MIBs for selected platforms, Cisco software releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs

Technical Assistance

Description

Link

The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

http://www.cisco.com/cisco/web/support/index.html

Feature Information for Easy Virtual Network Shared Services

The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.
Table 1. Feature Information for Easy Virtual Network Shared Services

Feature Name

Releases

Feature Information

EVN Route Replication

Cisco IOS XE Release 3.2S

15.0(1)SY

15.1(1)SG

Cisco IOS XE Release 3.3SG

15.3(2)T

This module describes how to use route replication and redistribution to share services in an EVN environment.

This feature modifies the following command: redistribute (IP)

This feature introduces the following command: route-replicate (VRF address family)
