If you configure the vManage to use TLS as the control plane security protocol, you must enable port forwarding on your NAT. If you are using DTLS as the control plane security protocol, you do not need to do anything.

The number of ports forwarded depends on the number of vdaemon processes running on the vManage. To display information about these processes and about and the number of ports that are being forwarded, use the show control summary command shows that four vdaemon processes are running:

vManage# show control summary
          VBOND     VMANAGE    VSMART    VEDGE
INSTANCE  COUNTS    COUNTS     COUNTS    COUNTS
------------------------------------------------
0           2          0           2        7
1           2          0           0        5
2           2          0           0        5
3           2          0           0        4

To see the listening ports, use the show control local-properties command:

vManage# show control local-properties

organization-name            Cisco SD-WAN Inc Test
certificate-status           Installed
root-ca-chain-status         Installed

certificate-validity         Valid
certificate-not-valid-before May 20 00:00:00 2015 GMT
certificate-not-valid-after  May 20 23:59:59 2016 GMT

dns-name                     vbond.cisco.com
site-id                      5000
domain-id                    0
protocol                     dtls
​tls-port                     23456
...
...
...
number-active-wan-interfaces 1

                PUBLIC       PUBLIC PRIVATE       PRIVATE                                   ADMIN  OPERATION LAST
INDEX INTERFACE IP           PORT   IP            PORT    VSMARTS  VMANAGES COLOR  CARRIER  STATE  STATE     CONNECTION
------------------------------------------------------------------------------------------------------------------------
0     eth0      72.28.108.37 12361  172.16.98.150 12361   2        0        silver default  up     up       0:00:00:08

This output shows that the listening TCP port is 23456. If you are running vManage behind a NAT, you should open the following ports on the NAT device:

• 23456 (base - instance 0 port)

• 23456 + 100 (base + 100)

• 23456 + 200 (base + 200)

• 23456 + 300 (base + 300)

Note that the number of instances is the same as the number of cores you have assigned for the vManage, up to a maximum of 8.

By default, IPsec tunnel connections use a modified version of the Encapsulating Security Payload (ESP) protocol for authentication. To modify the negotiated authentication types, use the following command:

Device(config)# security ipsec authentication-type (ah-sha1-hmac | ah-no-id | sha1-hmac | )

By default, IPsec tunnel connections use AES-GCM-256, which provides both encryption and authentication.

Configure each authentication type with a separate security ipsec authentication-type command. The command options map to the following authentication types, which are listed in order from most strong to least strong:

Note	The sha1 in the configuration options is used for historical reasons. The authentication options indicate over how much of the packet integrity checking is done. They do not specify the algorithm that checks the integrity. The authentication algorithms supported by Cisco SD-WAN do not use SHA1.

• ah-sha1-hmac enables encryption and encapsulation using ESP. However, in addition to the integrity checks on the ESP header and payload, the checks also include the outer IP and UDP headers. Hence, this option supports an integrity check of the packet similar to the Authentication Header (AH) protocol. All integrity and encryption is performed using AES-256-GCM.

• ah-no-id enables a mode that is similar to ah-sha1-hmac, however the ID field of the outer IP header is ignored. This option accommodates some non-Cisco SD-WAN devices, including the Apple AirPort Express NAT, that have a bug that causes the ID field in the IP header, a non-mutable field, to be modified. Configure the ah-no-id option in the list of authentication types to have the Cisco SD-WAN AH software ignore the ID field in the IP header so that the Cisco SD-WAN software can work in conjunction with these devices.

• sha1-hmac enables ESP encryption and integrity checking.

For information about which data packet fields are affected by these authentication types, see Data Plane Integrity.

Cisco IOS XE SD-WAN devices and Cisco vEdge devices advertise their configured authentication types in their TLOC properties. The two routers on either side of an IPsec tunnel connection negotiate the authentication to use on the connection between them, using the strongest authentication type that is configured on both of the routers. For example, if one router advertises the ah-sha1-hmac and ah-no-id types, and a second router advertises the ah-no-id type, the two routers negotiate to use ah-no-id on the IPsec tunnel connection between them. If no common authentication types are configured on the two peers, no IPsec tunnel is established between them.

The encryption algorithm on IPsec tunnel connections is AES-256-GCM.

When the IPsec authentication type is changed, the AES key for the data path is changed.

Before Cisco IOS XE SD-WAN devices and Cisco vEdge devices can exchange data traffic, they set up a secure authenticated communications channel between them. The routers use IPSec tunnels between them as the channel, and the AES-256 cipher to perform encryption. Each router generates a new AES key for its data path periodically.

By default, a key is valid for 86400 seconds (24 hours), and the timer range is 10 seconds through 1209600 seconds (14 days). To change the rekey timer value:

Device(config)# security ipsec
rekey seconds

The configuration looks like this:

security
    ipsec
      rekey seconds
    !

If you want to generate new IPsec keys immediately, you can do so without modifying the configuration of the router. To do this, issue the request platform software sdwan security ipsec-rekey command on the compromised router.

For example, the following output shows that the local SA has a Security Parameter Index (SPI) of 256:

Device# show sdwan ipsec local-sa

                                          SOURCE           SOURCE
TLOC ADDRESS     TLOC COLOR       SPI     IP               PORT    KEY HASH
------------------------------------------------------------------------------
172.16.255.15    lte              256     10.1.15.15       12346   *****b93a

A unique key is associated with each SPI. If this key is compromised, use the request platform software sdwan security ipsec-rekey command to generate a new key immediately. This command increments the SPI. In our example, the SPI changes to 257 and the key associated with it is now used:

Device# request platform software sdwan security ipsec-rekey
Device# show sdwan ipsec local-sa
                                          SOURCE           SOURCE
TLOC ADDRESS     TLOC COLOR       SPI     IP               PORT    KEY HASH
------------------------------------------------------------------------------
172.16.255.15    lte              257     10.1.15.15       12346   *****b93a

After the new key is generated, the router sends it immediately to the vSmart(s) using DTLS or TLS. The vSmart(s) send the key to the peer routers. The routers begin using it as soon as they receive it. Note that the key associated with the old SPI (256) will continue to be used for a short period of time, until it times out.

To stop using the old key immediately, issue the request platform software sdwan security ipsec-rekey command twice, in quick succession. This sequence of commands removes both SPI 256 and 257 and sets the SPI to 258. The router then uses the associated key of SPI 258. Note, however, that some packets will be dropped for a short period of time, until all the remote routers learn the new key.

Device# request platform software sdwan security ipsec-rekey
Device# request platform software sdwan security ipsec-rekey
Device# show sdwan ipsec local-sa
                                          SOURCE           SOURCE
TLOC ADDRESS     TLOC COLOR       SPI     IP               PORT    KEY HASH
------------------------------------------------------------------------------
172.16.255.15    lte              258     10.1.15.15       12346   *****b93a

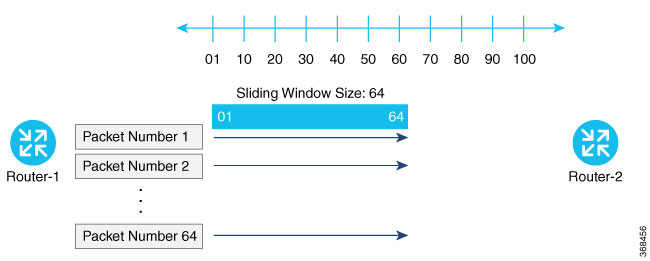

IPsec authentication provides anti-replay protection by assigning a unique sequence number to each packet in a data stream. This sequence numbering protects against an attacker duplicating data packets. With anti-replay protection, the sender assigns monotonically increasing sequence numbers, and the destination checks these sequence numbers to detect duplicates. Because packets often do not arrive in order, the destination maintains a sliding window of sequence numbers that it will accept.

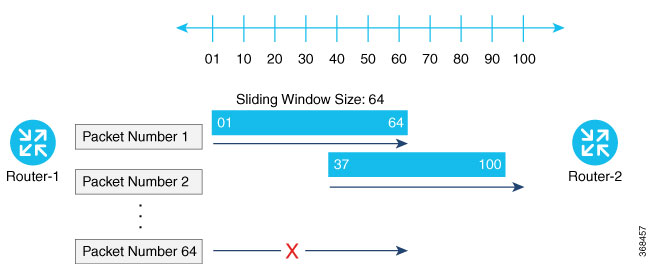

Packets with sequence numbers that fall to the left of the sliding window range are considered old or duplicates, and the destination drops them. The destination tracks the highest sequence number it has received, and adjusts the sliding window when it receives a packet with a higher value.

By default, the sliding window is set to 512 packets. It can be set to any value between 64 and 4096 that is a power of 2 (that is, 64, 128, 256, 512, 1024, 2048, or 4096). To modify the anti-replay window size, use the replay-window command, specifying the size of the window:

Device(config)# security ipsec replay-window
number

The configuration looks like this:

security
   ipsec
     replay-window number
   !
!

To help with QoS, separate replay windows are maintained for each of the first eight traffic channels. The configured replay window size is divided by eight for each channel.

If QoS is configured on a router, that router might experience a larger than expected number of packet drops as a result of the IPsec anti-replay mechanism, and many of the packets that are dropped are legitimate ones. This occurs because QoS reorders packets, giving higher-priority packets preferential treatment and delaying lower-priority packets. To minimize or prevent this situation, you can do the following:

• Increase the size of the anti-replay window.

• Engineer traffic onto the first eight traffic channels to ensure that traffic within a channel is not reordered.

When you first open a feature template, for each parameter that has a default value, the scope is set to Default (a ), and the default setting or value is shown. To change the default or to enter a value, click the scope drop-down to the left of the parameter field and select one of the following:

Parameter Name	Description
Device Specific	Use a device-specific value for the parameter. For device-specific parameters, you cannot enter a value in the feature template. You enter the value when you attach a device to a device template. When you click Device Specific, the Enter Key box opens. This box displays a key, which is a unique string that identifies the parameter in a CSV file that you create. This file is an Excel spreadsheet that contains one column for each key. The header row contains the key names (one key per column), and each row after that corresponds to a device and defines the values of the keys for that device. Upload the CSV file when you attach a device to a device template. To change the default key, type a new string and move the cursor out of the Enter Key box. Examples of device-specific parameters are system IP address, hostname, GPS location, and site ID.
Global	Enter a value for the parameter, and apply that value to all devices. Examples of parameters that you might apply globally to a group of devices are DNS server, syslog server, and interface MTUs.

Once you have created and named the template, enter the following values. Parameters marked with an asterisk are required.

To configure the IPsec tunnel that carries IKE traffic, select the IPsec tab and configure the following parameters:

To save the feature template, click Save.

crypto
   ipsec
      profile ipsec_profile_name
         set ikev2-profile ikev2_profile_name
         set security-association
            lifetime {seconds 120-2592000 | kilobytes disable}
            replay {disable | window-size {64 | 128 | 256 | 512 | 1024 | 4096 | 8192}
         set pfs group {2 | 14 | 15 | 16 | none}
         set transform-set transform_set_name

To configure Internet key exchange (IKE) dead-peer detection (DPD) to determine whether the connection to an IKE peer is functional and reachable, select the DPD tab and configure the following parameters:

To save the feature template, click Save.

crypto
   ikev2
      profile ikev2_profile_name
         dpd 10-3600 2-60 {on-demand | periodic}

To configure IKE, click IKE and configure the following parameters:

Note	When you create an IPsec tunnel on a Cisco IOS XE SD-WAN device, IKE Version 1 is enabled by default on the tunnel interface.

Change the IKE Version from IKEv1 to IKEv2

To change the IKE version, do the following:

1. From the Cisco vManage menu, choose Configuration > Templates.

2. Click Feature, and then click Add Template.

3. Choose the device for which you are creating the template.

4. Click Basic Configuration.

5. Use the shutdown parameter with the yes option (yes shutdown) to shut down the tunnel.

6. Remove the ISAKMP profile from the IPsec profile.

7. Attach the IKEv2 profile with the IPsec profile.

   Note	Perform this step if you already have an IKEv2 profile. Otherwise, create an IKEv2 profile first.

8. Use the shutdown parameter with the no option (no shutdown) to start up the tunnel.

   Note	You must issue the shutdown operations in two separate operations.

Note	There is no single CLI for changing the IKE version. You need to follow the sequence of steps listed in the Change the IKE Version from IKEv1 to IKEv2 section.

crypto
   isakmp
      keepalive 60-86400 2-60 {on-demand | periodic}
      policy policy_num
         encryption {AES128-CBC-SHA1 | AES256-CBC-SHA1}
         hash {sha384 | sha256 | sha}
         authentication pre-share
         group {2 | 14 | 16 | 19 | 20 | 21}
         lifetime 60-86400
      profile ikev1_profile_name
         match identity address ip_address [mask]
         keyring keyring_name

profile ipsec_profile_name
         set transform-set transform_set_name
         set isakmp-profile ikev1_profile_name
         set security-association
            lifetime {kilobytes disable | seconds 120-2592000}
            replay {disable | window-size [64 | 128 | 256 | 512 | 1024]}
         set pfs group {14 | 16 | 19 | 20 | 21}
   keyring keyring_name
      pre-shared-key address ip_address [mask] key key_string
   ipsec transform-set transform_set_name {esp-gcm 256 | esp-aes 256 [esp-sha384-hmac | esp-sha256-hmac] mode tunnel

crypto
   ikev2
      proposal proposal_name
         encryption {3des | aes-cbc-128 | aes-cbc-192 | aes-cbc-256 | des}
         integrity {sha256 | sha384 | sha512}
         group {2 | 14 | 15 | 16}
      keyring idev2_keyring_name
         peer peer_name
         address tunnel_dest_ip [mask]
         pre-shared-key key_string
      profile ikev2_profile_name
         match identity remote address ip_address
         authentication {remote | local} pre-share
         keyring local ikev2_keyring_name
         lifetime 120-86400
