Pervasive Load
Balancing for the Programmable Fabric
In a programmable fabric, the servers, the virtual machines (VMs), and the containers (specific to a given service) can be
distributed across the fabric, and attached to different ToR or leaf switches. The Pervasive Load Balancing (PLB) feature
enables load balancing to the servers that are distributed across the fabric.
PLB enables fabric to act as a massive load-balancer and makes it capable of providing massive telemetry and analytics. When
PLB is used as a load-balancer, you can connect between Layer 4 and Layer 7 appliances anywhere in the fabric. This is shown
in figure, Load Balancing across the Fabric.
Figure 1. Load Balancing across the Fabric
You may have a large number of clients (local and across the border leaf), that include database servers, application servers,
web servers, firewalls, WAAS, IPS, IDS, and video caches. The information about traffic flowing to each firewall, WAAS, IPS,
IDS, and server from each device in the fabric, including information about when traffic is high or low is very valuable.
PLB sits on the path between clients and servers or Layer 4 and Layer 7 services, making PLB aware about traffic information.
With this information PLB provides valuable traffic analytics and telemetry.
In the load balancing function, a virtual IP (VIP) abstracts a service provided by a physical server farm distributed across
the DC fabric. When different clients (local to fabric or from a remote location) send requests for a given service, these
requests are always destined to the VIP of these servers.
On the ToR or leaf switches, PLB matches the source IP address bits and mask, the destination IP address (Virtual IP address),
and relevant Layer 3 or Layer 4 fields to load balance these requests among the servers.
PLB provides an infrastructure to configure a cluster of the servers (nodes) inside a device group. It segregates the client
traffic based on the buckets (bit mask), and the tenant SVI configured under the PLB service. Based on the defined cluster
of nodes (servers) and buckets, PLB automatically creates rules to match the client IP traffic into the buckets mask and redirects
the matched traffic to a specific server node.
PLB provides the infrastructure to configure cluster of servers’ nodes inside a device group and segregates client traffic
based on the buckets (bit mask) and tenant SVI configured under PLB service. Based on the defined cluster of nodes (servers)
and buckets.
PLB also provides the infrastructure to periodically monitor health of all server nodes and status of its application services
such as TCP, UDP, and DNS on a given VRF.
In case, if server become non-responsive or non-operational then PLB automatically switches the client traffic from the non-operational
node to a single or group of configured standby nodes. Traffic assignment is achieved by automatically changing flows to a
standby node.
PLB currently uses Direct Server Return (DSR) concept and functionality so that server responses are directly sent to the
client.
Figure 2. Direct Server Return
PLB is fabric agnostic but currently supported with VXLAN EVPN Fabric.
PLB is currently supported on Cisco Nexus 9000 Series switches that support PBR over VXLAN.
High-level Overview of Designing PLB Topology
A high-level overview of designing Pervasive Load Balancing on the ToR switch is as follows:
Identify load balancing servers and create a device group.
Create a PLB service instance for the group, and complete the following:
Associate a virtual IP address (VIP) for incoming PLB traffic. The VIP represents the servers in the device group.
Enable other load balancing configurations.
The figure, An Example of PLB Topology, illustrates how PLB load balances east-west and north-south data center client traffic to multiple servers distributed across
the fabric for a VIP.
Figure 3. An Example of PLB Topology
PLB is achieved at line-rate speed, with which, it also provides health monitoring and fail action handling capabilities.
Configuring PLB on
Cisco Nexus 9000 Series Switches
Configuring
PLB
Use the
feature plb
CLI to enable Pervasive Load Balancing (PLB) under the global configuration
mode. Before configuring the PLB device group (cluster of servers) and
services, PLB should be enabled in the system.
Note
The
feature pbr
and
feature sla
sender CLIs are the prerequisites for configuring PLB.
The
no feature
plb CLI removes the PLB configuration from the system. By
default, PLB is disabled in the system.
Configuring
PLB Device Group
You can configure
the PLB device groups using the
plb
device-group <dg-name> CLI. All the nodes (servers) are
configured under a device group submode.
Sample Configuration
switch(config)# plb device-group dg200
switch(config-device-group)#
switch# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Jul 24 11:48:10 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
The
no plb
device-group <dg-name> CLI removes the PLB device group from
the configuration.
Note
A specified
device-group configuration cannot be removed if it is being used under the PLB
service. It should be removed from the PLB service first before removing it
globally.
Configuring
Nodes (Servers)
The nodes (servers
clusters) can be configured using the
node ip
<ip-addr> CLI under a device-group sub-mode.
Maximum 64 nodes can be configured inside a device group.
Sample Configuration
switch(config)# plb device-group dg200
switch(config-device-group)# node ip 10.0.0.31
leaf3(config-dg-node)#
switch# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 13:17:55 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.31
Use the
no node
ip
<ip-addr> CLI to remove the node or server
configuration under the device group.
Configuring
Standby Nodes
Use the
standby
ip <ip-addr> CLI to configure the standby node for
an active node.
A node-level
standby can be associated for each node.
The standby value
specifies the standby node information for this active node.
The standby node
for an active node, attached to the local leaf is strongly recommended.
Sample Configuration
switch(config)# plb device-group dg200
switch(config-device-group)# node ip 10.0.0.21
switch(config-dg-node)# standby ip 20.0.0.22
switch# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 13:17:55 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
standby ip 20.0.0.22
node ip 10.0.0.31
standby ip 20.0.0.32
Use the
no
standby ip <ip-addr> CLI to remove the standby node
configuration for an active node.
Using the
Weight option
Use the
weight <value> CLI to configure the weight for a node.
The weight value
keyword specifies the proportionate weight for the node for the weighted
traffic distribution.
The weight can be
assigned only to the active node.
The default weight
is 1 for each node and the maximum value to which it can be configured is 8.
Sample Configuration
switch(config)# plb device-group dg200
switch(config-device-group)# node ip 10.0.0.21
switch(config-dg-node)# weight 2
switch# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 13:17:55 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
standby ip 20.0.0.22
weight 2
node ip 10.0.0.31
standby ip 20.0.0.32
Use the
no
weight <value> CLI to remove the weight for a node or a
server.
Configuring
Probe for a Node
Use the
probe {icmp|
tcp
port <port-number>|
udp
port <port-number>|
dns{<hostname> |
<target-address>}} [frequency <seconds>] [[retry-down-count
|
retry-up-count] <number>] [timeout
<seconds>] CLI to configure probe for a node or
a server.
A node-level
probe (ICMP/TCP/UDP) can be configured to monitor the health of the node. The
probe value specifies the probe parameters to use for monitoring the health of
this active node.
Note
The
feature sla
sender and
feature sla
responder CLI should be enabled for the probe functionality to be
enabled.
The frequency
field specifies the interval for the probe. The default frequency is 10
Seconds.
The
retry-down-count field specifies the consecutive
number of times that the probe must have failed prior to the node being marked
as operationally
down. The
default retry-down-count is 3.
The
retry-up-count field specifies the consecutive number
of times the probe must have succeeded prior to the node being marked as
operationally
up. The
default retry-up-count is 3.
The
timeout field specifies the number of seconds to wait
for the probe response. The default timeout is 5 Seconds.
Sample Configuration
switch(config)# plb device-group dg200
switch(config-device-group)# node ip 10.0.0.21
switch(config-dg-node)# probe icmp retry-down-count 3 retry-up-count 3 timeout 60 frequency 60
switch# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 13:17:55 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
Use the
no probe {icmp|
tcp
port <port-number>|
udp
port <port-number>|
dns{<hostname> | <target-address>}} [frequency <seconds>] [[retry-down-count
|
retry-up-count] <number>] [timeout
<seconds>] CLI to remove the probe configuration
for a node.
Note
When you configure a probe for an active node, you must also configure it for the standby node (if it is present).
Configuring
the PLB Service at the Global Level
Configure the
PLB service using the
plb <service-name> CLI.
Sample Configuration
switch(config)# plb srv200
switch(config-plb)#
switch(config-plb)# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 14:17:43 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
plb srv200
Use the
no plb <service-name> command to remove the PLB
service.
Configuring
Default Device Group under the PLB Service
Use the
device-group
<dg-name> CLI to associate a configured device
group to the PLB service.
Sample Configuration
switch(config)# plb srv200
switch(config-plb)# device-group dg200
switch(config-plb)# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 14:17:43 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
plb srv200
device-group dg200
Use the
no device-group
<dg-name> CLI to detach a device group from the
service.
Configuring
Virtual IP (VIP) for the PLB Service
Use the
virtual ip
<ipv4-address
> <ipv4-network-mask
>[tcp |
udp
{port-number |
any}] [device-group <dg-name>] CLI to configure virtual IP address
for the PLB service for a cluster of nodes.
Same VIP cannot
be used with different device groups within the same PLB service.
Maximum 64 VIPs
can be configured inside the PLB service.
Note
The device
group can be associated with a VIP. Using this option, multiple device groups
can be a part of one service. The default device- group configuration is not
required if the device group is specified with all the VIPs configured under
the PLB service.
Sample Configuration
Example 1: Default device
group configuration and VIP in separate commands
switch(config)# plb srv200
switch(config-plb)# device-group dg200
switch(config-plb)# virtual ip 200.200.200.200 255.255.255.255
switch(config-plb)# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 14:17:43 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
plb srv200
device-group dg200 → default device group
virtual ip 200.200.200.200 255.255.255.255
Example 2: VIP with
default device group configuration in a single command
switch(config)# plb srv200
switch(config-plb)# virtual ip 200.200.200.201 255.255.255.255 device-group dg201
switch(config-plb)# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 14:17:43 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg201
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
plb srv200
virtual ip 200.200.200.200 255.255.255.255 device-group dg201
Note
Configure VIP
with the approach mentioned in examples 1 or 2 in the sample configuration but
do not configure both the sample configurations together.
Configuring
VRF under the PLB Service
Use the
vrf
<vrf-name> CLI to configure VRF on the PLB service.
The VRF configuration is required for the probes to work.
Sample Configuration
switch(config)# plb srv200
switch(config-plb)# vrf vpn1
switch(config-plb)# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 14:17:43 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
plb srv200
vrf vpn1
virtual ip 200.200.200.200 255.255.255.255 device-group dg200
Use the
no ingress
interface <interface> CLI to remove an interface or
interfaces from a service.
Configuring
Source Interface under the PLB Service
Use the
source-interface
loopback <loopback-id>
CLI to configure the source interface for the PLB service.
The source
interface configuration is required for the probes on the vPC hosts or when the
local VM (servers) moves from the local leaf to the remote leaf.
The prerequisite
for configuring the source interface under the PLB service is that the loopback
interface that gets assigned to the PLB service should be created first on the
same VRF as the PLB VRF (tenant VRF) and the IP address with /32 mask should be
assigned prior to using this loopback as the source interface on the PLB
service.
Additionally,
per VRF IGP session should be created in case of vPC switches, for the vPC host
probe to work between the vPC peers.
Note
Alternatively, if per VRF IGP session is not created, use advertise-pip command under the bgp instance. For more details, see the bgp configuration details.
The loopback and
per VRF IGP session configuration examples are mentioned in the sample
configuration.
An ingress
interface should be in the same VRF as the PLB service.
Sample Configuration
The loopback
configuration prior to the source interface configuration:
Create a
loopback interface as displayed in the example:
switch# show running-config interface loopback30
interface loopback30
vrf member vpn1
ip address 20.8.1.103/32 tag 12345
ip pim sparse-mode
Create
regular VLAN and per VRF SVI as displayed in the example: (It is needed only
for vPC).
switch# show run vlan 3
vlan 3
switch# show running-config interface Vlan3
interface Vlan3
no shutdown
vrf member cisco:foo-1
ip address 11.11.11.11/30 tag 12345 (assign 11.11.11.12 for other VPC peer)
Create
bgp
neighbor association between the vPC peer under the
bgp instance (It is needed only for vPC).
switch#show run bgp
router bgp 65101
..
vrf cisco:foo-1
..
neighbor 11.1.1.2 -> For per VRF IGP session, Ip from Interface Vlan 3.
remote-as 65101
address-family ipv4 unicast
Make sure
that the per VRF IGP session becomes operationally
up (It
is needed only for vPC).
switch#sh ip bgp vrf cisco:foo-1 summary
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
11.1.1.1 4 65101 38 37 1504 0 0 00:31:37 9
See the
following details for the source-interface configuration under the PLB service:
switch(config)# plb srv200
switch(config-plb)# source-interface loopback30
switch(config-plb)# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 14:17:43 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
plb srv200
vrf vpn1
source-interface loopback30
virtual ip 200.200.200.200 255.255.255.255 device-group dg200
Use the
no source-interface
loopback <id> CLI to remove an interface or interfaces
from a service.
Configuring
Ingress Interface Configuration under the PLB Service
Use the
ingress interface
<interface> CLI to add an ingress interface or
multiple interfaces to the PLB service.
Note
An ingress
interface should be in the same VRF as the PLB service.
Sample Configuration
switch(config)# plb srv200
switch(config-plb)# ingress interface Vlan2
switch(config-plb)# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 14:17:43 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
plb srv200 vrf vpn1
source-interface loopback30
virtual ip 200.200.200.200 255.255.255.255 device-group dg200
ingress interface Vlan2 -> this is in vrf vpn1
Use the
no ingress
interface <interface> CLI to remove an interface or
interfaces from a service.
Configuring
the Load-Balancing Options for the PLB Service
Use the
load-balance {method {src {ip |
ip-l4port [tcp |
udp]
range
<x> <y>} |
dst
{ip |
ip-l4port [tcp |
udp]
range
<x> <y>}} | buckets
<count> |
mask-position
<position>} to configure the load-balancing for
the PLB service using the following options:
Buckets—Specifies the number of buckets to be created. The
buckets must be configured in the power of two (If the number is not specified,
the system then automatically allocates in the power of 2 based on the number
of nodes).
Mask-position—Specifies the mask position of the load balance,
starting of the bucket position (If it is not specified, then the default is
0th position but if it is specified, then it starts from 8th bit of the IP
address. If it is configured greater than 23 till 32, then it restarts again
from 0th position).
Method—Specifies the source IP address or the destination IP
address, or the source IP address and the source port, or the destination IP
address and the destination port based load-balancing (With respect to PLB, the
source IP address based load balancing is required).
Sample Configuration
switch(config)# plb srv200
switch(config-plb)# load-balance buckets 2 mask-position 11
switch(config-plb)# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 14:17:43 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
plb srv200
device-group dg200
virtual ip 200.200.200.200 255.255.255.255
ingress interface Vlan2
load-balance buckets 2 mask-position 11
Configuring
Failaction Node Reassignment for the PLB Service
The
failaction node
reassign CLI configures failaction node reassignment for the PLB
service. Failaction for PLB enables the traffic on the failed nodes that can be
reassigned to the first available active probe configured node.
Note
Make sure that you that probes have been configured on the local or remote (at least 1) node to achieve failaction reassignment.
Otherwise, if there are no active probes configured for nodes in the device group, traffic might be affected during failaction
in case the reassigned node is not active.
Sample Configuration
switch(config)# plb srv200
switch(config-plb)# failaction node reassign
switch(config-plb)# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 14:17:43 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
plb srv200
device-group dg200
virtual ip 200.200.200.200 255.255.255.255
ingress interface Vlan2
load-balance buckets 2 mask-position 11
failaction node reassign
Shutting
Down the PLB Service
Use the
shut
command to shutdown the PLB service. Before modifying any of the configuration
under the PLB service, service should be shutdown.
By default, the
PLB service is in shut mode. Shutting down the PLB service may cause traffic
disruption, if the traffic is already flowing.
The
no shut CLI
is used to unshut the PLB service and to enable the PLB functionality.
Sample Configuration
switch(config)# plb srv200 switch(config-plb)# no shut
switch(config-plb)# show running-config plb-services
!Command: show running-config plb-services
!Time: Mon Mar 27 14:17:43 2017
version 7.0(3)I6(1)
feature plb
plb device-group dg200
node ip 10.0.0.21
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
standby ip 20.0.0.22
probe icmp frequency 60 timeout 60 retry-down-count 3 retry-up-count 3
weight 2
node ip 10.0.0.31
probe icmp
standby ip 20.0.0.22
probe icmp
plb srv200
vrf vpn1
source-interface loopback30
virtual ip 200.200.200.200 255.255.255.255 device-group dg200
ingress interface Vlan2
load-balance buckets 2 mask-position 11 failaction node reassign
no shut
Enabling PLB
Analytics
Use the
plb analytics
<plb-service-name> CLI to enable PLB analytics
for a given PLB service.
Note
If the PLB
service is shut down after configuring the
plb analytics
<plb-service-name> command, the same command
should be configured again to get the PLB analytics.
Sample Configuration

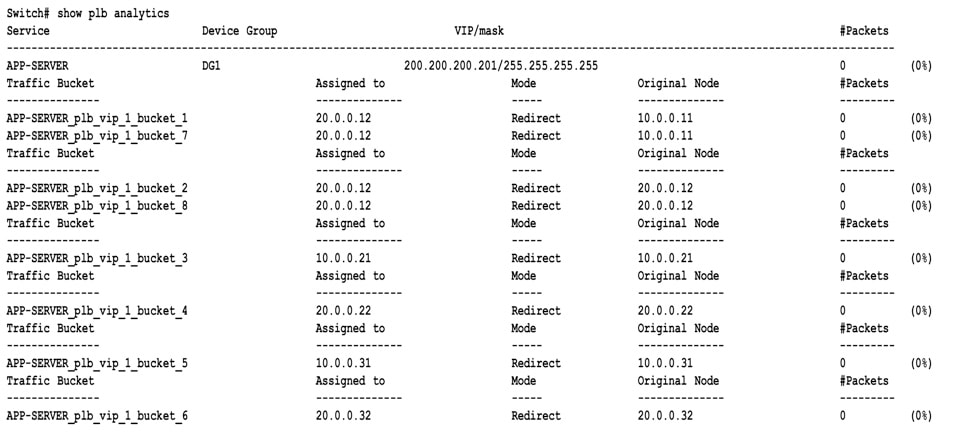

switch(config)# plb analytics srv200

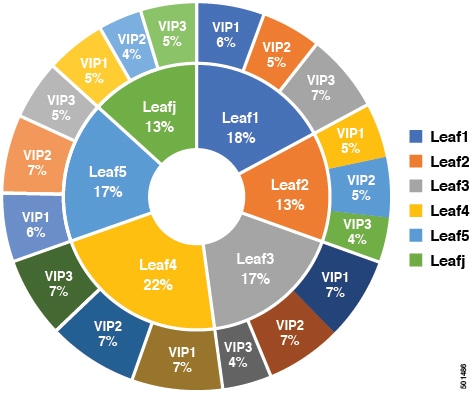

The figures 6 through 10 show how PLB facilitates analytics information collections with multiple options and combinations.

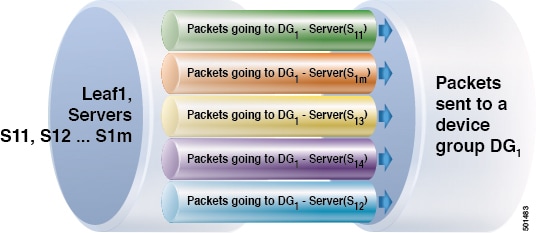

Figure 4. PLB Analytics for Servers of Device Group DG1
Figure 5. PLB Leaf Analytics for Device Group DG1

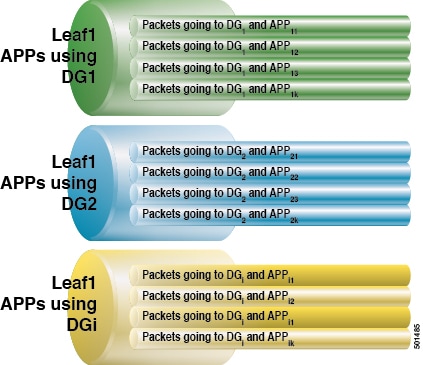

Figure 6. Analytics for Servers of Different Device Groups from Different Tenant SVIs

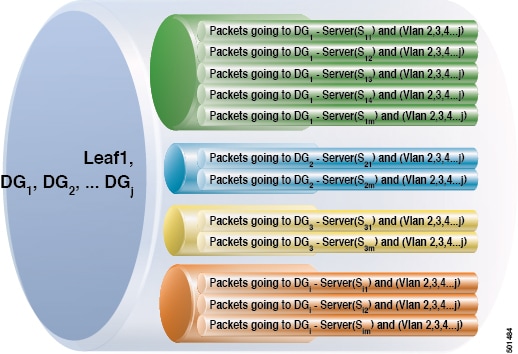

Figure 7. Analytics for Various Applications using Different Device Groups
Figure 8. Apps (VIP) Traffic Analytics across Fabric
Verifying
PLB Configuration
Use the
following show commands to verify PLB configuration:
show running-config
plb-services—Displays the running configuration of all PLB
services on a VDC or ToR/leaf switch.
show tech-support
plb [detail] —Displays the technical support information
for PLB.
show plb <svc-name> [brief] —Displays the current state of the specified
PLB service or all services.
show plb <vrf> <svc-name> —Displays the configured VRF of the
specified PLB service or all services.
show plb analytics
<svc-name> [brief]
—Displays the buckets, servers, VIP, and PLB service loads
analytics for the specified PLB service or all services.

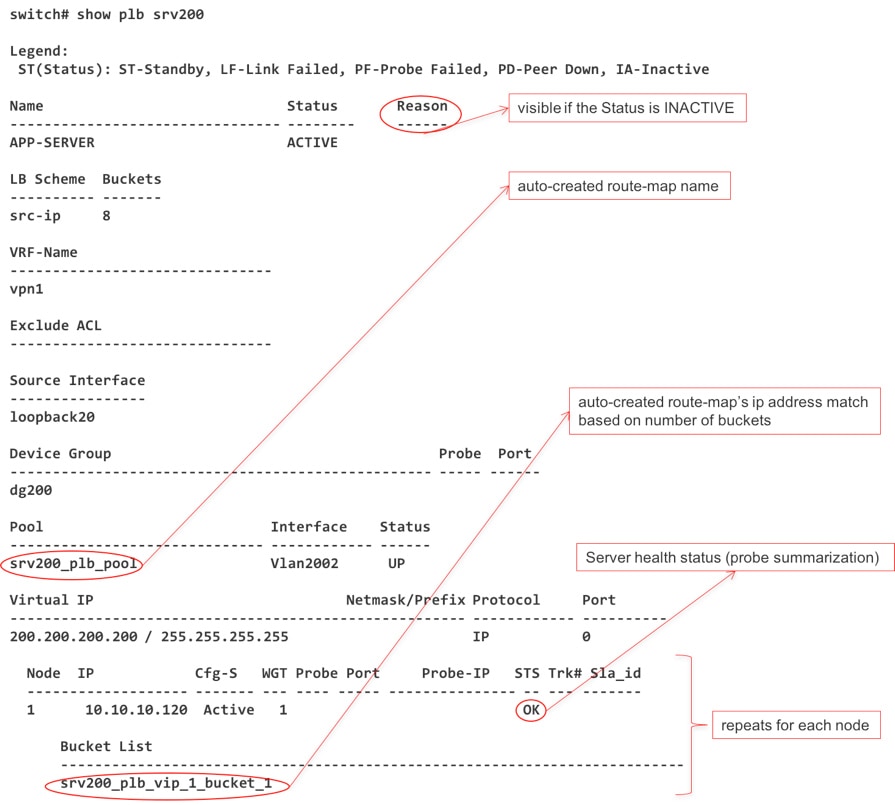

PLB Active Service Sample Outputs
The following shows an active PLB sample outputs:
Figure 9. Active Service Sample
Figure 10. PLB Analytics Sample Output
Feedback
