Initial Setup

Initial Setup of Cisco Spaces: Connector

To get the Cisco Spaces: Connector up and running, perform these steps:

  1. Install connector 3 in your local deployment network. See Deploying the Connector 3 OVA (Single Interface)

  2. On the Cisco Spaces dashboard, create a Cisco Spaces: Connector and generate a token for connector. See Activating Connector 3 on Cisco Spaces

  3. Configure this token on the deployed Cisco Spaces: Connector. This establishes a connection between Cisco Spaces and the deployed Cisco Spaces: Connector. The equivalent connector 3 (based on the token) on the Cisco Spaces now turns active. See Activating Connector 3 on Cisco Spaces

  4. Add the services based on your required workflow on Cisco Spaces.

    Table 1. Enabling Services
    Service Link

    Service manager service

    Enabled by default.

    IoT service (wireless)

    For information, see Configure IoT Service (Wireless).

    IoT service (wired)

    For information, see Configure IoT Service (Wireless).

    Hotspot service

    For information, see Configure Hotspot Service.

    Local firehose service

    For information, see Configure Hotspot Service.

Activating Connector 3 on Cisco Spaces

This section provides information about how to activate a deployed connector on your Cisco Spaces account.

Using the following procedure, you generate a token for a deployed connector that you want to add to your Cisco Spaces account. Note that you need a separate token for each deployed connector. Each token is specific to a connector and hence enables Cisco Spaces to identify and connect to connector.

Cisco Spaces supports multiple connectors, and you can associate each connector with one or multiple wireless controllers.


Note

A Cisco Spaces: Connector instance can communicate with only one Cisco Spaces account at a time.

Before you begin

Download and deploy the Cisco Spaces: Connector OVA. See Deploying the Connector 3 OVA (Single Interface)

Procedure

Step 1

Log in to Cisco Spaces.

Note



The Cisco Spaces URL is region-dependent.

Step 2

From the left navigation pane, choose Setup > Wireless Networks.

Step 3

In the Get your wireless network connected with Cisco DNA Spaces area, click Add New.

Step 4

In the Cisco AireOS Controller/Catalyst 9800 Wireless Controller area, click Select.

Figure 1. Choose Cisco AireOS Controller/Catalyst 9800 Wireless Controller
What type of wireless network do you have?

Step 5

In the Via Spaces Connector area, click Select.

Figure 2. Via Spaces Connector

Step 6

In the Prerequisites for Spaces Connector dialog box, click Continue Setup.

Figure 3. Read Prerequisites for Spaces Connector

Step 7

Expand the Connect via Spaces Connector area using the respective drop-down arrow.

Figure 4. Expand Connect via Spaces Connector

Step 8

In the displayed list of steps, in the Configure Spaces Connector area, click Create Connector.

Figure 5. Connect via Spaces Connector > Create Connector

Step 9

In the Create connector window that is displayed, enter a name for connector, and click Version 3.0 (beta). as the Connector Version, and click Save.

Figure 6. Name and Version of Connector

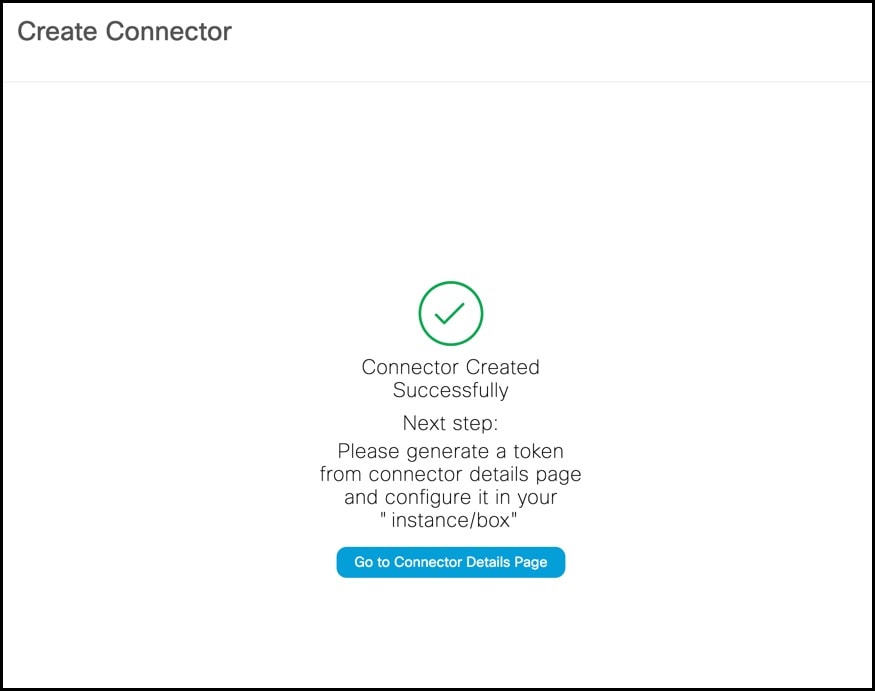

Connector is successfully created. Click Go to Connector Details Page.
Figure 7. Connector Created Successfully

Step 10

In the connector details window, you can see a summary of the configurations for this connector. Click Generate Token.

Figure 8. Generate Token

Step 11

In the Token window that is displayed, click Copy Token.

Figure 9. Copy Token

Step 12

Open the connector GUI.

Step 13

(Optional) If your network is behind a proxy, configure the GUI with the proxy. See Configure a Proxy

Step 14

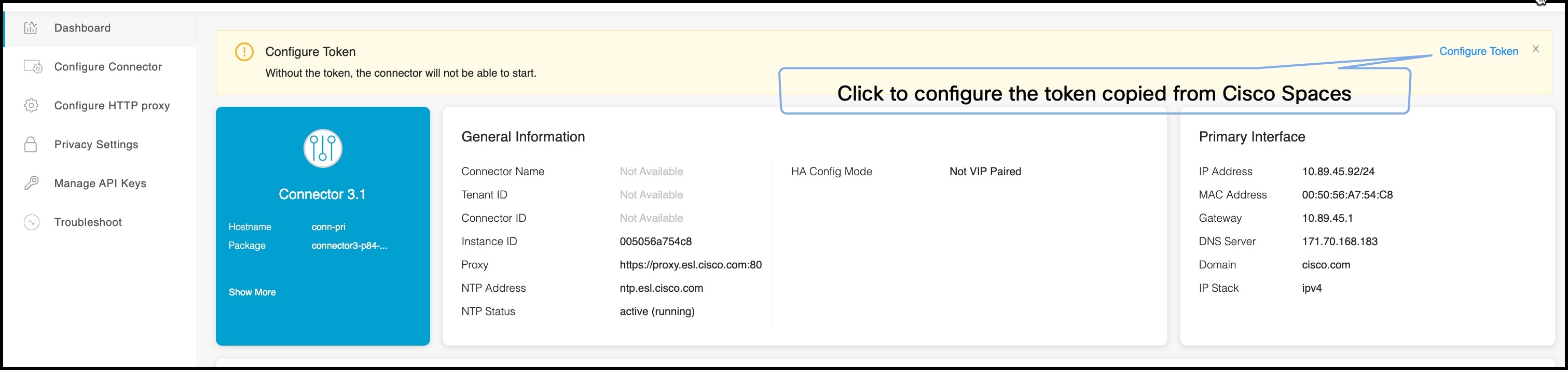

In the Configure Token area that is displayed, click Configure Token.

Figure 10. Configure Token

Step 15

In the window that is displayed, in the Token text, field enter the token copied from Cisco Spaces and click Configure.

Warning



During this step, if you face a connectivity issue between Cisco Spaces: Connector and Cisco Spaces dashboard, the Connector could hang without an error. You can still access the Connector through SSH. You may also be unable to log in the Connector GUI after this issue.

Step 16

Add the following services as required:

Upgrading the Connector from Cisco Spaces Dashboard

Use the connector's GUI to upgrade connector.


Note

  • This is referred to as system inline upgrade or system upgrade using the connector GUI.

  • Upgrade is not supported on AMI connector instances.

Log in to the connector GUI, check for new upgrades and the summary of changes, and initiate the upgrade. Note that you must ensure that the connector's Service manager service is updated before you start the connector upgrade. You can upgrade the Service manager service from the connector GUI. The following procedure describes how to first upgrade the Service manager service   and then upgrade connector itself from the connector GUI.

Procedure

Step 1

Log in to Cisco Spaces.

Note



The Cisco Spaces URL is region-dependent.

Step 2

In the Cisco Spaces dashboard, choose Setup > Wireless Networks.

Step 3

From the 2. Configure Spaces Connector area, click View Connectors

Figure 11. View Connectors

Step 4

From the list of connectors that are displayed, click the connector of your choice.

Step 5

From the Configuration tab of the specific connector, ensure that the Service manager service is upgraded. If not upgraded, under the Actions column, check for any available Upgrade option.

Step 6

Click the Instances tab, and choose the instances you want to upgrade.

Step 7

In the System Upgrade Available area, and click Upgrade.

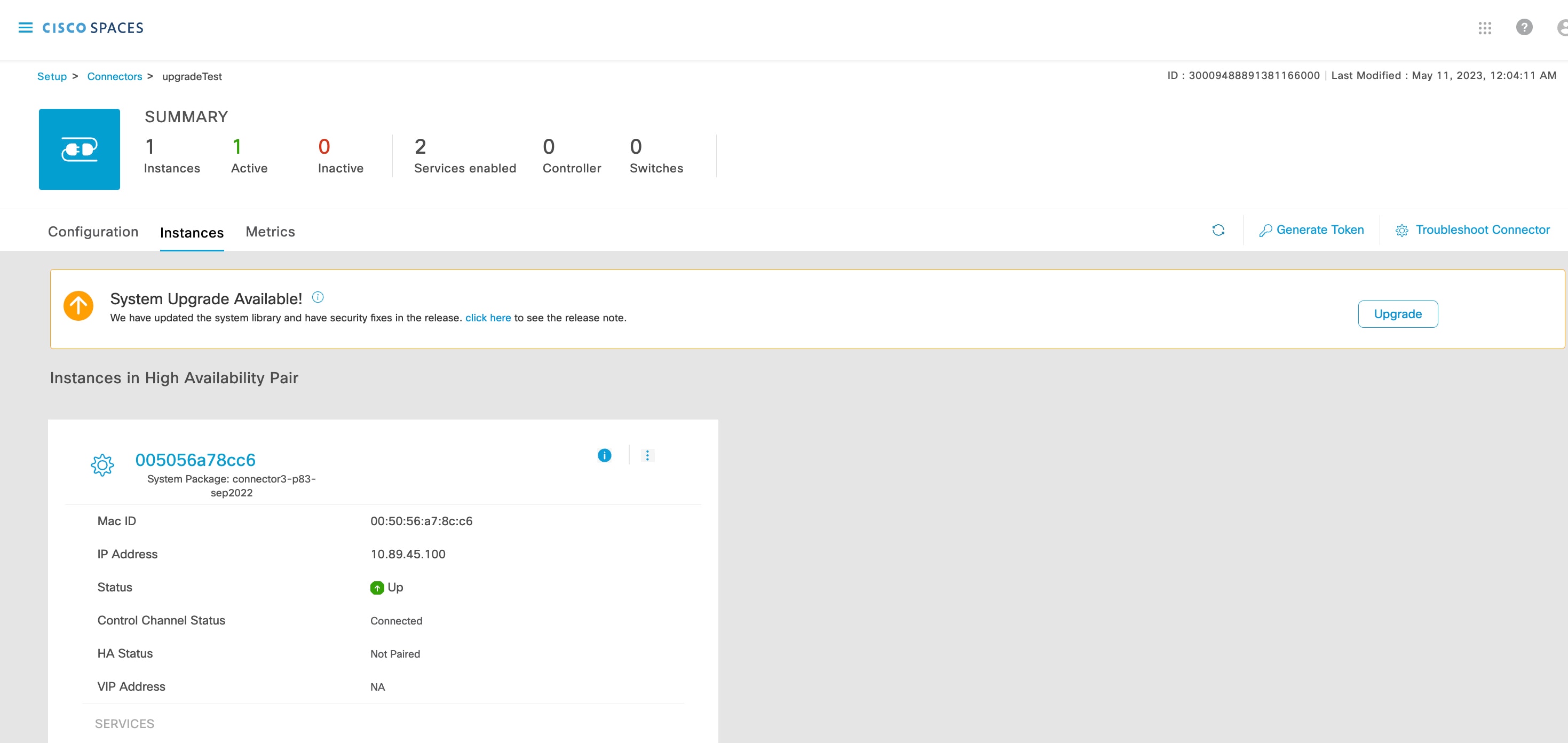

Figure 12. Upgrade

Note


For connector Release 3, the system inline upgrade may not succeed in a low latency network. You can upgrade the connector manually. Downloading the connector OVA from cisco.com and using the connectoros upgrade <package-name> command from the connector CLI.

For connector Release 3.1, the upgrade option is available from the Cisco Spaces dashboard as the timeout period has been increased to accommodate low latency networks.

Step 8

From the popup displayed, select the instance you want to upgrade.

Figure 13. Select instance
An Upgrade Initiated for instance message is displayed.

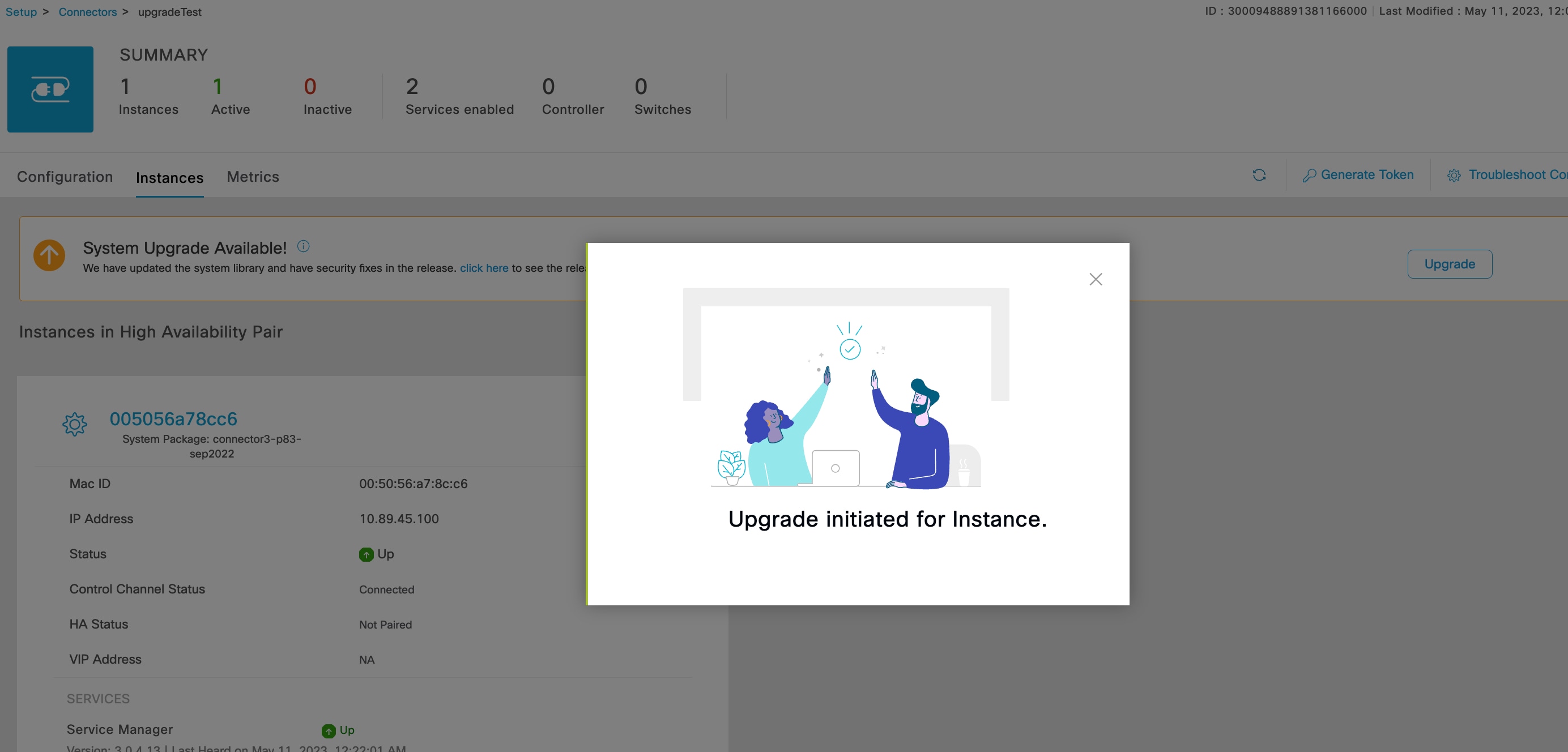

Figure 14. Upgrade Initiated for Instance

Step 9

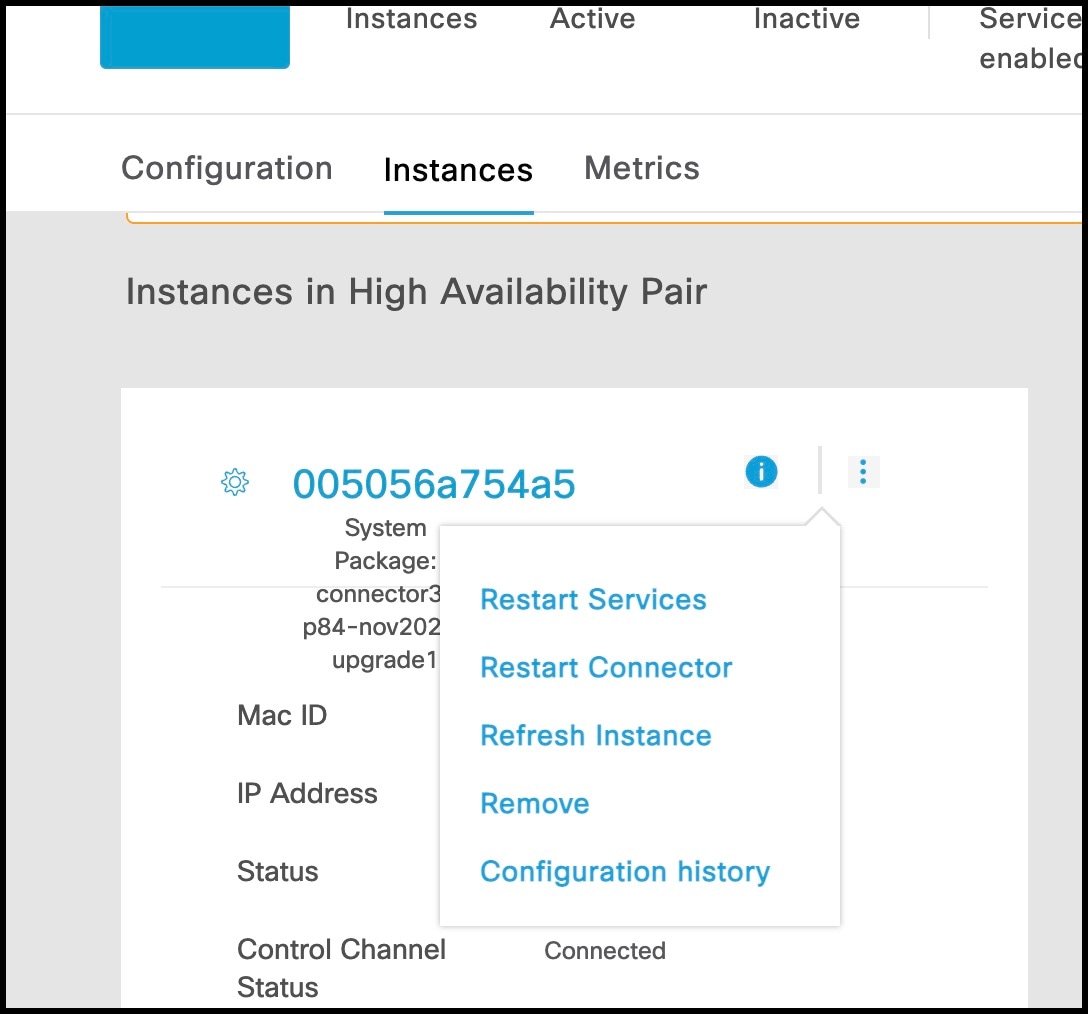

Observe the status of the installation by clicking the three-dot icon of an instance. From the menu displayed, choose Configuration History.

Figure 15. Configuration History

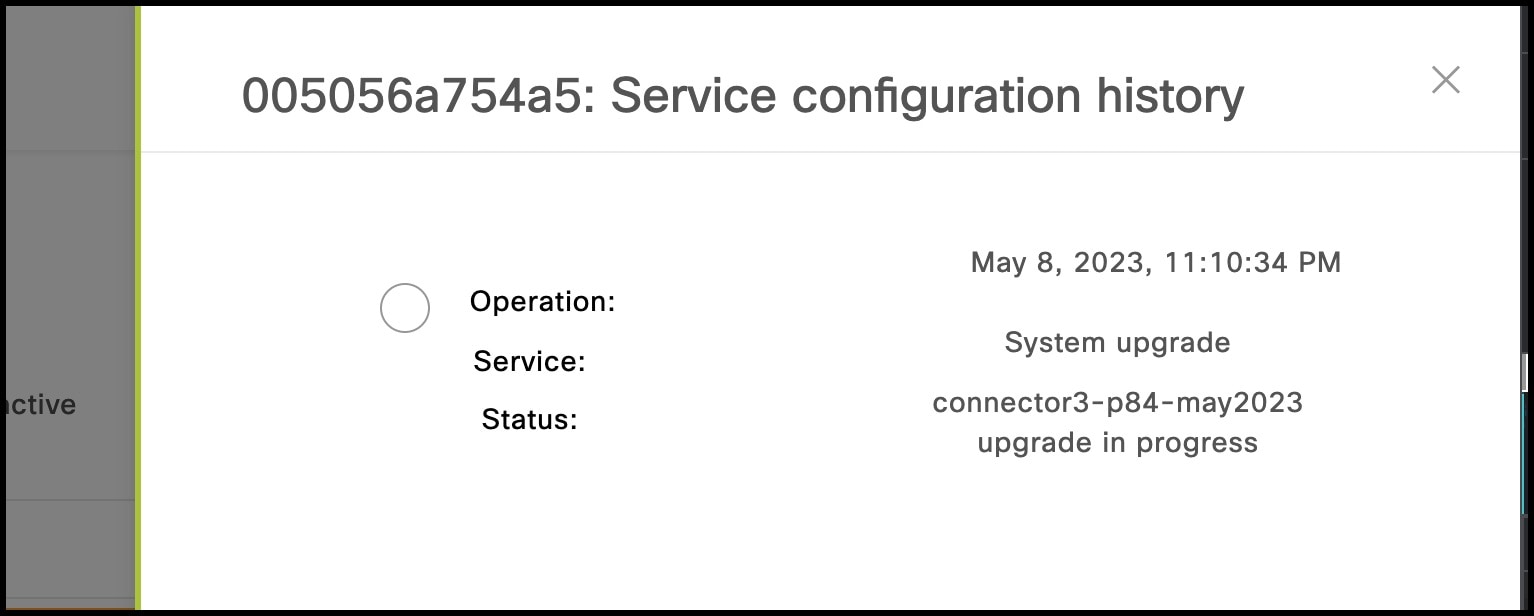

Figure 16. Configuration History

Upgrading the Connector Using CLI

Use the connector's CLI to upgrade connector.


Note

  • This is referred to as system inline upgrade or system upgrade using the connector CLI.

  • System upgrade is not supported for AMI connector instances.

Log in to the connector CLI, check for new upgrades and the summary of changes, and initiate the upgrade. Note that you must ensure that the connector's Service manager service service is updated before you start the connector command line upgrade. You can upgrade the Service manager service from the connector GUI.  then upgrade connector itself from the connector CLI.

Before you begin

Ensure that the Service manager service is upgraded from the connector GUI.

Procedure

Step 1

Log in to the connector CLI.

Step 2

Check the availability of upgrades, and view a summary of the changes that are part of this upgrade package. Run the connectorctl systemupgrade list command.

Step 3

Initiate the upgrade of connector packages. Run the connectorctl systemupgrade install command:


[spacesadmin@connector03 ~]$ connectorctl systemupgrade install

Executing command:systemupgrade
Command execution status :Success

System upgrade operation is queued. Use tail -f /opt/spaces-connector/runtime/logs/service-manager/system-upgrade/system-upgrade. log to see upgrade progress

Step 4

Observe the status of the upgrade. Do one of the following:

  • To populate the CLI with regular updates of the upgrade, run the tail -f /opt/spaces-connector/runtime/logs/service-manager/system-upgrade/system-upgrade.log command.
  • To view the status of the upgrade at any point in time, run the connectorctl systemupgrade status command:
     [spacesadmin@connector ~]$ connectorctl systemupgrade status
Executing conmand:systemupgrade
Command execution status: Success

System upgrade is in progress for package:connector3-p84-jan2023-upgrade2 at:Jan-10-2023 05:31:33. Details:Downloading image.
    [spacesadmin@connector ~]$ connectorctl systemupgrade status
Executing command: systemupgrade
Command execution status: Success

Successfully upgraded system to package: connector3-p84-jan2023-upgrade2 at :Jan-1
 0-2023 04:34:04
Occasionally, you may see the following error while running the connectorctl systemupgrade status command. Ignore this output and wait for a few minutes before running the connectorctl systemupgrade status command again:
[spacesadmin@connector ~]$ connectorct1 systemupgrade status
Traceback (most recent call last>:
    File "/opt/spaces-connector/static/service-agent/core/src/cli/cli.py'.line10,in<module>
       from core.src.log.log_task import Loglask
   File"/opt/spaces-connector/static/service-agent/core/src/cli/../../../core/src/log/log_task-py".line16,in<module>
        from -utils import pathconstant, constant, utilities
   File "/opt/spaces-connector/static/service-agent/core/src/cli/../../../core/src/utils/utilities-py',line31,in<module>
        import psutil
ModuleNotFoundError: No module named ›psutil'
