Microsoft Performance

---

This chapter provides information for using the Microsoft Performance application with Cisco CallManager and contains the following topics:

•Cisco CallManager System Performance Monitoring

•Performance Data Structure

•Microsoft Performance Configuration Checklist

•Where to Find More Information

Cisco CallManager System Performance Monitoring

Use Windows 2000 Performance to collect and display system and device statistics for any local or remote Cisco CallManager installation. This administrative tool allows you to gain a full understanding of a system without studying the operation of each of its components.It reports both general and specific information in real time.

After adding the Cisco CallManager parameters, you can define the terms under which Cisco CallManager will display statistics generated by the system.

For more information about Performance, refer to the Microsoft Windows 2000 documentation.

The Real-Time Monitoring tool provides similar functionality as Microsoft Performance. See Chapter 9, "Real-Time Monitoring," for more information.

Performance Data Structure

Cisco CallManager uses the Performance framework to display performance monitoring statistics. Performance categorizes collections of data as object-oriented code, and the Cisco CallManager installation process expands this collection by adding a set of object counters that describe Cisco CallManager functions. See Figure 11-1.

The Performance interface makes the Cisco CallManager counters available for display. The Windows 2000 documentation gives additional information on objects and counters available from the operating system or from other applications.

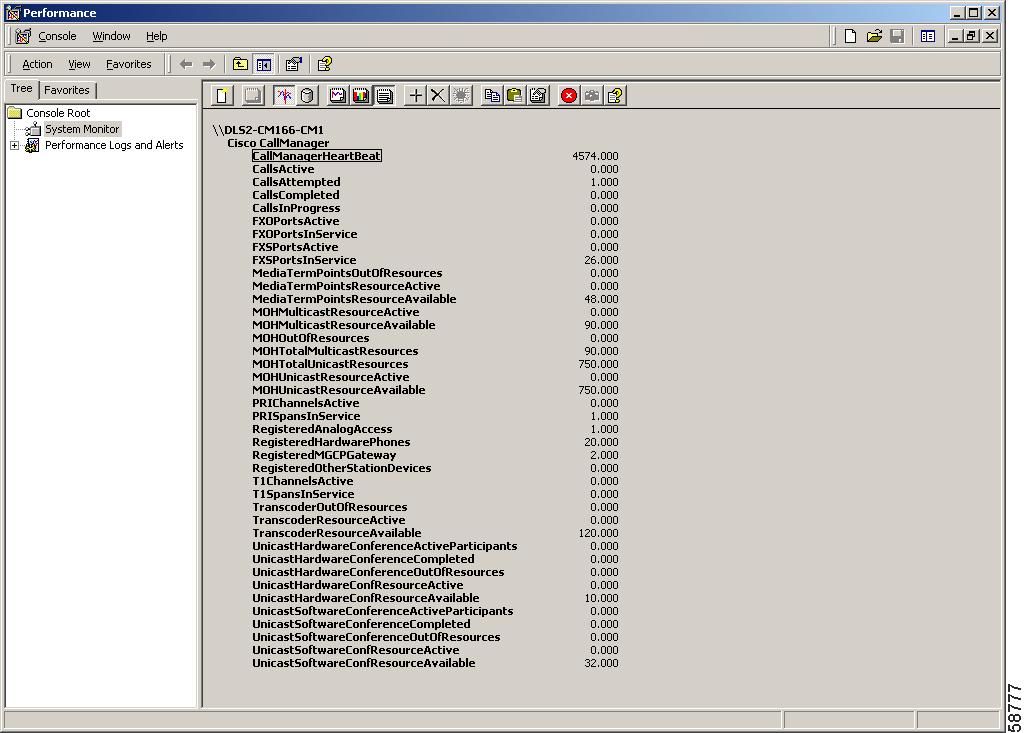

Figure 11-1 Cisco Call Manager Object Counters

Microsoft Performance Configuration Checklist

Table 11-1 provides an overview of the steps for configuring Microsoft Performance.

Table 11-1 Microsoft Performance Configuration Checklist

Configuration Steps		Related Procedures and Topics
Step 1	Start the Microsoft Performance program to add Cisco CallManager counters.	Starting the Microsoft Performance Program, Cisco CallManager Serviceability Administration Guide
Step 2	Add Cisco CallManager counters that you want monitored.	Starting the Microsoft Performance Program, Cisco CallManager Serviceability Administration Guide
Step 3	View and analyze the statistics gathered from the Performance program.	Viewing Performance Statistics, Cisco CallManager Serviceability Administration Guide

Where to Find More Information

Related Topics

•Chapter 9, "Real-Time Monitoring"

•Chapter 17, "Simple Network Management Protocol"

•"Cisco CallManager Perfmon Counters, RTMT, and CISCO-CCM-MIB"

•"Real-Time Monitoring Configuration," Cisco CallManager Serviceability Administration Guide

•"Microsoft Performance," Cisco CallManager Serviceability Administration Guide

•"Simple Network Management Protocol Configuration," Cisco CallManager Serviceability Administration Guide

Additional Cisco Documentation

•Troubleshooting Guide for Cisco CallManager
