call fallback
To enable a call request to fall back to a specific dial peer in case of network congestion, use the call fallback command in dial peer configuration mode. To disable PSTN fallback for a specific dial peer, use the no form of this command.
call fallback
no call fallback
Syntax Description
This command has no arguments or keywords.
Command Default
This command is enabled by default if the call fallback active command is enabled in global configuration mode
Command Modes
Dial peer configuration
Command History
Usage Guidelines
Disabling the call fallback command for a dial peer causes the call fallback subsystem not to fall back to the specified dial peer. Disabling the command is useful when internetworking fallback capable H.323 gateways with the Cisco CallManager or third-party equipment that does not run fallback. Connected calls are not affected by this feature.
Examples
The following example disables a PSTN fallback for a specific dial peer:
no call fallback
Related Commands
call fallback active
To enable the Internet Control Message Protocol (ICMP)-ping or Service Assurance Agent (SAA) (formerly Response Time Reporter [RTR]) probe mechanism for use with the dial-peer monitor probe or voice-port busyout monitor probe commands, use the call fallback active command in global configuration mode. To disable these probe mechanisms, use the no form of this command.
call fallback active [icmp-ping | rtr]
no call fallback active [icmp-ping | rtr]
Syntax Description
icmp-ping |
Uses ICMP pings to monitor the IP destinations. |
rtr |
Uses SAA (formerly RTR) probes to monitor the IP destinations. SAA (RTR) probes are the default. |
Command Default
This command is disabled by default. If the command is entered without an optional keyword, the default is RTR.
Command Modes
Global configuration (config)
Command History
Usage Guidelines
The call fallback active command creates and maintains a consolidated cache of probe results for use by the dial-peer monitor probe or voice-port busyout monitor probe commands.
Enabling the call fallback active command determines whether calls should be accepted or rejected on the basis of probing of network conditions. The call fallback active command checks each call request and rejects the call if the network congestion parameters are greater than the value of the configured threshold parameters of the destination. If this is the case, alternative dial peers are tried from the session application layer.
Use the call fallback threshold delay loss or call fallback threshold icpif command to set the threshold parameters.
Connected calls are not affected by this command.
The
call fallback active icmp-ping command must be entered before the
call fallback icmp-ping command can be used. If you do not enter this command first, the
call fallback icmp ping command will not work properly.
Note The Cisco SAA functionality in Cisco IOS software was formerly known as Response Time Reporter (RTR). The command-line interface still uses the keyword rtr for configuring RTR probes, which are now actually SAA probes.
Examples
The following example enables the call fallback active command and globally enables ICMP pinging to probe target destinations. The second command specifies values for the ping packets:
Router(config)# call fallback active icmp-ping
Router(config)# call fallback icmp-ping codec g729 interval 10 loss 10
Related Commands
call fallback cache-size
To specify the call fallback cache size for network traffic probe entries, use the call fallback cache-size command in global configuration mode. To restore the default value, use the no form of this command.
call fallback cache-size number
no call fallback cache-size
Syntax Description
number |
Cache size, in number of entries. Range is from 1 to 256. The default is 128. |
Command Default
128 entries
Command Modes
Global configuration
Command History
Usage Guidelines
The cache size can be changed only when the call fallback active command is not enabled.
The overflow process deletes up to one-fourth of the cache entries to allow for additional calls beyond the specified cache size. The cache entries chosen for deletion are the oldest entries in the cache.
If the cache size is left unchanged, it can be changed only when fallback is off. Use the no form of the call fallback command to turn fallback off.
Examples
The following example specifies 120 cache entries:
Router(config)# call fallback cache-size 120
Related Commands
call fallback cache-timeout
To specify the time after which the cache entries of network conditions are purged, use the call fallback cache-timeout command in global configuration mode. To disable the call fallback cache-timeout command, use the no form of this command.
call fallback cache-timeout seconds
no call fallback cache-timeout
Syntax Description
seconds |
Cache timeout value, in seconds. Range is from 1 to 2147483. The default is 600. |
Command Default
600 seconds
Command Modes
Global configuration
Command History
Usage Guidelines
Enabling the call fallback cache-timeout command sends a Service Assurance Agent (SAA) probe out to the network to determine the amount of congestion in terms of configured thresholds. The network condition is based upon delay and loss, or Calculated Planning Impairment Factor (ICPIF) thresholds. Use the call fallback threshold delay loss or call fallback threshold icpif command to set the threshold parameters.
The cache keeps entries for every network congestion-checking probe sent and received between timeouts. The cache updates after each probe returns the current condition of network traffic. To set the probe frequency, use the call fallback probe-timeout command.
When a call comes into the router, the router matches a dial peer and obtains the destination information. The router calls the fallback subsystem to look up the specified destination in its network traffic cache. If the delay/loss or ICPIF threshold exists and is current, the router uses that value to decide whether to permit the call into the Voice over IP (VoIP) network. If the router determines that the network congestion is below the configured threshold (by looking at the value in the cache), the call is connected.
After each call request, the timer is reset. Purging of the cache occurs only when the cache has received no call requests during the timeout period (seconds). When the cache timeout expires, the entire cache is deleted, and a probe is sent to start a new cache entry. A call cannot be completed until this probe returns with network traffic information.
The network congestion probes continue in the background as long as the entry for the last call request remains in the cache.
Examples
The following example specifies an elapsed time of 1200 seconds before the cache times out:
Router(config)# call fallback cache-timeout 1200
Related Commands
call fallback expect-factor
To set a configurable value by which the call fallback expect factor feature will be activated, use the call fallback expect-factor command in global configuration mode. To disable the expect factor, use the no form of this command.
call fallback expect-factor value
no call fallback expect-factor
Syntax Description
value |
Configures the expect-factor A. Range: 0 to 20. Default: 10. |
Command Default
No value for the expect-factor is configured.
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.3(3) |
This command was introduced. |
12.3(4)T |
This command was integrated into Cisco IOS Release 12.3(4)T. |
Usage Guidelines
The expect-factor is the level of expected voice quality that the user may have during a call. For example, you expect higher voice quality from a call on your home than on your cell phone. The expect-factor is a subjective value determined by the local administrators.
Call fallback is used by the software to generate a series of probes across an IP network to help make a Impairment/Calculated Impairment Planning Factor (ICPIF) calculation. The value calculated by the probes, ICPIF, is modified by the configured expect factor using the following formula:
ICPIF = Idd + Ie-A
Idd represents the impairment due to end-end delay, Ie, represents the impairment due to packet loss and the impact of the codec being used on the call, and A represents the expect-factor value. The expect-factor is the value to be subtracted from the calculated ICPIF value. This expect factor is known as the Advantage Factor (A) as specified in G.107 and takes into account the user's expected level of voice quality based upon the type of call being made.
Examples
The following example shows the call fallback expect-factor command and the call fallback threshold icpicf command being configured. A calculated ICPIF value of 20 based on Idd and Ie from the probes set on a IP network would not activate the call fallback feature in this configuration. Even though the calculated ICPIF value of 20 exceeds the configured threshold of 10, subtraction of the expect-value of 15 would leave a value of 5, which is below the threshold value.
Router(config)# call fallback expect-factor 15
Router(config)# call fallback threshold icpif 10
Related Commands
call fallback icmp-ping
To specify Internet Control Message Protocol (ICMP) ping as the method for network traffic probe entries to IP destinations and configure parameters for the ping packets, use the call fallback icmp-ping command in global configuration mode. To restore the default value, use the no form of this command.
call fallback icmp-ping [count packets] [codec codec-type | size bytes] interval seconds [loss percent] timeout milliseconds ]
no call fallback icmp-ping [count packets] [codec codec-type | size bytes] interval seconds [loss percent] timeout milliseconds ]
Syntax Description
Command Default
If this command is not configured, Response Time Reporter (RTR) is the probe method used.
Command Modes
Global configuration (config)
Command History
|
|
|
|---|---|
12.4(2)T |
This command was introduced in a release earlier than Cisco IOS Release 12.4(2)T. |
Usage Guidelines
The values configured by the global configuration version of the call fallback icmp-ping command are appllied globally for measurements on probes and pings. If the call fallback icmp-ping is configured in dial-peer configuration mode, these values override the global configuration for the specific dial peer.
One of these two commands must be in effect before the monitor probe icmp-ping command can be used. If neither of the call fallback commands is in effect, the monitor probe icmp-ping command will not work properly.
Examples
The following example shows how to configure an ICMP ping probe with a G.729 profile to probe the link with an interval value of 10 seconds and a packet-loss threshold of 10 percent:
call fallback active icmp-ping
call fallback icmp-ping codec g729 interval 10 loss 10
Related Commands
call fallback icmp-ping (dial peer)
To specify Internet Control Message Protocol (ICMP) ping as the method for network traffic probe entries to IP destinations, use the call fallback icmp-ping command in dial-peer configuration mode. To restore the default value, use the no form of this command.
call fallback [icmp-ping | rtr]
no call fallback [icmp-ping | rtr]
Syntax Description
Command Default
If this command is not entered, the globally configured method is used for measurements.
Command Modes
Dial-peer configuration (config-dial-peer)
Command History
|
|
|
|---|---|
12.2(11)T |
This command was introduced in a release earlier than Cisco IOS Release 12.2(11)T. |
Usage Guidelines
The principal use of this command is to specify ICMP ping as the probe method, even though the option for selecting RTR is also available.
If the call fallback icmp-ping command is not entered, the call fallback active command in global configuration is used for measurements. If the call fallback icmp-ping command is entered, these values override the global configuration.
One of these two commands must be in effect before the monitor probe icmp-ping command can be used. If neither of the call fallback commands is in effect, the monitor probe icmp-ping command will not work properly.
Note The Cisco Service Assurance Agent (SAA) functionality in Cisco IOS software was formerly known as Response Time Reporter (RTR). The command-line interface still uses the keyword rtr for configuring RTR probes, which are now actually the SAA probes.
Examples
The following example specifies that ICMP ping is used for monitoring the session target IP address and for updating the status of the dial peer:
Router(config)# dial-peer voice 10 voip
Router(config-dial-peer)# call fallback icmp-ping
Related Commands
call fallback instantaneous-value-weight
To configure the call fallback subsystem to take an average from the last two probes registered in the cache for call requests, use the call fallback instantaneous-value-weight command in global configuration mode. To return to the default before the average was calculated, use the no form of this command.
call fallback instantaneous-value-weight percent
no call fallback instantaneous-value-weight
Syntax Description
percent |
Instantaneous value weight, in expressed as a percentage. Range is from 0 to 100. The default is 66. |
Command Default
66 percent
Command Modes
Global configuration
Command History
Usage Guidelines
Probes that return the network congestion information are logged into the cache to determine whether the next call request is granted. When the network is regularly busy, the cache entries reflect the heavy traffic conditions. However, one probe may return with low traffic conditions, which is in contrast to normal conditions. All call requests received between the time of this probe and the next use this entry to determine call acceptance. These calls are allowed through the network, but before the next probe is sent and received, the normal, heavy traffic conditions must have returned. The calls sent through congest the network and cause worsen traffic conditions.
Use the call fallback instantaneous-value-weight command to gradually recover from heavy traffic network conditions. While the system waits for a call, probes update the cache. When a new probe is received, the percentage is set and indicates how much the system is to rely upon the new probe and the previous cache entry. If the percentage is set to 50 percent, the system enters a cache entry based upon an average from the new probe and the most recent entry in the cache. Call requests use this blended entry to determine acceptance. This allows the call fallback subsystem to keep conservative measures of network congestion.
The configured percentate applies to the new probe first. If the call fallback instantaneous-value-weight command is configured with the default percentage of 66 percent, the new probe is given a higher value to calculate the average for the new cache entry.
Examples
The following example specifies a fallback value weight of 50 percent:
Router(config)# call fallback instantaneous-value-weight 50
Related Commands
|
|
|
|---|---|
call fallback active |
Enables a call request to fall back to alternate dial peers in case of network congestion. |
show call fallback config |
Displays the call fallback configuration. |
call fallback jitter-probe dscp
To specify the differentiated services code point (DSCP) of the jitter-probe transmission, use the call fallback jitter-probe dscp command in global configuration mode. To disable this feature and restore the default value of jitter-probe precedence, use the no form of this command.
call fallback jitter-probe dscp dscp-number
no call fallback jitter-probe dscp
Syntax Description
dscp-number |
DSCP value. Range is from 0 to 63. |
Command Default
None
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.3(8)T |
This command was introduced. |
12.3(9) |
This command was implemented in Cisco IOS Release 12.3(9). |
Usage Guidelines
Network devices that support differentiated services (DiffServ) use a DSCP in the IP header to select a per-hop behavior (PHB) for a packet. Cisco implements queuing techniques that can base their PHB on the IP precedence or DSCP value in the IP header of a packet. On the basic of DSCP or IP precedence, traffic can be put into a particular service class. Packets within a service class are treated alike.
The call fallback jitter-probe dscp command allows you to set a DSCP for jitter-probe packets. The specified DSCP is stored, displayed, and passed in probing packets to the Service Assurance Agent (SAA). This command enables the router to reserve some bandwidth so that during network congestion some of the jitter-probe packets do not get dropped. This command avoids the conflict that occurs with traditional precedence bits.
The call fallback jitter-probe dscp command is mutually exclusive with the call fallback jitter-probe precedence command. Only one of these command can be enabled on the router. When the call fallback jitter-probe dscp command is configured, the precedence value is replaced with the DSCP value. The no call fallback jitter-probe dscp command restores the default value for precedence.
Examples
The following example specifies the jitter-probe DSCP as 10. DSCP configuration replaces the set jitter-probe precedence value with the DSCP value.
call fallback jitter-probe dscp 10
The following configuration disables the DSCP value and restores the default value for precedence, which is set to 2:
no call fallback jitter-probe dscp
Related Commands
call fallback jitter-probe num-packets
To specify the number of packets in a jitter probe used to determine network conditions, use the call fallback jitter-probe num-packets command in global configuration mode. To restore the default number of packets, use the no form of this command.
call fallback jitter-probe num-packets number-of-packets
no call fallback jitter-probe num-packets
Syntax Description
number-of-packets |
Number of packets. Range is from 2 to 50. The default is 15. |
Command Default
15 packets
Command Modes
Global configuration
Command History
Usage Guidelines
A jitter probe, consisting of 2 to 50 packets, details the conditions of the network. More than one packet is used by the probe to calculate an average of delay/loss or Calculated Planning Impairment Factor (ICPIF). After the packets return to the probe, the probe delivers the traffic information to the cache where it is logged for call acceptance/denial. Use the call fallback threshold delay loss or call fallback threshold icpif command to set the threshold parameters. The newly specified number of packets take effect only for new probes.
To get a more realistic estimate on the network congestion, increase the number of packets. If more probing packets are sent, better estimates of network conditions are obtained, but the bandwidth for other network operations is negatively affected. Use fewer packets when you need to maximize bandwidth.
Examples
The following example specifies 20 packets in a jitter probe:
Router(config)# call fallback jitter-probe num-packets 20
Related Commands
|
|
|
|---|---|
call fallback threshold icpif |
Specifies the ICPIF threshold. |
call fallback threshold delay loss |
Specifies the call fallback threshold delay and loss values. |
call fallback jitter-probe precedence
To specify the priority of the jitter-probe transmission, use the call fallback jitter-probe precedence command in global configuration mode. To restore the default priority, use the no form of this command.
call fallback jitter-probe precedence precedence-value
no call fallback jitter-probe precedence
Syntax Description
precedence-value |
Jitter-probe precedence. Range is from 0 to 6. The default is 2. |
Defaults
Enabled
Value set to 2
Command Modes
Global configuration
Command History
Usage Guidelines
Every IP packet has a precedence header. Precedence is used by various queueing mechanisms in routers to determine the priority of traffic passing through the system.
Use the call fallback jitter-probe precedence command if there are different queueing mechanisms in your network. Enabling the call fallback jitter-probe precedence command sets the precedence for jitter probes to pass through your network.
If you require your probes to be sent and returned quickly, set the precedence to a low number (0 or 1): the lower the precedence, the higher the priority given.
The call fallback jitter-probe precedence command is mutually exclusive with the call fallback jitter-probe dscp command. Only one of these commands can be enabled on the router. Usually the call fallback jitter-probe precedence command is enabled. When the call fallback jitter-probe dscp command is configured, the precedence value is replaced by the DSCP value. To disable DSCP and restore the default jitter probe precedence value, use the no call fallback jitter-probe dscp command.
Examples
The following example specifies a jitter-probe precedence of 5, or low priority.
call fallback jitter-probe precedence 5
The following configuration restores the default value for precedence:
no call fallback jitter-probe precedence
Related Commands
call fallback jitter-probe priority-queue
To assign a priority queue for jitter-probe transmissions, use the call fallback jitter-probe priority-queue command in global configuration mode. To return to the default state, use the no form of this command.
call fallback jitter-probe priority-queue
no call fallback jitter-probe priority-queue
Syntax Description
This command has no arguments or keywords.
Command Default
Disabled
Command Modes
Global configuration
Command History
Usage Guidelines
This command is applicable only if the queueing method used is IP Real-Time Transport Protocol (RTP) priority. This command is unnecessary when low latency queueing (LLQ) is used because these packets follow the priority queue path (or not) based on the LLQ classification criteria.
This command works by choosing between sending the probe on an odd or even Service Assurance Agent (SAA) port number. The SAA probe packets go out on randomly selected ports chosen from within the top end of the audio User Datagram Protocol (UDP) defined port range (16384 to 32767). The port pair (RTP Control Protocol [RTCP] port) is selected, and by default, SAA probes for call fallback use the RTCP port (odd) to avoid going into the priority queue, if enabled. If call fallback is configured to use the priority queue, the RTP port (even) is selected.
Examples
The following example specifies that a probe be sent to an SAA port:
Router(config)# call fallback jitter-probe priority-queue
Note In order for this command to have any effect on the probes, the IP priority queueing must be set for UDP voice ports numbered from 16384 to 32767.
Related Commands
call fallback key-chain
To specify the use of message digest algorithm 5 (MD5) authentication for sending and receiving Service Assurance Agents (SAA) probes, use the call fallback key-chain command in global configuration mode. To disable MD5, use the no form of this command.
call fallback key-chain name-of-chain
no call fallback key-chain name-of-chain
Syntax Description
name-of-chain |
Name of the chain. This name is alphanumeric and case-sensitive text. There is no default value. |
Command Default
MD5 authentication is not used.
Command Modes
Global configuration
Command History
Usage Guidelines
This command is used to enable the SAA probe authentication using MD5. If MD5 authentication is used, the keys on the sender and receiver routers must match.
Examples
The following example specifies "sample" as the fallback key chain:
Router(config)# call fallback key-chain sample
Related Commands
call fallback map address-list
To specify that the call fallback router keep a cache table by IP addresses of distances for several destination peers, use the call fallback map address-list command in global configuration mode. To restore the default values, use the no form of this command.
call fallback map map target ip-address address-list ip-address1 ... ip-address7
no call fallback map map target ip-address address-list ip-address1 ... ip-address7
Syntax Description
Command Default
No call fallback maps are defined.
Command Modes
Global configuration
Command History
Usage Guidelines
Use this command when several destination peers are in one common node.
Call fallback map setup allows the decongestion of traffic caused by a high volume of call probes sent across a network to query a large number of dial peers. One router/common node can keep the distances in a cache table of the numerous IP addresses/destination peers in a network. When the fallback is queried for network congestion to a particular IP address (that is, the common node), the map addresses are searched to find the target IP address. If a match is determined, the probes are sent to the target address rather than to the particular IP address.
In Figure 1, the three routers (1, 2, and 3) keep the cache tables of distances for the destination peers behind them. When a call probe comes from somewhere in the IP cloud, the cache routers check their distance tables for the IP address/destination peer where the call probe is destined. This distance checking limits congestion on the networks behind these routers by directing the probe to the particular IP address and not to the entire network.

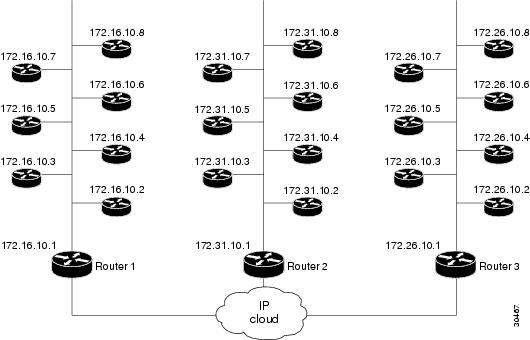

Figure 1 Call Fallback Map with IP Addresses
Examples
The following example specifies call fallback map address-list configurations for 172.32.10.1 and 172.46.10.1:
Router(config)# call fallback map 1 target 172.32.10.1 address-list 172.32.10.2 172.32.10.3 172.32.10.4 172.32.10.5 172.32.10.6 172.32.10.7 172.32.10.8
Router(config)# call fallback map 2 target 172.46.10.1 address-list 172.46.10.2 172.46.10.3 172.46.10.4 172.46.10.5 172.46.10.6 172.46.10.7 172.46.10.8
Related Commands
call fallback map subnet
To specify that the call fallback router keep a cache table by subnet addresses of distances for several destination peers, use the call fallback map subnet command in global configuration mode. To restore the default values, use the no form of this command.
call fallback map map target ip-address subnet ip-network netmask
no call fallback map map target ip-address subnet ip-network netmask
Syntax Description
map |
Fallback map. Range is from 1 to 16. There is no default. |
target ip-address |
Target IP address. |
subnet ip-network |
Subnet IP address. |
netmask |
Network mask number. |
Command Default
No call fallback maps are defined.
Command Modes
Global configuration
Command History
Usage Guidelines
Use this command when several destination peers are in one common node.
Call fallback map setup allows the decongestion of traffic caused by a high volume of call probes sent across a network to query a large number of dial peers. One router/common node can keep the distances in a cache table of the numerous IP addresses within a subnet (destination peers) in a network. When the fallback is queried for network congestion to a particular IP address (that is, the common node), the map addresses are searched to find the target IP address. If a match is determined, the probes are sent to the target address rather than to the particular IP address.
In Figure 2, the three routers (1, 2, and 3) keep the cache tables of distances for the destination peers behind them. When a call probe comes from somewhere in the IP cloud, the cache routers check their distance tables for the subnet address/destination peer where the call probe is destined. This distance checking limits congestion on the networks behind these routers by directing the probe to the particular subnet address and not to the entire network.

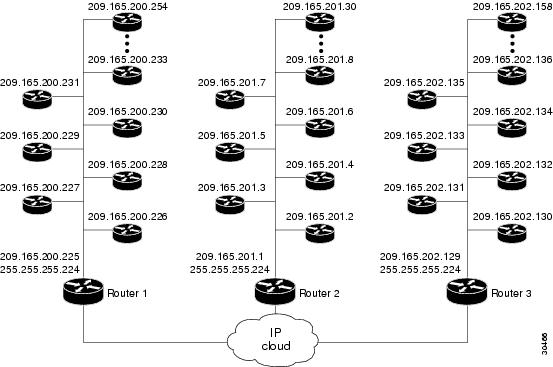

Figure 2 Call Fallback Map with Subnet Addresses
Examples
The following examples specify the call fallback map subnet configuration for two different IP addresses:
Router(config)# call fallback map 1 target 209.165.201.225 subnet
209.165.201.224 255.255.255.224
Router(config)# call fallback map 2 target 209.165.202.225 subnet
209.165.202.224 255.255.255.224
Related Commands
call fallback monitor
To enable the monitoring of destinations without call fallback to alternate dial peers, use the call fallback monitor command in global configuration mode. To disable monitoring without fallback, use the no form of this command.
call fallback monitor
no call fallback monitor
Syntax Description
This command has no arguments or keywords.
Command Default
Disabled
Command Modes
Global configuration
Command History
Usage Guidelines
The call fallback monitor command is used as a statistics collector of network conditions based upon probes (detailing network traffic) and connected calls. There is no H.323 call checking/rejecting as with the call fallback active command. All call requests are granted regardless of network traffic conditions.
Configure the call fallback threshold delay loss or call fallback threshold icpif command to set threshold parameters. The thresholds are ignored, but for statistics collecting, configuring one of the thresholds allows you to monitor cache entries for either delay/loss or Calculated Planning Impairment Factor (ICPIF) values.
Examples
The following example enables the call fallback monitor command:
Router(config)# call fallback monitor
Related Commands
call fallback probe-timeout
To set the timeout for a Service Assurance Agent (SAA) probe for call fallback purposes, use the call fallback probe-timeout command in global configuration mode. To restore the default value, use the no form of this command.
call fallback probe-timeout seconds
no call fallback probe-timeout
Syntax Description
seconds |
Interval, in seconds. Range is from 1 to 2147483. The default is 30. |
Command Default
30 seconds
Command Modes
Global configuration
Command History
Usage Guidelines
SAA probes collect network traffic information based upon configured delay and loss or Calculated Planning Impairment Factor (ICPIF) values and report this information to the cache for call request determination. Use the call fallback threshold delay loss or call fallback threshold icpif command to set the threshold parameters.
When the probe timeout expires, a new probe is sent to collect network statistics. To reduce the bandwidth taken up by the probes, increase the probe-timeout interval (seconds). Probes do not have a great effect upon bandwidth unless several thousand destinations are involved. If this is the case in your network, use a longer timeout. If you need more network traffic information, and bandwidth is not an issue, use a lower timeout. The default interval, 30 seconds, is a low timeout.
When the call fallback cache-timeout command is configured or expires, new probes are initiated for data collection.
Examples
The following example configures a 120-second interval:
Router(config)# call fallback probe-timeout 120
Related Commands
call fallback reject-cause-code
To enable a specific call fallback reject cause code in case of network congestion, use the call fallback reject-cause-code command in global configuration mode. To reset the code to the default of 49, use the no form of this command.
call fallback reject-cause-code number
no call fallback reject-cause-code
Syntax Description
number |
Specifies the cause code as defined in the International Telecommunication Union (ITU) standard Q.850 except the code for normal call clearing, which is code 16. The default is 49. See Table 10 for ITU cause-code numbers. |
Command Default
49 (quality of service is unavailable)
Command Modes
Global configuration
Command History
Usage Guidelines
Enabling the call fallback reject-cause-code command determines the code to display when calls are rejected because of probing of network conditions.
Note Connected calls are not affected by this command.
Examples
The following example enables the call fallback reject-cause-code command and specifies cause code 34:
call fallback reject-cause-code 34
Related Commands
call fallback threshold delay loss
To specify that the call fallback threshold use only packet delay and loss values, use the call fallback threshold delay loss command in global configuration mode. To restore the default value, use the no form of this command.
call fallback threshold delay milliseconds loss percent
no call fallback threshold delay milliseconds loss percent
Syntax Description
Command Default
None
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.1(3)T |
This command was introduced. |
Usage Guidelines
During times of heavy voice traffic, two parties in a conversation may notice a significant delay in transmission or hear only part of a conversation because of voice-packet loss.
Use the call fallback threshold delay loss command to configure parameters for voice quality. Lower values of delay and loss allow higher quality of voice. Call requests match the network information in the cache with the configured thresholds of delay and loss.
The amount of delay set by the call fallback threshold delay loss command should not be more than half the amount of the time-to-wait value set by the call fallback wait-timeout command; otherwise the threshold delay will not work correctly. Because the default value of the call fallback wait-timeout command is set to 300 ms, the user can configure a delay of up to 150 ms for the call fallback threshold delay loss command. If the user wants to configure a higher threshold, the time-to-wait delay has to be increased from its default (300 ms) using the call fallback wait-timeout command.
Note The delay configured by the call fallback threshold delay loss command corresponds to a one-way delay, whereas the time-to-wait period configured by the call fallback wait-timeout command corresponds to a round-trip delay.
If you enable the call fallback active command, the call fallback subsystem uses the last cache entry compared with the configured delay/loss threshold to determine whether the call is connected or denied. If you enable the call fallback monitor command, all calls are connected, regardless of the configured threshold or voice quality. In this case, configuring the call fallback threshold delay loss command allows you to collect network statistics for further tracking.
Note The call fallback threshold delay loss command differs from the call fallback threshold icpif command because the call fallback threshold delay loss command uses only packet delay and loss parameters, and the call fallback threshold icpif command uses packet delay and loss parameters plus other International Telecommunication Union (ITU) G.113 factors to gather impairment information.
Setting this command does not affect bandwidth. Available bandwidth for call requests is determined by the call fallback subsystem using probes. The number of probes on the network affects bandwidth.
Examples
The following example configures a threshold delay of 20 ms and a threshold loss of 50 percent:
Router(config)# call fallback threshold delay 20 loss 50
Related Commands
call fallback threshold icpif
To specify that call fallback use the Calculated Planning Impairment Factor (ICPIF) threshold, use the call fallback threshold icpif command in global configuration mode. To restore the default value, use the no form of this command.
call fallback threshold icpif threshold-value
no call fallback threshold icpif
Syntax Description
threshold-value |
Threshold value. Range is from 0 to 34. The default is 5. |
Command Default
5
Command Modes
Global configuration
Command History
Usage Guidelines
During times of heavy voice traffic, the parties in a conversation may notice a significant delay in transmission or hear only part of a conversation because of voice-packet loss.
Use the call fallback threshold icpif command to configure parameters for voice quality. A low ICPIF value allows for higher quality of voice. Call requests match the network information in the cache with the configured ICPIF threshold. If you enable the call fallback active command, the call fallback subsystem uses the last cache entry compared with the configured ICPIF threshold to determine whether the call is connected or denied. If you enable the call fallback monitor command, all calls are connected regardless of the configured threshold or voice quality. In this case, configuring the call fallback threshold icpif command allows you to collect network statistics for further tracking.
A lower ICPIF value tolerates less delay and loss of voice packets (according to ICPIF calculations). Use lower values for higher quality of voice. Configuring a value of 34 equates to 100 percent packet loss.
The ICPIF is calculated and used according to the International Telecommunication Union (ITU) G.113 specification.
Note The call fallback threshold delay loss command differs from the call fallback threshold icpif command because the call fallback threshold delay loss command uses only packet delay and loss parameters, while the call fallback threshold icpif command uses packet delay and loss parameters plus other ITU G.113 factors to gather impairment information.
Setting this command does not affect bandwidth. Available bandwidth for call requests is determined by the call fallback subsystem using probes. The number of probes on the network affects bandwidth.
Examples
The following example sets the ICPIF threshold to 20:
Router(config)# call fallback threshold icpif 20
Related Commands
call fallback wait-timeout
To modify the time to wait for a response to a probe, use the call fallback wait-timeout command in global configuration mode. To return to the default value, use the no form of this command.
call fallback wait-timeout milliseconds
no call fallback wait-timeout milliseconds
Syntax Description
milliseconds |
The time-to-wait value in milliseconds (ms). The range is 100 to |
Command Default
300 milliseconds
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.2(15)T9 |
This command was introduced. |
Usage Guidelines
This command is enabled by default. The time to wait for a response to a probe is set to 300 ms. This command allows the user to modify the amount of time to wait for a response to a probe. The milliseconds argument allows the user to configure a time-to-wait value from 100 ms and 3000 ms. A user that has a higher-latency network may want to increase the value of the default timer.
The time-to-wait period set by the call fallback wait-timeout command should always be greater than or equal to twice the amount of the threshold delay time set by the call fallback threshold delay loss command; otherwise the probe will fail.
Note The delay configured by the call fallback threshold delay loss command corresponds to a one-way delay, whereas the time-to-wait period configured by call fallback wait-timeout command corresponds to a round-trip delay. The threshold delay time should be set at half the value of the time-to-wait value.
Examples
The following example sets the amount of time to wait for a response to a probe to 200 ms:
call fallback wait-timeout 200
Related Commands
|
|
|
|---|---|
call fallback threshold delay loss |
Specifies the call fallback threshold delay and loss values. |
call filter match-list voice
To enter the call filter match list configuration mode and create a call filter match list for debugging voice calls, use the call filter match-list voice command in global configuration mode. To remove the filter, use the no form of this command.
call filter match-list number voice
no call filter match-list number voice
Syntax Description
number |
Numeric label that uniquely identifies the match list. Range is 1 to 16. |
Command Default
None
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.3(4)T |
This command was introduced. |
Usage Guidelines
Configure the call filter match-list voice command to set the conditions for filtering voice call debugging. After the conditions are set with this command, use the debug condition match-list command in privileged EXEC mode to get the filtered debug output.
Examples
The following example shows that the call filter match list designated as list 1 filters the debug output for an incoming calling number matching 8288807, an incoming called number matching 6560729, and on incoming port 7/0:D:
call filter match-list 1 voice
incoming calling-number 8288807
incoming called-number 6560729
incoming port 7/0:D
Related Commands
|
|
|
|---|---|
debug condition match-list |
Runs a filtered debug on a voice call. |
show call filter match-list |
Displays call filter match lists. |
call forward all
To define a a feature code for a Feature Access Code (FAC) to access Call Forward All (CFA) on an analog phone, use the call forward all command in STC application feature access-code configuration mode. To return the code to its default, use the no form of this command.
call forward all keypad-character
no call forward all
Syntax Description
Command Default
The default value of the feature code for CFA is 1.
Command Modes
STC application feature access-code configuration (config-stcapp-fac).
Command History
Usage Guidelines
This command changes the value of the feature code for Call Forward All from the default (1) to the specified value.
In Cisco IOS Release 12.4(20)YA and later releases, if the length of the keypad-character argument is at least two characters and the leading or ending character of the string is an asterisk (*) or a number sign (#), phone users are not required to dial a prefix to access this feature. Typically, phone users dial a special feature access code (FAC) consisting of a prefix plus a feature code, for example **2. If the feature code is 78#, the phone user dials only 78#, without the FAC prefix, to access the corresponding feature.
In Cisco IOS Release 15.0(1)M and later releases, if the length of the keypad-character argument is three or four digits, phone users are not required to dial a prefix or any special characters to access this feature. Typically, phone users dial a special feature access code (FAC) consisting of a prefix plus a feature code, for example **2. If the feature code is 788, the phone user dials only 788, without the FAC prefix, to access the corresponding feature.
In Cisco IOS Release 12.4(20)YA and later releases, if you attempt to configure this command with a value that is already configured for another FAC, for a speed-dial code, or for the Redial FSD, you receive a message. If you configure a duplicate code, the system implements the first matching feature in the order of precedence shown in the output of the show stcapp feature codes command.
In Cisco IOS Release 12.4(20)YA and later releases, if you attempt to configure this command with a value that precludes or is precluded by another FAC, by a speed-dial code, or by the Redial FSD, you receive a message. If you configure a feature code to a value that precludes or is precluded by another code, the system always executes the call feature with the shortest code and ignores the longer code. For example, #1 will always preclude #12 and #123. You must configure a new value for the precluded code in order to enable phone user access to that feature.
To display a list of all FACs, use the show stcapp feature codes command.
Examples
The following example shows how to change the value of the feature code for Call Forward All from the default (1). This configuration also changes the value of the prefix for all FACs from the default (**) to ##. With this configuration, a phone user must press ##3 on the keypad and then dial a target number, to forward all incoming calls to the target number.
Router(config)# stcapp feature access-code
Router(config-stcapp-fac)# prefix ##
Router(config-stcapp-fac)# call forward all 3
Router(config-stcapp-fac)# exit
The following example shows how to configure all-numeric three or four digit flexible feature access codes so that users are not required to dial a prefix or special characters:
VG224(config-stcapp-fac)# call forward all 111
do not use prefix. call forward all is 111
Related Commands
call forward cancel
To define a a feature code for a Feature Access Code (FAC) to access Call Forward All Cancel, use the call forward cancel command in STC application feature access-code configuration mode. To return the feature code to its default, use the no form of this command.
call forward cancel keypad-character
no call forward cancel
Syntax Description
Command Default
The default value of the feature code is 2.
Command Modes
STC application feature access-code configuration (config-stcapp-fac)
Command History
Usage Guidelines
This command changes the value of the feature code for Call Forward All Cancel from the default (2) to the specified value.
In Cisco IOS Release 12.4(20)YA and later releases, if the length of the keypad-character argument is at least two characters and the leading or ending character of the string is an asterisk (*) or a number sign (#), phone users are not required to dial a prefix to access this feature. Typically, phone users dial a special feature access code (FAC) consisting of a prefix plus a feature code, for example **2. If the feature code is 78#, the phone user dials only 78#, without the FAC prefix, to access the corresponding feature.
In Cisco IOS Release 15.0(1)M and later releases, if the length of the keypad-character argument is three or four digits, phone users are not required to dial a prefix or any special characters to access this feature. Typically, phone users dial a special feature access code (FAC) consisting of a prefix plus a feature code, for example **2. If the feature code is 788, the phone user dials only 788, without the FAC prefix, to access the corresponding feature.
In Cisco IOS Release 12.4(20)YA and later releases, if you attempt to configure this command with a value that is already configured for another FAC, for a speed-dial code, or for the Redial FSD, you receive a message. If you configure a duplicate code, the system implements the first matching feature in the order of precedence shown in the output of the show stcapp feature codes command.
In Cisco IOS Release 12.4(20)YA and later releases, if you attempt to configure this command with a value that precludes or is precluded by another FAC, by a speed-dial code, or by the Redial FSD, you receive a message. If you configure a feature code to a value that precludes or is precluded by another code, the system always executes the call feature with the shortest code and ignores the longer code. For example, #1 will always preclude #12 and #123. You must configure a new value for the precluded code in order to enable phone user access to that feature.
To display a list of all FACs, use the show stcapp feature codes command.
Note To disable call-forward-all on a particular directory number associated with SCCP endpoints connected to Cisco Unified CME through an analog voice gateway, use the no call-forward all command in ephone-dn or ephone-dn-template configuration mode.
Examples
The following example shows how to change the value of the feature code for Call Forward Cancel from the default (2). This configuration also changes the value of the prefix for all FACs from the default (**) to ##. With this configuration, a phone user must press ##3 on the phone keypad to cancel all-call forwarding.
Router(config)# stcapp feature access-code
Router(config-stcapp-fac)# prefix ##
Router(config-stcapp-fac)# call forward cancel 3
Router(config-stcapp-fac)# exit
Related Commands
call-forward-to-voicemail
To configure forwarding of calls to voicemail so that all incoming calls to a directory number are forwarded to voicemail, use the forward-to-voicemail command. The stcapp feature access-code command must be enabled on the Cisco voice gateway. To disable call forwarding, use the no form of this command.
forward-to-voicemail forward-to-voicemail-code
no forward-to-voicemail
Syntax Description
Command Default
Call forwarding to voicemail is not set.
Command Modes
STC application feature access-code configuration (config-stcapp-fac).
Command History
Usage Guidelines
In Cisco IOS Release 15.0(1)M and later releases, if the length of the keypad-character argument is three or four digits, phone users are not required to dial a prefix or any special characters to access this feature. Typically, phone users dial a special feature access code (FAC) consisting of a prefix plus a feature code, for example **2. If the feature code is 788, the phone user dials only 788, without the FAC prefix, to access the corresponding feature.
The FAC for forward-to-voicemail follows the same rules as for other FAC, such as call forward all, in terms of allowable string as its FAC code.
Examples
The following example show how to configure forward-to-voicemail using a four digit code:
VG224(config-stcapp-fac)# forward-to-voicemail 1234
do not use prefix. forward-to-voicemail is 1234
Related Commands
call history max
To retain call history information and to specify the number of call records to be retained, use the call history max command in global configuration mode.
call history max number
Syntax Description
number |
The maximum number of call history records to be retained in the history table. Values are from 0 to 1200. The default is 15. |
Command Default
If this command is not configured, no call history is maintained for disconnected calls. If the command is configured, the default value for number of records is 15.
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.4(4)T |
This command was introduced. |
Usage Guidelines
The number of disconnected calls displayed is the number specified in the number argument. This maximum number helps to reduce CPU usage in the storage and reporting of this information.
Examples
The following example configures the history table on the gatekeeper to retain 25 records:
Router# call history max 25
Related Commands
|
|
|
|---|---|
show call history voice |
Displays historical information on disconnected calls. |
call-history-mib
To define the history MIB parameters, use the call-history-mib command in global configuration mode. To disable the configured parameters, use the no form of this command.
call-history-mib {max-size num-of-entries | retain-timer seconds}
no call-history-mib {max-size num-of-entries | retain-timer seconds}
Syntax Description
Command Default
The default values are set if the command is not enabled.
Command Modes
Global configuration (config)
Command History
|
|
|
|---|---|
15.0(1)M |
This command was introduced in a release earlier than Cisco IOS Release 15.0(1)M. |
Usage Guidelines
CISCO-CALL-HISTORY-MIB describes the objects defined and used for storing the call information for all calls. The MIB contains a table that stores the past call information. The call information will include the destination number, the call connect time, the call disconnect time and the disconnection cause. These calls could be circuit switched or they could be virtual circuits. The history of each call will be stored. An entry will be created when a call gets disconnected. At the time of creation, the entry will contain the connect time and the disconnect time and other call information.
The history table is characterized by two values, the maximum number (number-of-entries) of entries that could be stored in a period of time (seconds).
The max-size value specifies the maximum size of the call history MIB table.
The retain-timer value specifies the length of time, in minutes, that entries will remain in the call history MIB table. Setting the value to 0 prevents any call history from being retained.
Examples
The following examples shows how to set call history MIB parameters:
Router# configure terminal
Router(config)# call-history-mib max-size 250
Router# configure terminal
Router(config)# call-history-mib retain-timer 250
Related Commands
|
|
|
|---|---|
show startup-config |
Displays the contents of the startup configuration file. |
call language voice
To configure an external Tool Command Language (Tcl) module for use with an interactive voice response (IVR) application, use the call language voice command in global configuration mode.
call language voice language url
Syntax Description
language |
Two-character abbreviation for the language; for example, "en" for English or "ru" for Russian. |
url |
URL that points to the Tcl module. |
Command Default
No default behavior or values
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.2(2)T |
This command was introduced. |
12.3(14)T |
This is obsolete in Cisco IOS Release 12.3(14)T. Use the param language command in application parameter configuration mode. |
Usage Guidelines
The built-in languages are English (en), Chinese (ch), and Spanish (sp). If you specify "en", "ch", or sp", the new Tcl module replaces the built-in language functionality. When you add a new Tcl module, you create your own prefix to identify the language. When you configure and load the new languages, any upper-layer application (Tcl IVR) can use the language.
You can use the language abbreviation in the language argument of any call application voice command. The language and the text-to-speech (TTS) notations are available for the IVR application to use after they are defined by the Tcl module.
Examples
The following example adds Russian (ru) as a Tcl module:
call language voice ru tftp://box/unix/scripts/multi-lang/ru_translate.tcl
Related Commands
call language voice load
To load or reload a Tool Command Language (Tcl) module from the configured URL location, use the call language voice load command in EXEC mode.
call language voice load language
Syntax Description
language |
The two-character prefix configured with the call language voice command in global configuration mode; for example, "en" for English or "ru" for Russian. |
Command Default
No default behavior or values
Command Modes
EXEC
Command History
|
|
|
|---|---|
12.2(2)T |
This command was introduced. |
Usage Guidelines
You cannot use this command if the interactive voice response (IVR) application using the language that you want to configure has an active call. A language that is configured under an IVR application is not necessarily in use. To determine if a call is active, use the show call application voice command.
Examples
The following example loads French (fr) into memory:
call language voice load fr
Related Commands
call leg dump event-log
To flush the event log buffer for call legs to an external file, use the call leg dump event-log command in privileged EXEC mode.
call leg dump event-log
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
|
|
|
|---|---|
12.3(8)T |
This command was introduced. |
Usage Guidelines
This command immediately writes the event log buffer to the external file whose location is defined with the call leg event-log dump ftp command in global configuration mode.
Note The call leg dump event-log command and the call leg event-log dump ftp command are two different commands.
Examples
The following example writes the event log buffer to an external file named leg_elogs:
Router(config)# call leg event-log dump ftp ftp-server/elogs/leg_elogs.log username myname password 0 mypass
Router(config)# exit
Router# call leg dump event-log
Related Commands
call leg event-log
To enable event logging for voice, fax, and modem call legs, use the call leg event-log command in global configuration mode. To reset to the default, use the no form of this command.
call leg event-log
no call leg event-log
Syntax Description
This command has no arguments or keywords.
Command Default
Event logging for call legs is disabled.
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.3(8)T |
This command was introduced. |
Usage Guidelines
This command enables event logging for telephony call legs. IP call legs are not supported.
Note To prevent event logging from adversely impacting system performance for production traffic, the system includes a throttling mechanism. When free processor memory drops below 20%, the gateway automatically disables all event logging. It resumes event logging when free memory rises above 30%. While throttling is occurring, the gateway does not capture any new event logs even if event logging is enabled. You should monitor free memory on the gateway and enable event logging only when necessary to isolate faults.
Examples
The following example enables event logging for all telephony call legs:
call leg event-log
Related Commands
call leg event-log dump ftp
To enable the gateway to write the contents of the call-leg event log buffer to an external file, use the call leg event-log dump ftp command in global configuration mode. To reset to the default, use the no form of this command.
call leg event-log dump ftp server[:port]/file username username password [encryption-type] password
no call leg event-log dump ftp
Syntax Description
Command Default
Event logs are not written to an external file.
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.3(8)T |
This command was introduced. |
Usage Guidelines
This command enables the gateway to automatically write the event log buffer to the named file either after an active call leg terminates or when the event log buffer becomes full. The default buffer size is 4 KB. To modify the size of the buffer, use the call leg event-log max-buffer-size command. To manually flush the event log buffer, use the call leg dump event-log command in privileged EXEC mode.
Note The call leg dump event-log command and the call leg event-log dump ftp command are two different commands.
Note Enabling the gateway to write event logs to FTP could adversely impact gateway memory resources in some scenarios, for example, when:
•The gateway is consuming high processor resources and FTP does not have enough processor resources to flush the logged buffers to the FTP server.
•The designated FTP server is not powerful enough to perform FTP transfers quickly
•Bandwidth on the link between the gateway and the FTP server is not large enough
•The gateway is receiving a high volume of short-duration calls or calls that are failing
You should enable FTP dumping only when necessary and not enable it in situations where it might adversely impact system performance.
Examples
The following example enables the gateway to write call leg event logs to an external file named leg_elogs.log on a server named ftp-server:
call leg event-log dump ftp ftp-server/elogs/leg_elogs.log username myname password 0 mypass
The following example specifies that call leg event logs are written to an external file named leg_elogs.log on a server with the IP address 10.10.10.101:
call leg event-log dump ftp 10.10.10.101/elogs/leg_elogs.log username myname password 0 mypass
Related Commands
call leg event-log errors-only
To restrict event logging to error events only for voice call legs, use the call leg event-log errors-only command in global configuration mode. To reset to the default, use the no form of this command.
call leg event-log errors-only
no call leg event-log errors-only
Syntax Description
This command has no arguments or keywords.
Command Default
All call leg events are logged.
Command Modes
Global configuration (config)
Command History
|
|
|
|---|---|
12.3(8)T |
This command was introduced. |
Usage Guidelines
This command limits the severity level of the events that are logged; it does not enable logging. You must use this command with the call leg event-log command, which enables event logging for call legs.
Examples
The following example shows how to capture event logs only for call legs with errors:
Router(config)# call leg event-log
Router(config)# call leg event-log errors-only
Related Commands
call leg event-log max-buffer-size
To set the maximum size of the event log buffer for each call leg, use the call leg event-log max-buffer-size command in global configuration mode. To reset to the default, use the no form of this command.
call leg event-log max-buffer-size kbytes
no call leg event-log max-buffer-size
Syntax Description
kbytes |
Maximum buffer size, in kilobytes (KB). Range is 1 to 20. Default is 4. |
Command Default
4 KB
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.3(8)T |
This command was introduced. |
Usage Guidelines
If the event log buffer reaches the limit set by this command, the gateway allocates a second buffer of equal size. The contents of both buffers is displayed when you use the show call leg command. When the first event log buffer becomes full, the gateway automatically appends its contents to an external FTP location if the call leg event-log dump ftp command is used.
A maximum of two buffers are allocated for an event log. If both buffers are filled, the first buffer is deleted and another buffer is allocated for new events (buffer wraps around). If the call leg event-log dump ftp command is configured and the second buffer becomes full before the first buffer is dumped, event messages are dropped and are not recorded in the buffer.
Examples
The following example sets the maximum buffer size to 8 KB:
call leg event-log max-buffer-size 8
Related Commands
call leg history event-log save-exception-only
To save to history only event logs for call legs that had at least one error, use the call leg history event-log save-exception-only command in global configuration mode. To reset to the default, use the no form of this command.
call leg history event-log save-exception-only
no call leg history event-log save-exception-only
Syntax Description
This command has no arguments or keywords.
Command Default
By default all the events will be logged.
Command Modes
Global configuration
Command History
|
|
|
|---|---|
12.3(8)T |
This command was introduced. |
Usage Guidelines
Call leg event logs move from the active to the history table after the call leg terminates. If you use this command, event logs are saved only for those legs that had errors. Event logs for normal legs that do not contain any errors are not saved.
Note This command does not affect records saved to an FTP server by using the call leg dump event-log command.
Examples
The following example saves to history only call leg records that have errors:
call leg history event-log save-exception-only
Related Commands
callmonitor
To enable call monitoring messaging functionality on a SIP endpoint in a VoIP network, use the callmonitor command in voice-service configuration mode. To return to the default, use the no form of this command.
callmonitor
no callmonitor
Syntax Description
This command has no arguments or keywords.
Command Default
Monitoring service is disabled.
Command Modes
Voice-service configuration (config-voi-serv)
Command History
|
|
|
|---|---|
12.4(11)XW2 |
This command was introduced. |
12.4(20)T |
This command was integrated into Cisco IOS Release 12.4(20)T. |
Usage Guidelines
Use this command in voice service configuration mode to allow a SIP endpoint, such as an external feature server, to watch call activity on a VoIP network.
To view call activity, use the show callmon command.
Examples
The following example enables call monitoring messaging functionality on a SIP endpoint:
Router(config-voi-serv)# callmonitor
Related Commands
|
|
|
|---|---|
show callmon |
Displays call-monitor information. |
call preserve
To enable the preservation of H.323 VoIP calls, use the call preserve command in h323, voice-class h323, and voice service voip configuration modes. To reset to the default, use the no form of this command.
call preserve [limit-media-detection]
no call preserve [limit-media-detection]
Syntax Description
limit-media-detection |
Limits RTP and RTCP inactivity detection and bidirectional silence detection (if configured) to H.323 VoIP preserved calls only. |
Command Default
H.323 VoIP call preservation is disabled.
Command Modes
h323, voice-class h323, or voice service voip
Command History
|
|
|
|---|---|
12.4(4)XC |
This command was introduced. |
12.4(9)T |
This command was integrated into Cisco IOS Release 12.4(9)T. |
Usage Guidelines
The call preserve command activates H.323 VoIP call preservation for following types of failures and connections:
Failure Types
•WAN failures that include WAN links flapping or degraded WAN links
•Cisco Unified CallManager software failure, such as when the ccm.exe service crashes on a Cisco Unified CallManager server.
•LAN connectivity failure, except when a failure occurs at the local branch
Connection Types
•Calls between two Cisco Unified CallManager controlled endpoints
–During Cisco Unified CallManager reloads
–When a Transmission Control Protocol (TCP) connection between one or both endpoints and Cisco Unified CallManager used for signaling H.225.0 or H.245 messages is lost or flapping
–Between endpoints that are registered to different Cisco Unified CallManagers in a cluster and the TCP connection between the two Cisco Unified CallManagers is lost
–Between IP phones and the PSTN at the same site
•Calls between Cisco IOS gateway and an endpoint controlled by a softswitch where the signaling (H.225.0, H.245 or both) flows between the gateway and the softswitch and media flows between the gateway and the endpoint.
–When the softswitch reloads.
–When the H.225.0 or H.245 TCP connection between the gateway and the softswitch is lost, and the softswitch does not clear the call on the endpoint
–When the H.225.0 or H.245 TCP connection between softswitch and the endpoint is lost, and the soft-switch does not clear the call on the gateway
•Call flows that involve a Cisco IP in IP (IPIP) gateway running in media flow-around mode that reload or lose connection with the rest of the network
When bidirectional silence and RTP and RTCP inactivity detection are configured, they are enabled for all calls by default. To enable them for H.323 VoIP preserved calls only, you must use the call preserve command's limit-media-detection keyword.
H.323 VoIP call preservation can be applied globally to all calls and to a dial peer.
Examples
The following example enables H.323 VoIP call preservation for all calls.
voice service voip
h323
call preserve
The following configuration example enables H.323 VoIP call preservation for dial peer 1.
voice-class h323 4
call preserve
dial-peer voice 1 voip
voice-class h323 4
The following example enables H.323 VoIP call preservation and enables RTP and RTCP inactivity detection and bidirectional silence detection for preserved calls only:
voice service voip
h323
call preserve limit-media-detection
The following example enables RTP and RTCP inactivity detection. Note that for H.323 VoIP call preservation VAD must be set to off (no vad command).
dial-peer voice 10 voip
no vad
gateway
timer receive-rtcp
ip rtcp report-interval
The following configuration example enables bidirectional silence detection:
gateway
timer media-inactive
ip rtcp report interval
Related Commands
call-route
To enable header-based routing, at the global configuration level, use the call-route command in voice service VoIP SIP configuration mode. To disable header-based routing, use the no form of this command.
call-route {p-called-party-id | history-info}
no call-route {p-called-party-id | history-info}
Syntax Description
p-called-party-id |
Enables call routing based on the p-called-party-id header. |
history-info |
Enables call routing based on the history-info header. |
Command Default
Support for call routing based on the header in a received INVITE message is disabled.
Command Modes
Voice service VoIP SIP configuration (conf-serv-sip)
Command History
Usage Guidelines
Use the call-route command to enable the Cisco Unified Border Element to route calls based on the P-Called-Party-ID or history-header in a received INVITE message.
Examples
The following example shows how to enable call routing based on the header value:
Router> enable
Router# configure terminal
Router(config)# voice service voip
Router(conf-voi-serv)# sip
Router(conf-serv-sip)# call-route p-called-party-id
Router(conf-serv-sip)# call-route history-info
Related Commands
|
|
|
|---|---|
voice-class sip call-route |
Enables call routing based on the p-called-party-id and history-info header values at the dial-peer configuration level. |
call-router h323-annexg
To enable the Annex G border element (BE) configuration commands by invoking H.323 Annex G configuration mode, use the call-router command in global configuration mode. To remove the definition of a BE, use the no form of this command.
call-router h323-annexg border-element-id
no call-router h323-annexg
Syntax Description
Command Default
No default behaviors or values
Command Modes
Global configuration (config)
Command History
Usage Guidelines
Use this command to enter Annex G configuration mode and to identify BEs.
Examples
The following example shows that Annex G configuration mode is being entered for a BE named "be20":
Router(config)# call-router h323-annexg be20
Related Commands
|
|
|
|---|---|
show call history |
Displays the fax call history table for a fax transmission. |
show call-router status |
Displays the Annex G BE status. |
call-routing hunt-scheme
To enable capacity based load-balancing, use the call-routing hunt-scheme command in gatekeeper configuration mode. To disable this function, use the no form of this command.
call-routing hunt-scheme percentage-capacity-util
no call-routing hunt-scheme
Syntax Description
percentage-capacity-util |
Selects the one with least percentage capacity utilized among the gateways. |
Command Default
This command is disabled.
Command Modes
Gatekeeper configuration
Command History
|
|
|
|---|---|
12.4(11)T |
This command was introduced. |
Usage Guidelines
Use the call-routing hunt-scheme command to turn on load balancing based on capacity of gateway and verify that the gateway capacity reporting is enabled.
Examples
The following example shows the gateway with the with least percentage capacity being selected:
Router(gk-config)# call-routing hunt-scheme percentage-capacity-util
Related Commands
|
|
|
|---|---|
timer cluster-element |
Sets the time between resource update messages to gatekeepers in local cluster. |
call rscmon update-timer
To change the value of the resource monitor throttle timer, use the call rscmon update-timer command in privileged EXEC mode. To revert to the default value, use the no form of this command.
call rscmon update-timer milliseconds
no call rscmon update-timer
Syntax Description
milliseconds |
Duration of the resource monitor throttle timer, in milliseconds (ms). Range is from 20 to 3500. The default is 2000. |
Command Default
2000 ms
Command Modes
Privileged EXEC
Command History
Usage Guidelines
This command specifies the duration of the resource monitor throttle timer. When events are delivered to the resource monitor process, the throttle timer is started and the event is processed after the timer expires (unless the event is a high-priority event). The timer ultimately affects the time it takes the gateway to send Resource Availability Indicator (RAI) messages to the gatekeeper. This command allows you to vary the timer according to your needs.
Examples
The following example shows how the timer is to be configured:
Router(config)# call rscmon update-timer 1000
Related Commands
|
|
|
|---|---|
resource threshold |
Configures a gateway to report H.323 resource availability to its gatekeeper. |
call rsvp-sync
To enable synchronization between Resource Reservation Protocol (RSVP) signaling and the voice signaling protocol, use the call rsvp-sync command in global configuration mode. To disable synchronization, use the no form of this command.
call rsvp-sync
no call rsvp-sync
Syntax Description
This command has no keywords or arguments.
Command Default
Synchronization is enabled between RSVP and the voice signaling protocol (for example, H.323).
Command Modes
Global configuration
Command History
Usage Guidelines
The call rsvp-sync command is enabled by default.
Examples
The following example enables synchronization between RSVP and the voice signaling protocol:
call rsvp-sync
Related Commands
call rsvp-sync resv-timer
To set the timer on the terminating VoIP gateway for completing RSVP reservation setups, use the call rsvp-sync resv-timer command in global configuration mode. To restore the default value, use the no form of this command.
call rsvp-sync resv-timer seconds
no call rsvp-sync resv-timer
Syntax Description
seconds |
Number of seconds in which the reservation setup must be completed, in both directions. Range is from 1 to 60. The default is 10. |
Command Default
10 seconds
Command Modes
Global configuration
Command History
Usage Guidelines
The reservation timer is started on the terminating gateway when the session protocol receives an indication of the incoming call. This timer is not set on the originating gateway because the resource reservation is confirmed at the terminating gateway. If the reservation timer expires before the RSVP setup is complete, the outcome of the call depends on the acceptable quality of service (QoS) level configured in the dial peer; either the call proceeds without any bandwidth reservation or it is released. The timer must be set long enough to allow calls to complete but short enough to free up resources. The optimum number of seconds depends on the number of hops between the participating gateways and the delay characteristics of the network.
Examples
The following example sets the reservation timer to 30 seconds:
call rsvp-sync resv-timer 30
Related Commands
call service stop
To shut down VoIP call service on a gateway, use the call service stop command in voice service SIP or voice service H.323 configuration mode. To enable VoIP call service, use the no form of this command. To set the command to its defaults, use the default call service stop command
call service stop [forced] [maintain-registration]
no call service stop
default call service stop
Syntax Description
forced |
(Optional) Forces the gateway to immediately terminate all in-progress calls. |
maintain-registration |
(Optional) Forces the gateway to remain registered with the gatekeeper. |
Command Default
VoIP call service is enabled.
Command Modes
Voice service SIP configuration (conf-serv-sip)
Voice service H.323 configuration (conf-serv-h323)
Command History
|
|
|
|---|---|
12.3(1) |
This command was introduced. |
12.4(22)T |
Support for IPv6 was added. |
12.4(23.08)T01 |
The default behavior was clarified for SIP and H.323 protocols. |
Usage Guidelines
Use the call service stop command to shut down the SIP or H.323 services regardless of whether the shutdown or no shutdown command was configured in voice service configuration mode.
Use the no call service stop command to enable SIP or H.323 services regardless of whether the shutdown or no shutdown command was configured in voice service configuration mode.
Use the default call service stop command to set the command to its defaults. The defaults are as follows:
•Shut down SIP or H.323 service, if the shutdown command was configured in voice service configuration mode.
•Enable SIP or H.323 service, if the no shutdown command was configured in voice service configuration mode.
Examples
The following example shows SIP call service being shut down on a Cisco gateway:
Router> enable
Router# configure terminal
Router(config)# voice service voip
Router(conf-voi-serv)# sip
Router(conf-serv-sip)# call service stop
The following example shows H.323 call service being enabled on a Cisco gateway:
Router> enable
Router# configure terminal
Router(config)# voice service voip
Router(conf-voi-serv)# h323
Router(conf-serv-h323)# no call service stop
The following example shows SIP call service being enabled on a Cisco gateway because the no shutdown command was configured in voice service configuration mode:
Router> enable
Router# configure terminal
Router(config)#voice service voip
Router(conf-voi-serv)# no shutdown
Router(conf-voi-serv)# sip
Router(conf-serv-sip)# default call service stop
The following example shows H.323 call service being shut down on a Cisco gateway because the shutdown command was configured in voice configuration mode:
Router> enable
Router# configure terminal
Router(config)# voice service voip
Router(conf-voi-serv)# shutdown
Router(conf-voi-serv)# h323
Router(conf-serv-h323)# default call service stop
Related Commands
call spike
To configure the limit on the number of incoming calls received in a short period of time (a call spike), use the call spike command in global or dial peer voice configuration mode. To disable this command, use the no form of this command.
call spike call-number [steps number-of-steps size milliseconds]
no call spike
Dial Peer Voice Configuration Mode
call spike threshold [steps number-of-steps size milliseconds]
Syntax Description
Command Default
The limit on the number of incoming calls received during a specified period is not configured.
Command Modes
Global configuration (config)
Dial peer voice configuration (config-dial-peer)
Command History
Usage Guidelines
A call spike occurs when a large number of incoming calls arrive from the Public Switched Telephone Network (PSTN) in a short period of time (for example, 100 incoming calls in 10 milliseconds). Setting this command allows you to control the number of call requests that can be received in a configured time period. The sliding window buffers the number of calls that get through. The counter resets according to the specified step size.
The period of the sliding window is calculated by multiplying the number of steps by the size. If an incoming call exceeds the configured call number during the period of the sliding window the call is rejected.
If the call spike is configured at both the global and dial-peer levels, the dial-peer level takes precedence and the call spike is calculated. If the call spike threshold is exceeded the call gets rejected, and the call spike calculation is done at the global level.
Examples
The following example shows how to configure the call spike command with a call-number and the of 1, a sliding window of 10 steps, and a step size of 200 milliseconds. The period of the sliding window is 2 seconds. If the gateway receives more than 1 call within 2 seconds the call is rejected.
Router(config)# call spike 1 steps 10 size 200
The following example shows how to configure the call spike command with a call number of 30, a sliding window of 10 steps, and a step size of 2000 milliseconds:
Router(config)# call spike 30 steps 10 size 2000
The following example shows how to configure the call spike command in dial peer voice mode with threshold of 20, a sliding window of 7, and a step size of 2000 milliseconds:
Router(config)# dial-peer voice 400 voip
Router(config-dial-peer)# call spike 20 steps 7 size 2000
Related Commands
call start
To force an H.323 Version 2 gateway to use either fast connect or slow connect procedures for a dial peer, use the call start command in H.323 voice-service configuration mode. To restore the default setting, use the no form of this command.
call start {fast | slow | system | interwork} [sync-rsvp slow-start]
no call start
Syntax Description
Command Default
system
Command Modes
H.323 voice-service configuration
Command History
Usage Guidelines
In Cisco IOS Release 12.1(3)XI and later releases, H.323 VoIP gateways by default use H.323 Version 2 (fast connect) for all calls, including those initiating RSVP. Previously, gateways used only slow-connect procedures for RSVP calls. To enable Cisco IOS Release 12.1(3)XI gateways to be backward-compatible with earlier releases of Cisco IOS Release 12.1T, the call start command allows the originating gateway to initiate calls using slow connect.
The call start command is configured as part of the voice class assigned to an individual VoIP dial peer. It takes precedence over the h323 call start command that is enabled globally to all VoIP calls, unless the system keyword is used, in which case the gateway defaults to Version 2.
The sync-rsvp slow-start keyword, when used in H.323 voice-class configuration mode, controls RSVP synchronization for all slow-start calls handled by the gateway. When the sync-rsvp slow-start keyword is used in an H.323 voice-class definition, the behavior can be specified for individual dial peers by invoking the voice class in dial-peer voice configuration mode. This command is enabled by default in some Cisco IOS images, and in this situation the show running-config command displays this information only when the no form of the command is used.
Note The call start command supports only H.323 to H.323 calls.
The interwork keyword is only used with IP-to-IP gateways connecting fast connect from one side to slow connect on the other for basic audio calls. Configure the interwork keyword in voice-class H.323 configuration mode or on both the incoming and outgoing dial peers. Codecs must be specified on both dial peers for interworking to function. When the interwork keyword is configured, codecs need to be specified on both dial-peers and the codec transparent command should not be configured.
Examples
The following example shows slow connect for the voice class 1000 being selected:
voice service class h323 1000
call start slow
!
dial-peer voice 210 voip
voice-class h323 1000
The following example shows the gateway configured to use the H.323 Version 1 (slow connect) procedures:
h323
call start slow
Related Commands
call threshold global
To enable the global resources of a gateway, use the call threshold global command in global configuration mode. To disable the global resources of the gateway, use the no form of this command.
call threshold global trigger-name low percent high percent [busyout] [treatment]
no call threshold global trigger-name
Syntax Description
Command Default
The default is busyout and treatment for global resource triggers.
Command Modes
Global configuration
Command History
Usage Guidelines
Use this command to enable a trigger and define associated parameters to allow or disallow new calls on the router. Action is enabled when the trigger value goes above the value specified by the high keyword and is disabled when the trigger drops below the value specified by the low keyword.
You can configure these triggers to calculate Resource Availability Indicator (RAI) information. An RAI is forwarded to a gatekeeper so that it can make call admission decisions. You can configure a trigger that is global to a router or is specific to an interface.
Examples
The following example shows how to busy out the total calls when a low of 5 or a high of 5000 is reached:
call threshold global total-calls low 5 high 5000 busyout
The following example shows how to busy out the average CPU utilization if a low of 5 percent or a high of 65 percent is reached:
call threshold global cpu-avg low 5 high 65 busyout
Related Commands
call threshold interface
To enable the interface resources of a gateway, use the call threshold interface command in global configuration mode. To disable the interface resources of the gateway, use the no form of this command.
call threshold interface name number int-calls low value high value
no call threshold interface name number int-calls
Syntax Description
Command Default
No default behavior or values
Command Modes
Global configuration
Command History
Usage Guidelines
Use this command to specify thresholds that allow or disallow new calls on the router.
Examples
The following example enables thresholds as low as 5 and as high as 2500 for interface calls on interface Ethernet interface 0/1:
call threshold interface Ethernet 0/1 int-calls low 5 high 2500
Related Commands
call threshold poll-interval
To enable a polling interval threshold for assessing CPU or memory thresholds, use the call threshold poll-interval command in global configuration mode. To disable this command, use the no form of this command.
call threshold poll-interval {cpu-average | memory} seconds
no call threshold poll-interval {cpu-average | memory}
Syntax Description
Command Default
cpu-average: 60 seconds
memory: 5 seconds
Command Modes
Global configuration
Command History
Examples
The following example shows how to specify that memory thresholds be polled every 10 seconds:
call threshold poll-interval memory 10
Related Commands
call treatment action
To configure the action that the router takes when local resources are unavailable, use the call treatment action command in global configuration mode. To disable call treatment action, use the no form of this command.
call treatment action{hairpin | playmsg url | reject}
no call treatment action
Syntax Description
Command Default
No treatment is applied.
Command Modes
Global configuration
Command History
Usage Guidelines
Use this command to define parameters to disconnect (with cause code), or hairpin, or whether a message or busy tone is played to the user.
Examples
The following example shows how to enable the call treatment feature with a "hairpin" action:
call treatment on
call treatment action hairpin
The following example shows how to enable the call treatment feature with a "playmsg" action. The file "congestion.au" plays to the caller when local resources are not available to handle the call.
call treatment on
call treatment action playmsg tftp://keyer/prompts/conjestion.au
Related Commands
call treatment cause-code
To specify the reason for the disconnection to the caller when local resources are unavailable, use the call treatment cause-code command in global configuration mode. To disable the call treatment cause-code specification, use the no form of this command.
call treatment cause-code {busy | no-QoS | no-resource}
no call treatment cause-code
Syntax Description
busy |
Indicates that the gateway is busy. |
no-QoS |
Indicates that the gateway cannot provide quality of service (QoS). |
no-resource |
Indicates that the gateway has no resources available. |
Command Default
Disconnect reason is not specified to the caller.
Command Modes
Global configuration
Command History
Usage Guidelines
Use this command to associate a cause-code with a disconnect event.
Examples
The following example shows how to configure a call treatment cause code to reply with "no-Qos" when local resources are unavailable to process a call:
call treatment on
call treatment cause-code no-Qos
Related Commands
call treatment isdn-reject
To specify the rejection cause code for ISDN calls when all ISDN trunks are busied out and the switch ignores the busyout trunks and still sends ISDN calls into the gateway, use the call treatment isdn-reject command in global configuration mode. To disable call treatment, use the no form of this command.
call treatment isdn-reject cause-code
no call treatment isdn-reject
Syntax Description
Command Default
No value is specified.
Command Modes
Global configuration
Command History
Usage Guidelines
Use this command only when all ISDN trunks are busied out and the switch ignores the busyout trunks and still sends ISDN calls into the gateway. The gateway should reject the call in the ISDN stack using the configured cause code.
Under any other conditions, the command has no effect.
Examples
The following example shows how to configure the call treatment to reply to an ISDN call with an ISDN rejection code for "temporary failure" when local resources are unavailable to process a call:
call treatment on
call treatment isdn-reject 41
Related Commands
call treatment on
To enable call treatment to process calls when local resources are unavailable, use the call treatment on command in global configuration mode. To disable call treatment, use the no form of this command.
call treatment on
no call treatment on
Syntax Description
This command has no arguments or keywords.
Command Default
Treatment is inactive.
Command Modes
Global configuration
Command History
Usage Guidelines
Use this command to enable a trigger and define associated parameters to disconnect (with cause code), or hairpin, or whether a message or busy tone is played to the user.
Examples
The following example shows how to enable the call treatment feature with a "hairpin" action:
call treatment on
call treatment action hairpin
The following example shows how to enable the call treatment feature with a "playmsg" action. The file "congestion.au" plays to the caller when local resources are not available to handle the call.
call treatment on
call treatment action playmsg tftp://keyer/prompts/conjestion.au
The following example shows how to configure a call treatment cause code to reply with "no-QoS" when local resources are unavailable to process a call:
call treatment on
call treatment cause-code no-QoS
Related Commands
call-waiting
To enable call waiting, use the call-waiting command in interface configuration mode. To disable call waiting, use the no form of this command.
call-waiting
no call-waiting
Syntax Description
This command has no arguments or keywords.
Command Default
Call waiting is enabled.
Command Modes
Interface configuration
Command History
|
|
|
|---|---|
12.0(3)T |
This command was introduced on the Cisco 800 series. |
Usage Guidelines
This command is applicable to Cisco 800 series routers.
You must specify this command when creating a dial peer. This command does not work if it is not specified within the context of a dial peer. For information on creating a dial peer, refer to the Cisco 800 Series Routers Software Configuration Guide.
Examples
The following example disables call waiting:
no call-waiting
Related Commands
called-number (dial peer)
To enable an incoming Voice over Frame Relay (VoFR) call leg to get bridged to the correct plain old telephone service (POTS) call leg when a static FRF.11 trunk connection is used, use the called-number command in dial peer configuration mode. To disable a static trunk connection, use the no form of this command.
called-number string
no called-number
Syntax Description
string |
A string of digits, including wildcards, that specifies the telephone number of the voice port dial peer. |
Command Default
This command is disabled.
Command Modes
Dial peer configuration
Command History
|
|
|
|---|---|
12.0(4)T |
This command was introduced on the Cisco 2600 series and Cisco 3600 series. |
Usage Guidelines
The called-number command is used only when the dial peer type is VoFR and you are using the frf11-trunk (FRF.11) session protocol. It is ignored at all times on all other platforms using the Cisco-switched session protocol.
Because FRF.11 does not provide any end-to-end messaging to manage a trunk, the called-number command is necessary to allow the router to establish an incoming trunk connection. The E.164 number is used to find a matching dial peer during call setup.
Examples
The following example shows how to configure a static FRF.11 trunk connection to a specific telephone number (555-0150), beginning in global configuration mode:
voice-port 1/0/0
connection trunk 55Router0
exit
dial-peer voice 100 pots
destination pattern 5550150
exit
dial-peer voice 200 vofr
session protocol frf11-trunk
called-number 5550150
destination pattern 55Router0
Feedback
