Product IDs

This chapter describes the list of Product IDs (PIDs) for Cisco NCS 1014 and its modules.

NCS 1014 Chassis and Modules PIDs

The following table lists the PIDs of the Cisco NCS 1014 chassis and its modules:

Table 1. Shelf and Accessory Options

Product ID

Product Description

NCS1014

NCS 1014 Chassis with Timing Support

NCS1K14-SYS

NCS 1014 Assemble to Order

NCS1K14-S-KIT

NCS 1014 accessory kit for 19-inch racks that are up to 40-inch in depth
Table 2. SSD Option

Product ID

Product Description

NCS1K14-SSD

NCS 1014 SSD
Table 3. Controller Options

Product ID

Product Description

NCS1K14-CNTLR-K9

NCS 1014 Controller, 115200 bps Baud Rate

NCS1K14-CNTLR-B-K9

NCS 1014 Controller, 9600 bps Baud Rate
Table 4. Fan Option

Product ID

Product Description

NCS1K14-FAN

NCS 1014 Fan Module
Table 5. Power Supply Options

Product ID

Product Description

NCS1K4-AC-PSU

NCS 1004 AC Power Supply Unit, 2.1 kW

NCS1K4-DC-PSU

NCS 1004 DC Power Supply Unit, 2.1 kW

NCS1K4-AC-PSU-2

NCS 1004 AC Power Supply Unit, 2.5 kW

NCS1K4-DC-PSU-2

NCS 1004 DC Power Supply Unit, 2.5 kW
Table 6. Line Card Options

Product ID

Product Description

NCS1K14-2.4T-K9=

Network Convergence System 1014 2.4T Line Card

NCS1K14-CCMD-16-C=

NCS 1000 16-port Colorless Direct attach LC with EDFA, C-band

NCS1K14-CCMD-16-L=

NCS 1000 16-port Colorless Direct attach LC with EDFA, L-band

NCS1K4-1.2T-K9=

NCS1K4 12x QSFP28 2 Trunk C-Band DWDM card

NCS1K14-2.4T-X-K9=

NCS 1014 2.4T Line Card Cross Connect Mode

NCS1K4-1.2T-L-K9=

NCS1K4 12x QSFP28 2 Trunk C-Band DWDM card - Licensed
Table 7. Line Card Filler/Blank Option

Product ID

Product Description

NCS1K14-BLANK=

NCS 1014 Blank Card
Table 8. 2.4T and 2.4TX Pluggable Options

Product ID

Product Description

Trunk Pluggables

CIM8-C-K9=

Coherent Interface Module 8, C-Band

CIM8-L-K9=

Coherent Interface Module 8, L-Band

Client Pluggables

QDD-400G-FR4-S

400GBase-FR4, 2 km over duplex SMF, 1270, 1290, 1310, 1330 nm

QDD-400G-AOCxM

400G QDD Active optical cable pluggable optics module

QDD-400G-DR4-S

400GBase-DR4, 500 m over SMF, 1310 nm

QDD-4X100G-LR-S

4x100GBase-LR1, 10 km over SMF, 1310 nm
Table 9. 1.2T Pluggable Options

Product ID

Product Description

1.2T Client Pluggables

ONS-QSFP28-LR4

100G Base LR4, OTU4, 10 km over SMF, 1295.56, 1300.05, 1304.58, 1309.14 nm

QSFP-100G-AOC-1M

100G QDD Active optical cable pluggable optics module, 1 m

QSFP-100G-AOC-3M

100G QDD Active optical cable pluggable optics module, 3 m

QSFP-100G-AOC-10M

100G QDD Active optical cable pluggable optics module, 10 m

QSFP-100G-CU1M

100GBase-CR4 Passive copper cable, 1 m

QSFP-100G-CU2M

100GBase-CR4 Passive copper cable, 2 m

QSFP-100G-CU3M

100GBase-CR4 Passive copper cable, 3 m

QSFP-100G-CU5M

100GBase-CR4 Passive copper cable, 5 m

QSFP-100G-CWDM4-S

100GBase CWDM4, 2 km over SMF, 1271, 1291, 1311, 1331 nm

QSFP-100G-DR-S

100GBase-DR, 500 m over SMF, 1310 nm

QSFP-100G-ER4L-S

100GBase, 25-40 km over SMF, 1295, 1300, 1304, 1309 nm

QSFP-100G-FR-S

100GBase-FR, 2km over SMF, 1310 nm

QSFP-100G-LR4-S

100GBase-LR4, 10 km over SMF, 1295, 1300, 1304, 1309 nm

QSFP-100G-LR-S

100GBase-LR, 10 km over SMF, 1310 nm

QSFP-100G-SM-SR

100G CWDM4 Lite, 2 km over SMF, 1271, 1291, 1311, 1331 nm

QSFP-100G-SR4-S

100GBase-SR4, 100 m over OM4 MMF, 850 nm

QSFP-40/100-SRBD

100G and 40GBase-SR, BiDi, 100 m over OM4 MM, 855, 908 nm
Table 10. QXP Pluggable Options

Product ID

Product Description

Trunk Pluggables

DP04QSDD-HK9

QSFP-DD 400G ZR+ - High Tx Power - OTN, 1550 nm

DP04QSDD-LK9

QSFP-DD 400G ZR+ - High Tx Power - OTN - 100G BW, 1550 nm

DP04QSDD-HE0

QSFP-DD 400G ZR+ - High Tx Power, 1550 nm

QDD-400G-ZR-S

QSFP-DD transceiver module, coherent DCO, 400G-ZR

QDD-400G-ZRP-S

QSFP-DD transceiver module, coherent DCO, 400G-ZR+,

QXP Client Pluggables

QDD-400G-FR4-S

400GBase-FR4, 2 km over duplex SMF, 1270, 1290, 1310, 1330 nm

QDD-400G-DR4-S

400GBase-DR4, 500 m over SMF, 1310 nm

QDD-400-AOCxM

400G QDD Active optical cable pluggable optics module

QDD-4x100G-LR-S

4x100GBase-LR1, 10 km over SMF, 1310 nm

QDD-400G-LR4-S

400GBASE-LR4, 10km over duplex SMF, 1270, 1290, 1310, 1330

Optical Patch Cord PIDs

This section lists the PIDs of the optical patch cords that are supported in the Cisco NCS 1014 line cards.

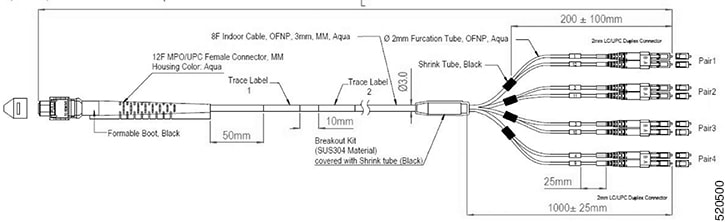

Breakout Cable

Figure 1. Breakout Cable
Breakout Cable

Note

Use the breakout cable only for ETSI racks to maintain a 600-mm footprint. Ensure a minimum gap of 50 mm below the chassis for routing the cables.

The following table lists the PIDs and specifications of the breakout cables that are supported for the QSFP-100G-SR4-S pluggable in the 1.2T line card:

Table 11. PIDs and Specifications of the Breakout Cables

PID

MPN

Overall Length (m)

ONS-4X10-MMCBL-5=

BCJ7F3FM005CSO008

05 ± 0.30

ONS-4X10-MMCBL-10=

BCJ7F3FM010CSO008

10 ± 0.30

ONS-4X10-MMCBL-20=

BCJ7F3FM020CSO008

20 ± 0.60

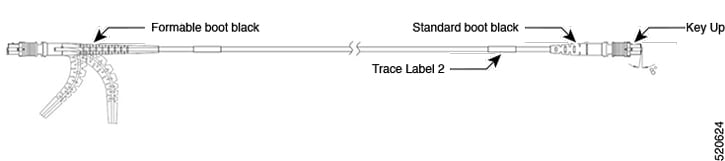

Cable with Formable Boot and Standard Boot

Figure 2. Cable with Formable Boot and Standard Boot
Cable with Formable Boot and Standard Boot

You must use the formable boot on the side of the line card only.

The following table lists the PIDs and specifications of the cable with formable boot and standard boot that support the QDD-400G-DR4-S pluggable in the 2.4T line card:

Table 12. PIDs and Specifications of Cables with Formable Boot and Standard Boot

PID

MPN

Overall Length (m)

-ONS-FMPO-SM-5=

MDD3F 3GM005CSO001

05±0.30

-ONS-FMPO-SM-10=

MDD3F 3GM010CSO001

10±0.30

-ONS-FMPO-SM-20=

MDD3F 3GM020CSO001

20±0.60

-ONS-FMPO-SM-30=

MDD3F 3GM030CSO001

30±0.90

-ONS-FMPO-SM-40=

MDD3F 3GM040CSO001

40±1.20

-ONS-FMPO-SM-50=

MDD3F 3GM050CSO001

50±1.50

-ONS-FMPO-SM-60=

MDD3F 3GM060CSO001

60±1.50

-ONS-FMPO-SM-70=

MDD3F 3GM070CSO001

70±1.50

-ONS-FMPO-SM-80=

MDD3F 3GM080CSO001

80±1.50

-ONS-FMPO-SM-90=

MDD3F 3GM090CSO001

90±1.50

-ONS-FMPO-SM-100=

MDD3F 3GM100CSO001

100±1.50
