Prepare to Install Cisco NCS 1014

This chapter explains how to prepare for the Cisco NCS 1014 installation.

Shipping and Receiving

You can order the Cisco NCS 1014 as an assembled chassis (NCS1K14-SYS) along with the components. You can order the spare modules as well. See PIDs for all PIDs of the NCS 1014 components.

The shipped package contains the following:

  • Cisco NCS 1014 chassis. See Assembled Chassis.

  • Accessory kit (53-100873-02) that has all the installation hardware.


    Note

    From R24.4.1, you can order the NCS1K14-S-KIT accessory kit for 19-inch racks that are up to 40-inch in depth.
    Table 1. Accessory Kit Contents

    Accessory Kit

    Contents

    53-100873-02

    This kit has the following items for chassis installation:

    • Double hole 90-degree ground lug for chassis (1x).

      Note



      We recommend that you use the 90-degree ground lug for NCS 1014.

    • Double hole straight ground lug for chassis (1x)

    • M4 Phillips flat-head mounting screws for mounting brackets (12x)

    • M5 pan-head screws for ground lug (2x)

    • External tooth lock washers for ground lug (2x)

    • 12–24 pan head mounting screws for slide rails (24x)

    • Left mounting bracket for chassis (1x)

    • Right mounting bracket for chassis (1x)

    • 23" rack to 19" rack adapters (4x)

    • ETSI rack to 19" rack adapters (4x)

    • Two-post left slide rail (1x)

    • Two-post right slide rail (1x)

    • Four-post left slide rail (1x)

    • Four-post right slide rail (1x)

    NCS1K14-S-KIT

    This kit has the following items for chassis installation:

    • Four-post (30-40") left slider rail (1x)

    • Four-post (30-40") right slider rail (1x)

    • Fiber management bracket for power cable (1x)

    • Double hole straight ground lug for slider rail (1x)

    • External tooth lock washers for ground lug (2x)

    • Hex lock nuts for ground lug (2x)

    • M3 Phillips flat-head mounting screws for fiber manager bracket (4x)

    • 12–24 pan head mounting screws for slide rails (24x)

  • Spare Serial Number label.

  • Two PSUs—AC or DC. Installation of PSUs is discussed in the Install Cisco NCS 1014 Modules chapter.

  • AC and DC power cables that you have ordered.

    AC chassis—while ordering for an AC chassis, select the power cable type (straight, 90-degree, or jumper) and P1 connector (NEMA or CEE). Based on your choice, you will get a pair of 90 degree, straight, or jumper cables with NEMA or CEE connector for each PSU.

    Table 2. Power Cables for the AC Chassis

    Type of Cable

    Voltage

    P1 Connector

    P2 Connector

    PID

    Specs

    Cable Length (m)

    Straight cable

    240 V

    NEMA L6-20P

    IEC 60320 – C21

    NCS1K4-AC-PSU-CBL=

    16 A, 250 V

    4.250

    240 V

    CEE 7/7 (Europe)

    IEC 60320 – C21

    NCS1K4-AC-CBL-EU=

    16 A, 250 V

    4.250

    90-degree cable

    240 V

    CEE 7/7 (Europe)

    IEC 60320 – C21

    NCS1K4-AC-CBL-EU=

    16 A, 250 V

    4.250

    240 V

    NEMA L6-20P

    IEC 60320 – C21

    NCS1K4-AC-PSU-CBL

    16 A, 250 V

    4.250

    Straight jumper

    240 V

    IEC 60320 – C14

    IEC 60320 – C21

    NCS1K4-CBL-4.25M=

    16 A, 250 V

    4.250

    240 V

    IEC 60320 – C14

    IEC 60320 – C21

    NCS1K4-C21-C14-2M=

    16 A, 250 V

    2

    Straight jumper

    240 V

    IEC 60320 – C20

    IEC 60320 – C21

    N1K4-C2021-5F-NA=

    16 A, 250 V

    1.6 (North America)

    240 V

    IEC 60320 – C20

    IEC 60320 – C21

    N1K4-C2021-5F-EU=

    16 A, 250 V

    1.6 EU)

    240 V

    IEC 60320 – C20

    IEC 60320 – C21

    N1K4-C2021-5F-IN=

    16 A, 250 V

    1.6 (India)

    Straight jumper

    240 V

    IEC 60320 – C20

    IEC 60320 – C21

    N1K4-C2021-4M-NA=

    16 A, 250 V

    4.25 (North America)

    240 V

    IEC 60320 – C20

    IEC 60320 – C21

    N1K4-C2021-4M-EU=

    16 A, 250 V

    4.25 (EU)

    240 V

    IEC 60320 – C20

    IEC 60320 – C21

    N1K4-C2021-4M-IN=

    16 A, 250 V

    4.25 (India)

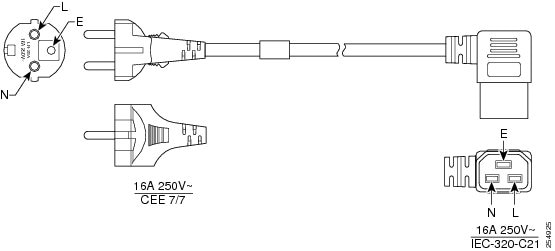

    Figure 1. 90-degree Cable (CEE 7/7)

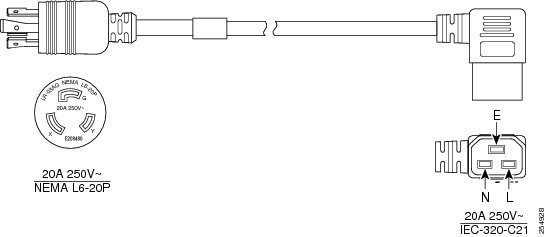

    Figure 2. 90-degree Cable (NEMA L6-20P)

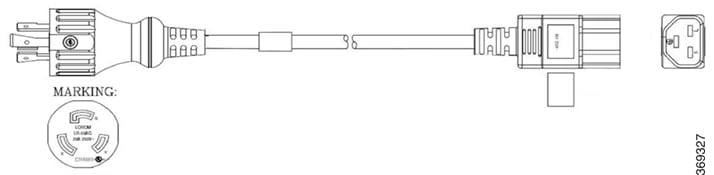

    Figure 3. Straight Cable (NEMA L6-20P)

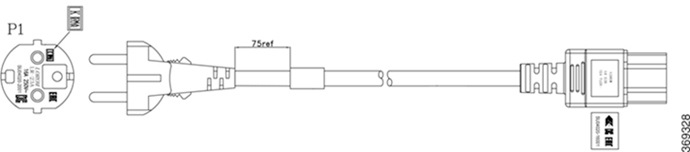

    Figure 4. Straight Cable (CEE 7/7)

    DC chassis—when you order for a DC chassis, you get four power lugs for each PSU (a pair of 90-degree and a pair of 180-degree lugs). The power lugs are included in the DC PSU package for spare-order. For Assemble-to-order, the power lugs are included in the Accessory kit.


    Important

    We recommend that you use the 180-degree power lugs for ETSI racks to maintain a footprint of 600 mm. Ensure that there is a minimum gap of 50 mm for routing the cables.

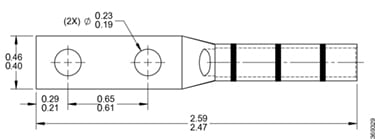

    Figure 5. DC Power Cable Lug (180-degree)

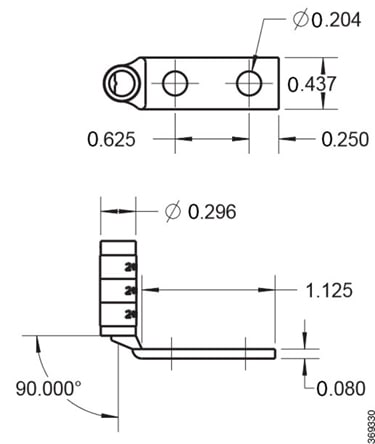

    Figure 6. DC Power Cable Lug (90-degree)

Assembled Chassis

The chassis is shipped in one of the following ways:

  • Chassis with Filler Cards and Line Cards

    You will receive the chassis with preinstalled line cards, based on the number of line cards that you have ordered, and filler cards in the rest of the cardslots. If you have preordered four line cards, then the chassis does not contain any filler cards. Four fiber management brackets come in the package, for each of the line card or filler cards preinstalled in the chassis. The controller, SSD, and three fan modules are also preinstalled. The chassis package includes only the accessory kit and PSUs.

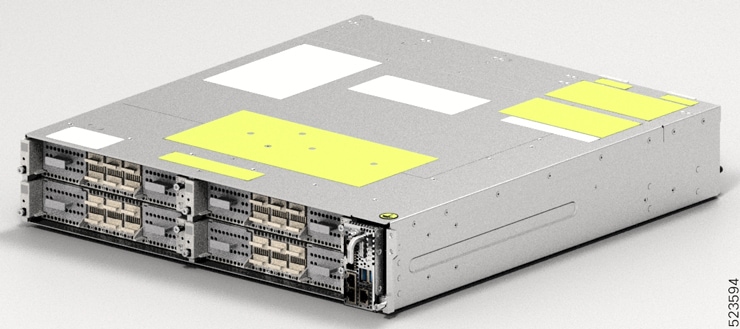

    Figure 7. Chassis Shipped with Line Cards

  • Chassis with Only Filler Cards

    You will receive the chassis with four filler cards in the cardslots. The chassis package includes four fiber management brackets, one bracket for each of the filler cards. If you order one or more line cards as spare items, you will receive each of them separately, with an extra fiber management bracket in each package. The controller, SSD, and three fan modules are preinstalled. The chassis package includes only the accessory kit and PSUs. You must order the line cards separately.

Unpack and Verify the Cisco NCS 1014 Chassis

Use this procedure to unpack the shipment and verify that you have all the chassis modules that are required for installation.

Procedure

Step 1

When you receive the Cisco NCS 1014 equipment at the installation site, open the top of the box.

Step 2

Remove accessories and foam inserts from the box. The box contains Cisco NCS 1014 chassis and other items that are needed for installation.

Step 3

To remove the chassis from the packaging, grasp the side of the chassis and lift it out of the box.

Use these lifting guidelines to avoid injury to yourself or damage to the equipment:

  • Do not lift equipment alone. Have another person help you to lift the equipment.

    A fully loaded chassis can weigh as much as 28.7 kg (63.3 lbs).

  • Ensure that your footing is solid; balance the weight of the object between your feet.

  • Lift the equipment slowly; never move suddenly or twist your body as you lift.

  • Keep your back straight and lift with your legs, not your back. When bending down to lift equipment, bend at the knees (not at the waist), to reduce the strain on your lower back muscles.

Step 4

Verify the following:

  • The Cisco NCS 1014 chassis is undamaged. Check the chassis for scratches, bends, discolorations, or deformations.

  • The other modules that are shipped with the chassis or separately are undamaged.

Step 5

If you notice any damage to the chassis or the modules, call your Cisco sales engineer for a replacement.
