Configuring Port Security

Cisco Nexus 5000 Series switches provide port security features that reject intrusion attempts and report these intrusions to the administrator.

Note Port security is supported on virtual Fibre Channel ports and physical Fibre Channel ports.

This chapter includes the following sections:

•Information About Port Security

•Configuring Port Security

•Enabling Port Security

•Port Security Activation

•Auto-Learning

•Port Security Manual Configuration

•Port Security Configuration Distribution

•Database Merge Guidelines

•Database Interaction

•Default Settings

Information About Port Security

Typically, any Fibre Channel device in a SAN can attach to any SAN switch port and access SAN services based on zone membership. Port security features prevent unauthorized access to a switch port in the Cisco Nexus 5000 Series switch, using the following methods:

•Login requests from unauthorized Fibre Channel devices (N ports) and switches (xE ports) are rejected.

•All intrusion attempts are reported to the SAN administrator through system messages.

•Configuration distribution uses the CFS infrastructure, and is limited to those switches that are CFS capable. Distribution is disabled by default.

•Configuring the port security policy requires the Storage Protocol Services license.

This section includes the following topics:

•Port Security Enforcement

•About Auto-Learning

•Port Security Activation

Port Security Enforcement

To enforce port security, configure the devices and switch port interfaces through which each device or switch is connected, and activate the configuration.

•Use the port world wide name (pWWN) or the node world wide name (nWWN) to specify the N port connection for each device.

•Use the switch world wide name (sWWN) to specify the xE port connection for each switch.

Each N and xE port can be configured to restrict a single port or a range of ports.

Enforcement of port security policies are done on every activation and when the port tries to come up.

The port security feature uses two databases to accept and implement configuration changes.

•Configuration database—All configuration changes are stored in the configuration database.

•Active database—The database currently enforced by the fabric. The port security feature requires all devices connecting to a switch to be part of the port security active database. The software uses this active database to enforce authorization.

About Auto-Learning

You can instruct the switch to automatically learn (auto-learn) the port security configurations over a specified period. This feature allows any Cisco Nexus 5000 Series switch to automatically learn about devices and switches that connect to it. Use this feature when you activate the port security feature for the first time as it saves tedious manual configuration for each port. You must configure auto-learning on a per-VSAN basis. If enabled, devices and switches that are allowed to connect to the switch are automatically learned, even if you have not configured any port access.

When auto-learning is enabled, learning happens only for the devices or interfaces that were not already logged into the switch. Learned entries on a port are cleaned up after you shut down that port if auto-learning is still enabled.

Learning does not override the existing configured port security policies. For example, if an interface is configured to allow a specific pWWN, then auto-learning will not add a new entry to allow any other pWWN on that interface. All other pWWNs will be blocked even in auto-learning mode.

No entries are learned for a port in the shutdown state.

When you activate the port security feature, auto-learning is also automatically enabled.

Note If you enable auto-learning before activating port security, you cannot activate port security until auto-learning is disabled.

Port Security Activation

By default, the port security feature is not activated in Cisco Nexus 5000 Series switches.

When you activate the port security feature, the following operations occur:

•Auto-learning is also automatically enabled, which means:

–From this point, auto-learning happens only for the devices or interfaces that were not logged into the switch.

–You cannot activate the database until you disable auto-learning.

•All the devices that are already logged in are learned and are added to the active database.

•All entries in the configured database are copied to the active database.

After the database is activated, subsequent device login is subject to the activated port bound WWN pairs, excluding the auto-learned entries. You must disable auto-learning before the auto-learned entries become activated.

When you activate the port security feature, auto-learning is also automatically enabled. You can choose to activate the port security feature and disable auto-learning.

Tip If a port is shut down because of a denied login attempt, and you subsequently configure the database to allow that login, the port does not come up automatically. You must explicitly enter a no shutdown CLI command to bring that port back online.

Configuring Port Security

The steps to configure port security depend on which features you are using. Auto-learning works differently if you are using CFS distribution.

This section includes the following topics:

•Configuring Port Security with Auto-Learning and CFS Distribution

•Configuring Port Security with Auto-Learning without CFS

•Configuring Port Security with Manual Database Configuration

Configuring Port Security with Auto-Learning and CFS Distribution

To configure port security, using auto-learning and CFS distribution, perform this task:

Step 1 Enable port security.

See the "Enabling Port Security" section.

Step 2 Enable CFS distribution.

See the "Enabling Distribution" section.

Step 3 Activate port security on each VSAN.

This action turns on auto-learning by default. See the "Activating Port Security" section.

Step 4 Issue a CFS commit to copy this configuration to all switches in the fabric.

See the "Committing the Changes" section. All switches have port security activated with auto-learning enabled.

Step 5 Wait until all switches and all hosts are automatically learned.

Step 6 Disable auto-learn on each VSAN.

See the"Disabling Auto-Learning" section.

Step 7 Issue a CFS commit to copy this configuration to all switches in the fabric.

See the "Committing the Changes" section. The auto-learned entries from every switch are combined into a static active database that is distributed to all switches.

Step 8 Copy the active database to the configure database on each VSAN.

See the "Copying the Port Security Database" section.

Step 9 Issue a CFS commit to copy this configuration to all switches in the fabric.

See the "Committing the Changes" section. This ensures that the configure database is the same on all switches in the fabric.

Step 10 Copy the running configuration to the startup configuration, using the fabric option.

This step saves the port security configure database to the startup configuration on all switches in the fabric.

Configuring Port Security with Auto-Learning without CFS

To configure port security using auto-learning without CFS, perform this task:

Step 1 Enable port security.

See the "Enabling Port Security" section.

Step 2 Activate port security on each VSAN, which turns on auto-learning by default.

See the "Activating Port Security" section.

Step 3 Wait until all switches and all hosts are automatically learned.

Step 4 Disable auto-learn on each VSAN.

See the "Disabling Auto-Learning" section.

Step 5 Copy the active database to the configure database on each VSAN.

See the "Copying the Port Security Database" section.

Step 6 Copy the running configuration to the startup configuration, which saves the port security configuration database to the startup configuration.

Step 7 Repeat Step 1 through Step 6 for all switches in the fabric.

Configuring Port Security with Manual Database Configuration

To configure port security and manually configure the port security database, perform this task:

Step 1 Enable port security.

See the "Enabling Port Security" section.

Step 2 Manually configure all port security entries into the configure database on each VSAN.

See the "Configuring Port Security with Manual Database Configuration" section.

Step 3 Activate port security on each VSAN. This turns on auto-learning by default.

See the "Disabling Auto-Learning" section.

Step 4 Disable auto-learn on each VSAN.

See the "Disabling Auto-Learning" section.

Step 5 Copy the running configuration to the startup configuration, which saves the port security configuration database to the startup configuration.

Step 6 Repeat Step 1 through Step 5 for all switches in the fabric.

Enabling Port Security

By default, the port security feature is disabled in Cisco Nexus 5000 Series switches.

To enable port security using Fabric Manager, perform this task:

Step 1 Expand a VSAN, and then choose Port Security in the Logical Domains pane.

You see the port security configuration for that VSAN in the Information pane as shown in Figure 24-1.

Figure 24-1 Port Security Configuration

Step 2 Click the CFS tab.

You see the information shown in Figure 24-2.

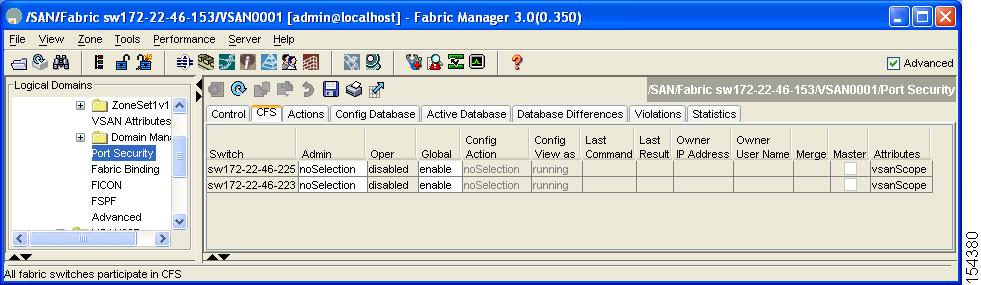

Figure 24-2 Port Security CFS

Step 3 Enable CFS on all participating switches in the VSAN by clicking each entry in the Global column and selecting enable.

Step 4 Click Apply Changes to enable CFS distribution for the port security feature.

Step 5 Click the Control tab.

You see the port security enable state for all switches in the selected VSAN as shown in Figure 24-3.

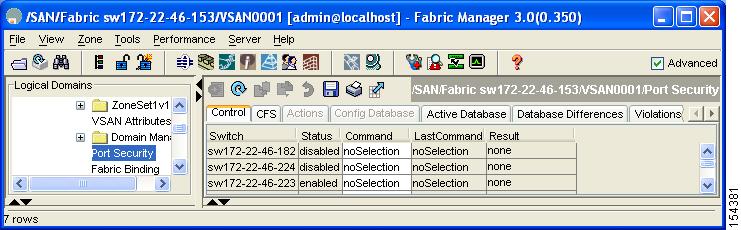

Figure 24-3 Port Security Configuration

Step 6 In the Status column, choose enable for each switch in the VSAN.

Step 7 Click the CFS tab and in the Command column choose commit on all participating switches in the VSAN.

Step 8 Click Apply Changes to distribute the enabled port security to all switches in the VSAN.

Port Security Activation

This section includes the following topics:

•Activating Port Security

•Database Activation Rejection

•Forcing Port Security Activation

•Database Reactivation

•Copying an Active Database to the Config Database

•Displaying Activated Port Security Settings

•Displaying Port Security Statistics

•Displaying Port Security Violations

Activating Port Security

To activate port security using Fabric Manager, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

You see the port security configuration for that VSAN in the Information pane.

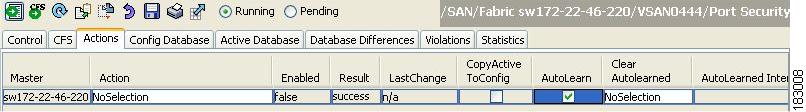

Step 2 Click the Actions tab.

Step 3 In the Action column under Activation, choose the switch or VSAN on which you want to activate port security. You see a drop-down list with the following options:

•activate—Valid port security settings are activated.

•activate (TurnLearningOff)—Valid port security settings are activated and auto-learn turned off.

•forceActivate—Activation is forced.

•forceActivate(TurnLearningOff)—Activation is forced and auto-learn is turned off.

•deactivate—All currently active port security settings are deactivated.

•NoSelection— No action is taken.

Step 4 Set the Action field you want for that switch.

Step 5 Uncheck the AutoLearn check box for each switch in the VSAN to disable auto-learning.

Step 6 Click the CFS tab and set the command column to commit on all participating switches in the VSAN.

Step 7 Click Apply Changes in Fabric Manager to save these changes.

Database Activation Rejection

Database activation is rejected in the following cases:

•Missing or conflicting entries exist in the configuration database but not in the active database.

•The auto-learning feature was enabled before the activation. To reactivate a database in this state, disable auto-learning.

•The exact security is not configured for each port channel member.

•The configured database is empty but the active database is not.

If the database activation is rejected due to one or more conflicts listed in the previous section, you may decide to proceed by forcing the port security activation.

Forcing Port Security Activation

If the port security activation request is rejected, you can force the activation.

Note If you force the activation, existing devices are logged out if they violate the active database.

To forcefully activate the port security database using Fabric Manager, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

You see the port security configuration for that VSAN in the Information pane.

Step 2 Click the Actions tab.

Step 3 In the Action column under Activation, choose the switch or VSAN on which you want to activate port security and choose the forceactivate option.

Step 4 Choose the Action field you want for that switch.

Step 5 Click the CFS tab and in the command column choose commit for all participating switches in the VSAN.

Step 6 Click Apply Changes in Fabric Manager to save these changes.

Database Reactivation

Tip If auto-learning is enabled, and you cannot activate the database, you will not be allowed to proceed.

To reactivate the port security database using Fabric Manager, perform this task:

Step 1 Disable auto-learning.

Step 2 Copy the active database to the configured database.

Tip If the active database is empty, you cannot perform this step.

Step 3 Make the required changes to the configuration database.

Step 4 Activate the database.

Copying an Active Database to the Config Database

To copy the active database to the config database using Fabric Manager, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

You see the port security configuration for that VSAN in the Information pane.

Step 2 Click the Actions tab.

You see the switches for that VSAN.

Step 3 Check the CopyActive ToConfig check box next to the switch for which you want to copy the database.

The active database is copied to the config database when the security setting is activated.

Step 4 Uncheck the CopyActive ToConfig check box if you do not want the database copied when the security setting is activated.

Step 5 Click the CFS tab and in the command column choose commit for all participating switches in the VSAN.

Step 6 Click Apply Changes to save these changes or click Undo Changes to discard any unsaved changes.

Displaying Activated Port Security Settings

To display active port security settings using Fabric Manager, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

You see the port security configuration for that VSAN in the Information pane.

Step 2 Click the Active Database tab.

You see the active port security settings for that VSAN.

Displaying Port Security Statistics

To display port security statistics using Fabric Manager, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

You see the port security configuration for that VSAN in the Information pane.

Step 2 Click the Statistics tab.

You see the port security statistics for that VSAN.

Displaying Port Security Violations

Port violations are invalid login attempts (for example, login requests from unauthorized Fibre Channel devices). You can display a list of these attempts on a per-VSAN basis, using Fabric Manager.

To display port security violations, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

You see the port security configuration for that VSAN in the Information pane.

Step 2 Click the Violations tab.

You see the port security violations for that VSAN.

Auto-Learning

This section includes the following topics:

•About Enabling Auto-Learning

•Enabling Auto-Learning

•Disabling Auto-Learning

•Auto-Learning Device Authorization

•Authorization Scenario

About Enabling Auto-Learning

The state of the auto-learning configuration depends on the state of the port security feature:

•If the port security feature is not activated, auto-learning is disabled by default.

•If the port security feature is activated, auto-learning is enabled by default (unless you explicitly disabled this option).

Tip If auto-learning is enabled on a VSAN, you can only activate the database for that VSAN by using the force option.

Enabling Auto-Learning

To enable auto-learning using Fabric Manager, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

You see the port security configuration for that VSAN in the Information pane as shown in Figure 24-4.

Figure 24-4 Port Security Configuration

Step 2 Click the Actions tab.

Step 3 In the Action column under Activation, choose the switch or VSAN on which you want to activate port security. You see a drop-down list with the following options:

•activate—Valid port security settings are activated.

•activate (TurnLearningOff)—Valid port security settings are activated and auto-learn turned off.

•forceActivate—Activation is forced.

•forceActivate(TurnLearningOff)—Activation is forced and auto-learn is turned off.

•deactivate—All currently active port security settings are deactivated.

•NoSelection— No action is taken.

Step 4 Choose one of the port security options for that switch.

Step 5 Check the AutoLearn check box for each switch in the VSAN to enable auto-learning.

Step 6 Click the Apply Changes icon to save these changes.

Disabling Auto-Learning

To disable auto-learning using Fabric Manager, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

You see the port security configuration for that VSAN in the Information pane (see Figure 24-4).

Step 2 Click the Actions tab.

You see the switches for that VSAN.

Step 3 Uncheck the AutoLearn check box next to the switch if you want to disable auto-learning.

Step 4 Click the Apply Changes icon to save these changes.

Auto-Learning Device Authorization

Table 24-1 summarizes the authorized connection conditions for device requests.

Table 24-1 Authorized Auto-Learning Device Requests

Condition
Device (pWWN, nWWN, sWWN)
Requests Connection to
Authorization

1

Configured with one or more switch ports

A configured switch port

Permitted

2

Any other switch port

Denied

3

Not configured

A switch port that is not configured

Permitted if
auto-learning enabled

4

Denied if
auto-learning disabled

5

Configured or not configured

A switch port that allows any device

Permitted

6

Configured to log in to any switch port

Any port on the switch

Permitted

7

Not configured

A port configured with some other device

Denied


Authorization Scenario

Assume that the port security feature is activated and the following conditions are specified in the active database:

•A pWWN (P1) is allowed access through interface fc2/1 (F1).

•A pWWN (P2) is allowed access through interface fc2/2 (F1).

•A nWWN (N1) is allowed access through interface fc2/2 (F2).

•Any WWN is allowed access through interface vfc3/1 (F3).

•A nWWN (N3) is allowed access through any interface.

•A pWWN (P3) is allowed access through interface fc2/4 (F4).

•A sWWN (S1) is allowed access through interface fc3/1-3 (F10 to F13).

•A pWWN (P10) is allowed access through interface vfc4/1 (F11).

Table 24-2 summarizes the port security authorization results for this active database. The conditions listed refer to the conditions from Table 24-1.

Table 24-2 Authorization Results for Scenario

Device Connection Request
Authorization
Condition
Reason

P1, N2, F1

Permitted

1

No conflict.

P2, N2, F1

Permitted

1

No conflict.

P3, N2, F1

Denied

2

F1 is bound to P1/P2.

P1, N3, F1

Permitted

6

Wildcard match for N3.

P1, N1, F3

Permitted

5

Wildcard match for F3.

P1, N4, F5

Denied

2

P1 is bound to F1.

P5, N1, F5

Denied

2

N1 is only allowed on F2.

P3, N3, F4

Permitted

1

No conflict.

S1, F10

Permitted

1

No conflict.

S2, F11

Denied

7

P10 is bound to F11.

P4, N4, F5 (auto-learning on)

Permitted

3

No conflict.

P4, N4, F5 (auto-learning off)

Denied

4

No match.

S3, F5 (auto-learning on)

Permitted

3

No conflict.

S3, F5 (auto-learning off)

Denied

4

No match.

P1, N1, F6 (auto-learning on)

Denied

2

P1 is bound to F1.

P5, N5, F1 (auto-learning on)

Denied

7

Only P1 and P2 bound to F1.

S3, F4 (auto-learning on)

Denied

7

P3 paired with F4.

S1, F3 (auto-learning on)

Permitted

5

No conflict.

P5, N3, F3

Permitted

6

Wildcard ( * ) match for F3 and N3.

P7, N3, F9

Permitted

6

Wildcard ( * ) match for N3.


Port Security Manual Configuration

To configure port security on a Cisco Nexus 5000 Series switch, perform this task:

Step 1 Identify the WWN of the ports that need to be secured.

See the "Adding Authorized Port Pairs" section.

Step 2 Secure the fWWN to an authorized nWWN or pWWN.

Step 3 Activate the port security database.

Step 4 Verify your configuration.

This section includes the following topics:

•WWN Identification Guidelines

•Adding Authorized Port Pairs

•Deleting Port Security Setting

WWN Identification Guidelines

If you decide to manually configure port security, note the following guidelines:

•Identify switch ports by the interface or by the fWWN.

•Identify devices by the pWWN or by the nWWN.

•If an N port is allowed to log in to SAN switch port F, then that N port can only log in through the specified F port.

•If an N port's nWWN is bound to an F port WWN, then all pWWNs in the N port are implicitly paired with the F port.

•TE port checking is done on each VSAN in the allowed VSAN list of the VSAN trunk port.

•All port channel xE ports must be configured with the same set of WWNs in the same SAN port channel.

•E port security is implemented in the port VSAN of the E port. In this case, the sWWN is used to secure authorization checks.

•Once activated, the configuration database can be modified without any effect on the active database.

•By saving the running configuration, you save the configuration database and activated entries in the active database. Learned entries in the active database are not saved.

Adding Authorized Port Pairs

After identifying the WWN pairs that need to be bound, add those pairs to the port security database.

Tip Remote switch binding can be specified at the local switch. To specify the remote interfaces, you can use either the fWWN or sWWN-interface combination.

To add authorized port pairs for port security using Fabric Manager, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

Step 2 Click the Config Database tab.

Step 3 Click Create Row to add an authorized port pair.

You see the Create Port Security dialog box as shown in Figure 24-5.

Figure 24-5 Create Port Security Dialog Box

Step 4 Double-click the device from the available list for which you want to create the port security setting.

Step 5 Double-click the port from the available list to which you want to bind the device.

Step 6 Click Create to create the port security setting.

Step 7 Click the Apply Changes icon to save these changes.

Deleting Port Security Setting

To delete a port security setting from the configured database on a switch, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

Step 2 Click the Config Database tab.

You see the configured port security settings for that VSAN.

Step 3 Click in the row you want to delete.

Step 4 Choose Delete Row.

You see the confirmation dialog box.

Step 5 Click Yes to delete the row, or click No to close the confirmation dialog box without deleting the row.

Step 6 Click the Apply Changes icon to save these changes.

Port Security Configuration Distribution

The port security feature uses the Cisco Fabric Services (CFS) infrastructure to enable efficient database management, provide a single point of configuration for the entire fabric in the VSAN, and enforce the port security policies throughout the fabric (see Chapter 7, "Using Cisco Fabric Services").

This section contains the following topics:

•Enabling Distribution

•Locking the Fabric

•Committing the Changes

•Activation and Auto-Learning Configuration Distribution

Enabling Distribution

All the configurations performed in distributed mode are stored in a pending (temporary) database. If you modify the configuration, you need to commit or discard the pending database changes to the configurations. The fabric remains locked during this period. Changes to the pending database are not reflected in the configurations until you commit the changes.

Note Port activation or deactivation and auto-learning enable or disable do not take effect until after a CFS commit if CFS distribution is enabled. Always follow any one of these operations with a CFS commit to ensure proper configuration. See the "Activation and Auto-Learning Configuration Distribution" section.

Tip We recommend that you perform a commit after you activate port security and after you enable auto learning.

To enable distribution using Fabric Manager, perform this task:

Step 1 Expand a VSAN and then choose Port Security in the Logical Domains pane.

You see the port security configuration for that VSAN in the Information pane as shown in Figure 24-4.

Step 2 Click the Control tab.

You see the switches for that VSAN.

Step 3 In the Command column, choose enable or disable from the drop-down list.

Step 4 Click the Apply Changes icon to save the changes.

Locking the Fabric

The first action that modifies the existing configuration creates the pending database and locks the feature in the VSAN. Once you lock the fabric, the following situations apply:

•No other user can make any configuration changes to this feature.

•A copy of the configuration database becomes the pending database.

Committing the Changes

If you commit the changes made to the configurations, the configurations in the pending database are distributed to other switches. On a successful commit, the configuration change is applied throughout the fabric and the lock is released.

Activation and Auto-Learning Configuration Distribution

Activation and auto-learning configurations in distributed mode are remembered as actions to be performed when you commit the changes in the pending database.

Learned entries are temporary and do not have any role in determining if a login is authorized or not. As such, learned entries do not participate in distribution. When you disable learning and commit the changes in the pending database, the learned entries become static entries in the active database and are distributed to all switches in the fabric. After the commit, the active database on all switches are identical and learning can be disabled.

If the pending database contains more than one activation and auto-learning configuration when you commit the changes, the activation and auto-learning changes are consolidated and the resulting operation may change (see Table 24-3).

Table 24-3 Scenarios for Activation and Auto-learning Configurations in Distributed Mode

Scenario
Actions
Distribution = OFF
Distribution = ON

A and B exist in the configuration database, activation is not done and devices C,D are logged in.

1. You activate the port security database and enable auto-learning.

configuration database = {A,B}

active database = {A,B, C1 , D*}

configuration database = {A,B}

active database = {null}

pending database = {A,B + activation to be enabled}

2. A new entry E is added to the configuration database.

configuration database = {A,B, E}

active database = {A,B, C*, D*}

configuration database = {A,B}

active database = {null}

pending database = {A,B, E + activation to be enabled}

3. You issue a commit.

Not applicable

configuration database = {A,B, E}

active database = {A,B, E, C*, D*}

pending database = empty

A and B exist in the configuration database, activation is not done and devices C,D are logged in.

1. You activate the port security database and enable auto-learning.

configuration database = {A,B}

active database = {A,B, C*, D*}

configuration database = {A,B}

active database = {null}

pending database = {A,B + activation to be enabled}

2. You disable learning.

configuration database = {A,B}

active database = {A,B, C, D}

configuration database = {A,B}

active database = {null}

pending database = {A,B + activation to be enabled +
learning to be disabled}

3. You issue a commit.

Not applicable

configuration database = {A,B}

active database = {A,B} and devices C and D are logged out. This is equal to an activation with auto-learning disabled.

pending database = empty

1 The * (asterisk) indicates learned entries.


Tip In this case, we recommend that you perform a commit at the end of each operation: after you activate port security and after you enable auto-learning.

Database Merge Guidelines

A database merge refers to a union of the configuration database and static (unlearned) entries in the active database. See the "CFS Merge Support" section on page 7-6 for detailed concepts.

When merging the database between two fabrics, follow these guidelines:

•Verify that the activation status and the auto-learning status is the same in both fabrics.

•Verify that the combined number of configurations for each VSAN in both databases does not exceed 2000.

Caution If you do not follow these two conditions, the merge will fail. The next distribution will forcefully synchronize the databases and the activation states in the fabric.

Database Interaction

This section includes the following topics:

•Database Scenarios

•Copying the Port Security Database

•Deleting the Port Security Database

•Clearing the Port Security Database

Database Scenarios

Figure 24-6 illustrates various scenarios showing the active database and the configuration database status based on port security configurations.

Figure 24-6 Port Security Database Scenarios

Copying the Port Security Database

Tip We recommend that you copy the active database to the config database after disabling auto-learning. This action will ensure that the configuration database is in synchronization with the active database. If distribution is enabled, this command creates a temporary copy (and consequently a fabric lock) of the configuration database. If you lock the fabric, you need to commit the changes to the configuration databases in all the switches.

To copy the active database to the configuration database, using Fabric Manager, perform this task:

Step 1 Expand a Fabric, expand a VSAN, and then choose Port Security in the Logical Domains pane.

Step 2 Click the Actions tab.

You see all the configuration databases.

Step 3 Choose the appropriate configuration database and check the Copy Active to Config checkbox.

Step 4 Click the Apply Changes icon to save your changes.

To view the differences between the active database and the configuration database using Fabric Manager, perform this task:

Step 1 Expand a Fabric, expand a VSAN, and then choose Port Security in the Logical Domains pane.

You see the Port Security information in the Information pane.

Step 2 Click the Database Differences tab.

You see all the configuration databases.

Step 3 Choose the appropriate configuration database. Choose the Active or Config option to compare the differences between the selected database and the active or configuration database.

Step 4 Click the Apply Changes icon to save your changes.

Deleting the Port Security Database

Tip If the distribution is enabled, the deletion creates a copy of the database. An explicit deletion is required to actually delete the database.

To delete a port security database using Fabric Manager, perform this task:

Step 1 Expand a Fabric, expand a VSAN, and then choose Port Security in the Logical Domains pane.

You see the Port Security information in the Information pane.

Step 2 Click the Config Database tab.

You see all the configuration databases.

Step 3 Choose the appropriate configuration database and click the Delete Row button.

Step 4 Click Yes if you want to delete the configuration database.

Clearing the Port Security Database

To clear all existing statistics from the port security database for a specified VSAN using Fabric Manager, perform this task:

Step 1 Expand a Fabric, expand a VSAN, and then choose Port Security in the Logical Domains pane.

You see the Port Security information in the Information pane (see Figure 24-4).

Step 2 Click the Statistics tab.

You see all the configuration databases.

Step 3 Choose the appropriate configuration database and check the Clear option.

Step 4 Click the Apply Changes icon to save your changes.

To clear any learned entries in the active database for a specified interface within a VSAN using Fabric Manager, perform this task:

Step 1 Expand a Fabric, expand a VSAN, and then choose Port Security in the Logical Domains pane.

You see the Port Security information in the Information pane.

Step 2 Click the Actions tab.

You see all the configuration databases.

Step 3 Choose the appropriate configuration database and check the AutoLearn option.

Step 4 Click the Apply Changes icon to save your changes.

Note You can clear the Statistics and the AutoLearn option only for switches that are local and do not acquire locks. Also, learned entries are only local to the switch and do not participate in distribution.

Default Settings

Table 24-4 lists the default settings for all port security features in any switch.

Table 24-4 Default Security Settings

Parameters
Default

Auto-learn

Enabled if port security is enabled.

Port security

Disabled.

Distribution

Disabled.

Note Enabling distribution enables it on all VSANs in the switch.
