TLS/SSL Rules and Policy Example

This chapter builds on concepts discussed in this guide to provide a specific example of an SSL policy with TLS/SSL rules that follow our best practices and recommendations. You should be able to apply this example to your situation, adapting it to the needs of your organization.

In short:

  • For trusted traffic (such as transferring a large compressed server backup), bypass inspection entirely, using prefiltering and flow offload.

  • Put first any TLS/SSL rules that can be evaluated quickly, such as those that apply to specific IP addresses.

  • Put last any TLS/SSL rules that require processing, Decrypt - Resign, and rules that block unsecure protocol versions and cipher suites.

TLS/SSL Rules Best Practices

This chapter provides an example SSL policy with TLS/SSL rules that illustrates our best practices and recommendations. First we'll discuss settings for the SSL and access control policies and then walk through all the rules and why we recommend they be ordered in a particular way.

Following is the SSL policy we'll discuss in this chapter.

The sample SSL policy has several rules ordered simplest to most complex; this enables the system to quickly process traffic that matches the simplest rule and allow the system more time to match more complex rules.

Bypass Inspection with Prefilter and Flow Offload

Prefiltering is the first phase of access control, before the system performs more resource-intensive evaluation. Prefiltering is simple, fast, and early. Prefiltering uses limited outer-header criteria to quickly handle traffic. Compare this to subsequent evaluation, which uses inner headers and has more robust inspection capabilities.

Configure prefiltering to:

  • Improve performance— The sooner you exclude traffic that does not require inspection, the better. You can fastpath or block certain types of plaintext, passthrough tunnels based on their outer encapsulation headers, without inspecting their encapsulated connections. You can also fastpath or block any other connections that benefit from early handling.

  • Tailor deep inspection to encapsulated traffic—You can rezone certain types of tunnels so that you can later handle their encapsulated connections using the same inspection criteria. Rezoning is necessary because after prefiltering, access control uses inner headers.

If you have a Firepower 4100/9300 available, you can use large flow offload, a technique where trusted traffic can bypass the inspection engine for better performance. You can use it, for example, in a data center to transfer server backups.

Do Not Decrypt Best Practices

Log traffic

We recommend against creating Do Not Decrypt rules that do not log anything because these rules still take processing time on the managed device. If you set up any type of TLS/SSL rules, enable logging so you can see what traffic is being matched.

Guidelines for undecryptable traffic

We can determine that certain traffic is not decryptable either because the website itself is not decryptable or because the website uses SSL pinning, which effectively prevents users from accessing a decrypted site without errors in their browser.

For more information about certificate pinning, see About TLS/SSL Pinning.

We maintain the list of these sites as follows:

  • A Distinguished Name (DN) group named Cisco-Undecryptable-Sites

If you are decrypting traffic and you do not want users to see errors in their browsers when going to these sites, we recommend you set up a Do Not Decrypt rule toward the bottom of your TLS/SSL rules.

Decrypt - Resign and Decrypt - Known Key Best Practices

This topic discusses best practices for Decrypt - Resign and Decrypt - Known Key TLS/SSL rule.

Decrypt - Resign Best Practices With Certificate Pinning

Some applications use a technique referred to as TLS/SSL pinning or certificate pinning, which embeds the fingerprint of the original server certificate in the application itself. As a result, if you configured a TLS/SSL rule with a Decrypt - Resign action, when the application receives a resigned certificate from a managed device, validation fails and the connection is aborted.

Because TLS/SSL pinning is used to avoid man-in-the-middle attacks, there is no way to prevent or work around it. You have the following options:

  • Create a Do Not Decrypt for those applications rule ordered before Decrypt - Resign rules.

  • Instruct users to access the applications using a web browser.

For more information about certificate pinning, see About TLS/SSL Pinning.

Decrypt - Known Key Best Practices

Because a Decrypt - Known Key rule action is intended to be used for traffic going to an internal server, you should always add a destination network to these rules (Networks rule condition). That way the traffic goes directly to the network on which the server is located, thereby reducing traffic on the network.

TLS/SSL Rules to Put First

Put first any rules that can be matched by the first part of the packet; an example is a rule that references IP addresses (Networks rule condition).

TLS/SSL Rules to Put Last

Rules with the following rule conditions should be last because those rules require traffic to be examined for the longest amount of time by the system:

  • Applications

  • Category

  • Certificate

  • Distinguished Name (DN)

  • Cert Status

  • Cipher Suite

  • Version

SSL Policy Walkthrough

This chapter provides a step-by-step discussion and walkthrough of how to create a SSL policy using rules that employ our best practices. You'll see a preview of the SSL policy followed by a synopsis of the best practices and finally a discussion of the rules in the policy.

Following is the SSL policy we'll discuss in this chapter.

The sample SSL policy has several rules ordered simplest to most complex; this enables the system to quickly process traffic that matches the simplest rule and allow the system more time to match more complex rules.

See one of the following sections for more information.

Recommended Policy and Rule Settings

We recommend the following policy settings:

  • SSL policy:

    • Default action Do Not Decrypt.

    • Enable logging.

    • Set Undecryptable Actions to Block for both SSL v2 Session and Compressed Session.

  • TLS/SSL rule: Enable logging for every rule except those with a Do Not Decrypt rule action. (It's up to you; if you want to see information about traffic that isn't decrypted, enable logging for those rules also.)

  • Access control policy:

    • Associate your SSL policy with an access control policy. (If you fail to do this, your SSL policy and rules have no effect.)

    • Set the default policy action to Intrusion Prevention: Balanced Security and Connectivity.

    • Enable logging.

SSL Policy Settings

How to configure recommended the following best practice settings for your SSL policy:

  • Default action Do Not Decrypt.

  • Enable logging.

  • Set Undecryptable Actions to Block for both SSL v2 Session and Compressed Session.

Procedure

Step 1

Log in to the Firepower Management Center if you haven't already done so.

Step 2

Click Policies > Access Control > SSL.

Step 3

Click Edit (edit icon) next to your SSL policy.

Step 4

From the Default Action list at the bottom of the page, click Do Not Decrypt.

The following figure shows an example.

Step 5

At the end of the row, click Logging (logging icon).

Step 6

Select the Log at End of Connection check box.

Step 7

Click OK.

Step 8

Click Save.

Step 9

Click the Undecryptable Actions tab.

Step 10

We recommend setting the action for SSLv2 Session and Compressed Session to Block.

You shouldn't allow SSL v2 on your network and compressed TLS/SSL traffic is not supported so you should block that traffic as well.

See Default Handling Options for Undecryptable Traffic for more information about setting each option.

The following figure shows an example.

This sample SSL policy blocks all traffic that uses either the unsupported SSL v2 protocol or the unsupported compression sessions.

Step 11

At the top of the page, click Save.

What to do next

Configure TLS/SSL rules and set each one as discussed in TLS/SSL Rule Settings.

Access Control Policy Settings

How to configure recommended the following best practice settings for your access control policy:

  • Associate your SSL policy with an access control policy. (If you fail to do this, your SSL policy and rules have no effect.)

  • Set the default policy action to Intrusion Prevention: Balanced Security and Connectivity.

  • Enable logging.

Procedure

Step 1

Log in to the Firepower Management Center if you haven't already done so.

Step 2

Click Policies > Access Control.

Step 3

Click Edit (edit icon) next to your access control policy.

Step 4

(If your SSL policy isn't set up yet, you can do this later.)

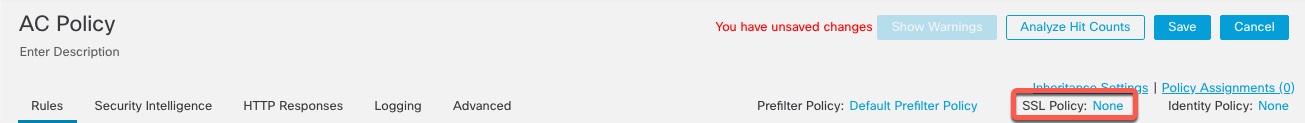

  1. Click the word None next to SSL Policy at the top of the page as the following figure shows.

    For your SSL policy to have any effect, you must associate it with an access control policy.

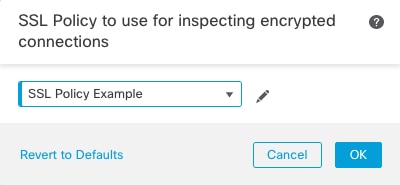

  2. From the list, click the name of your SSL policy. The following figure shows an example.

    Choosing an SSL policy to associate with an access control policy.

  3. Click OK.

  4. At the top of the page, click Save.

Step 5

From the Default Action list at the bottom of the page, click Intrusion Prevention: Balanced Security and Connectivity.

The following figure shows an example.

Step 6

Click Logging (logging icon).

Step 7

Select the Log at End of Connection check box and click OK.

Step 8

Click Save.

What to do next

See TLS/SSL Rule Examples.

TLS/SSL Rule Examples

This section provides an example of TLS/SSL rule that illustrate our best practices.

See one of the following sections for more information.

Traffic to Prefilter

Prefiltering is the first phase of access control, before the system performs more resource-intensive evaluation. Prefiltering is simple, fast, and early compared to subsequent evaluation, which uses inner headers and has more robust inspection capabilities.

Based on your security needs and traffic profile, you should consider prefiltering and therefore excluding from any policy and inspection the following:

  • Common intraoffice applications such as Microsoft Outlook 365

  • Elephant flows, such as server backups

First TLS/SSL Rule: Do Not Decrypt Specific Traffic

The first TLS/SSL rule in the example does not decrypt traffic that goes to an internal network (defined as intranet ). Do Not Decrypt rule actions are matched during ClientHello so they are processed very fast.

This sample rule allows traffic to pass undecrypted if it goes to an internal network.


Note

If you have traffic going from internal DNS servers to internal DNS resolvers (such as Cisco Umbrella Virtual Appliances), you can add Do Not Decrypt rules for them as well. You can even add those to prefiltering policies if the internal DNS servers do their own logging.

However, we strongly recommend you do not use Do Not Decrypt rules or prefiltering for DNS traffic that goes to the internet, such as internet root servers (for example, Microsoft internal DNS resolvers built into Active Directory). In those cases, you should fully inspect the traffic or even consider blocking it.

In this rule, you specify a previously defined internal network on the Networks tab page. To define the internal network, go to Objects > Object Management > Network.

Next TLS/SSL Rules: Decrypt Specific Test Traffic

The next rule is optional in the example; use it to decrypt and monitor limited types of traffic before determining whether or not to allow it on your network.

This sample rule decrypts and monitors traffic so you can decide whether or not to allow it on your network.

Rule detail:

Detailed information about the rule; it's decrypting traffic destined to astrology websites.

Do Not Decrypt Low-Risk Categories, Reputations, or Applications

Evaluate the traffic on your network to determine which would match low-risk categories, reputations, or applications, and add those rules with a Do Not Decrypt action. Put these rules after other more specific Do Not Decrypt rules because the system needs more time to process the traffic.

Following is the example.

These sample rules allow without decryption traffic that matches low-risk categories, reputations, and applications.

Rule details:

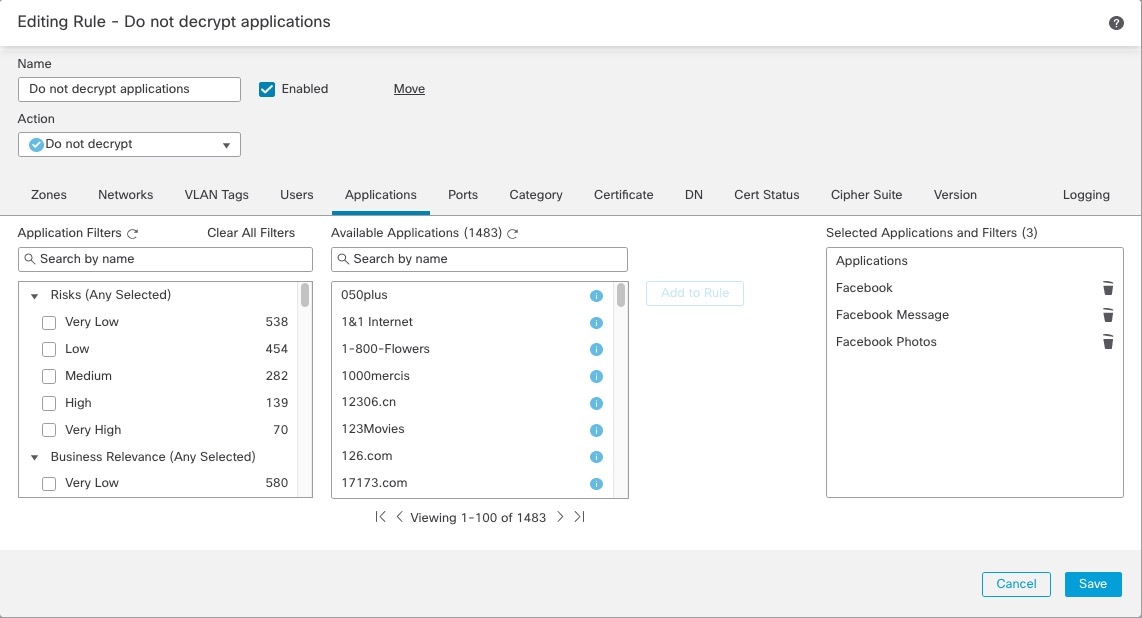

This sample rule specifies, on the Applications tab page, to match Low and Very Low risk categories.

Also on the Applications tab page, you can specify applications you believe are low-risk; in this case, Facebook, Facebook Message, and Facebook Photos.

Create a Decrypt - Resign Rule for Categories

This topic shows an example of creating a TLS/SSL rule with a Decrypt - Resign action for all but uncategorized sites. The rule uses the optional Replace Key Only option, which we always recommend with a Decrypt-Resign rule action.

Replace Key Only causes the user to see a security warning in the web browser when they browse to a site that uses a self-signed certificate, making the user aware that they are communicating with an unsecure site.

By putting this rule near the bottom, you get the best of both worlds: you can decrypt and optionally inspect traffic while not affecting performance as much as if you had put the rule earlier in the policy.

Procedure

Step 1

Log in to the Firepower Management Center if you haven't already done so.

Step 2

If you haven't already done so, upload an internal certificate authority (CA) to the Firepower Management Center (Objects > Object Management, then PKI > Internal CAs).

Step 3

Click Policies > Access Control > SSL.

Step 4

Click Edit (edit icon) next to your SSL policy.

Step 5

Click Add Rule.

Step 6

In the Name field, enter a name to identify the rule.

Step 7

From the Action list, click Decrypt - Resign.

Step 8

From the with list, click the name of your internal CA.

Step 9

Check the Replace Key Only box.

The following figure shows an example.

In your Decrypt - Resign rules, we recommend you check the Replace Key Only box so users who go to a website with a self-signed certificate get a warning in their browser.

Step 10

Click the Category tab page.

Step 11

From the top of the Categories list, click Any (Except Uncategorized).

Step 12

From the Reputations list, click Any.

Step 13

Click Add to Rule.

The following figure shows an example.

For this rule, on the Category tab page, from the Categories list, click Any (Except Uncategorized), in the Reputations list, click Any, then click Add to Rule.

Last TLS/SSL Rules: Block or Monitor Certificates and Protocol Versions

The last TLS/SSL rules, because they are the most specific and require the most processing, are rules that either monitor or block bad certificates and unsecure protocol versions.

These sample rules block traffic with either bad certificates or old TLS/SSL protocol versions.

Rule details:

This sample rule allows certificates that are valid and blocks the rest (for example, invalid certificates).

This sample rule blocks traffic with either the SSL 3.0 or TLS 1.0 protocols.

Example: TLS/SSL Rule to Monitor or Block Certificate Status

The last TLS/SSL rules, because they are the most specific and require the most processing, are rules that either monitor or block bad certificates and unsecure protocol versions. The example in this section shows how to monitor or block traffic by certificate status.


Note

Use the Cipher Suite and Version rule conditions only in rules with either the Block or Block with reset rule actions. The use of these conditions in rules with other rule actions can interfere with the system's ClientHello processing, resulting in unpredictable performance.

Procedure

Step 1

Log in to the Firepower Management Center if you haven't already done so.

Step 2

Click Policies > Access Control > SSL.

Step 3

Click Edit (edit icon) next to your SSL policy.

Step 4

Click Edit (edit icon) next to a TLS/SSL rule.

Step 5

Click Add Rule.

Step 6

n the Add Rule dialog box, in the Name field, enter a name for the rule.

Step 7

Click Cert Status.

Step 8

For each certificate status, you have the following options:

  • Click Yes to match against the presence of that certificate status.

  • Click No to match against the absence of that certificate status.

  • Click Any to skip the condition when matching the rule. In other words, choosing Any means the rule matches whether the certificate status is present or absent.

Step 9

From the Action list, click either Monitor to only monitor and log traffic that matches the rule or click Block or Block with Reset to block the traffic and optionally reset the connection.

Step 10

To save changes to the rule, at the bottom of the page, click Save.

Step 11

To save changes to the policy, at the top of the page, click Save.

Example

The organization trusts the Verified Authority certificate authority. The organization does not trust the Spammer Authority certificate authority. The system administrator uploads the Verified Authority certificate and an intermediate CA certificate issued by Verified Authority to the system. Because Verified Authority revoked a certificate it previously issued, the system administrator uploads the CRL that Verified Authority provided.

The following figure shows a certificate status rule condition checking for valid certificates, those issued by a Verified Authority, are not on the CRL, and still within the Valid From and Valid To date. Because of the configuration, traffic encrypted with these certificates is not decrypted and inspected with access control.

Example of SSL policy with rule condition that matches valid certificates not in a CRL with valid dates

The following figure shows a certificate status rule condition checking for the absence of a status. In this case, because of the configuration, it matches against traffic encrypted with a certificate that has not expired and monitors that traffic.

Example of SSL policy with rule conditions that match in the absence of status

In the following example, traffic would match this rule condition if the incoming traffic is using a certificate that has an invalid issuer, is self-signed, expired, and it is an invalid certificate.

Example of matching SSL policy rule using several criteria

The following graphic illustrates a certificate status rule condition that matches if the SNI of the request matches the server name or if the CRL is not valid.

Example of an SSL policy rule matching the server SNI name or invalid CRL

Example: TLS/SSL Rule to Monitor or Block Protocol Versions

This example shows how to block TLS and SSL protocols on your network that are no longer considered secure, such as TLS 1.0, TLS 1.1, and SSLv3. It's included to give you a little more detail about how protocol version rules work.

You should exclude nonsecure protocols from your network because they are all exploitable. In this example:

  • You can block some protocols using Version page on the SSL rule.

  • Because the system considers SSLv2 as undecryptable, you can block it using the Undecryptable Actions on the SSL policy.

  • Similarly, because compressed TLS/SSL is not supported, you should block it as well.


Note

Use the Cipher Suite and Version rule conditions only in rules with either the Block or Block with reset rule actions. The use of these conditions in rules with other rule actions can interfere with the system's ClientHello processing, resulting in unpredictable performance.

Procedure

Step 1

Log in to the Firepower Management Center if you haven't already done so.

Step 2

Click Policies > Access Control > SSL.

Step 3

Click Edit (edit icon) next to your SSL policy.

Step 4

Click Edit (edit icon) next to a TLS/SSL rule.

Step 5

Click Add Rule.

Step 6

In the Add Rule dialog box, in the Name field, enter a name for the rule.

Step 7

From the Action list, click Block or Block with reset.

Step 8

Click Version page.

Step 9

Check the check boxes for protocols that are no longer secure, such as SSL v3.0, TLS 1.0, and TLS 1.1. Clear the check boxes for any protocols that are still considered secure.

The following figure shows an example.

This sample rule blocks traffic that uses SSL 3.0, TLS 1.0, or TLS 1.1 traffic because such traffic is easily hacked and not secure.

Step 10

Choose other rule conditions as needed.

Step 11

Click Save.

Optional Example: TLS/SSL Rule to Monitor or Block Certificate Distinguished Name

This rule is included to give you an idea about how to monitor or block traffic based on the server certificate's Distinguished Name. It's included to give you a little more detail.

The distinguished name can consist of country code, common name, organization, and organizational unit, but typically consists of a common name only. For example, the common name in the certificate for https://www.cisco.com is cisco.com. (However, it's not always this simple; Distinguished Name (DN) Rule Conditions shows how to find common names.)

The host name portion of the URL in the client request is the Server Name Indication (SNI). The client specifies which hostname they want to connect to (for example, auth.amp.cisco.com) using the SNI extension in the TLS handshake. The server then selects the corresponding private key and certificate chain that are required to establish the connection while hosting all certificates on a single IP address.

Procedure

Step 1

Log in to the Firepower Management Center if you haven't already done so.

Step 2

Click Policies > Access Control > SSL.

Step 3

Click Edit (edit icon) next to your SSL policy.

Step 4

Click Edit (edit icon) next to a TLS/SSL rule.

Step 5

Click Add Rule.

Step 6

In the Add Rule dialog box, in the Name field, enter a name for the rule.

Step 7

From the Action list, click Block or Block with reset.

Step 8

Click DN.

Step 9

Find the distinguished names you want to add from the Available DNs, as follows:

  • To add a distinguished name object on the fly, which you can then add to the condition, click Add (add icon) above the Available DNs list.

  • To search for distinguished name objects and groups to add, click the Search by name or value prompt above the Available DNs list, then type either the name of the object, or a value in the object. The list updates as you type to display matching objects.

Step 10

To select an object, click it. To select all objects, right-click and then Select All.

Step 11

Click Add to Subject or Add to Issuer.

Tip



You can also drag and drop selected objects.

Step 12

Add any literal common names or distinguished names that you want to specify manually. Click the Enter DN or CN prompt below the Subject DNs or Issuer DNs list; then type a common name or distinguished name and click Add.

Although you can add a CN or DN to either list, it's more common to add them to the Subject DNs list.

Step 13

Add or continue editing the rule.

Step 14

When you're done, to save changes to the rule, click Save at the bottom of the page.

Step 15

To save changes to the policy, click Save at the top of the page.

Example

The following figure shows a distinguished name rule condition searching for certificates issued to goodbakery.example.com or issued by goodca.example.com. Traffic encrypted with these certificates is allowed, subject to access control.

This sample rule condition adds the GoodBakery Distinguished Name to the Subject DNs list and its corresponding Common Name to the Issue DNs list. This has the effect of matching traffic on either the subject or the issuer, although it's more common to match on the subject only.

TLS/SSL Rule Settings

How to configure recommended best practice settings for your TLS/SSL rules.

TLS/SSL rule: Enable logging for every rule except those with a Do Not Decrypt rule action. (It's up to you; if you want to see information about traffic that isn't decrypted, enable logging for those rules also.)

Procedure

Step 1

Log in to the Firepower Management Center if you haven't already done so.

Step 2

Click Policies > Access Control > SSL.

Step 3

Click Edit (edit icon) next to your SSL policy.

Step 4

Click Edit (edit icon) next to a TLS/SSL rule.

Step 5

Click the Logging tab.

Step 6

Click Log at End of Connection.

Step 7

Click Save.

Step 8

Click Save at the top of the page.
