Directory Manager

Note Directory Manager can be accessed only when operating in Internal Directory mode.

To access Directory management tasks, log into the system (see "Logging In and Out" section on page 2-1). Then, from the Home page, click the Tools tab. The Tools page appears.

From the Tools page, click Directory Mgr.

With the directory manager you can:

•Edit the schema

•Import a schema from an XML file

Editing Schema

Step 1 From the Directory Manager page, click Edit Schema.

The schema editor appears (see Figure 10-1).

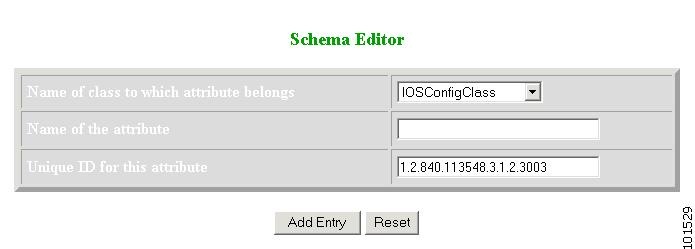

Figure 10-1 Schema Editor

Step 2 From drop-down list, select name of class to which attribute belongs.

Table 10-1 shows valid values for these fields.

Step 3 Enter the name of the new attribute

Step 4 Accept or modify the Unique ID for this attribute.

Step 5 To clear your entries, click Reset.

Step 6 To add this attribute to the schema, click Add Entry.

Importing Schema

You can import a schema accessible from your computer. However, the file must be in XML format and conform to the definitions specified in the document type definition (DTD) file shown here:

<?xml version="1.0" encoding="UTF-8"?>

<!-- DTD for DAML -->

<!-- Last updated: 2006-01-18 -->

<!ELEMENT attribute EMPTY>

<!ATTLIST attribute

ref CDATA #REQUIRED

required CDATA #REQUIRED

>

<!ELEMENT attribute-type (name, object-identifier, syntax)>

<!ATTLIST attribute-type

id CDATA #REQUIRED

single-value CDATA #REQUIRED

obsolete CDATA #REQUIRED

user-modification CDATA #REQUIRED

>

<!ELEMENT class (name, object-identifier, attribute)>

<!ATTLIST class

id CDATA #REQUIRED

superior CDATA #REQUIRED

type CDATA #REQUIRED

obsolete CDATA #REQUIRED

>

<!ELEMENT directory-schema (attribute-type, class)>

<!ELEMENT dsml (directory-schema)>

<!ATTLIST dsml

complete CDATA #REQUIRED

>

<!ELEMENT name (#PCDATA)>

<!ELEMENT object-identifier (#PCDATA)>

<!ELEMENT syntax (#PCDATA)>

>

Example

For example, a valid schema would look like:

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE dsml SYSTEM "dsml.dtd">

<dsml complete="true">

	<directory-schema>

		<attribute-type id="IOSe1ipaddress" single-value="true" obsolete="false"
user-modification="true">

			<name>IOSe1ipaddress</name>

			<object-identifier>1.2.840.113548.3.1.2.20</object-identifier>

			<syntax>1.3.6.1.4.1.1466.115.121.1.15</syntax>

		</attribute-type>

		<class id="IOSConfigClass" superior="top" type="structural" obsolete="false">

			<name>IOSConfigClass</name>

			<object-identifier>1.2.840.113548.3.2.2.1</object-identifier>

			<attribute ref="1.2.840.113548.3.1.2.20" required="false"/>

		</class>

	</directory-schema>

</dsml>

Step 1 From the Directory Manager page, click Import Schema.

The import schema dialog box appears (see Figure 10-2).

Figure 10-2 Import Schema

Step 2 Enter the filename of the schema you want to import in the Schema Filename field.

Table 10-2 shows valid values for these fields.

Use the browse function to locate the file, if needed.

Step 3 To clear your entries, click Reset.

Step 4 To import the file, click Import.
