Log Manager

To access Log management tasks, log into the system (see "Logging In and Out" section on page 2-1). Then, from the Home page, click the Tools tab. The Tools page appears.

From the Tools Page, click Log Manager. The Log Manager page appears showing:

•View Logs

•Clear Logs

•Export Logs

Viewing Log Files

Step 1 From the Log Manager page, click View Logs.

The View Log Files dialog box appears (see Figure 14-1).

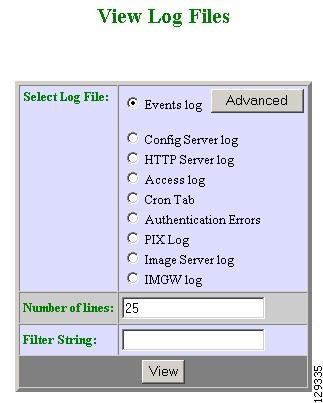

Figure 14-1 Log File Viewer

Step 2 Choose the log file you want to view.

Table 14-1 shows valid values for these fields.

Table 14-1 Valid Values for View Log Files

Attribute
Description
Valid Values

Select Log Files

List of available log files.

Radio button

Number of lines

Number of lines displayed.



Filter String

Filter string

a-z
A-Z
0-9
-(hyphen)
_ (under-score)
. (period)


Step 3 Set the number lines you want to display.

Step 4 To limit the report to display only specific entries, set a case-sensitive keyword filter, or leave blank.

Step 5 Click View.

A report displays.

Clearing Logs

Step 1 From the Log Manager page, click Clear Logs.

The Clear Log Files dialog box appears (see Figure 14-1).

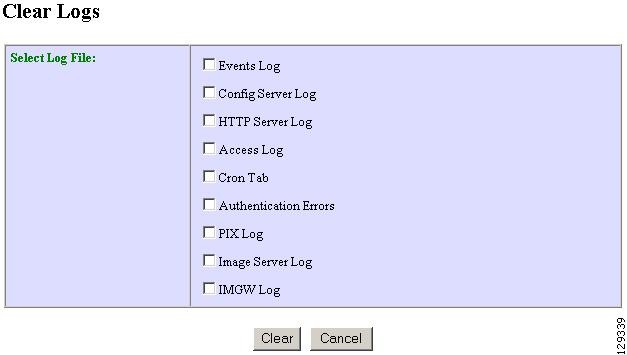

Figure 14-2 Clear Logs

Step 2 Check the log files you want to clear.

Step 3 To cancel this task, click Cancel.

Step 4 To clear the selected log files, click Clear.

Exporting Logs

Step 1 From the Log Manager page, click Export Logs.

The Export Log Files dialog box appears (see Figure 14-3).

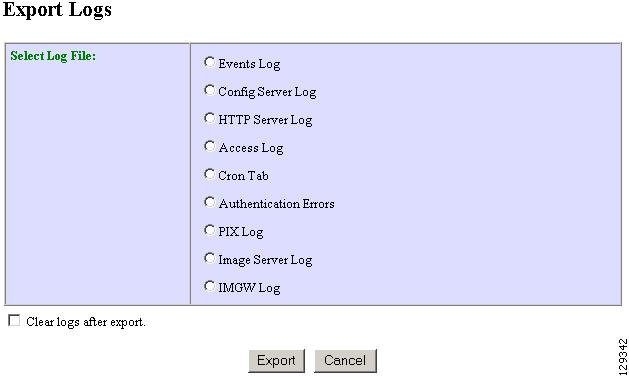

Figure 14-3 Export Logs

Step 2 Check the log files you want to export.

Step 3 To clear logs after export, check the check box.

Step 4 To cancel this task, click Cancel.

Step 5 To export the selected log files, click Export.
