Service Manager

To access Service management tasks, log into the system (see "Logging In and Out" section on page 2-1). Then, from the Home page, click the Tools tab. The Tools page appears.

From the Tools Page, click Service Manager. The Service Manager page appears showing:

•Edit Service Properties

•Edit IMGW Device and Hop Types

Editing Service Properties

Step 1 From the Service Manager Functional Overview page, click Edit Service Properties. The Edit Service Properties page appears (see Figure 15-1).

Figure 15-1 Edit Service Properties

Step 2 From the Edit Service Properties page, select Image Service by clicking the associated radio button.

The service properties page for Image Service appears (see Figure 15-2).

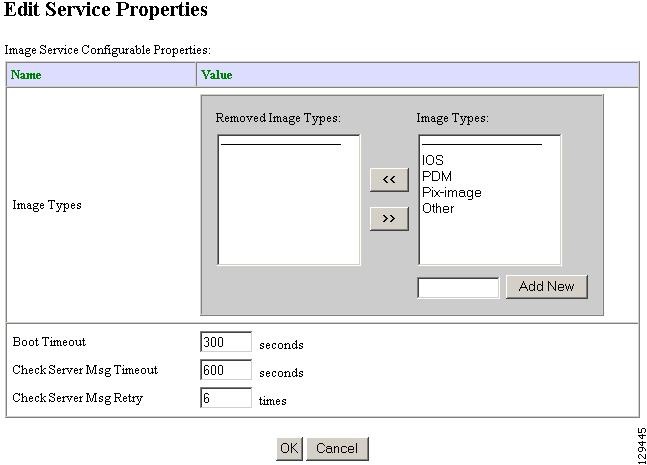

Figure 15-2 Image Service Properties

Step 3 To Edit Image Types: Click the move button (<<) to move an image type to the Removed Image Types column.

Step 4 To Edit Boot Timeout: Enter a new value in the text box.

Step 5 To Edit Check Server Msg Timeout: Enter a new value in the text box.

Step 6 To Edit Check Server Msg Retry: Enter a new value in the text box.

Step 7 To cancel this task, click Cancel.

Step 8 To submit the changes, click OK.

Editing IMGW Device and Hop Types

Step 1 From the Service Manager Functional Overview page, click Edit IMGW Device and Hop Types.

The IMGW Device and Hop Types page appears (see Figure 15-3).

Figure 15-3 IMGW Device and Hop Types

Step 2 To remove a Device Type or Hop Type, click the item, then click Remove.

Step 3 To add a new Device Type or Hop Type, enter the item in the dialog box, then click Add to list.

Step 4 When complete, so save your changes, click Edit.
