Configuring Users and Common Role

The CLI and SNMP use common roles in all switches in the Cisco MDS 9000 Family. You can use the CLI to modify a role that was created using SNMP and vice versa.

Users, passwords, and roles for all CLI and SNMP users are the same. A user configured through the CLI can access the switch using SNMP (for example, DCNM for SAN (DCNM-SAN or Device Manager) and vice versa.

This chapter includes the following topics:

Information About Role-Based Authorization

Switches in the Cisco MDS 9000 Family perform authentication based on roles. Role-based authorization limits access to switch operations by assigning users to roles. This kind of authentication restricts you to management operations based on the roles to which you have been added.

When you execute a command, perform command completion, or obtain context-sensitive help, the switch software allows the operation to progress if you have permission to access that command.

This section includes the following topics:

About Roles

Each role can contain multiple users and each user can be part of multiple roles. For example, if role1 users are only allowed access to configuration commands, and role2 users are only allowed access to debug commands, then if Joe belongs to both role1 and role2, he can access configuration as well as debug commands.


Note If you belong to multiple roles, you can execute a union of all the commands permitted by these roles. Access to a command takes priority over being denied access to a command. For example, suppose you belong to a TechDocs group and you were denied access to configuration commands. However, you also belong to the engineering group and have access to configuration commands. In this case, you will have access to configuration commands.



Tip Any role, when created, does not allow access to the required commands immediately. The administrator must configure appropriate rules for each role to allow access to the required commands.


Rules and Features for Each Role

Up to 16 rules can be configured for each role. These rules reflect what CLI commands are allowed. The user-specified rule number determines the order in which the rules are applied. For example, rule 1 is applied before rule 2, which is applied before rule 3, and so on. A user not belonging to the network-admin role cannot perform commands related to roles.

For example, if user A is permitted to perform all show CLI commands, user A cannot view the output of the show role CLI command if user A does not belong to the network-admin role.

A rule specifies operations that can be performed by a specific role. Each rule consists of a rule number, a rule type (permit or deny), a CLI command type (for example, config , clear , show , exec , debug ), and an optional feature name (for example, FSPF, zone, VSAN, fcping, or interface).


Note In this case, exec CLI commands refer to all commands in the EXEC mode that are not included in the show, debug, and clear CLI command categories.


Rule Changes Between SAN-OS Release 3.3(1c) and NX-OS Release 4.2(1a) Affect Role Behavior

The rules that can be configured for roles were modified between SAN-OS Release 3.3(1c) and NX-OS Release 4.2(1a). As a result, roles do not behave as expected following an upgrade from SAN-OS Release 3.3(1c) to NX-OS Release 4.2(1a). Manual configuration changes are required to restore the desired behavior.

Rule 4 and Rule 3: after the upgrade, exec and feature are removed. Change rule 4 and rule 3 as follows:



SAN-OS Release 3.3(1c) Rule
NX-OS Release 4.2(1a), Set the Rule to:

rule 4 permit exec feature debug

rule 4 permit debug

rule 3 permit exec feature clear

rule 3 permit clear

Rule 2: after the upgrade, exec feature license is obsolete.



SAN-OS Release 3.3(1c) Rule
NX-OS Release 4.2(1a) Rule

rule 2 permit exec feature debug

Not available in Release 4.2(1).

Rule 9, Rule 8, and Rule 7: after the upgrade, you need to have the feature enabled to configure it. In SAN-OS Release 3.3(1c), you could configure a feature without enabling it.



SAN-OS Release 3.3(1c) Rule
NX-OS Release 4.2(1a), to Preserve the Rule:

rule 9 deny config feature telnet

Not available in Release 4.2(1) and cannot be used.

rule 8 deny config feature tacacs-server

During the upgrade, enable the feature to preserve the rule; otherwise, the rule disappears.

rule 7 deny config feature tacacs+

During the upgrade, enable the feature to preserve the rule; otherwise, the rule disappears.

About the VSAN Policy

Configuring the VSAN policy requires the ENTERPRISE_PKG license (For more information, see Cisco MDS 9000 Family NX-OS Licensing Guide).

You can configure a role so that it only allows tasks to be performed for a selected set of VSANs. By default, the VSAN policy for any role is permit, which allows tasks to be performed for all VSANs. You can configure a role that only allows tasks to be performed for a selected set of VSANs. To selectively allow VSANs for a role, set the VSAN policy to deny, and then set the configuration to permit or the appropriate VSANs.


Note Users configured in roles where the VSAN policy is set to deny cannot modify the configuration for E ports. They can only modify the configuration for F or FL ports (depending on whether the configured rules allow such configuration to be made). This is to prevent such users from modifying configurations that may impact the core topology of the fabric.



Tip Roles can be used to create VSAN administrators. Depending on the configured rules, these VSAN administrators can configure MDS features (for example, zone, fcdomain, or VSAN properties) for their VSANs without affecting other VSANs. Also, if the role permits operations in multiple VSANs, then the VSAN administrators can change VSAN membership of F or FL ports among these VSANs.


Users belonging to roles in which the VSAN policy is set to deny are referred to as VSAN-restricted users.

Role Distributions

Role-based configurations use the Cisco Fabric Services (CFS) infrastructure to enable efficient database management, and to provide a single point of configuration for the entire fabric.

The following configurations are distributed:

  • Role names and descriptions
  • List of rules for the roles
  • VSAN policy and the list of permitted VSANs

About Role Databases

Role-based configurations use two databases to accept and implement configurations.

  • Configuration database—The running database currently enforced by the fabric.
  • Pending database—Your subsequent configuration changes are stored in the pending database. If you modify the configuration, you need to commit or discard the pending database changes to the configuration database. The fabric remains locked during this period. Changes to the pending database are not reflected in the configuration database until you commit the changes.

Locking the Fabric

The first action that modifies the database creates the pending database and locks the feature in the entire fabric. Once you lock the fabric, the following situations apply:

  • No other user can make any configuration changes to this feature.
  • A copy of the configuration database becomes the pending database along with the first change.

About Common Roles

The CLI and SNMP in all switches in the Cisco MDS 9000 Family use common roles. You can use SNMP to modify a role that was created using the CLI and vice versa (see Figure 28-1).

Figure 28-1 Common Roles



Each role in SNMP is the same as a role created or modified through the CLI (see the “Information About Role-Based Authorization” section).

Each role can be restricted to one or more VSANs as required.

You can create new roles or modify existing roles using SNMP or the CLI.

  • SNMP—Use the CISCO-COMMON-ROLES-MIB to configure or modify roles. Refer to the Cisco MDS 9000 Family MIB Quick Reference .
  • CLI—Use the role name command.

Mapping of CLI Operations to SNMP

SNMP has only three possible operations: GET, SET, and NOTIFY. The CLI has five possible operations: DEBUG, SHOW, CONFIG, CLEAR, and EXEC.


Note NOTIFY does not have any restrictions like the syslog messages in the CLI.


Table 28-1 explains how the CLI operations are mapped to the SNMP operations.



Table 28-1 CLI Operation to SNMP Operation Mapping

CLI Operation
SNMP Operation

DEBUG

Ignored

SHOW

GET

CONFIG

SET

CLEAR

SET

EXEC

SET

Creating Users Guidelines

The passphrase specified in the snmp-server user option and the password specified username option are synchronized.

By default, the user account does not expire unless you explicitly configure it to expire. The expire option determines the date on which the user account is disabled. The date is specified in the YYYY-MM-DD format.

When creating users, note the following guidelines:

  • You can configure up to a maximum of 256 users on a switch.
  • The following words are reserved and cannot be used to configure users: bin, daemon, adm, lp, sync, shutdown, halt, mail, news, uucp, operator, games, gopher, ftp, nobody, nscd, mailnull, rpc, rpcuser, xfs, gdm, mtsuser, ftpuser, man, and sys.
  • User passwords are not displayed in the switch configuration file.
  • If a password is trivial (short, easy-to-decipher), your password configuration is rejected. Be sure to configure a strong password as shown in the sample configuration. Passwords are case-sensitive. “admin” is no longer the default password for any Cisco MDS 9000 Family switch. You must explicitly configure a strong password.
  • To issue commands with the internal keyword for troubleshooting purposes, you must have an account that is a member of the network-admin group.

Caution Cisco MDS NX-OS supports user names that are created with alphanumeric characters or specific special characters (+ [plus], = [equal], _ [underscore], - [hyphen], \ [backslash], and . [period]) whether created remotely (using TACACS+ or RADIUS) or locally. Local user names cannot be created with any special characters (apart from those specified). If a non-supported special character user name exists on an AAA server, and is entered during login, then the user is denied access.

Characteristics of Strong Passwords

A strong password has the following characteristics:

  • At least eight characters long
  • Does not contain many consecutive characters (such as “abcd”)
  • Does not contain many repeating characters (such as “aaabbb”)
  • Does not contain dictionary words
  • Does not contain proper names
  • Contains both upper- and lower-case characters
  • Contains numbers

The following are examples of strong passwords:

  • If2CoM18
  • 2004AsdfLkj30
  • Cb1955S21

About SSH

SSH provides secure communications to the Cisco NX-OS CLI. You can use SSH keys for the following SSH options:

  • SSH2 using RSA
  • SSH2 using DSA

Boot Mode SSH

Due to the increasing emphasis on security and security-related issues, the ssh command in this release runs in the Boot mode. SSH is a preferred and more secure method of data exchange over the network because it communicates over the secure channel, and the data is encrypted before sending on the channel.

Example 28-1 shows how to use the ssh command to conncet to a remote server from any switch.

Example 28-1 Connecting a Remote Server from Any Switch

switch# ssh admin @ hostname

SSH Authentication Using Digital Certificates

SSH authentication on the Cisco MDS 9000 Family switches provide X.509 digital certificate support for host authentication. An X.509 digital certificate is a data item that vouches for the origin and integrity of a message. It contains encryption keys for secured communications and is “signed” by a trusted certification authority (CA) to verify the identity of the presenter. The X.509 digital certificate support provides either DSA or RSA algorithms for authentication.

The certificate infrastructure uses the first certificate that supports the Secure Socket Layer (SSL) and is returned by the security infrastructure, either through query or notification. Verification of certificates is successful if the certificates are from any of the trusted CAs.

You can configure your switch for either SSH authentication using an X.509 certificate or SSH authentication using a Public Key Certificate, but not both. If either of them is configured and the authentication fails, you will be prompted for a password.

For more information on CAs and digital certificates, see Chapter30, “Configuring Certificate Authorities and Digital Certificates”

Passwordless File copy and SSH

Secure Shell (SSH) public key authentication can be used to achieve password-free logins. SCP and SFTP uses SSH in the background, which enables these copy protocols to be used for a password-free copy with public key authentication. The NX-OS version only supports the SCP and STFP client functionality.

You can create an RSA and DSA identity that can be used for authentication with SSH. The identity consists of two parts: public and private keys. The public and the private keys are generated by the switch or can be generated externally and imported to the switch. For import purposes, the keys should be in OPENSSH format.

To use the key on a host machine hosting an SSH server, you must transfer the public key file to the machine and add the contents of it to the authorized_keys file in your SSH directory (for example, $HOME/.ssh) on the server. For the import and export of private keys, the key is protected by encryption. You are asked to enter the passphrase for the keys. If you enter a passphrase, the private key is protected by encryption. If you leave the password field blank, the key will not be encrypted.

If you need to copy the keys to another switch, you will have to export the keys out of the switch to a host machine, and then import the keys to other switches from that machine.

The key files are persistent across reload.

Guidelines and Limitations

Fabric merge does not modify the role database on a switch. If two fabrics merge, and the fabrics have different role databases, the software generates an alert message.

See the “Merge Guidelines for RADIUS and TACACS+ Configurations” section for detailed concepts.

  • Verify that the role database is identical on all switches in the entire fabric.
  • Be sure to edit the role database on any switch to the desired database and then commit it. This synchronizes the role databases on all the switches in the fabric.

Default Settings

Table 28-2 lists the default settings for all switch security features in any switch.



Table 28-2 Default Switch Security Settings

Parameters
Default

Roles in Cisco MDS Switches

Network operator (network-operator)

AAA configuration services

Local

Authentication port

1812

Accounting port

1813

Preshared key communication

Clear text

RADIUS server time out

1 (one) second

RADIUS server retries

Once

TACACS+

Disabled

TACACS+ servers

None configured

TACACS+ server timeout

5 seconds

AAA server distribution

Disabled

VSAN policy for roles

Permit

User account

No expiry (unless configured)

Password

None

Password-strength

Enabled

Accounting log size

250 KB

SSH service

Enabled

Telnet service

Disabled

Configuring Users and Common Role

This section includes the following topics:

Configuring Roles and Profiles

To create an additional role or to modify the profile for an existing role, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# role name techdocs

switch(config-role)#

Places you in the mode for the specified role (techdocs).

Note The role submode prompt indicates that you are now in the role submode. This submode is now specific to the techdocs group.

switch(config)# no role name techdocs

Deletes the role called techdocs.

Step 3

switch(config-role)# description Entire Tech Docs group

Assigns a description to the new role. The description is limited to one line and can contain spaces.

switch(config-role)# no description

Resets the description for the Tech Docs group.


Note Only users belonging to the network-admin role can create roles.


To create an additional role or to modify the profile for an existing role using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select Users and Roles from the Physical Attributes pane.

Step 2 Click the Roles tab in the Information pane.

Step 3 Click Create Row to create a role in DCNM-SAN.

Step 4 Select the switches on which to configure a role.

Step 5 Enter the name of the role in the Name field.

Step 6 Enter the description of the role in the Description field.

Step 7 (Optional) Check the Enable check box to enable the VSAN scope and enter the list of VSANs in the Scope field to which you want to restrict this role.

Step 8 Click Create to create the role.





Note Device Manager automatically creates six roles that are required for Device Manager to display a view of a switch. These roles are system, snmp, module, interface, hardware, and environment.


Deleting Common Roles

To delete a common role using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select Users and Roles from the Physical Attributes pane.

Step 2 Click the Roles tab in the Information pane.

Step 3 Click the role you want to delete.

Step 4 Click Delete Row to delete the common role.

Step 5 Click Yes to confirm the deletion or No to cancel it.




Modifying Profiles

To modify the profile for an existing role, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# role name sangroup

switch(config-role)#

Places you in role configuration submode for the existing role sangroup.

Step 3

switch(config-role)# rule 1 permit config

switch(config-role)# rule 2 deny config feature fspf

switch(config-role)# rule 3 permit debug feature zone

switch(config-role)# rule 4 permit exec feature fcping

Allows users belonging to the sangroup role to perform all configuration commands except f spf config commands. They can also perform zone debug commands and the fcping EXEC mode command.

Step 4

switch(config-role)# no rule 4

Deletes rule 4, which no longer permits the sangroup to perform the fcping command.

In Step 3, rule 1 is applied first, thus permitting sangroup users access to all config commands. Rule 2 is applied next, denying FSPF configuration to sangroup users. As a result, sangroup users can perform all other config commands, except fspf configuration commands.

Modifying Rules

To modify the rules for an existing role using Device Manager, follow these steps:


Step 1 Choose Security > Roles.

Step 2 Click the role for which you want to edit the rules.

Step 3 Click Rules to view the rules for the role.

You see the Edit Role Rules dialog box.

Step 4 Edit the rules you want to enable or disable for the common role.

Step 5 Click Apply to apply the new rules.




Rule 1 is applied first, which permits, for example, sangroup users access to all config CLI commands. Rule 2 is applied next, denying FSPF configuration to sangroup users. As a result, sangroup users can perform all other config CLI commands, except the fspf CLI configuration commands.


Note The order of rule placement is important. If you had swapped these two rules and issued the deny config feature fspf rule first and issued the permit config rule next, you would be allowing all sangroup users to perform all configuration commands because the second rule globally overrode the first rule.


Modifying the VSAN Policy

To modify the VSAN policy for an existing role, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# role name sangroup

switch(config-role)#

Places you in role configuration submode for the sangroup role.

Step 3

switch(config)# vsan policy deny

switch(config-role-vsan)

Changes the VSAN policy of this role to deny and places you in a submode where VSANs can be selectively permitted.

switch(config-role)# no vsan policy deny

Deletes the configured VSAN role policy and reverts to the factory default ( permit ).

Step 4

switch(config-role-vsan)# permit vsan 10-30

Permits this role to perform the allowed commands for VSANs 10 through 30.

switch(config-role-vsan)# no permit vsan 15-20

Removes the permission for this role to perform commands for VSANs 15 to 20. So, the role is now permitted to perform commands for VSAN 10 to 14, and 21 to 30.

To modify the VSAN policy for an existing role using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select Users and Roles from the Physical Attributes pane.

Step 2 Click the Roles tab in the Information pane.

Step 3 Check the Scope Enable check box if you want to enable the VSAN scope and restrict this role to a subset of VSANs.

Step 4 Enter the list of VSANs in the Scope VSAN Id List field that you want to restrict this role to.

Step 5 Click Apply Changes to save these changes.




Committing Role-Based Configuration Changes

If you commit the changes made to the pending database, the configuration is committed to all the switches in the fabric. On a successful commit, the configuration change is applied throughout the fabric and the lock is released. The configuration database now contains the committed changes and the pending database is now cleared.

To commit role-based configuration changes, follow these steps:


Command
Purpose

Step 1

switch# config t

switch(config)#

Enters configuration mode.

Step 2

switch(config)# role commit vsan 3

Commits the role-based configuration changes.

To commit role-based configuration changes using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select Users and Roles in the Physical Attributes pane.

Step 2 Click the Roles CFS tab in the Information pane.

Step 3 Set the Global drop-down menu to enable to enable CFS.

Step 4 Click the Apply Changes icon to save this change.

Step 5 Set the Config Action drop-down menu to commit to commit the roles using CFS.

Step 6 Click the Apply Changes icon to save this change.




Discarding Role-Based Configuration Changes

If you discard (abort) the changes made to the pending database, the configuration database remains unaffected and the lock is released.

To discard role-based configuration changes, follow these steps:


Command
Purpose

Step 1

switch# config t

switch(config)#

Enters configuration mode.

Step 2

switch(config)# role abort

Discards the role-based configuration changes and clears the pending configuration database.

To discard role-based configuration changes using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select Users and Roles in the Physical Attributes pane.

Step 2 Click the Roles CFS tab in the Information pane.

Step 3 Set the Config Action drop-down menu to abort to discard any uncommitted changes.

Step 4 Click the Apply Changes icon to save this change.




Enabling Role-Based Configuration Distribution

To enable role-based configuration distribution, follow these steps:


Command
Purpose

Step 1

switch# config t

switch(config)#

Enters configuration mode.

Step 2

switch(config)# role distribute

Enables role-based configuration distribution.

switch(config)# no role distribute

Disables role-based configuration distribution (default).

To enable role-based configuration distribution using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select Users and Roles in the Physical Attributes pane.

Step 2 Click the Roles CFS tab in the Information pane.

Step 3 Set the Global drop-down menu to enable to enable CFS distribution.

Step 4 Click the Apply Changes icon to save this change.




Clearing Sessions

To forcibly clear the existing role session in the fabric, issue the clear role session command from any switch that is part of the initiated session.

switch# clear role session


To forcibly clear the existing role session in the fabric using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select Users and Roles in the Physical Attributes pane.

Step 2 Click the Roles CFS tab in the Information pane.

Step 3 Set the Config Action drop-down menu to clear to clear the pending database.

Step 4 Click the Apply Changes icon to save this change.





Caution Any changes in the pending database are lost when you clear a session.

Checking Password Strength

You can check the strength of the configured password.

When you enable password checking, the NX-OS software allows you to create strong passwords only.



To enable password strength checking, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# password

strength-check

Enables (default) password checking.

Step 3

switch(config)# no password strength-check

Disables password checking.

Configuring Users

Before configuring users, make sure that you have configured roles to associate with the users that you are creating.


Note As of Cisco SAN-OS Release 3.1(2b), DCNM-SAN automatically checks whether encryption is enabled, which allows you to create users.




To configure a new user or to modify the profile of an existing user, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# username usam password abcd123AAA expire 2003-05-31

Creates or updates the user account (usam) along with a password (abcd123AAA) that is set to expire on 2003-05-31. The password is limited to 64 characters.

Note User account names must contain non-numeric characters.

switch(config)# username msam password 0 abcd12AAA role network-operator

Creates or updates the user account (msam) along with a password (abcd12AAA) specified in clear text (indicated by 0). The password is limited to 64 characters.

Note User account names must contain non-numeric characters.

switch(config)# username user1 password 5 !@*asdsfsdfjh!@df

Specifies an encrypted (specified by 5) password (!@*asdsfsdfjh!@df) for the user account (user1).

Step 3

switch(config)# username usam role network-admin

Adds the specified user (usam) to the network-admin role.

switch(config)# no username usam role vsan-admin

Deletes the specified user (usam) from the vsan-admin role.

Step 4

switch(config)# username admin sshkey ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAIEAtjIHrIt/3dDeohix6JcRSIYZ0EOdJ3l5RONWcwSgAuTUSrLk

3a9hdYkzY94fhHmNGQGCjVg+8cbOxyH4Z1jcVFcrDogtQT+Q8dveqts/8XQhqkNAFeGy4u8TJ2Us

oreCU6DlibwkpzDafzKTpA5vB6FmHd2TI6Gnse9FUgKD5fs=

Specifies the SSH key for an existing user account (admin).

switch(config)# no username admin sshkey ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAIEAtjIHrIt/3dDeohix6JcRSIYZ0EOdJ3l5RONWcwSgAuTUSrLk

3a9hdYkzY94fhHmNGQGCjVg+8cbOxyH4Z1jcVFcrDogtQT+Q8dveqts/8XQhqkNAFeGy4u8TJ2Us

oreCU6DlibwkpzDafzKTpA5vB6FmHd2TI6Gnse9FUgKD5fs=

Deletes the SSH key for the user account (admin).

Step 5

switch(config)# username usam ssh-cert-dn usam-dn dsa

Specifies an SSH X.509 certificate distinguished name and DSA algorithm to use for authentication for an existing user account (usam).

switch(config)# username user1 ssh-cert-dn user1-dn rsa

Specifies an SSH X.509 certificate distinguished name and RSA algorithm to use for authentication for an existing user account (user1).

switch(config)# no username admin ssh-cert-dn admin-dn dsa

Removes the SSH X.509 certificate distinguished name for the user account (admin).

To configure a new user or to modify the profile of an existing user using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select Users and Roles from the Physical Attributes pane.

Step 2 Click the Users tab in the Information pane to see a list of users.

Step 3 Click the Create Row icon.

You see the Users - Create dialog box as shown in Figure 28-2.

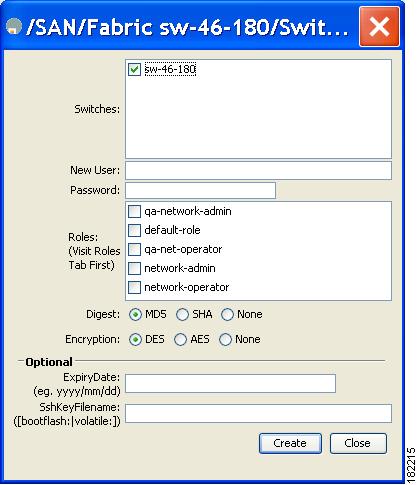

Figure 28-2 Users - Create Dialog Box



Step 4 (Optional) Alter the Switches check boxes to specify one or more switches.

Step 5 Enter the user name in the New User field.

Step 6 Enter the password for the user.

Step 7 Check the roles that you want to associate with this user.

See the “Rules and Features for Each Role” section.

Step 8 Select the appropriate option for the type of authentication protocol used. The default value is MD5.

Step 9 Select the appropriate option for the type of privacy protocol used. The default value is DES.

Step 10 (Optional) Enter the expiry date for this user.

Step 11 (Optional) Enter the SSH Key filename.

Step 12 Click Create to create the entry.




Logging Out Users

To log out another user on the switch, use the clear user command.

In the following example, the user named vsam is logged out from the switch:

switch# clear user vsam


Use the show users command to view a list of the logged in users (see Example 28-2).

Example 28-2 Displays All Logged in Users

switch# show users
admin pts/7 Jan 12 20:56 (10.77.202.149)
admin pts/9 Jan 12 23:29 (user.example.com)
admin pts/10 Jan 13 03:05 (dhcp-10-10-1-1.example.com)
admin pts/11 Jan 13 01:53 (dhcp-10-10-2-2.example.com)


Deleting a User

To delete a user using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select Users and Roles from the Physical Attributes pane.

Step 2 Click the Users tab in the Information pane to see a list of users.

Step 3 Click the name of the user you want to delete.

Step 4 Click Delete Row to delete the selected user.

Step 5 Click Apply Changes to save this change.




Configuring SSH Services

A secure SSH connection with an RSA key is available as a default on all Cisco MDS 9000 Family switches. If you require a secure SSH connection with a DSA key, you need to disable the default SSH connection, Generate a DSA key and then enable the SSH connection (see the “Generating the SSH Server Key Pair” section).

Use the ssh key command to generate a server key.


Caution If you are logging in to a switch through SSH and you have issued the aaa authentication login default none command, you must enter one or more key strokes to log in. If you press the Enter key without entering at least one keystroke, your log in will be rejected.

This section includes the following topics:

Generating the SSH Server Key Pair

Ensure that you have an SSH server key pair with the appropriate version before enabling the SSH service. Generate the SSH server key pair according to the SSH client version used. The number of bits specified for each key pair ranges from 768 to 2048.

The SSH service accepts two types of key pairs for use by SSH version 2.

  • The dsa option generates the DSA key pair for the SSH version 2 protocol.
  • The rsa option generates the RSA keypair for the SSH version 2 protocol.

Caution If you delete all of the SSH keys, you cannot start a new SSH session.

To generate the SSH server key pair, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# ssh key dsa 1024

generating dsa key.....

generated dsa key

Generates the DSA server key pair.

switch(config)# ssh key rsa 1024

generating rsa key.....

generated rsa key

Generates the RSA server key pair.

switch(config)# no ssh key rsa 1024

cleared RSA keys

Clears the RSA server key pair configuration.

To generate the SSH key pair using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select SSH and Telnet.

Step 2 Click the Create Row icon.

You see the SSH and Telnet Key - Create dialog box (see Figure 28-3).

Figure 28-3 SSH and Telnet - Create Dialog Box



Step 3 Check the switches you want to assign to this SSH key pair.

Step 4 Choose the key pair option type from the listed Protocols. The listed protocols are SSH1, SSH2(rsa), and SSH2(dsa).

Step 5 Set the number of bits that will be used to generate the key pairs in the NumBits drop-down menu.

Step 6 Click Create to generate these keys.





Note 1856 DSA NumberKeys are not supported by switches that running Cisco MDS NX-OS software version 4.1(1) and later.


Specifying the SSH Key

You can specify an SSH key to log in using the SSH client without being prompted for a password. You can specify the SSH key in three different formats:

  • Open SSH format
  • IETF SECSH format
  • Public Key Certificate in PEM format



To specify or delete the SSH key in OpenSSH format for a specified user, follow these steps:


Command
Purpose

Step 1

switch# config t

switch(config)#

Enters configuration mode.

Step 2

switch(config)# username admin sshkey ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAIEAtjIHrIt/3dDeohix6JcRSIYZ0EOdJ3l5RONWcwSgAuTUSrLk3a9hdYkzY94fhHmNGQGCjVg+8cbOxyH4Z1jcVFcrDogtQT+Q8dveqts/8XQhqkNAFeGy4u8TJ2UsoreCU6DlibwkpzDafzKTpA5vB6FmHd2TI6Gnse9FUgKD5fs=

Specifies the SSH key for the user account (admin).

switch(config)# no username admin sshkey ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAIEAtjIHrIt/3dDeohix6JcRSIYZ0EOdJ3l5RONWcwSgAuTUSrLk3a9hdYkzY94fhHmNGQGCjVg+8cbOxyH4Z1jcVFcrDogtQT+Q8dveqts/8XQhqkNAFeGy4u8TJ2UsoreCU6DlibwkpzDafzKTpA5vB6FmHd2TI6Gnse9FUgKD5fs=

Deletes the SSH key for the user account (admin).



To specify or delete the SSH key in IETF SECSH format for a specified user, follow these steps:


Command
Purpose

Step 1

switch# copy tftp://10.10.1.1/secsh_file.pub bootflash:secsh_file.pub

Downloads the file containing the SSH key in IETF SECSH format.

Step 2

switch# config t

switch(config)#

Enters configuration mode.

Step 3

switch(config)# username admin sshkey file bootflash:secsh_file.pub

Specifies the SSH key for the user account (admin).

switch(config)# no username admin sshkey file bootflash:secsh_file.pub

Deletes the SSH key for the user account (admin).

To specify or delete the SSH key in PEM-formatted Public Key Certificate form for a specified user, follow these steps:


Command
Purpose

Step 1

switch# copy tftp://10.10.1.1/cert.pem bootflash:cert.pem

Downloads the file containing the SSH key in PEM-formatted Public Key Certificate form.

Step 2

switch# config t

switch(config)#

Enters configuration mode.

Step 3

switch(config)# username admin sshkey file bootflash:cert.pem

Specifies the SSH key for the user account (usam).

switch(config)# no username admin sshkey file bootflash:cert.pem

Deletes the SSH key for the user account (usam).

Overwriting a Generated Key Pair

If the SSH key pair option is already generated for the required version, you can force the switch to overwrite the previously generated key pair.



To overwrite the previously generated key pair, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# ssh key dsa 768

ssh key dsa 512

dsa keys already present, use force option to overwrite them

switch(config)# ssh key dsa 512 force

deleting old dsa key.....

generating dsa key.....

generated dsa key

Tries to set the server key pair. If a required server key pair is already configured, use the force option to overwrite that server key pair.

Deletes the old DSA key and sets the server key pair using the new bit specification.

To overwrite the previously generated key pair using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select SSH and Telnet.

You see the configuration in the Information pane.

Step 2 Highlight the key that you want to overwrite and click Delete Row.

Step 3 Click the Apply Changes icon to save these changes.

Step 4 Click the Create Row icon.

You see the SSH and Telnet Key - Create dialog box.

Step 5 Check the switches you want to assign this SSH key pair.

Step 6 Choose the key pair option type from the Protocols radio buttons.

Step 7 Set the number of bits that will be used to generate the key pairs in the NumBits drop-down menu.

Step 8 Click Create to generate these keys.




Enabling SSH or Telnet Service

By default, the SSH service is enabled with the RSA key.



To enable or disable the SSH or Telnet service, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# feature ssh

updated

Enables the use of the SSH service.

switch(config)# no feature ssh

updated

Disables (default) the use of the SSH service.

switch(config)# feature telnet

updated

Enables the use of the Telnet service.

switch(config)# no feature telnet

updated

Disables (default) the use of the Telnet service.


Note If you are logging in to a switch through SSH and you have issued the aaa authentication login default none CLI command, you must enter one or more key strokes to log in. If you press the Enter key without entering at least one keystroke, your log in will be rejected.


DCNM-SAN enables SSH automatically when you configure it.

To enable or disable SSH using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select SSH and Telnet.

Step 2 Select the Control tab and check an SSH check box or Telnet check box for each switch (see Figure 28-4).

Figure 28-4 Control Tab under SSH and Telnet



Step 3 Click the Apply Changes icon to save this change.




Generating SSH User Key Pairs

To import and export the key pair, the following CLIs are provided. The CLI command to generate the ssh user key pairs on the switch is defined as follows:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# username admin keypair generate rsa

generating rsa key(1024 bits).....

generated rsa key

Generates public and private RSA keys for the account (admin). It then stores the key files in the home directory of the specified user. Use the force option to overwrite that server keypair.

Note This example is for RSA keys. Replace rsa with dsa for DSA keys.

switch(config)# no username admin keypair generate rsa

Deletes the public and private RSA keys for the account (admin).

Step 3

switch# show username admin keypair

**************************************

rsa Keys generated: Thu Jul 9 11:10:29 2009

ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAIEAxWmjJT+oQhIcvnrMbx2BmD0P8boZElTfJFx9fexWp6rOiztlwODtehnjadWc6A+DE2DvYNvqsrU9TBypYDPQkR/+Y6cKubyFWVxSBG/NHztQc3+QC1zdkIxGNJbEHyFoajzNEO8LLOVFIMCZ2Td7gxUGRZc+fbqS33GZsCAX6v0=

bitcount:262144

fingerprint:

8d:44:ee:6c:ca:0b:44:95:36:d0:7d:f2:b5:78:74:7d

**************************************

could not retrieve dsa key information

**************************************

Shows the public key for the account (admin).





Step 4

switch(config)# username admin keypair export bootflash:key_rsa rsa

Enter Passphrase:

switch(config)# dir

951 Jul 09 11:13:59 2009 key_rsa

221 Jul 09 11:14:00 2009 key_rsa.pub

Exports the keypair from the user’s (admin’s) home directory to the bootflash memory.

The key pair (both public and private keys) will be exported to the specified location. The user will be prompted to enter a Passphrase which will encrypt the private key. The private key will be exported as the file name specified in the uri and the public key will be exported with the same file name followed by a “.pub” extension.

The user can now copy this key pair to any switch, and also copy the public file to the home directory of the SCP server.

Step 5

switch(config)# username admin keypair import bootflash:key_rsa rsa

Enter Passphrase:

switch(config)# show username admin keypair

**************************************

rsa Keys generated: Thu Jul 9 11:10:29 2009

ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAIEAxWmjJT+oQhIcvnrMbx2BmD0P8boZElTfJFx9fexWp6rOiztlwODtehnjadWc6A+DE2DvYNvqsrU9TBypYDPQkR/+Y6cKubyFWVxSBG/NHztQc3+QC1zdkIxGNJbEHyFoajzNEO8LLOVFIMCZ2Td7gxUGRZc+fbqS33GZsCAX6v0=

bitcount:262144

fingerprint:

8d:44:ee:6c:ca:0b:44:95:36:d0:7d:f2:b5:78:74:7d

**************************************

could not retrieve dsa key information

**************************************

Imports the keypair to the home directory of the switch.

The uri given here must be the uri of the private key and the public should be present on the same location with extension “.pub”. The user will be prompted for the passphrase, and the same passphrase must be entered as was used to encrypt the key.

Once the private keys are copied to the switches which need to do passwordless copy to a server, and that server has the public key copied to its authorized_keys file in home directory, the user will be able to do passwordless file copy and ssh to the server from the switches.

Note To copy the public key to the authorized_keys file on the server, user can also copy the key from the show command mentioned above.

Step 6

server# cat key_rsa.pub >> $HOME/.ssh/ authorized_keys

Appends the public key stored in key_rsa.pub to the authorized_keys file on the SCP server. The passwordless ssh/scp is then enabled from the switch to this server using the standard ssh and scp commands.

Changing Administrator Password Using DCNM-SAN

To change the administrator password in DCNM-SAN, follow these steps:


Step 1 Click the Open tab in the control panel.

Step 2 Choose the password field to change the password for an already existing user for the fabric.

Step 3 Click Open to open the fabric.


Note New password will be saved after the fabric is open. The user name and password fields are editable in the Fabric tab only after you unmanage the fabric.





Recovering the Administrator Password

You can recover the administrator password using one of two methods:

  • From the CLI with a user name that has network-admin privileges.
  • Power cycling the switch.

Note To recover an administrator’s password, refer to the Cisco MDS 9000 Family NX-OS Security Configuration Guide.


The following topics included in this section:

Using the CLI with Network-Admin Privileges

If you are logged in to, or can log into, switch with a user name that has network-admin privileges and then recover the administrator password, follow these steps:


Step 1 Use the show user-accounts command to verify that your user name has network-admin privileges.

switch# show user-account
user:admin
this user account has no expiry date
roles:network-admin

user:dbgusr
this user account has no expiry date
roles:network-admin network-operator


Step 2 If your user name has network-admin privileges, issue the username command to assign a new administrator password.

switch# config t
switch(config)# username admin password <new password>
switch(config)# exit
switch#


Step 3 Save the software configuration.

switch# copy running-config startup-config




Power Cycling the Switch

If you cannot start a session on the switch that has network-admin privileges, you must recover the administrator password by power cycling the switch.


Caution This procedure disrupts all traffic on the switch. All connections to the switch will be lost for 2 to 3 minutes.


Note You cannot recover the administrator password from a Telnet or SSH session. You must have access to the local console connection.




To recover a administrator password by power cycling the switch, follow these steps:


Step 1 For Cisco MDS 9500 Series switches with two supervisor modules, remove the supervisor module in
slot 6 from the chassis.


Note On the Cisco MDS 9500 Series, the password recovery procedure must be performed on the active supervisor module. Removing the supervisor module in slot 6 ensures that a switchover will not occur during the password recovery procedure.


Step 2 Power cycle the switch.

Step 3 Press the Ctrl-] key sequence when the switch begins its Cisco NX-OS software boot sequence to enter the switch(boot)# prompt mode.

Ctrl-]
switch(boot)#


Step 4 Change to configuration mode.

switch(boot)# config terminal


Step 5 Issue the admin-password command to reset the administrator password. This will disable remote authentication for login through console, if enabled. This is done to ensure that admin is able to login through console with new password after password recovery. Telnet/SSH authentication will not be affected by this.

switch(boot-config)# admin-password <new password>
WARNING! Remote Authentication for login through console will be disabled#

For information on strong passwords, see the “Checking Password Strength” section.

Step 6 Exit to the EXEC mode.

switch(boot-config)# admin-password <new password>


Step 7 Issue the load command to load the Cisco NX-OS software.

switch(boot)# load bootflash:m9500-sf1ek9-mz.2.1.1a.bin


Caution If you boot a system image that is older than the image you used to store the configuration and do not use the install all command to boot the system, the switch erases the binary configuration and uses the ASCII configuration. When this occurs, you must use the init system command to recover your password.

Step 8 Log in to the switch using the new administrator password.

switch login: admin
Password: <new password>


Step 9 Reset the new password to ensure that is it is also the SNMP password for DCNM-SAN.

switch# config t
switch(config)# username admin password <new password>
switch(config)# exit
switch#


Step 10 Save the software configuration.

switch# copy running-config startup-config


Step 11 Insert the previously removed supervisor module into slot 6 in the chassis.




Verifying Users and Common Role Configuration

To display Monitoring Users and Common Role configuration information, perform one of the following tasks:



Command
Purpose

show role

Displays information for all roles.

show role status

Displays the Role Status Information.

show role pending

Displays Information on the Pending Roles Database.

show role pending-diff

Displays the Differences Between the Two Databases.

show role name my_role

Displays CLI Operation to SNMP Operation Mapping.

show user-account user1

Displays Information for a Specified User.

show user-account

Displays Information for All Users.

show ssh server

Displays SSH Protocol Status.

show ssh key

Displays Server Key-Pair Details.

For detailed information about the fields in the output from these commands, refer to the Cisco MDS 9000 Family Command Reference .

This section includes the following topics:

Displaying Role-Based Information

The rules are displayed by rule number and are based on each role. All roles are displayed if the role name is not specified.

To view rules for a role using Device Manager, follow these steps:


Step 1 Click Security > Roles.

You see the Roles dialog box.

Step 2 Select a role name and click Rules.

You see the Rules dialog box.

Step 3 Click Summary to get a summarized view of the rules configured for this role.




Displaying Role-Based Information

Use the show role command to display rules configured on the switch. The rules are displayed by rule number and are based on each role. All roles are displayed if the role name is not specified. See Example 28-3.

Example 28-3 Displays Information for All Roles

switch# show role
Role: network-admin
Description: Predefined Network Admin group. This role cannot be modified
Access to all the switch commands

Role: network-operator
Description: Predefined Network Operator group. This role cannot be modified
Access to Show commands and selected Exec commands

Role: svc-admin
Description: Predefined SVC Admin group. This role cannot be modified
Access to all SAN Volume Controller commands

Role: svc-operator
Description: Predefined SVC Operator group. This role cannot be modified
Access to selected SAN Volume Controller commands

Role: TechDocs
vsan policy: permit (default)

Role: sangroup
Description: SAN management group
vsan policy: deny
Permitted vsans: 10-30

---------------------------------------------
Rule Type Command-type Feature
---------------------------------------------
1. permit config *
2. deny config fspf
3. permit debug zone
4. permit exec fcping


Displaying Roles When Distribution is Enabled

Use the show role command to display the configuration database.

Use the show role status command to display whether distribution is enabled for role configuration, the current fabric status (locked or unlocked), and the last operation performed. See Example 28-4.

Example 28-4 Displays the Role Status Information

switch# show role status
Distribution: Enabled
Session State: Locked

Last operation (initiated from this switch): Distribution enable
Last operation status: Success


Use the show role pending command to display the pending role database.

Example 28-5 displays the output of the show role pending command by following this procedure:

1. Create the role called myrole using the role name myrole command.

2. Enter the rule 1 permit config feature fspf command.

3. Enter the show role pending command to see the output.

Example 28-5 Displays Information on the Pending Roles Database

switch# show role pending
Role: network-admin
Description: Predefined Network Admin group. This role cannot be modified
Access to all the switch commands

Role: network-operator
Description: Predefined Network Operator group. This role cannot be modified
Access to Show commands and selected Exec commands

Role: svc-admin
Description: Predefined SVC Admin group. This role cannot be modified
Access to all SAN Volume Controller commands

Role: svc-operator
Description: Predefined SVC Operator group. This role cannot be modified
Access to selected SAN Volume Controller commands

Role: TechDocs
vsan policy: permit (default)

Role: sangroup
Description: SAN management group
vsan policy: deny
Permitted vsans: 10-30

---------------------------------------------
Rule Type Command-type Feature
---------------------------------------------
1. permit config *
2. deny config fspf
3. permit debug zone
4. permit exec fcping

Role: myrole
vsan policy: permit (default)
---------------------------------------------
Rule Type Command-type Feature
---------------------------------------------
1. permit config fspf


Use the show role pending-diff command to display the differences between the pending and configuration role database. See Example 28-6.

Example 28-6 Displays the Differences Between the Two Databases

switch# show role pending-diff
+Role: myrole
+ vsan policy: permit (default)
+ ---------------------------------------------
+ Rule Type Command-type Feature
+ ---------------------------------------------
+ 1. permit config fspf


To view the roles using DCNM-SAN, follow these steps:


Step 1 Expand Switches > Security and then select Users and Roles in the Physical Attributes pane.

Step 2 Click the Users tab in the Information pane (see Figure 28-5).

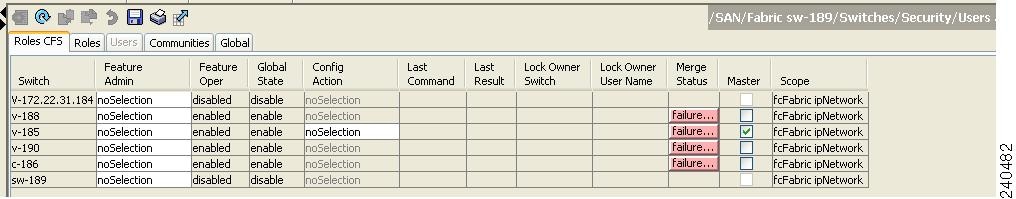

Figure 28-5 Roles CFS Tab



Step 3 Set the Config View As drop-down value to pending to view the pending database or set the Config View as drop-down menu to running to view the running database.

Step 4 Click Apply Changes to save this change.




Example 28-7 shows the privileges and rules mapping CLI operations to SNMP operations for a role named my_role.

Example 28-7 Displays CLI Operation to SNMP Operation Mapping

switch# show role name my_role
Role:my_role
vsan policy:permit (default)
---------------------------------------------
Rule Type Command-type Feature
---------------------------------------------
1. permit clear *
2. deny clear ntp
3. permit config *
4. deny config ntp
5. permit debug *
6. deny debug ntp
7. permit show *
8. deny show ntp
9. permit exec *


Note Although CONFIG is denied for NTP in rule 4, rule 9 allows the SET to NTP MIB objects because EXEC also maps to the SNMP SET operation


Displaying User Account Information

Use the show user-account command to display configured information about user accounts. See Examples 28-8 to 28-9 .

Example 28-8 Displays Information for a Specified User

switch# show user-account user1
user:user1
this user account has no expiry date
roles:network-operator
no password set. Local login not allowed
Remote login through RADIUS is possible


Example 28-9 Displays Information for All Users

switch# show user-account
show user-account
user:admin
this user account has no expiry date
roles:network-admin
user:usam
expires on Sat May 31 00:00:00 2003
roles:network-admin network-operator
user:msam
this user account has no expiry date
roles:network-operator
user:user1
this user account has no expiry date
roles:network-operator
no password set. local login not allowed
Remote login through RADIUS is possible


To display information about configured user accounts using DCNM-SAN, follow these steps:


Step 1 Expand Security and then select Users and Roles in the Physical Attributes pane.

Step 2 Click the Users tab.

You see the list of SNMP users shown in Figure 28-6 in the Information pane.

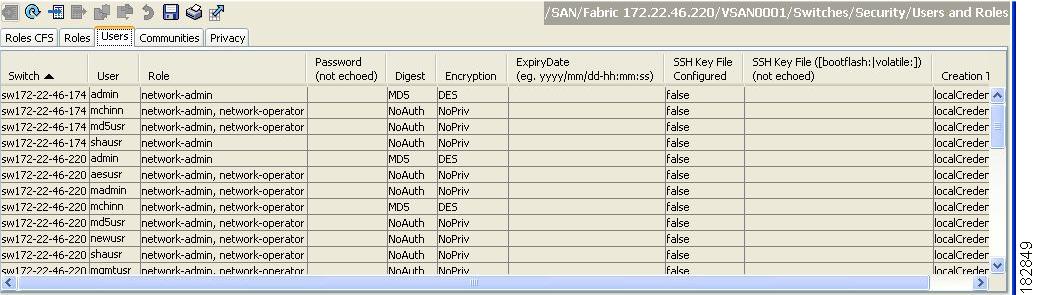

Figure 28-6 Users Listed Under the Users Tab






Displaying SSH Protocol Status

Use the show ssh server command to display the status of the SSH protocol (enabled or disabled) and the versions that are enabled for that switch (see Example 28-10).

Example 28-10 Displays SSH Protocol Status

switch# show ssh server
ssh is enabled
version 1 enabled
version 2 enabled



Use the show ssh key command to display the server key-pair details for the specified key or for all keys, (see Example 28-11).

Example 28-11 Displays Server Key-Pair Details

switch# show ssh key
rsa1 Keys generated:Sun Jan 13 07:16:26 1980
1024 35
fingerprint:
1024 67:76:02:bd:3e:8d:f5:ad:59:5a:1e:c4:5e:44:03:07
could not retrieve rsa key information
dsa Keys generated:Sun Jan 13 07:40:08 1980
ssh-dss AAAAB3NzaC1kc3MAAABBAJTCRQOydNRel2v7uiO6Fix+OTn8eGdnnDVxw5eJs5OcOEXOyjaWcMMYsEgxc9ada1NElp8Wy7GPMWGOQYj9CU0AAAAVAMCcWhNN18zFNOIPo7cU3t7d0iEbAAAAQBdQ8UAOi/Cti84qFb3kTqXlS9mEhdQUo0lHcH5bw5PKfj2Y/dLR437zCBKXetPj4p7mhQ6Fq5os8RZtJEyOsNsAAABAA0oxZbPyWeR5NHATXiyXdPI7j9i8fgyn9FNipMkOF2Mn75Mi/lqQ4NIq0gQNvQOx27uCeQlRts/QwI4q68/eaw=
fingerprint:
512 f7:cc:90:3d:f5:8a:a9:ca:48:76:9f:f8:6e:71:d4:ae


Note If you are logging in to a switch through SSH and you have issued the aaa authentication login default none CLI command, you must enter one or more key strokes to log in. If you press the Enter key without entering at least one keystroke, your log in will be rejected.


Field Descriptions for Users and Common Role

Common Roles


Note Common roles is not available in displayFCoE mode (use security roles).




Field
Description

Description

Description of the common role.

Enable

This specifies whether the common role has a VSAN restriction or not.

List

List of VSANs user is restricted to.

Feature History for Users and Common Role

Table 28-3 lists the release history for this feature. Only features that were introduced or modified in 5.x or a later release appear in the table.



Table 28-3 Feature History for FIPS

Feature Name
Releases
Feature Information

Changes to SSH

5.0(1a)

Boot Mode SSH, Passwordfree File copy, and SSH.

Role Distributions

5.0(1a)

Enabling role-based configuration distribution.

Creating Users Guidelines

5.0(1a)

Caution has been changed.
