Information About FICON
The Cisco MDS 9000 Family supports the Fibre Channel Protocol (FCP), FICON, iSCSI, and FCIP capabilities within a single, high-availability platform (see Figure 24-1).
The FICON feature is not supported on:
-
Cisco MDS 9120 switches
-
Cisco MDS 9124 switches
-
Cisco MDS 9140 switches
-
The 32-port Fibre Channel switching module
-
Cisco Fabric Switch for HP c-Class BladeSystem
-
Cisco Fabric Switch for IBM BladeSystem
FCP and FICON are different FC4 protocols and their traffic is independent of each other. Devices using these protocols should be isolated using VSANs.
The fabric binding feature helps prevent unauthorized switches from joining the fabric or disrupting current fabric operations (refer to the
Cisco MDS 9000 Family NX-OS Security Configuration Guide
). The Registered Link Incident Report (RLIR) application provides a method for a switch port to send an LIR to a registered Nx port.
Figure 24-1 Shared System Storage Network
This section includes the following topics:
FICON Requirements
The FICON feature has the following requirements:
-
You can implement FICON features in the following switches:
– Any switch in the Cisco MDS 9500 Series
– Any switch in the Cisco MDS 9200 Series (including the Cisco MDS 9222i Multiservice Modular Switch)
– Cisco MDS 9134 Multilayer Fabric Switch
– MDS 9000 Family 18/4-Port Multiservice Module
-
You need the MAINFRAME_PKG license to configure FICON parameters.
-
To extend your FICON configuration over a WAN link using FCIP, you need the appropriate SAN_EXTN_OVER_IP license for the module you are using. For more information, refer to the
Cisco NX-OS Family Licensing Guide
.
Cisco MDS-Specific FICON Advantages
This section explains the additional FICON advantages in Cisco MDS switches and includes the following topics:
Fabric Optimization with VSANs
Generally, separate physical fabrics have a high level of switch management and have a higher implementation cost. The ports in each island also may be over-provisioned depending on the fabric configuration.
By using the Cisco MDS-specific VSAN technology, you can have greater efficiency between these physical fabrics by lowering the cost of over-provisioning and reducing the number of switches to be managed. VSANs also help you to move unused ports nondisruptively and provide a common redundant physical infrastructure (see Figure 24-2).

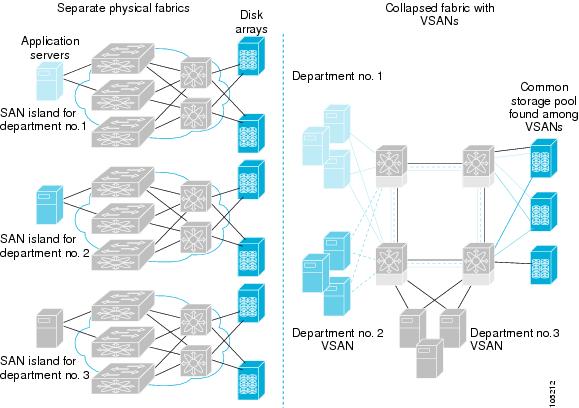

Figure 24-2 VSAN-Specific Fabric Optimization
VSANs enable global SAN consolidation by allowing you to convert existing SAN islands into virtual SAN islands on a single physical network. It provides hardware-enforced security and separation between applications or departments to allow coexistence on a single network. It also allows virtual rewiring to consolidate your storage infrastructure. You can move assets between departments or applications without the expense and disruption of physical relocation of equipment.
Note You can configure VSANs in any Cisco MDS switch, but you only can enable FICON in up to eight of these VSANs. The number of VSANs configured depends on the platform.
Mainframe users can think of VSANs as being like FICON LPARs in the MDS SAN fabric. You can partition switch resources into FICON LPARs (VSANs) that are isolated from each other, in much the same way that you can partition resources on a zSeries or DS8000. Each VSAN has its own set of fabric services (such as fabric server and name server), FICON CUP, domain ID, Fabric Shortest Path First (FSPF) routing, operating mode, IP address, and security profile.
FICON LPARs can span line cards and are dynamic in size. For example, one FICON LPAR with 10 ports can span 10 different line cards. FICON LPARs can also include ports on more than one switch in a cascaded configuration. The consistent fairness of the Cisco MDS 9000 switching architecture means that “all ports are created equal,” simplifying provisioning by eliminating the “local switching” issues seen on other vendors’ platforms.
Addition of ports to a FICON LPAR is a nondisruptive process. The maximum number of ports for a FICON LPAR is 255 due to FICON addressing limitations.
FCIP Support

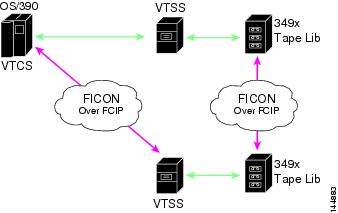

The multilayer architecture of the Cisco MDS 9000 Family enables a consistent feature set over a protocol-agnostic switch fabric. Cisco MDS 9500 Series and 9200 Series switches transparently integrate Fibre Channel, FICON, and Fibre Channel over IP (FCIP) in one system. The FICON over FCIP feature enables cost-effective access to remotely located mainframe resources. With the Cisco MDS 9000 Family platform, storage replication services such as IBM PPRC and XRC can be extended over metro to global distances using ubiquitous IP infrastructure which simplifies business continuance strategies.
Refer to the
Cisco MDS 9000 Family NX-OS IP Services Configuration Guide
.
PortChannel Support
The Cisco MDS implementation of FICON provides support for efficient utilization and increased availability of Inter-Switch Links (ISLs) necessary to build stable large-scale SAN environments. PortChannels ensure an enhanced ISL availability and performance in Cisco MDS switches.
Refer to the
Cisco MDS 9000 Family NX-OS Interfaces Configuration Guide
for more information on PortChannels.
VSANs for FICON and FCP Mixing
Cisco MDS 9000 Family FICON-enabled switches simplify deployment of even the most complex mixed environments. Multiple logical FICON, Z-Series Linux/FCP, and Open-Systems Fibre Channel Protocol (FCP) fabrics can be overlaid onto a single physical fabric by simply creating VSANs as required for each service. VSANs provide both hardware isolation and protocol specific fabric services, eliminating the complexity and potential instability of zone-based mixed schemes.
By default, the FICON feature is disabled in all switches in the Cisco MDS 9000 Family. When the FICON feature is disabled, FC IDs can be allocated seamlessly. Mixed environments are addressed by the Cisco NX-OS software. The challenge of mixing FCP and FICON protocols are addressed by Cisco MDS switches when implementing VSANs.
Switches and directors in the Cisco MDS 9000 Family support FCP and FICON protocol mixing at the port level. If these protocols are mixed in the same switch, you can use VSANs to isolate FCP and FICON ports.
Tip When creating a mixed environment, place all FICON devices in one VSAN (other than the default VSAN) and segregate the FCP switch ports in a separate VSAN (other than the default VSAN). This isolation ensures proper communication for all connected devices.
Cisco MDS-Supported FICON Features
The Cisco MDS 9000 Family FICON features include:
-
Flexibility and investment protection—The Cisco MDS 9000 Family shares common switching and service modules across the Cisco MDS 9500 Series and the 9200 Series.
Refer to the
Cisco MDS 9500 Series
Hardware Installation Guide
and the
Cisco MDS 9200 Series Hardware Installation Guide.
-
High-availability FICON-enabled director—The Cisco MDS 9500 Series combines nondisruptive software upgrades, stateful process restart and failover, and full redundancy of all major components for a new standard in director-class availability. It supports up to 528 autosensing, 4/2/1-Gbps, 10-Gbps, FICON or FCP ports in any combination in a single chassis. Refer to the
Cisco MDS 9000 Family NX-OS High Availability and Redundancy Configuration Guide
.
-
Infrastructure protection—Common software releases provide infrastructure protection across all Cisco MDS 9000 platforms. Refer to the
Cisco MDS 9000 Family NX-OS Software Upgrade and Downgrade Guide
.
-
VSAN technology—The Cisco MDS 9000 Family provides VSAN technology for hardware-enforced, isolated environments within a single physical fabric for secure sharing of physical infrastructure and enhanced FICON mixed support. See Chapter19, “Configuring and Managing VSANs”
-
Port-level configurations—There are BB_credits, beacon mode, and port security for each port. Refer to the
Cisco MDS 9000 Family NX-OS Interfaces Configuration Guide
for information about buffer-to-buffer credits, beacon LEDs, and trunking.
-
Alias name configuration—Provides user-friendly aliases instead of the WWN for switches and attached node devices. See Chapter16, “Configuring and Managing Zones”
-
Comprehensive security framework—The Cisco MDS 9000 Family supports RADIUS and TACACS+ authentication, Simple Network Management Protocol Version 3 (SNMPv3), role-based access control, Secure Shell Protocol (SSH), Secure File Transfer Protocol (SFTP), VSANs, hardware-enforced zoning, ACLs, fabric binding, Fibre Channel Security Protocol (FC-SP), LUN zoning, read-only zones, and VSAN-based access control. Refer to the
Cisco MDS 9000 Family NX-OS Security Configuration Guide
for information about RADIUS, TACACS+, FC-SP, and DHCHAP.
-
Traffic encryption—IPsec is supported over FCIP. You can encrypt FICON and Fibre Channel traffic that is carried over FCIP. Refer to the
Cisco MDS 9000 Family NX-OS Security Configuration Guide
.
-
Local accounting log—View the local accounting log to locate FICON events. For more information about MSCHAP authentication, and local AAA services, refer to the
Cisco MDS 9000 Family NX-OS Security Configuration Guide
.
-
Unified storage management—Cisco MDS 9000 FICON-enabled switches are fully IBM CUP standard compliant for in-band management using the IBM S/A OS/390 I/O operations console. See the “CUP In-Band Management” section.
-
Port address-based configurations—Configure port name, blocked or unblocked state, and the prohibit connectivity attributes can be configured on the ports. See the “Configuring FICON Ports” section.
-
You can display the following information:
– Individual Fibre Channel ports, such as the port name, port number, Fibre Channel address, operational state, type of port, and login data.
– Nodes attached to ports.
– Port performance and statistics.
See the “Calculating FICON Flow Load Balance” section.
-
Configuration files—Store and apply configuration files. See the “FICON Configuration Files” section.
-
FICON and Open Systems Management Server features if installed. —See the “VSANs for FICON and FCP Mixing” section.
-
Enhanced cascading support—See the “CUP In-Band Management” section.
-
Date and time—Set the date and time on the switch. See the “Allowing the Host to Control the Timestamp” section.
-
Configure SNMP trap recipients and community names—See the “Configuring SNMP Control of FICON Parameters” section.
-
Call Home configurations—Configure the director name, location, description, and contact person. Refer to the
Cisco MDS 9000 Family NX-OS System Management Configuration Guide.
-
Configure preferred domain ID, FC ID persistence, and principal switch priority—For information about configuring domain parameters, refer to the
Cisco MDS 9000 Family NX-OS System Management Configuration Guide
.
-
Sophisticated SPAN diagnostics—The Cisco MDS 9000 Family provides industry-first intelligent diagnostics, protocol decoding, and network analysis tools as well as integrated Call Home capability for added reliability, faster problem resolution, and reduced service costs. For information about monitoring network traffic using SPAN, refer to the
Cisco MDS 9000 Family NX-OS System Management Configuration Guide
.
-
Configure R_A_TOV, E_D_TOV—— See the “Fibre Channel Time-Out Values” section.
-
Director-level maintenance tasks—Perform maintenance tasks for the director including maintaining firmware levels, accessing the director logs, and collecting data to support failure analysis. For information about monitoring system processes and logs refer to the
Cisco MDS 9000 Family NX-OS System Management Configuration Guide
.
-
Port-level incident alerts—Display and clear port-level incident alerts. See the “Clearing RLIR Information” section.
FICON Cascading
The Cisco MDS NX-OS software allows multiple switches in a FICON network. To configure multiple switches, you must enable and configure fabric binding in that switch (see the “Calculating FICON Flow Load Balance” section and refer to the
Cisco MDS 9000 Family NX-OS Security Configuration Guide
).
FICON VSAN Prerequisites
To ensure that a FICON VSAN is operationally up, be sure to verify the following requirements:
-
Set the default zone to permit, if you are not using the zoning feature. See the “About the Default Zone” section.
-
Enable in-order delivery on the VSAN. See Chapter22, “Configuring Fibre Channel Routing Services and Protocols”
-
Enable (and if required, configure) fabric binding on the VSAN. See the “Calculating FICON Flow Load Balance” section. For more information about Fabric Binding, refer to the
Cisco MDS 9000 Family NX-OS Security Configuration Guide
.
-
Verify that conflicting persistent FC IDs do not exist in the switch. For information about configuring domain parameters, refer to the
Cisco MDS 9000 Family NX-OS System Management Configuration Guide
.
-
Verify that the configured domain ID and requested domain ID match. For information about configuring domain parameters, refer to the
Cisco MDS 9000 Family NX-OS System Management Configuration Guide
.
-
Add the CUP (area FE) to the zone, if you are using zoning. See the “CUP In-Band Management” section.
If any of these requirements are not met, the FICON feature cannot be enabled.
FICON Port Numbering
With reference to the FICON feature, ports in Cisco MDS switches are identified by a statically defined 8-bit value known as the port number. A maximum of 255 port numbers are available. You can use the following port numbering schemes:
-
Default port numbers based on the chassis type
-
Reserved port numbers
Default FICON Port Numbering Scheme
Default FICON port numbers are assigned by the Cisco MDS NX-OS software based on the module and the slot in the chassis. The first port in a switch always starts with a zero (0) (see Figure 24-3).
Figure 24-3 Default FICON Port Number in Numbering on the Cisco MDS 9000 Family Switch
The default FICON port number is assigned based on the front panel location of the port and is specific to the slot in which the module resides. Thirty-two (32) port numbers are assigned to each slot on all Cisco MDS 9000 Family switches except for the Cisco MDS 9513 Director, which has 16 port numbers assigned for each slot. These default numbers are assigned regardless of the module’s physical presence in the chassis, the port status (up or down), or the number of ports on the module (4, 12, 16, 24, or 48). If a module has fewer ports than the number of port numbers assigned to the slot, then the excess port numbers are unused. If a module has more ports than the number of port numbers assigned to the slot, the excess ports cannot be used for FICON traffic unless you manually assign the port numbers.
Note You can use the ficon slot assign port-numbers command to make use of any Follow the steps in “Assigning FICON Port Numbers to Slots” section to make use of excess ports by manually assigning more port numbers to the slots. Before doing this, however, we recommend that you review the default port number assignments for Cisco MDS 9000 switches shown in Table 24-3 Table 24-1, and that you read the following sections to gain a complete understanding of FICON port numbering: “About the Reserved FICON Port Numbering Scheme” section, “FICON Port Numbering Guidelines” section, and “Assigning FICON Port Numbers to Slots” section.
Note Only Fibre Channel, PortChannel, and FCIP ports are mapped to FICON port numbers. Other types of interfaces do not have a corresponding port number.
Table 24-1
lists the default port number assignment for the Cisco MDS 9000 Family of switches and directors.
Table 24-1 Default FICON Port Numbering in the Cisco MDS 9000 Family
|
|
Implemented Port Allocation
|
|
|
|
|
Cisco MDS 9200 Series
|
Slot 1
|
0 through 31
|
64 through 89
|
90 through 253 and port 255
|
Similar to a switching module.
|
Slot 2
|
32 through 63
|
Cisco MDS 9222i Series
|
Slot 1
|
0 through 31
|
64 through 89
|
90 through 253 and port 255
|
The first 4, 12, 16, or 24 port numbers in a 4-port, 12-port, 16-port, or 24-port module are used and the rest remain unused. Extra 16 ports on 48-port modules are not allocated numbers.
|
Slot 2
|
32 through 63
|
Cisco MDS 9506 Director
|
Slot 1
|
0 through 31
|
128 through 153
|
154 through 253 and port 255
|
Supervisor modules are not allocated port numbers.
|
Slot 2
|
32 through 63
|
Slot 3
|
64 through 95
|
Slot 4
|
96 through 127
|
Slot 5
|
None
|
Slot 6
|
None
|
Cisco MDS 9134 Director
|
Slot 1
|
0 through 33
|
34 through 59
|
60 through 253 and port 255
|
Cisco MDS 9509 Director
|
Slot 1
|
0 through 31
|
224 through 249
|
250 through 253 and port 255
|
The first 4, 12, 16, or 24 port numbers in a 4-port, 12-port, 16-port, or 24-port module are used and the rest remain unused. Extra 16 ports on 48-port modules are not allocated port numbers.
|
Slot 2
|
32 through 63
|
Slot 3
|
64 through 95
|
Slot 4
|
96 through 127
|
Slot 5
|
None
|
Supervisor modules are not allocated port numbers.
|
Slot 6
|
None
|
Slot 7
|
128 through 159
|
The first 4, 12, 16, or 24 port numbers are used for a 4-port, 12-port,16-port, or 24-port module and the rest remain unused. Extra 16 ports on 48-port modules are not allocated port numbers.
|
Slot 8
|
160 through 191
|
Slot 9
|
192 through 223
|
Cisco MDS 9513 Director
|
Slot 1
|
0 through 15
|
224 through 249
|
250 through 253 and port 255
|
The first 4, 12 or 16 port numbers are used for a 4-port, 12-port or 16-port module and the rest remain unused. Extra ports on 24-port, 32-port, and 48-port modules are not allocated port numbers.
|
Slot 2
|
16 through 31
|
Slot 3
|
32 through 47
|
Slot 4
|
48 through 63
|
Slot 5
|
64 through 79
|
Slot 6
|
80 through 95
|
Slot 7
|
None
|
Supervisor modules are not allocated port numbers.
|
Slot 8
|
None
|
Slot 9
|
96 through 111
|
The first 4 or 12 port numbers are used for a 4-port or 12-port module and the rest remain unused. Extra ports on 24-port, 32-port, and 48-port modules are not allocated port numbers.
|
Slot 10
|
112 through 127
|
Slot 11
|
128 through 143
|
Slot 12
|
144 through 159
|
Slot 13
|
160 through 175
|
Port Addresses
By default, port numbers are the same as port addresses. You can swap the port addresses (see the “Port Swapping” section).
You can swap the port addresses by issuing the
ficon
swap portnumber
command.
Implemented and Unimplemented Port Addresses
An implemented port refers to any port address that is assigned by default to a slot in the chassis (see
Table 24-3
). An unimplemented port refers to any port address that is not assigned by default to a slot in the chassis (see
Table 24-3
).
About the Reserved FICON Port Numbering Scheme
A range of 250 port numbers are available for you to assign to all the ports on a switch.
Table 24-3
shows that you can have more than 250 physical ports on a switch and the excess ports do not have port numbers in the default numbering scheme. When you have more than 250 physical ports on your switch, you can have ports without a port number assigned if they are not in a FICON VSAN, or you can assign duplicate port numbers if they are not used in the same FICON VSAN. For example, you can configure port number 1 on interface fc1/1 in FICON VSAN 10 and fc10/1 in FICON VSAN 20.
Note A VSAN can have a maximum of 250 port numbers.
Note FICON port numbers are not changed for ports that are active. You must first disable the interfaces using the shutdown command.
Note You can configure port numbers even when no module is installed in the slot.
Installed and Uninstalled Ports
An installed port refers to a port for which all required hardware is present. A specified port number in a VSAN can be implemented, and yet not installed, if any of the following conditions apply:
-
The module is not present—For example, if module 1 is not physically present in slot 1 in a Cisco MDS 9509 Director, ports 0 to 31 are considered uninstalled.
-
The small form-factor pluggable (SFP) port is not present—For example, if a 16-port module is inserted in slot 2 in a Cisco MDS 9509 Director, ports 48 to 63 are considered uninstalled.
-
For slot 1, ports 0 to 31, or 0 to 15 have been assigned. Only the physical port fc1/5 with port number 4 is in VSAN 2. The rest of the physical ports are not in VSAN 2. The port numbers 0 to 249 are considered implemented for any FICON-enabled VSAN. Therefore, VSAN 2 has port numbers 0 to 249 and one physical port, fc1/4. The corresponding physical ports 0 to 3,and 5 to 249 are not in VSAN 2. When the FICON VSAN port address is displayed, those port numbers with the physical ports not in VSAN 2 are not installed (for example, ports 0 to 3, or 5 to 249).
Another scenario is if VSANs 1 through 5 are FICON-enabled, and trunking-enabled interface fc1/1 has VSANs 3 through 10, then port address 0 is uninstalled in VSAN 1 and 2.
-
The port is part of a PortChannel—For example, if interface fc 1/1 is part of PortChanne1 5, port address 0 is uninstalled in all FICON VSANs. See
Table 24-3
.
FC ID Allocation
FICON requires a predictable and static FC ID allocation scheme. When FICON is enabled, the FC ID allocated to a device is based on the port address of the port to which it is attached. The port address forms the middle byte of the fabric address. Additionally, the last byte of the fabric address should be the same for all devices in the fabric. By default, the last byte value is 0 and can be configured (see the “Assigning FC ID Last Byte” section).
Note You cannot configure persistent FC IDs in FICON-enabled VSANs.
Cisco MDS switches have a dynamic FC ID allocation scheme. When FICON is enabled or disabled on a VSAN, all the ports are shut down and restarted to switch from the dynamic to static FC IDs and vice versa (see Figure 24-4).

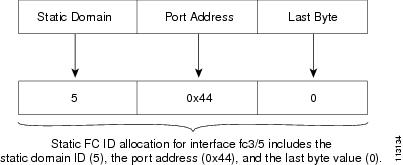

Figure 24-4 Static FC ID Allocation for FICON
About Enabling FICON on a VSAN
By default FICON is disabled in all VSANs on the switch.
You can enable FICON on a per VSAN basis in one of the following ways:
-
Use the automated
setup ficon
command.
See the “Setting Up a Basic FICON Configuration” section.
-
Manually address each prerequisite.
See the “Information About FICON” section.
-
Use Device Manager (refer to the Fabric Configuration Guide, Cisco DCNM for SAN).
When you enable the FICON feature in Cisco MDS switches, the following restrictions apply:
-
You cannot disable in-order delivery for the FICON-enabled VSAN.
-
You cannot disable fabric binding or static domain ID configurations for the FICON-enabled VSAN.
-
The load balancing scheme is changed to Source ID (SID)—Destination ID (DID). You cannot change it back to SID—DID—OXID.
-
The IPL configuration file is automatically created.
See the “FICON Configuration Files” section.
Tip Using Device Manager, FICON auto-save can be invoked by multiple users logged on to the same FICON-enabled switch. Device Manager performs a periodic auto-save on any FICON-enabled switch causing increments in the FICON key counter. These increments highlight a change that has actually not occurred. To avoid this situation, we recommend that only one instance of Device Manager monitor a FICON-enabled switch.
FICON Information Refresh
When viewing FICON information through the Device Manager dialog boxes, you must manually refresh the display by clicking the
Refresh
button to see the latest updates. You need to take this step whether you configure FICON through the CLI or through the Device Manager.
There is no automatic refresh of FICON information. This information would be refreshed so often that it would affect performance.
About FICON Device Allegiance
FICON requires serialization of access among multiple mainframes, CLI, and SNMP sessions be maintained on Cisco MDS 9000 Family switches by controlling device allegiance for the currently executing session. Any other session is denied permission to perform configuration changes unless the required allegiance is available.
Caution This task discards the currently executing session.
Automatically Saving the Running Configuration
Cisco MDS NX-OS provides an option to automatically save any configuration changes to the startup configuration. This ensures that the new configuration is present after a switch reboot. By default, the Active=Saved
active equals saved
option is automatically enabled on any FICON VSAN.
Table 24-2
displays the results of the
Active = Saved
option
active equals saved
command and the implicit copy from the running
configuration to the startup configuration (
copy running start
)
copy running-config startup-config
command in various scenarios.
When the Active=Saved option
active equals saved
command is enabled in any FICON-enabled VSAN in the fabric, then the following apply (see Number 1 and 2 in
Table 24-2
):
-
All configuration changes (FICON-specific or not) are automatically saved to persistent storage (implicit
copy running start
) and stored in the startup configuration.
-
FICON-specific configuration changes are immediately saved to the IPL file (see the “FICON Configuration Files” section).
If the Active=Saved
option
active equals saved
command
is not enabled in any FICON-enabled VSAN in the fabric, then FICON-specific configuration changes are not saved in the IPL file and an implicit
copy running startup
command is not issued, you must explicitly save the running
configuration to the startup configuration issue the
copy running start
command explicitly (see number 3 in
Table 24-2
).
Table 24-2 Saving the Active FICON and Switch Configuration
|
|
active equals saved
Enabled?
|
Implicit
copy running start
|
|
1
|
Yes
|
Yes (in all FICON VSANs)
|
Implicit
|
FICON changes written to the IPL file.
Non-FICON changes saved to startup configuration and persistent storage.
|
2
|
Yes
|
Yes (even in one FICON VSAN)
|
Implicit
|
FICON changes written to IPL file for only the VSAN that has
active equals saved
option enabled.
Non-FICON changes saved to startup configuration and persistent storage.
|
3
|
Yes
|
Not in any FICON VSAN
|
Not implicit
|
FICON changes are not written to the IPL file.
Non-FICON changes are saved in persistent storage—only if you explicitly issue the
copy running start
command.
|
4
|
No
|
Not applicable
|
Note If active equals saved is enabled, the Cisco NX-OS software ensures that you do not have to perform the copy running startup command for the FICON configuration as well. If your switch or fabric consists of multiple FICON-enabled VSANs, and one of these VSANs have active equals saved enabled, changes made to the non-FICON configuration results in all configurations being saved to the startup configuration.

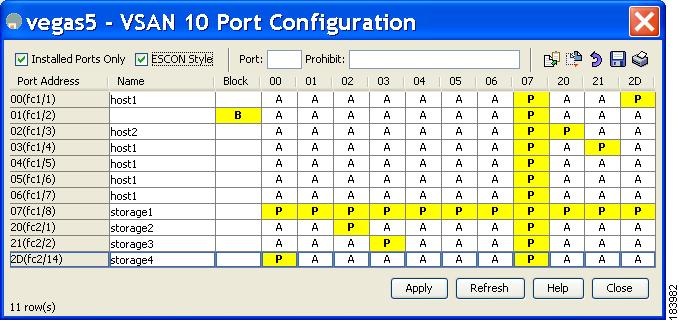

Port Prohibiting
To prevent implemented ports from talking to each other, configure prohibits between two or more ports. If you prohibit ports, the specified ports are prevented from communicating with each other.
Tip You cannot prohibit a PortChannel or FCIP interface.
Unimplemented ports are always prohibited. In addition, prohibit configurations are always symmetrically applied—if you prohibit port 0 from talking to port 15, port 15 is automatically prohibited from talking to port 0.
Note If an interface is already configured in E or TE mode and you try to prohibit that port, your prohibit configuration is rejected. Similarly, if a port is not up and you prohibit that port, the port is not allowed to come up in E mode or in TE mode.
About RLIR
The Registered Link Incident Report (RLIR) application provides a method for a switch port to send a Link Incident Record (LIR) to a registered Nx port.
When an LIR is detected in FICON-enabled switches in the Cisco MDS 9000 Family from an RLIR Extended Link Service (ELS), the switch sends that record to the members in its Established Registration List (ERL).
In case of multiswitch topology, a Distribute Registered Link Incident Record (DRLIR) Inter-Link Service (ILS) is sent to all reachable remote domains along with the RLIR ELS. On receiving the DRLIR ILS, the switch extracts the RLIR ELS and sends it to the members of the ERL.
The Nx ports interested in receiving the RLIR ELS send the Link Incident Record Registration (LIRR) ELS request to the management server on the switch. The RLIRs are processed on a per-VSAN basis.
The RLIR data is written to persistent storage when you enter the
copy running-config startup-config
command.
The RLIR data is written to persistent storage when you
copy
the running configuration to the startup configuration.
FICON Configuration Files
You can save up to 16 FICON configuration files on each FICON-enabled VSAN (in persistent storage). The file format is proprietary to IBM. These files can be read and written by IBM hosts using the in-band CUP protocol. Additionally, you can use the Cisco MDS CLI or DCNM-SAN applications to operate on these FICON configuration files.
Note Multiple FICON configuration files with the same name can exist in the same switch, provided they reside in different VSANs. For example, you can create a configuration file named XYZ in both VSAN 1 and VSAN 3.
When you enable the FICON feature in a VSAN, the switches always use the startup FICON configuration file, called IPL. This file is created with a default configuration as soon as FICON is enabled in a VSAN.
Caution When FICON is disabled on a VSAN, all the FICON configuration files are irretrievably lost.
FICON configuration files contain the following configuration for each implemented port address:
-
Block
-
Prohibit mask
-
Port address name
Note Normal configuration files used by Cisco MDS switches include FICON-enabled attributes for a VSAN, port number mapping for PortChannels and FCIP interfaces, port number to port address mapping, port and trunk allowed VSAN configuration for ports, in-order guarantee, static domain ID configuration, and fabric binding configuration.
Refer to the
Cisco MDS 9000 Family NX-OS Fundamentals Configuration Guide
for details on the normal configuration files used by Cisco MDS switches.
Only one user can access the configuration file at any given time:
-
If this file is being accessed by user 1, user 2 cannot access this file.
-
If user 2 does attempt to access this file, an error is issued to user 2.
-
If user 1 is inactive for more than 15 seconds, the file is automatically closed and available for use by any other permitted user.
FICON configuration files can be accessed by any host, SNMP, or CLI user who is permitted to access the switch. The locking mechanism in the Cisco NX-OS software restricts access to one user at a time per file. This lock applies to newly created files and previously saved files. Before accessing any file, you must lock the file and obtain the file key. A new file key is used by the locking mechanism for each lock request. The key is discarded when the lock timeout of 15 seconds expires. The lock timeout value cannot be changed.
Port Swapping
The FICON port-swapping feature is only provided for maintenance purposes.
The FICON port-swapping feature causes all configurations associated with
old-port-number
and
new port-number
to be swapped, including VSAN configurations.
Cisco MDS switches allow port swapping for nonexistent ports as follows:
-
Only FICON-specific configurations (prohibit, block, and port address mapping) are swapped.
-
No other system configuration is swapped.
-
All other system configurations are only maintained for existing ports.
-
If you swap a port in a module that has unlimited oversubscription ratios enabled with a port in a module that has limited oversubscription ratios, then you may experience a degradation in bandwidth.
Tip If you check the Active=Saved check box active equals saved is enabled on any FICON VSAN, then the swapped configuration is automatically saved to startup. Otherwise, you must explicitly save the running configuration immediately after swapping the ports.
Once you swap ports, the switch automatically performs the following actions:
-
Shuts down both the old and new ports.
-
Swaps the port configuration.
If you attempt to bring the port up, you must explicitly shut down the port to resume traffic.
Note To view the latest FICON information, you must click the Refresh button. See the “Automatically Saving the Running Configuration”.
The
ficon
swap portnumber
command is only associated with the two ports concerned. You must issue this VSAN-independent command from EXEC mode. Cisco MDS NX-OS checks for duplicate port numbers in a VSAN before performing the port swap.
If you attempt to bring the port up by specifying the
ficon swap portnumber
old-port-number new-port-number
after swap noshut
command, you must explicitly issue the
no shutdown
command to resume traffic.
FICON Tape Acceleration
The sequential nature of tape devices causes each I/O operation to the tape device over an FCIP link to incur the latency of the FCIP link. Throughput drastically decreases as the round-trip time through the FCIP link increases, leading to longer backup windows. Also, after each I/O operation, the tape device is idle until the next I/O arrives. Starting and stopping of the tape head reduces the lifespan of the tape, except when I/O operations are directed to a virtual tape.
Cisco MDS NX-OS software provides acceleration for the following FICON tape write operations:
-
The link between mainframe and native tape drives (both IBM and Sun/STK)
-
The back-end link between the VSM (Virtual Storage Management) and tape drive (Sun/STK)
FICON tape acceleration over FCIP provides the following advantages:
-
Efficiently utilizes the tape device by decreasing idle time
-
More sustained throughput as latency increases
-
Similar to FCP tape acceleration, and does not conflict with it
Note FICON tape read acceleration over FCIP is supported from Cisco MDS NX-OS Release 5.0(1). For more information refer to the “Configuring FICON Tape Read Acceleration”.
Figure 24-5 through Figure 24-8 show supported configurations.
Figure 24-5 Host Directly Accessing IBM/STK (StorageTek) Library
Figure 24-6 Host Accessing Standalone IBM-VTS (Virtual Tape Server) /STK-VSM (Virtual Shared Memory)
Figure 24-7 Host Accessing Peer-to-Peer VTS (Virtual Tape Server)
Figure 24-8 Host Accessing Peer-to-Peer VTS (Virtual Tape Server)
Note For information about FCIP tape acceleration, refer to the Cisco MDS 9000 Family NX-OS IP Services Configuration Guide.
CUP In-Band Management
The CUP protocol configures access control and provides unified storage management capabilities from a mainframe computer. Cisco MDS 9000 FICON-enabled switches are fully IBM CUP standard compliant for in-band management using the IBM S/A OS/390 I/O operations console.
Note The CUP specification is proprietary to IBM.
CUP is supported by switches and directors in the Cisco MDS 9000 Family. The CUP function allows the mainframe to manage the Cisco MDS switches.
Host communication includes control functions such as blocking and unblocking ports, as well as monitoring and error reporting functions.
Configuring FICON
By default FICON is disabled in all switches in the Cisco MDS 9000 Family. You can enable FICON on a per VSAN basis by using the Device Manager.
This section includes the following topics:
Assigning FICON Port Numbers to Slots
You can use the
show ficon port-number assign
and
show ficon first-available port-number
commands to determine which port numbers to use.
Caution When you assign, change, or release a port number, the port reloads.
To assign FICON port numbers to a slot, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon slot 3 assign port-numbers 0-15, 48-63
|
Reserves FICON port numbers 0 through 15 and 48 through 63 for up to 32 interfaces in slot 3.
|
switch(config)#
ficon slot 3 assign port-numbers 0-15, 17-32
|
Reserves FICON port numbers 0 through 15 for the first 16 interfaces and 17 through 32 for the next 16 interfaces in slot 3.
|
switch(config)#
ficon slot 3 assign port-numbers 0-63
|
Reserves FICON port numbers 0 through 63 for up to 64 interfaces in slot 3.
|
switch(config)#
ficon slot 3 assign port-numbers 0-15, 56-63
|
Changes the reserved FICON port numbers for up to 24 interfaces in slot 3.
|
switch(config)#
no ficon slot 3 assign port-numbers 0-15, 56-63
|
Releases the FICON port numbers.
|
To assign FICON port numbers to slots using Device Manager, follow these steps:
Step 1 Click
FICON
and then select
Port Numbers
.
You see the
FICON port number.
Step 2 Enter the chassis slot port numbers in the Reserved Port Numbers field.
Step 3 Click
Apply
.
Reserving FICON Port Numbers for FCIP and PortChannel Interfaces
You must reserve port numbers for logical interfaces, such as FCIP and PortChannels, if you plan to use them.
Detailed Steps
To reserve FICON port numbers for logical interfaces, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon logical-port assign port-numbers 230-249
|
Reserves port numbers 230 through 249 for FCIP and PortChannel interfaces.
|
Step 3
|
switch(config)#
ficon logical-port assign port-numbers 0xe6-0xf9
|
Reserves port numbers 0xe6 through 0xf9 for FCIP and PortChannel interfaces.
Note You cannot change port numbers that are active. You must disable the interfaces using the shutdown command and unbind port numbers using the no ficon portnumber command. See the “Configuring FICON Ports” section.
|
Step 4
|
switch(config)#
no ficon logical-port assign port-numbers 230-249
|
Releases the port numbers.
Note You cannot release port numbers for interfaces that are active.You must disable the interfaces using the shutdown command and unbind port numbers using the no ficon portnumber command. See the “Configuring FICON Ports” section.
|
To reserve FICON port numbers for FCIP and PortChannel interfaces using Device Manager, follow these steps:
Step 1 Click
FICON
>
Port Numbers.
You see the
FICON port numbers dialog box.
Step 2 Click the
Logical
tab to see the reserved port numbers for the slot.
Step 3 Enter the chassis slot port numbers. These are the reserved port numbers for one chassis slot. There can be up to 64 port numbers reserved for each slot in the chassis.
Step 4 Click
Apply
.
Enabling FICON on the Switch
By default FICON is disabled in all switches in the Cisco MDS 9000 Family. You can enable FICON on the switch either explicitly or implicitly by enabling FICON on a VSAN. However, disabling FICON on all VSANs does not disable FICON on the switch. You must explicitly disable FICON.
To explicitly enable or disable FICON globally on the switch, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
feature ficon
|
Enables FICON globally on the switch.
|
Step 3
|
switch(config)#
no feature ficon
|
Disables FICON globally on the switch and removes all FICON configuration.
|
Setting Up a Basic FICON Configuration
This section steps you through the procedure to set up FICON on a specified VSAN in a Cisco MDS 9000 Family switch.
Note Press Ctrl-C at any prompt to skip the remaining configuration options and proceed with what is configured until that point.
Tip If you do not want to answer a previously configured question, or if you want to skip answers to any questions, press Enter. If a default answer is not available (for example, switch name), the switch uses what was previously configured and skips to the next question.
To enable and set up FICON, follow these steps:
Step 1 Enter the
setup ficon
command at the EXEC command mode.
--- Ficon Configuration Dialog --- This setup utility will guide you through basic Ficon Configuration Press Enter if you want to skip any dialog. Use ctrl-c at anytime to skip all remaining dialogs.
Step 2 Enter
yes
(the default is
yes
) to enter the basic FICON configuration setup.
Would you like to enter the basic configuration dialog (yes/no) [yes]: yes
The FICON setup utility guides you through the basic configuration process. Press
Ctrl-C
at any prompt to end the configuration process.
Step 3 Enter the VSAN number for which FICON should be enabled.
Step 4 Enter
yes
(the default is
yes
) to create a VSAN.
vsan 2 does not exist, create it? (yes/no) [yes]: yes
Step 5 Enter
yes
(the default is
yes
) to confirm your VSAN choice:
Enable ficon on this vsan? (yes/no) [yes]: yes
Note At this point, the software creates the VSAN if it does not already exist.
Step 6 Enter the domain ID number for the specified FICON VSAN.
Configure domain-id for this ficon vsan (1-239):2
Step 7 Enter
yes
(the default is
no
) to set up FICON in cascaded mode. If you enter
no
, skip to Step 8 (see the “CUP In-Band Management” section).
Would you like to configure ficon in cascaded mode: (yes/no) [no]: yes
a. Assign the peer WWN for the FICON: CUP.
Configure peer wwn (hh:hh:hh:hh:hh:hh:hh:hh): 11:00:02:01:aa:bb:cc:00
b. Assign the peer domain ID for the FICON: CUP
Configure peer domain (1-239) :4
c. Enter
yes
if you wish to configure additional peers (and repeat Steps
7
a
and
7
b
). Enter
no
, if you do wish to configure additional peers.
Would you like to configure additional peers: (yes/no) [no]: no
Step 8 Enter
yes
(the default is
yes
) to allow SNMP permission to modify existing port connectivity parameters (see the “Configuring SNMP Control of FICON Parameters” section).
Enable SNMP to modify port connectivity parameters? (yes/no) [yes]: yes
Step 9 Enter
no
(the default is
no
) to allow the host (mainframe) to modify the port connectivity parameters, if required (see the “Allowing the Host to Change FICON Port Parameters” section).
Disable Host from modifying port connectivity parameters? (yes/no) [no]: no
Step 10 Enter
yes
(the default is
yes
) to enable the
active equals saved
feature (see the “Automatically Saving the Running Configuration” section).
Enable active=saved? (yes/no) [yes]: yes
Step 11 Enter
yes
(the default is
yes
) if you wish to configure additional FICON VSANs.
Would you like to configure additional ficon vsans (yes/no) [yes]: yes
Step 12 Review and edit the configuration that you have just entered.
Step 13 Enter no (the default is
no
) if you are satisfied with the configuration.
Note For documentation purposes, the following configurations shows three VSANs with different FICON settings. These settings provide a sample output for different FICON scenarios.
The following configuration will be applied: fcdomain domain 2 static vsan 1 fcdomain restart disruptive vsan 1 fabric-binding database vsan 1 swwn 11:00:02:01:aa:bb:cc:00 domain 4 fabric-binding activate vsan 1 zone default-zone permit vsan 1 fcdomain domain 3 static vsan 2 fcdomain restart disruptive vsan 2 fabric-binding activate vsan 2 force zone default-zone permit vsan 2 fcdomain domain 5 static vsan 3 fcdomain restart disruptive vsan 3 fabric-binding activate vsan 3 force zone default-zone permit vsan 3 Would you like to edit the configuration? (yes/no) [no]: no
Step 14 Enter yes (the default is
yes
) to use and save this configuration. The implemented commands are displayed. After FICON is enabled for the specified VSAN, you are returned to the EXEC mode switch prompt.
Use this configuration and apply it? (yes/no) [yes]: yes `fcdomain domain 2 static vsan 1` `fcdomain restart disruptive vsan 1` `fabric-binding database vsan 1` `swwn 11:00:02:01:aa:bb:cc:00 domain 4` `fabric-binding activate vsan 1` `zone default-zone permit vsan 1` `fcdomain domain 3 static vsan 2` `fcdomain restart disruptive vsan 2` `fabric-binding activate vsan 2 force` `zone default-zone permit vsan 2`
Note If a new VSAN is created, two additional commands are displayed— vsan database and vsan number.
`in-order-guarantee vsan 3` `fcdomain domain 2 static vsan 3` `fcdomain restart disruptive vsan 3` `fabric-binding activate vsan 3 force` `zone default-zone permit vsan 3` Performing fast copy config...done.
Enabling FICON on a VSAN
To create a FICON-enabled VSAN, follow these steps:
Step 1 Click the Create VSAN icon (see Figure 24-9).
Figure 24-9 Create VSAN Icon
You see the Create VSAN dialog box.
Step 2 Select the switches you want to be in the VSAN.
Step 3 Enter a VSAN ID.
Step 4 Enter the name of the VSAN, if desired.
Step 5 Select the type of load balancing, the interop value, and the administrative state for this VSAN.
Step 6 Check the FICON check box.
Note You cannot enable interop modes on FICON-enabled VSANs.
Step 7 Check the option, if appropriate, to enable fabric binding for the selected switches.
Step 8 Check the All Ports Prohibited option if all ports in this VSAN are prohibited.
Step 9 Click Create to create the VSAN.
Step 10 Choose
Tools
>
Device Manager
to open Device Manager for each switch in the FICON VSAN.
Step 11 Choose FC > VSANs.
You see the VSAN dialog box.
Step 12 Enter the VSAN membership information.
Step 13 Click the VSAN you want to become a FICON VSAN and select Add from the FICON drop-down menu.
Step 14 Click Apply to save these changes.
Manually Enabling FICON on a VSAN
Note This section describes the procedure to manually enable FICON on a VSAN. If you have already enabled FICON on the required VSAN using the automated setup (recommended), skip to the “Automatically Saving the Running Configuration” section.
To manually enable FICON on a VSAN, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
vsan database
switch(config-vsan-db)#
vsan 5
switch(config-vsan-db)#
do show vsan usage
4 vsan configured
configured vsans:1-2,5,26
vsans available for configuration:3-4,6-25,27-4093
switch(config-vsan-db)#
exit
|
Enables VSAN 5.
|
Step 3
|
switch(config)#
in-order-guarantee vsan 5
|
Activates in-order delivery for VSAN 5.
|
Step 4
|
switch(config)#
fcdomain domain 2 static vsan 2
|
Configures the domain ID for VSAN 2.
For information about configuring domain parameters, refer to the
Cisco MDS 9000 Family NX-OS System Management Configuration Guide
.
|
Step 5
|
switch(config)#
fabric-binding activate vsan 2 force
|
Activates fabric binding on VSAN 2.
Refer to the
Cisco MDS 9000 Family NX-OS Security Configuration Guide
|
Step 6
|
switch(config)#
zone default-zone permit vsan 2
|
Sets the default zone to permit for VSAN 2.
See the “CUP In-Band Management” section.
|
Step 7
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
switch(config)#
no
ficon vsan 6
|
Disables the FICON feature on VSAN 6.
|
Step 8
|
switch(config-ficon)#
no host port control
|
Prohibits mainframe users from moving the switch to an offline state.
See the “Allowing the Host to Move the Switch Offline” section.
|
To manually enable FICON on a VSAN, follow these steps:
Step 1 Choose
VSAN
>
FICON
.
You see the FICON VSAN configuration information in the Information pane.
Step 2 Select the switch in the VSAN on which you want to enable FICON.
Step 3 Click enable from the Command drop-down menu.
Step 4 Click the
Apply Changes
icon to save these changes.
Deleting FICON VSANs
To delete a FICON VSAN, follow these steps:
Step 1 Select All VSANS.
You see the VSAN table in the Information pane.
Step 2 Click anywhere in the row of the VSAN that you want to delete.
Step 3 Click Delete Row to delete the VSAN.
Note Deleting the VSAN will also delete the associated FICON configuration file, and the file cannot be recovered.
Suspending a FICON VSAN
To suspend a FICON VSAN, follow these steps:
Step 1 Click
All VSANs
.
You see all the VSANs listed in the Information pane.
Step 2 Select the VSAN that you want to suspend.
Step 3 Set the Admin drop-down menu for a VSAN to suspended.
Step 4 Click the Apply Changes icon to save these changes.
Note This command can be issued by the host if the host is allowed to do so (see the “Allowing the Host to Move the Switch Offline”).
Moving a FICON VSAN to an Offline State
Issue the
ficon vsan
vsan-id
offline
command in EXEC mode to log out all ports in the VSAN that need to be suspended.
Issue the EXEC-level
ficon vsan
vsan-id
online
command in EXEC mode to remove the offline condition and to allow ports to log on again.
Note This command can be issued by the host if the host is allowed to do so (see the “Allowing the Host to Move the Switch Offline” section).
Configuring the code-page Option
FICON strings are coded in Extended Binary-Coded Decimal Interchange Code (EBCDIC) format. Refer to your mainframe documentation for details on the code-page options.
Cisco MDS switches support
international-5
,
france
,
brazil
,
germany
,
italy
,
japan
,
spain-latinamerica
,
uk
, and
us-canada
(default) EBCDIC format options.
To configure the
code-page
option in a VSAN, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
Step 3
|
switch(config-ficon)#
code-page italy
|
Configures the
italy
EBCDIC format.
|
switch(config-ficon)#
no code-page
|
Reverts to the factory default of using the
us-canada
EBCDIC format.
|
To modify the code-page option using Device Manager, follow these steps:
Step 1 Choose
FICON
>
VSANs
.
You see the FICON VSAN configuration dialog box. The VSANs tab is the default tab.
Step 2 From the CodePage drop-down menu, choose an
option for the FICON VSAN you want to configure.
Step 3 Click Apply to save the changes.
Assigning FC ID Last Byte
Restrictions
If the FICON feature is configured in cascaded mode, the Cisco MDS switches use ISLs to connect to other switches.
To assign the last byte for the FC ID, follow these steps:
Step 1 Choose
All VSANs
> Domain Manager.
Step 2 Click the
Persistent FCIDs
tab.
Step 3 Select
single
in the Mask column and then assign the entire FC ID at once. The single option allows you to enter the FC ID in the ###### format.
Step 4 Click the
Apply Changes
icon to save these changes.
Allowing the Host to Move the Switch Offline
By default, hosts are allowed to move the switch to an offline state. To do this, the host sends a "Set offline" command (x'FD') to the CUP.
To allow the host to move the switch to an offline state, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
Step 3
|
switch(config-ficon)#
no host control switch offline
|
Prohibits mainframe users from moving the switch to an offline state.
|
switch(config-ficon)#
host control switch offline
|
Allows the host to move the switch to an offline state (default) and shuts down the ports.
|
To allow the host (mainframe) to move the switch to an offline state, follow these steps:
Step 1 Choose
VSAN
>
FICON
.
You see a list of switches under the Control tab in the Information pane.
Step 2 Click the
VSANs
tab.
You see the FICON VSAN configuration information in the Information pane.
Step 3 Check the Host Can Offline Sw check box to allow the mainframe to move a switch to the offline state.
Step 4 Check the
Host Can
Sync Time check box to allow the mainframe to set the system time on the switch.
Step 5 Click the Apply Changes icon to save the changes.
Allowing the Host to Change FICON Port Parameters
By default, mainframe users are not allowed to configure FICON parameters on Cisco MDS switches—they can only query the switch.
Use the
host port control
command to permit mainframe users to configure FICON parameters.
To allow the host (mainframe) to configure FICON parameters on the Cisco MDS switch, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
Step 3
|
switch(config-ficon)#
no host port control
|
Prohibits mainframe users from configuring FICON parameters on the Cisco MDS switch.
|
switch(config-ficon)#
host port control
|
Allows mainframe users to configure FICON parameters on the Cisco MDS switch (default).
|
To allow the host (mainframe) to configure FICON parameters on the Cisco MDS switch, follow these steps:
Step 1 Choose
VSAN
>
FICON
.
You see a list of switches under the
Control
tab in the Information pane.
Step 2 Click the
VSANs
tab.
You see the FICON VSAN configuration information in the Information pane.
Step 3 Check the
Port Control
By Host check box to allow the mainframe to control a switch.
Step 4 Click the Apply Changes icon to save the changes.
Allowing the Host to Control the Timestamp
By default, the clock in each VSAN is the same as the switch hardware clock. Each VSAN in a Cisco MDS 9000 Family switch represents a virtual director. The clock and time present in each virtual director can be different.To maintain separate clocks for each VSAN, the Cisco NX-OS software maintains the difference of the VSAN-specific clock and the hardware-based director clock. When a host (mainframe) sets the time, the Cisco NX-OS software updates this difference between the clocks. When a host reads the clock, it computes the difference between the VSAN-clock and the current director hardware clock and presents a value to the mainframe.
The VSAN-clock current time is reported in the output of
show ficon vsan
vsan-id
,
show ficon
, and
show accounting log
commands.
To configure host control of the timestamp, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
Step 3
|
switch(config-ficon)#
no host set-timestamp
|
Prohibits mainframe users from changing the VSAN-specific clock.
|
switch(config-ficon)#
host set-timestamp
|
Allows the host to set the clock on this switch (default).
|
To configure host (mainframe) control for the VSAN time stamp, follow these steps:
Step 1 Choose
VSAN
>
FICON
.
You see a list of switches under the Control tab in the Information pane.
Step 2 Click the
VSANs
tab.
You see the FICON VSAN configuration information in the Information pane.
Step 3 Check the Host Can Sync Time checkbox to allow the mainframe to set the system time on the switch.
Step 4 Click the Apply Changes icon to save these changes.
Clearing the Time Stamp
Note You can clear time stamps only from the Cisco MDS switch—not the mainframe.
Use the
clear ficon vsan
vsan-id
timestamp
command in EXEC mode to clear the VSAN clock.
switch# clear ficon vsan 20 timestamp
Configuring SNMP Control of FICON Parameters
By default, SNMP users can configure FICON parameters using Cisco DCNM for SAN.
Restrictions
If you disable SNMP in the Cisco MDS switch, you cannot configure FICON parameters using DCNM-SAN.
To configure SNMP control of FICON parameters, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
Step 3
|
switch(config-ficon)#
no
snmp port control
|
Prohibits SNMP users from configuring FICON parameters.
|
switch(config-ficon)#
snmp port control
|
Allows SNMP users to configure FICON parameters (default).
|
To configure SNMP control of FICON parameters, follow these steps:
Step 1 Choose
VSAN
>
FICON
.
You see a list of switches under the Control tab in the Information pane.
Step 2 Click the
VSANs
tab.
You see the FICON VSAN configuration information in the Information pane.
Step 3 Check the
Port Control
By SNMP checkbox to allow SNMP users to configure FICON on the switch.
Step 4 Click the Apply Changes icon to save these changes.
Clearing FICON Device Allegiance
You can clear the current device allegiance by issuing the
clear ficon vsan
vsan-id
allegiance
command in EXEC mode.
switch# clear ficon vsan 1 allegiance
Automatically Saving the Running Configuration
To automatically save the running configuration, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
Step 3
|
switch(config-ficon)#
active equals saved
|
Enables the automatic save feature for all VSANs in the switch or fabric.
|
switch(config-ficon)#
no
active equals saved
|
Disables automatic save for this VSAN.
|
To save the running configuration, follow these steps:
Step 1 Choose
VSAN
>
FICON
.
You see a list of switches under the Control tab in the Information pane.
Step 2 Click the
VSANs
tab.
You see the FICON VSAN configuration information in the Information pane.
Step 3 Check the Active=Saved check box to automatically save the running configuration to the startup configuration whenever there is a FICON configuration change.
Step 4 Click the Apply Changes icon to save these changes.
Configuring FICON Ports
You can perform FICON configurations on a per-port address basis in the Cisco MDS 9000 Family switches.
Even if a port is uninstalled, the port address-based configuration is accepted by the Cisco MDS switch. This configuration is applied to the port when the port becomes installed.
This section includes the following topics:
Binding Port Numbers to PortChannels
Caution All port number assignments to PortChannels or FCIP interfaces are lost (cannot be retrieved) when FICON is disabled on all VSANs.
You can bind (or associate) a PortChannel with a FICON port number to bring up that interface.
To bind a PortChannel with a FICON port number, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
interface Port-channel 1
switch(config-if)#
|
Enters the PortChannel interface configuration mode.
|
Step 3
|
switch(config-if)#
ficon portnumber 234
|
Assigns the FICON port number to the selected PortChannel port.
|
Binding Port Numbers to FCIP Interfaces
You can bind (or associate) an FCIP interface with a FICON port number to bring up that interface.
To bind an FCIP interface with a FICON port number, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch1(config)#
interface fcip 51
switch1(config-if)#
|
Creates an FCIP interface (51).
|
Step 3
|
switch(config-if)#
ficon portnumber 208
|
Assigns the FICON port number to the selected FCIP interface.
|
Configuring Port Blocking
If you block a port, the port is retained in the operationally down state. If you unblock a port, a port initialization is attempted. When a port is blocked, data and control traffic are not allowed on that port.
Physical Fibre Channel port blocks will continue to transmit an Off-line state (OLS) primitive sequence on a blocked port.
Note The shutdown/no shutdown port state is independent of the block/no block port state.
Restrictions
You cannot block or prohibit the CUP port (0XFE). If a port is shut down, unblocking that port does not initialize the port.
To block or unblock port addresses in a VSAN, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
Step 3
|
switch(config-ficon)#
portaddress 1 - 5
switch(config-ficon-portaddr)#
|
Selects port address 1 to 5 for further configuration.
|
Step 4
|
switch(config-ficon-portaddr)#
block
|
Disables a range of port addresses and retains it in the operationally down state.
|
switch(config-ficon-portaddr)#
no block
|
Enables the selected port address and reverts to the factory default of the port address not being blocked.
|
To block or unblock port addresses in a VSAN using Device Manager, follow these steps:
Step 1 Choose
FICON
>
VSANs
.
Step 2 Select a VSAN ID and click
Port Configuration
.
You see the FICON Port Configuration dialog box for the selected VSAN.
Step 3 Check the
Blocked
check box for the port that you want to block.
Step 4 Click
Apply
to save the changes.
Configuring the Default State for Port Prohibiting
By default, port prohibiting is disabled on the implemented interfaces on the switch. As of Cisco MDS SAN-OS Release 3.0(2), you can change the default port prohibiting state to enabled in VSANs that you create and then selectively disable port prohibiting on implemented ports, if desired. Also, only the FICON configuration files created after you change the default have the new default setting (see the “FICON Configuration Files” section).
To change the default port prohibiting setting for all implemented interfaces on the switch, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon port default-state prohibit-all
|
Enables port prohibiting as the default for all implemented interfaces on the switch.
|
switch(config)#
no ficon port default-state prohibit-all
|
Disables (default) port prohibiting as the default for all implemented interfaces on the switch.
|
Examples
Use the
show ficon port default-state
command to display the port prohibiting default state configuration.
switch# show ficon port default-state Port default state is prohibit-all
Configuring Port Prohibiting
To prohibit port addresses in a VSAN, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
Step 3
|
switch(config-ficon)#
portaddress 7
switch(config-ficon-portaddr)#
|
Selects port address 7 for further configuration.
|
Step 4
|
switch(config-ficon-portaddr)#
prohibit portaddress 3-5
|
Prohibits port address 7 in VSAN 2 from talking to ports 3, 4, and 5.
|
switch(config-ficon-portaddr)#
no prohibit portaddress 5
|
Removes port address 5 from a previously prohibited state.
|
To prohibit port addresses in a VSAN using Device Manager, follow these steps:
Step 1 Choose
FICON
>
VSANs
.
Step 2 Select a VASAN ID and click Port Configuration.
You see the FICON Port Configuration dialog box.
Step 3 Set the port prohibit configuration for the selected FICON VSANs.
Step 4 Click Apply to save these changes.
Assigning a Port Address Name
To assign a port address name, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
Step 3
|
switch(config-ficon)#
portaddress 7
switch(config-ficon-portaddr)#
|
Selects port address 7 for further configuration.
|
Step 4
|
switch(config-ficon-portaddr)#
name SampleName
|
Assigns a name to the port address.
Note The port address name is restricted to 24 alphanumeric characters.
|
switch(config-ficon-portaddr)#
no name SampleName
|
Deletes a previously configured port address name.
|
Note To view the latest FICON information, you must click the Refresh button. See the “Automatically Saving the Running Configuration”.
To assign a port address name in Device Manager, follow these steps:
Step 1 Choose
FICON
>
VSANs
.
Step 2 Select a VSAN ID and click Port Configuration.
You see the FICON Port Configuration dialog box.
Step 3 Enter the Port Configuration information.
Step 4 Click Apply to save the configuration information.
Specifying an RLIR Preferred Host
As of Cisco MDS SAN-OS Release 3.0(3), you can specify a preferred host to receive RLIR frames. The MDS switch sends RLIR frames to the preferred host only if it meets the following conditions:
-
No host in the VSAN is registered for RLIR with the registration function set to “always receive.” If one or more hosts in the VSAN are registered as “always receive,” then RLIR sends only to these hosts and not to the configured preferred host.
-
The preferred host is registered with the registration function set to “conditionally receive.”
Note If all registered hosts have the registration function set to “conditionally receive,” then the preferred host receives the RLIR frames.
You can specify only one RLIR preferred host per VSAN. By default, the switch sends RLIR frames to one of the hosts in the VSAN with the register function set to “conditionally receive” if no hosts have the register function set to “always receive.”
To specify the RLIR preferred host for a VSAN, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
rlir preferred-cond fcid 0x772c00 vsan 5
|
Specifies FC ID 0x772c00 as the RLIR preferred host in VSAN 5. (FC ID 0x772c00 is used here as an example.)
|
switch(config)#
no rlir preferred-cond fcid 0x654321 vsan 2
|
Removes FC ID 0x772c00 as the RLIR preferred host for VSAN 5.
|
To display the RLIR preferred host configuration, use the
show rlir erl
command.
Established Registration List for VSAN: 5 ---------------------------------------------- FC-ID LIRR FORMAT REGISTERED FOR ---------------------------------------------- 0x772c00 0x18 conditional receive(*) 0x779600 0x18 conditional receive 0x779700 0x18 conditional receive 0x779800 0x18 conditional receive Total number of entries = 4 (*) - Denotes the preferred host
Clearing RLIR Information
Use the
clear rlir statistics
command to clear all existing statistics for a specified VSAN.
switch# clear rlir statistics vsan 1
Use the
clear rlir history
command to clear the RLIR history where all link incident records are logged for all interfaces.
switch# clear rlir history
Use the
clear rlir recent interface
command to clear the most recent RLIR information for a specified interface.
switch# clear rlir recent interface fc 1/2
Use the
clear rlir recent portnumber
command to clear the most recent RLIR information for a specified port number.
switch# clear rlir recent portnumber 16
Applying the Saved Configuration Files to the Running Configuration
You can apply the configuration from the saved files to the running configuration using the
ficon vsan
number
apply file
filename
command.
switch# ficon vsan 2 apply file SampleFile
To apply the saved configuration files to the running configuration using Device Manager, follow these steps:
Step 1 Choose
FICON
>
VSANs
.
Step 2 Click the Files tab.
You see the FICON Files dialog box.
Step 3 Highlight the file you want to apply and click Apply
File
to apply the configuration to the running configuration.
Editing FICON Configuration Files
The configuration file submode allows you to create and edit FICON configuration files. If a specified file does not exist, it is created. Up to 16 files can be saved. Each file name is restricted to eight alphanumeric characters.
To edit the contents of a specified FICON configuration file, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
ficon vsan 2
switch(config-ficon)#
|
Enables FICON on VSAN 2.
|
Step 3
|
switch(config-ficon)#
file IplFile1
switch(config-ficon-file)#
|
Accesses the FICON configuration file called IplFile1 for VSAN 2. If this file does not exist, it is created.
Note All FICON file names are restricted to eight alphanumeric characters.
|
switch(config-ficon)#
no
file IplFileA
|
Deletes a previously created FICON configuration file.
|
Step 4
|
switch(config-ficon-file)#
portaddress 3
switch(config-ficon-file-portaddr)#
|
Enters the submode for port address 3 to edit the contents of the configuration file named IplFile1.
Note The running configuration is not applied to the current configuration. The configuration is only applied when the ficon vsan number apply file filename command is issued.
|
Step 5
|
switch(config-ficon-file-portaddr)#
prohibit portaddress 5
|
Edits the content of the configuration file named IplFile1 by prohibiting port address 5 from accessing port address 3.
|
Step 6
|
switch(config-ficon-file-portaddr)#
block
|
Edits the content of the configuration file named IplFile1 by blocking a range of port addresses and retaining them in the operationally down state.
|
Step 7
|
switch(config-ficon-file-portaddr)#
name P3
|
Edits the content of the configuration file named IplFile1 by assigning the name P3 to port address 3. If the name did not exist, it is created. If it existed, it is overwritten.
|
Note To view the latest FICON information, you must click the Refresh button. See the “Automatically Saving the Running Configuration” section.
To edit the contents of a specified FICON configuration file using Device Manager, follow these steps:
Step 1 Choose
FICON
>
VSANs
.
Step 2 Click the Files tab.
You see the FICON VSANs dialog box.
Step 3 Select a VSAN ID and then click Open to edit the FICON configuration file.
Step 4 Select a VSAN ID and then click Delete to delete the FICON configuration file.
Step 5 Click Apply to apply the changed FICON configuration file.
Copying FICON Configuration Files
Use the
ficon vsan
vsan-id
copy file
existing-file-name
save-as-file-name
command in EXEC mode to copy an existing FICON configuration file.
switch# ficon vsan 20 copy file IPL IPL3
To copy an existing FICON configuration file using Device Manager, follow these steps:
Step 1 Choose
FICON
>
VSANs
.
Step 2 Click the Files tab.
You see the FICON VSANs dialog box.
Step 3 Click Create to create a FICON configuration file.
You see the Create FICON VSANs Files dialog box.
a. Select a VSAN ID for the FICON VSAN you want to configure.
b. Enter the file name and the description.
c. Click Create to create the file.
Step 4 Click Copy to copy the file to a new file.
Step 5 Click Apply to apply the FICON configuration file.
Examples
You can see the list of existing configuration files by issuing the
show
ficon vsan
vsan-id
command.
switch# show ficon vsan 20 Ficon information for VSAN 20 Host port control is Enabled Host offline control is Enabled User alert mode is Disabled SNMP port control is Enabled Host set director timestamp is Enabled Number of implemented ports are 250 Date/Time is same as system time (Wed Dec 3 20:10:45.924591 2003) Device Allegiance not locked Saved configuration files
Swapping Ports
If there are no duplicate port numbers on the switch, you can swap physical Fibre Channel ports, except the port numbers, by following these steps:
Step 1 Issue the
ficon swap portnumber
old-port-number new-port-number
command in EXEC mode.
Note The ficon swap portnumber command might fail if more than one interface on the MDS switch has the same port number as the old-port-number or new-port-number specified in the command.
The specified ports are operationally shut down.
Step 2 Physically swap the front panel port cables between the two ports.
Step 3 Issue the
no shutdown
command on each port to enable traffic flow.
Note If you specify the ficon swap portnumber old-port-number new-port-number after swap noshut command, the ports are automatically initialized.
If there are duplicate port numbers on the switch, you can swap physical Fibre Channel ports, including the port numbers, by following these steps:
Step 1 Issue the
ficon swap interface
old-interface new-interface
command in EXEC mode.
The specified interfaces are operationally shut down.
Step 2 Physically swap the front panel port cables between the two ports.
Step 3 Issue the
no shutdown
command on each port to enable traffic flow.
Note If you specify the ficon swap interface old-interface new-interface after swap noshut command, the ports are automatically initialized.
To swap ports using Device Manager, follow these steps:
Step 1 Select two Fibre Channel ports by holding down the CTRL key and clicking them.
Step 2 Choose
FICON
> Swap Selected Ports.
Configuring FICON Tape Acceleration
To configure FICON tape acceleration, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
interface fcip 2
switch(config-if)#
|
Specifies an FCIP interface and enters interface configuration submode.
|
Step 3
|
switch(config-if)#
ficon-tape-accelerator vsan 100
This configuration change will disrupt all traffic on the FCIP interface in all
VSANs. Do you wish to continue? [no]
y
|
Enables FICON tape acceleration over an FCIP interface.
|
switch(config-if)#
no ficon-tape-accelerator vsan 100
This configuration change will disrupt all traffic on the FCIP interface in all
VSANs. Do you wish to continue? [no]
y
|
Disables (default) FICON tape acceleration over an FCIP interface.
|
Use the
show running-config
command to verify the FICON tape acceleration over FCIP configuration.
switch# show running-config | begin "interface fcip" ficon-tape-accelerator vsan 100
To configure FICON tape acceleration over FCIP, follow these steps:
Step 1 Expand
ISL
and then select
FCIP
in the Physical Attributes pane.
Step 2 Click the
Tunnels
tab in the Information pane.
You see a list of available switches.
Step 3 Click the
Create Row
icon to create an FCIP tunnel.
You see the Create FCIP Tunnel dialog box.
Step 4 Configure the tunnel with the options.
Step 5 Check the
TapeAccelerator
check box to enable FICON tape acceleration over this FCIP tunnel.
Step 6 Click
Create
.
Configuring FICON Tape Read Acceleration
All the configuration guidelines and restrictions applicable for FICON tape acceleration are also applicable for FICON tape read acceleration. Both FICON tape acceleration and FICON tape read acceleration can coexist.
To configure FICON tape read acceleration, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters configuration mode.
|
Step 2
|
switch(config)#
interface fcip 2
switch(config-if)#
|
Specifies an FCIP interface and enters interface configuration submode.
|
Step 3
|
switch(config-if)#
ficon-tape-read-accelerator
This configuration change will disrupt all traffic on the FCIP interface in all
VSANs. Do you wish to continue? [no]
y
|
Enables FICON tape read acceleration over an FCIP interface.
|
switch(config-if)#
no ficon-tape-read-accelerator
This configuration change will disrupt all traffic on the FCIP interface in all
VSANs. Do you wish to continue? [no]
y
|
Disables (default) FICON tape read acceleration over an FCIP interface.
|
Configuring XRC Acceleration
IBM z/OS Global Mirror eXtended Remote Copy (XRC) is supported on the MSM-18+4 modules. For XRC to function, XRC acceleration must be enabled on the FCIP tunnel interfaces on both ends. XRC acceleration is disabled by default.
Restrictions
To enable XRC acceleration, follow these steps:
|
|
|
Step 1
|
switch#
config t
switch(config)#
|
Enters the configuration mode.
|
Step 2
|
switch(config)#
interface fcip
2
switch(config)#
|
Specifies an FCIP tunnel interface and enters interface configuration submode.
|
Step 3
|
switch(config-if)#
ficon-xrc-emulator
switch(config)#
|
Enables XRC acceleration over the FCIP interface.
|
switch(config-if)#
no ficon-xrc-emulator
switch(config)#
|
Disables (default) XRC acceleration over the FCIP tunnel interface.
|
XRC acceleration and FICON tape acceleration cannot be enabled on the same FCIP tunnel interface and cannot exist in the same VSAN.
To configure XRC acceleration on a FCIP tunnel interface, follow these steps:
Step 1 Expand
ISL
and then select
FCIP
in the Physical Attributes pane.
Step 2 Click the
Tunnels(Advanced)
tab in the Information pane.
You see a list of available FCIP interfaces.
Step 3 Check the check box in the XRC Emulator column to enable XRC acceleration over the FCIP tunnel.
Step 4 Click
Apply
.
To configure XRC acceleration on an FCIP tunnel interface using Device Manager, follow these steps:
Step 1 In the Device Manager window, click
IP
and then select
FCIP
from the menu.
Step 2 Click the
Tunnels(Advanced)
tab in the Information pane.
You see a list of FCIP interfaces.
Step 3 Check the check box in the XRC Emulator column to enable XRC acceleration over the FCIP tunnel.
Step 4 Click
Apply
.
Placing CUPs in a Zone
To place the CUP in a zone, follow these steps:
Step 1 Set the default zone to permit for the required VSAN.
switch(config)# zone default-zone permit vsan 20
Step 2 Issue the
show fcns database
command for the required VSAN and obtain the required FICON CUP WWN.
switch# show fcns database vsan 20 -------------------------------------------------------------------------- FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE -------------------------------------------------------------------------- 0x0d0d00 N 50:06:04:88:00:1d:60:83 (EMC) FICON:CU 0x0dfe00 N 25:00:00:0c:ce:5c:5e:c2 (Cisco) FICON:CUP 0x200400 N 50:05:07:63:00:c2:82:d3 (IBM) scsi-fcp FICON:CU f.. 0x200800 N 50:05:07:64:01:40:15:0f (IBM) FICON:CH 0x20fe00 N 20:00:00:0c:30:ac:9e:82 (Cisco) FICON:CUP Total number of entries = 5
Note If more than one FICON:CUP WWN exists in this fabric, be sure to add all the FICON:CUP WWN PWWNs to the required zone. The previous sample output displays multiple
FICON:CUP occurrences to indicate a cascade configuration.
Step 3 Add the identified FICON:CUP WWN to the zone database.
switch(config)# zone name Zone1 vsan 20 switch(config-zone)# member pwwn 25:00:00:0c:ce:5c:5e:c2
To place the CUP in a zone, follow these steps:
Step 1 In DCNM-SAN, choose Zone > Edit Full Zoneset, and then choose Edit > Edit Default Zone Attributes to set the default zone to permit for the required VSAN.
Step 2 In Device Manager, choose FC > Name Server... for the required VSAN and obtain the FICON:CUP WWN.
Note If more than one FICON:CUP WWN
exists in this fabric, be sure to add all the FICON:CUP
pWWNs to the required zone.
Step 3 In DCNM-SAN, choose Zone > Edit Full Zoneset and add the FICON:CUP pWWN to the zone database.
Calculating FICON Flow Load Balance
The FICON Flow Load Balance Calculator allows you to get the best load balancing configuration for your FICON flows. The calculator does not rely on any switch or flow discovery in the fabric. It is available from the DCNM-SAN Tools menu.
To use the FICON Flow Load Balance Calculator, follow these steps:
Step 1 Choose Tools > Flow Load Balance Calculator.
You see the Flow Load Balance Calculator.
Step 2 Click
Add
to enter the source and destination(s) flows.
Step 3 Enter source and destination using 2 byte hex (by domain and area IDs).You can copy and paste these IDs, and then edit them if required.
Step 4 Enter (or select) the number of ISLs between the two switches (for example, between domain ID 0a and 0b).
Step 5 Select a row to remove it and click
Remove
.
Step 6 Select the module for which you are calculating the load balance.
Step 7 Click Calculate to show the recommended topology.
Note If you change flows or ISLs, you must click Calculate to see the new recommendation.
Receiving FICON Alerts
In Example 24-1, the user alert mode is Enabled output confirms that you will receive an alert to indicate any changes in the FICON configuration.
Example 24-1 Displays Configured FICON Information
Ficon information for VSAN 20 Host port control is Enabled Host offline control is Enabled User alert mode is Enabled SNMP port control is Enabled Host set director timestamp is Enabled Number of implemented ports are 250 Date/Time is set by host to Sun Jun 26 00:04:06.991999 1904 Device allegiance is locked by Host Saved configuration files
To receive an alert to indicate any changes in the FICON configuration using Device Manager, follow these steps:
Step 1 Choose
FICON
>
VSANs
.
You see the FICON VSANs dialog box.
Step 2 Check the User Alert Mode check box to receive an alert when the FICON configuration changes.
Step 3 Click Apply to apply this change.
Verifying FICON Configuration
To display the FICON configuration information, perform one of the following tasks:
|
|
show ficon port-numbers assign
|
Displays the port numbers assigned on the switch
|
show ficon port-numbers assign slot 2
|
Displays the port numbers assigned to a specific slot
|
show ficon port-numbers assign logical-port
|
Displays the port numbers reserved for logical ports
|
show rlir statistics
|
Displays RLIR Statistics for All VSANs
|
show rlir statistics vsan 4
|
Displays RLIR Statistics for a Specified VSAN
|
show rlir erl
|
Displays All ERLs
|
show rlir erl vsan 100
|
Displays ERLs for the Specified VSAN
|
show rlir history
|
Displays the LIR History
|
show rlir recent interface fc1/1-4
|
Displays Recent LIRs for a Specified Interface
|
show rlir recent portnumber 1-4
|
Displays Recent LIRs for a Specified Port Number
|
show ficon vsan 2 file all
|
Displays the contents of all FICON configuration files
|
show ficon vsan 2 file name IPLfilea
|
Displays the contents of a specific FICON configuration file
|
show ficon vsan 2 file name IPLfilea portaddress 3
|
Displays the FICON configuration file information for a specific FICON port
|
show ficon control-device sb3
|
Displays Control Unit Information
|
show ficon vsan 2 portaddress
|
Displays Port Address Information
|
show ficon first-available port-number
|
Displays the Available Port Numbers
|
show ficon vsan 2 portaddress 50-55 brief
|
Displays Port Address Information in a Brief Format
|
show ficon vsan 20 portaddress 8 counters
|
Displays Port Address Counter Information
|
show ficon vsan 3 file IPL
|
Displays the Contents of the Specified FICON Configuration File
|
show ficon vsan 2
|
Displays All FICON Configuration Files
|
show ficon vsan 2 file iplfile1 portaddress 1-7
|
Displays the Specified Port Addresses for a FICON Configuration File
|
show ficon vsan 2 portaddress 55
|
Displays the Specified Port Address When FICON Is Enabled
|
show ficon vsan 2 portaddress 2
|
Displays an Administratively Unblocked Port
|
show ficon vsan 2 portaddress 1
|
Displays an Administratively Blocked Port
|
show ficon vsan 20 director-history
|
Displays the History Buffer for the Specified VSAN
|
show running-config
|
Displays the Running Configuration Information
|
show startup-config
|
Displays the Startup Configuration
|
show logging logfile
|
Displays FICON-Related Log File Contents
|
For detailed information about the fields in the output from these commands, refer to the
Cisco MDS 9000 Family Command Reference
.
This section includes the following topics:
Displaying the FICON Port Number Assignments
Use the
show ficon port-numbers assign
command to display the port numbers assigned on the switch.
switch# show ficon port-numbers assign ficon slot 1 assign port-numbers 0-31 ficon slot 2 assign port-numbers 32-63 ficon slot 3 assign port-numbers 64-95 ficon slot 4 assign port-numbers 96-127 ficon logical-port assign port-numbers 128-153
Use the
show ficon port-numbers assign slot
command to display the port numbers assigned to a specific slot.
switch# show ficon port-numbers assign slot 2 ficon slot 2 assign port-numbers 32-63
Use the
show ficon port-numbers assign
command to display the port numbers reserved for logical ports.
switch# show ficon port-numbers assign logical-port ficon logical-port assign port-numbers 128-153
Viewing ESCON Style Ports
To view the available and prohibited ESCON style ports using Device Manager, follow these steps:
Step 1 Check the ESCON Style check box to see the available and prohibited ESCON style ports.
In Figure 24-10, A stands for available and P stands for prohibited.
When the port address is highlighted red, it represents the E/TE port or multiple interfaces.
Figure 24-10 ESCON Style
Step 2 Click Apply to save the changes.
Displaying RLIR Information
The
show rlir statistics
command displays the complete statistics of LIRR, RLIR, and DRLIR frames. It lists the number of frames received, sent, and rejected. Specify the VSAN ID to obtain VSAN statistics for a specific VSAN. If you do not specify the VSAN ID, then the statistics are shown for all active VSANs (see Examples
24-2
and
24-3
).
Example 24-2 Displays RLIR Statistics for All VSANs
switch# show rlir statistics Number of LIRR received = 0 Number of LIRR ACC sent = 0 Number of LIRR RJT sent = 0 Number of RLIR ACC received = 0 Number of RLIR RJT received = 0 Number of DRLIR received = 0 Number of DRLIR ACC sent = 0 Number of DRLIR RJT sent = 0 Number of DRLIR ACC received = 0 Number of DRLIR RJT received = 0 ------------------------- Number of LIRR received = 26 Number of LIRR ACC sent = 26 Number of LIRR RJT sent = 0 Number of RLIR sent = 815 Number of RLIR ACC received = 815 Number of RLIR RJT received = 0 Number of DRLIR received = 417 Number of DRLIR ACC sent = 417 Number of DRLIR RJT sent = 0 Number of DRLIR sent = 914 Number of DRLIR ACC received = 828 Number of DRLIR RJT received = 0
Example 24-3 Displays RLIR Statistics for a Specified VSAN
switch# show rlir statistics vsan 4 ------------------------- Number of LIRR received = 0 Number of LIRR ACC sent = 0 Number of LIRR RJT sent = 0 Number of RLIR ACC received = 0 Number of RLIR RJT received = 0 Number of DRLIR received = 0 Number of DRLIR ACC sent = 0 Number of DRLIR RJT sent = 0 Number of DRLIR ACC received = 0 Number of DRLIR RJT received = 0
The
show rlir erl
command shows the list of Nx ports that are registered to receive the RLIRs with the switch. If the VSAN ID is not specified, the details are shown for all active VSANs (see Examples
24-4
and
24-5
).
Example 24-4 Displays All ERLs
Established Registration List for VSAN: 2 ---------------------------------------------- FC-ID LIRR FORMAT REGISTERED FOR ---------------------------------------------- 0x0b0200 0x18 always receive Total number of entries = 1 Established Registration List for VSAN: 100 ---------------------------------------------- FC-ID LIRR FORMAT REGISTERED FOR ---------------------------------------------- 0x0b0500 0x18 conditional receive 0x0b0600 0x18 conditional receive Total number of entries = 2
In Example 24-4, if the Registered For column states that an FC ID is conditional receive, the source port is registered as a valid recipient of subsequent RLIRs. This source port is selected as an RLIR recipient only if no other ERL recipient is selected.
In Example 24-4, if the Registered For column states that an FC ID is always receive, the source port is registered as a valid recipient of subsequent RLIRs. This source port is always selected as an LIR recipient.
Note If an always receive RLIR is not registered for any N port or if the delivery of an RLIR fails for one of those ports, then the RLIR is sent to a port registered to conditional receive RLIRs.
Example 24-5 Displays ERLs for the Specified VSAN
switch# show rlir erl vsan 100 Established Registration List for VSAN: 100 ---------------------------------------------- FC-ID LIRR FORMAT REGISTERED FOR ---------------------------------------------- 0x0b0500 0x18 conditional receive 0x0b0600 0x18 conditional receive Total number of entries = 2
Note In Example 24-6, through Example 24-8, if the host time stamp (marked by the *) is available, it is printed along with the switch time stamp. If the host time stamp is not available, only the switch time stamp is printed.
Example 24-6 Displays the LIR History
switch# show rlir history ---------------------------------------------------------------------------- Switch Time Stamp Port Interface Link Incident ---------------------------------------------------------------------------- *Sun Nov 30 21:47:28 2003 Sun Nov 30 13:47:55 2003 2 fc1/2 Implicit Incident *Sun Nov 30 22:00:47 2003 Sun Nov 30 14:01:14 2003 2 fc1/2 NOS Received *Sun Nov 30 22:00:55 2003 Sun Nov 30 14:01:22 2003 2 fc1/2 Implicit Incident Mon Dec 1 12:14:53 2003 4 fc1/4 Implicit Incident Mon Dec 1 12:14:53 2003 4 fc1/4 Implicit Incident Wed Dec 3 20:43:59 2003 2 fc1/2 NOS Received Wed Dec 3 20:44:08 2003 2 fc1/2 Implicit Incident Wed Dec 3 20:47:20 2003 2 fc1/2 NOS Received Wed Dec 3 20:47:32 2003 2 fc1/2 Implicit Incident Wed Dec 3 20:48:34 2003 2 fc1/2 NOS Received Wed Dec 3 20:49:06 2003 2 fc1/2 Implicit Incident Wed Dec 3 21:02:47 2003 2 fc1/2 NOS Received
Example 24-7 Displays Recent LIRs for a Specified Interface
switch# show rlir recent interface fc1/1-4 Recent link incident records ------------------------------------------------------------------------------- Host Time Stamp Switch Time Stamp Port Intf Link Incident ------------------------------------------------------------------------------- Thu Dec 4 05:02:29 2003 Wed Dec 3 21:02:56 2003 2 fc1/2 Implicit Incident Thu Dec 4 05:02:54 2003 Wed Dec 3 21:03:21 2003 4 fc1/4 Implicit Incident
Example 24-8 Displays Recent LIRs for a Specified Port Number
switch# show rlir recent portnumber 1-4 Recent link incident records -------------------------------------------------------------------------------- Host Time Stamp Switch Time Stamp Port Intf Link Incident -------------------------------------------------------------------------------- Thu Dec 4 05:02:29 2003 Wed Dec 3 21:02:56 2003 2 fc1/2 Implicit Incident Thu Dec 4 05:02:54 2003 Wed Dec 3 21:03:21 2003 4 fc1/4 Implicit Incident
As of Cisco SAN-OS Release 3.0(3), the
show rlir history
command output includes remote link incidents that are received as DRLIRs from other switches. RLIRs are generated as a result of DRLIRs as in previous Cisco NX-OS releases (see Example 24-9).
Example 24-9 Displays the LIR History as of Cisco SAN-OS Release 3.0(3)
switch# show rlir history ---------------------------------------------------------------------------------------------------------------- Host Time Stamp Switch Time Stamp VSAN Domain Port Intf Link Incident Loc/Rem ---------------------------------------------------------------------------------------------------------------- Sep 20 12:42:44 2006 Sep 20 12:42:44 2006 **** **** 0x0b fc1/12 Loss of sig/sync LOC Reported Successfully to: [0x640001] [0x640201] Sep 20 12:42:48 2006 Sep 20 12:42:48 2006 **** **** 0x0b fc1/12 Loss of sig/sync LOC Reported Successfully to: [0x640001] [0x640201] *** ** **:**:** **** Sep 20 12:42:51 2006 1001 230 0x12 **** Loss of sig/sync REM Reported Successfully to: [0x640001] [0x640201] Sep 20 12:42:55 2006 Sep 20 12:42:55 2006 **** **** 0x0b fc1/12 Loss of sig/sync LOC Reported Successfully to: None [No Registrations] *** ** **:**:** **** Sep 20 12:45:56 2006 1001 230 0x12 **** Loss of sig/sync REM Reported Successfully to: None [No Registrations] *** ** **:**:** **** Sep 20 12:45:56 2006 1001 230 0x12 **** Loss of sig/sync REM Reported Successfully to: None [No Registrations] Sep 20 12:52:45 2006 Sep 20 12:52:45 2006 **** **** 0x0b fc1/12 Loss of sig/sync LOC Reported Successfully to: None [No Registrations] **** - Info not required/unavailable
To view RLIR information using Device Manager, follow these steps:
Step 1 Choose FICON > RLIR ERL.
You see the Show RLIR ERL dialog box.
Step 2 Click Close to close the dialog box.
Displaying FICON Configuration Files
Use the
show ficon vsan
vsan-id
file all
command to display the contents of all FICON configuration files.
switch# show ficon vsan 2 file all FICON configuration file IPLFILEA in vsan 2 Prohibited port addresses are 250-253,255(0xfa-0xfd,0xff) Prohibited port addresses are 250-253,255(0xfa-0xfd,0xff) Prohibited port addresses are 250-253,255(0xfa-0xfd,0xff) Prohibited port addresses are 5,250-253,255(0x5,0xfa-0xfd,0xff)
Use the
show ficon vsan
vsan-id
file name
command to display the contents of a specific FICON configuration file.
switch# show ficon vsan 2 file name IPLfilea FICON configuration file IPLFILEA in vsan 2 Prohibited port addresses are 250-253,255(0xfa-0xfd,0xff) Prohibited port addresses are 250-253,255(0xfa-0xfd,0xff) Prohibited port addresses are 250-253,255(0xfa-0xfd,0xff) Prohibited port addresses are 5,250-253,255(0x5,0xfa-0xfd,0xff)
Use the
show ficon vsan
vsan-id
file name
filename
portaddress
command to display the FICON configuration file information for a specific FICON port.
switch# show ficon vsan 2 file name IPLfilea portaddress 3 FICON configuration file IPLFILEA in vsan 2 Prohibited port addresses are 5,250-253,255(0x5,0xfa-0xfd,0xff)
To open and view configuration files in DCNM-SAN, follow these steps:
Step 1 Choose
FICON
>
VSAN
.
You see the FICON configuration table in the Information pane.
Step 2 Click the
Files
tab.
Step 3 Select the file you want to open.
Step 4 Click
Open
.
Displaying XRC Acceleration Statistics
To display XRC acceleration statistics, follow these steps:
Step 1 Expand
ISL
and then select
FCIP
in the Physical Attributes pane.
Step 2 Click the
XRC Statistics
tab in the Information pane.
You see the XRC session statistics.
To display XRC acceleration statistics using Device Manager, follow these steps:
Step 1 In the Device Manager window, click
IP,
and then select
FCIP
from the menu.
Step 2 Click the
XRC Statistics
tab in the Information pane.
You see the XRC session statistics.
Displaying Control Unit Information
Example 24-10 displays configured control device information.
Example 24-10 Displays Control Unit Information
switch# show ficon control-device sb3 Control Unit Image:0x80b9c2c VSAN:20 CU:0x20fe00 CUI:0 CUD:0 CURLP:(nil) ASYNC LP:(nil) MODE:1 STATE:1 CQ LEN:0 MAX:0 PRIMARY LP: VSAN:0 CH:0x0 CHI:0 CU:0x0 CUI:0 ALTERNATE LP: VSAN:0 CH:0x0 CHI:0 CU:0x0 CUI:0 VSAN:20 CH:0x200600 CHI:15 CU:0x20fe00 CUI:0 STATE:1 FLAGS:0x1 LINK: OH:0x0 OC:0x0 IH:0x0 IC:0x0 DEV: OH:0x0 OC:0x0 IH:0x0 IC:0x0 SENSE: 00 00 00 00 00 00 00 46 IUI:0x0 DHF:0x0 CCW:0x0 TOKEN:0x0 PCCW:0x0 FCCW:0x0 PTOKEN:0x0 FTOKEN:0x0 CMD:0x0 CCW_FLAGS:0x0 CCW_COUNT:0 CMD_FLAGS:0x0 PRIO:0x0 DATA_COUNT:0 STATUS:0x0 FLAGS:0x0 PARAM:0x0 QTP:0x0 DTP:0x0 CQ LEN:0 MAX:0 DESTATUS:0x0
Displaying FICON Port Address Information
Examples
24-11
to
24-14
display FICON Port Address information.
Example 24-11 Displays Port Address Information
switch# show ficon vsan 2 portaddress Port Address 1 is not installed in vsan 2 Port number is 1, Interface is fc1/1 Port is not admin blocked Prohibited port addresses are 0,241-253,255 Port Address 2 is not installed in vsan 2 Port number is 2, Interface is fc1/2 Port is not admin blocked Prohibited port addresses are 0,241-253,255 Port Address 249 is not installed in vsan 2 Port is not admin blocked Prohibited port addresses are 0,241-253,255 Port Address 250 is not installed in vsan 2 Port is not admin blocked Prohibited port addresses are 0,241-253,255
Example 24-12 Displays the Available Port Numbers
switch# show ficon first-available port-number Port number 129(0x81) is available
In Example 24-13, the interface column is populated with the corresponding interface if the port number is installed. If the port number is uninstalled, this space remains blank and indicates an unbound port number. For example, 56 is an unbound port number in Example 24-13.
Example 24-13 Displays Port Address Information in a Brief Format
switch# show ficon vsan 2 portaddress 50-55 brief ------------------------------------------------------------------------------- Port Port Interface Admin Status Oper FCID Address Number Blocked Mode ------------------------------------------------------------------------------- 50 50 fc2/18 on fcotAbsent -- -- 51 51 fc2/19 off fcotAbsent -- -- 52 52 fc2/20 off fcotAbsent -- -- 53 53 fc2/21 off fcotAbsent -- -- 54 54 fc2/22 off notConnected -- -- 55 55 fc2/23 off up FL 0xea0000
Example 24-14 displays the counters in FICON version format 1 (32-bit format)
Example 24-14 Displays Port Address Counter Information
switch# show ficon vsan 20 portaddress 8 counters Port Address 8(0x8) is up in vsan 20 Port number is 8(0x8), Interface is fc1/8 Version presented 1, Counter size 32b 242811 frames input, 9912794 words 484 class-2 frames, 242302 class-3 frames 0 link control frames, 0 multicast frames 0 disparity errors inside frames 0 disparity errors outside frames 0 frames too big, 0 frames too small 0 crc errors, 0 eof errors 116620 frames output, 10609188 words 0 primitive seq prot errors 0 invalid transmission words 1 lrr input, 0 ols input, 5 ols output
To display FICON port address information using Device Manager, follow these steps:
Step 1 Choose
FICON
>
VSANs
.
You see the FICON VSANs dialog box.
Step 2 Select a VSAN ID and click Port Configuration.
You see the FICON Port Configuration dialog box.
Step 3 Click Close to close the dialog box.
Displaying IPL File Information
To display the IPL file information using Device Manager, follow these steps:
Step 1 Select VSANs from the FICON menu.
Step 2 Click the Files tab.
You see the FICON VSANs dialog box.
Step 3 Select the file that you want to view and click Open.
Displaying FICON Configuration File Information
Examples
24-15
to
24-17
display FICON configuration file information.
Example 24-15 Displays the Contents of the Specified FICON Configuration File
switch# show ficon vsan 3 file IPL FICON configuration file IPL in vsan 3 Prohibited port addresses are 0,81-253,255 Prohibited port addresses are 0,81-253,255 Prohibited port addresses are 0,81-253,255 Prohibited port addresses are 0,81-253,255 Prohibited port addresses are 0,81-253,255 Prohibited port addresses are 0,81-253,255
Example 24-16 Displays All FICON Configuration Files
switch# show ficon vsan 2 Ficon information for VSAN 2 Host offline control is Enabled Clock alert mode is Disabled User alert mode is Disabled Number of implemented ports are 250 Date/Time is same as system time(Sun Dec 14 01:26:30.273402 1980) Device Allegiance not locked Saved configuration files
Example 24-17 Displays the Specified Port Addresses for a FICON Configuration File
switch# show ficon vsan 2 file iplfile1 portaddress 1-7 FICON configuration file IPLFILE1 in vsan 2 Prohibited port addresses are 0,241-253,255 Prohibited port addresses are 0,241-253,255 Prohibited port addresses are 0,241-253,255 Prohibited port addresses are 0,241-253,255
Displaying the Configured FICON State
If FICON is enabled on a VSAN, you can display the port address information for that VSAN (see Example 24-18).
Example 24-18 Displays the Specified Port Address When FICON Is Enabled
switch# show ficon vsan 2 portaddress 55 Port Address 55 is not installed in vsan 2 Port number is 55, Interface is fc2/23 Port is not admin blocked Prohibited port addresses are 0,241-253,255 Port mode is FL, FCID is 0xea0000
Displaying a Port Administrative State
Examples
24-19
to
24-20
display the administrative state of a FICON port. If the port is blocked, the
show ficon vsan
number
portaddress
number
command displays the blocked state of the port. If a specific port is prohibited, this command also displays the specifically prohibited port (3) along with the ports that are prohibited by default (0, 241 to 253, and 255). If a name is assigned, that name is also displayed.
Example 24-19 Displays an Administratively Unblocked Port
switch# show ficon vsan 2 portaddress 2 Port Address 2(0x2) is not installed in vsan 2 Port number is 2(0x2), Interface is fc1/2 Port is not admin blocked Prohibited port addresses are 0,241-253,255(0,0xf1-0xfd,0xff)
Example 24-20 Displays an Administratively Blocked Port
switch# show ficon vsan 2 portaddress 1 Port Address 2(0x2) is not installed in vsan 2 Port number is 2(0x2), Interface is fc1/2 Prohibited port addresses are 0,241-253,255(0,0xf1-0xfd,0xff)
Displaying Buffer Information
In Example 24-21, the Key Counter column displays the 32-bit value maintained by Cisco MDS switches. This value is incremented when any port changes state in that VSAN. The key counter (a 32-bit value) is incremented when a FICON-related configuration is changed. Host programs can increment this value at the start of the channel program and then perform operations on multiple ports. The director history buffer keeps a log of which port address configuration was changed for each key-counter value.
The director history buffer provides a mechanism to determine the change in the port state from the previous time when a value was contained in the key counter.
Example 24-21 Displays the History Buffer for the Specified VSAN
switch# show ficon vsan 20 director-history Director History Buffer for vsan 20 --------------------------------------------- Key Counter Ports Address --------------------------------------------- 74580 1-3,5,10,12,14-16,34-40,43-45,47-54,56-57,59-64 74584 1-3,10,12,14-16,34-40,43-45,47-54,56-57,59-64
Viewing the History Buffer
In the directory history buffer, the Key Counter column displays the 32-bit value maintained by Cisco MDS switches. This value is incremented when any port changes state in that VSAN. The key counter (a 32-bit value) is incremented when a FICON-related configuration is changed. Host programs can increment this value at the start of the channel program and then perform operations on multiple ports. The director history buffer keeps a log of which port address configuration was changed for each key-counter value.
The director history buffer provides a mechanism to determine the change in the port state from the previous time when a value was contained in the key counter.
To view the directory history buffer using Device Manager, follow these steps:
Step 1 Choose
FICON
>
VSANs
.
You see the FICON VSANs dialog box.
Step 2 Click the Director History button.
You see the history buffer dialog box.
Step 3 Click Close to close the dialog box.
Displaying FICON Information in the Running Configuration
Example 24-22 displays the FICON-related information in the running configuration.
Example 24-22 Displays the Running Configuration Information
switch# show running-config Building Configuration ... vsan 11 name “FICON11” loadbalancing src-dst-id vsan 75 name “FICON75” loadbalancing src-dst-id fcdomain domain 11 static vsan 11 fcdomain domain 119 static vsan 75 fcdroplatency network 100 vsan 11 fcdroplatency network 500 vsan 75 fabric-binding database vsan 11 swwn 20:00:00:0d:ec:01:20:c0 domain 10 fabric-binding database vsan 75 swwn 20:00:00:0d:ec:00:d6:40 domain 117 fabric-binding activate vsan 11 fabric-binding activate vsan 75 snmp-server user mblair network-admin auth md5 0x688fa3a2e51ba5538211606e59ac292 7 priv 0x688fa3a2e51ba5538211606e59ac2927 localizedkey snmp-server user wwilson network-admin auth md5 0x688fa3a2e51ba5538211606e59ac29 27 priv 0x688fa3a2e51ba5538211606e59ac2927 localizedkey snmp-server host 171.71.187.101 traps version 2c public udp-port 1163 snmp-server host 172.18.2.247 traps version 2c public udp-port 2162 ip address 172.18.47.39 255.255.255.128
Displaying FICON Information in the Startup Configuration
Example 24-23 displays the FICON-related information in the startup configuration.
Example 24-23 Displays the Startup Configuration
switch# show startup-config
Example 24-24 displays the switch response to an implicitly-issued copy running start command. In this case, only a binary configuration is saved until you explicitly issue the
copy running start
command again (see Table 24-2)
Example 24-24 Displays the Startup Configuration Status
switch# show startup-config No ASCII config available since configuration was last saved internally on account of 'active=saved' mode. Please perform an explicit 'copy running startup` to get ASCII configuration
Displaying FICON-Related Log Information
Example 24-25 and Example 24-26 display the logging information for FICON-related configurations.
Example 24-25 Displays Logging Levels for the FICON Feature
switch# show logging level ficon Facility Default Severity Current Session Severity -------- ---------------- ------------------------ 0(emergencies) 1(alerts) 2(critical) 3(errors) 4(warnings) 5(notifications) 6(information) 7(debugging)
Example 24-26 Displays FICON-Related Log File Contents
switch# show logging logfile 2004 Feb 25 15:38:50 vegas6 %PORT-5-IF_UP: %$VSAN 75: 2004 Wed Feb 25 13:22:04. 131183%$ Interface fc1/8 is up in mode F 2004 Feb 25 15:38:50 vegas6 %PORT-5-IF_UP: %$VSAN 75: 2004 Wed Feb 25 13:22:04. 131217%$ Interface fc1/9 is up in mode F 2004 Feb 25 15:39:09 vegas6 %PORT-5-IF_TRUNK_UP: %$VSAN 75: 2004 Wed Feb 25 13: 22:23.131121%$ Interface fc2/1, vsan 75 is up 2004 Feb 25 15:39:09 vegas6 %PORT-5-IF_TRUNK_UP: %$VSAN 75: 2004 Wed Feb 25 13: 22:23.131121%$ Interface fc2/2, vsan 75 is up 2004 Feb 25 15:39:09 vegas6 %PORT-5-IF_TRUNK_UP: %$VSAN 75: 2004 Wed Feb 25 13: 2004 Feb 25 23:22:36 vegas6 %PORT-5-IF_UP: %$VSAN 75: 2004 Wed Feb 25 21:05:42. 99916%$ Interface fc3/6 is up in mode F 2004 Feb 25 23:22:37 vegas6 %PORT-5-IF_UP: %$VSAN 75: 2004 Wed Feb 25 21:05:43.
