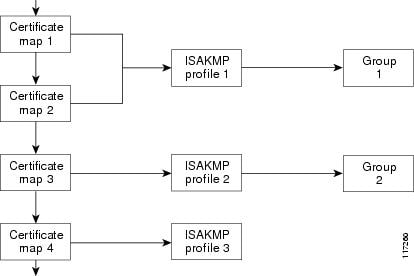

次の設定例では、証明書に「ou = green」が含まれているときは必ず、ISAKMP プロファイル「cert_pro」がピアに割り当てられる、ということを示します。

crypto pki certificate map cert_map 10
 subject-name co ou = green
!
!
crypto isakmp identity dn
crypto isakmp profile cert_pro
   ca trust-point 2315
   ca trust-point LaBcA
   initiate mode aggressive
   match certificate cert_map

次の例は、グループ「some_group」が、ISAKMP プロファイルが割り当てられたピアに関連付けられていることを示しています。

crypto isakmp profile id_profile
   ca trust-point 2315
   match identity host domain cisco.com
   client configuration group some_group

次の例は、ISAKMP プロファイルに証明書がマッピングされたことを示します。この例には、応答側および発信側の設定、証明書マップの所有者名が設定されたことを確認する show command 出力、および証明書が証明書マップの照合を経て ISAKMP プロファイルに一致したことを示す debug コマンド出力が含まれています。

応答側の設定

crypto pki certificate map cert_map 10
! The above line is the certificate map definition.
 subject-name co ou = green
! The above line shows that the subject name must have “ou = green.”
!
crypto isakmp profile certpro
! The above line shows that this is the ISAKMP profile that will match if the certificate of the peer matches cert_map (shown on third line below).
   ca trust-point 2315
   ca trust-point LaBcA
   match certificate cert_map
   initiate mode aggressive

発信側の設定

crypto ca trustpoint LaBcA
 enrollment url http://10.76.82.20:80/cgi-bin/openscep
 subject-name ou=green,c=IN
! The above line ensures that the subject name “ou = green” is set.
 revocation-check none

発信側の show crypto ca certificates コマンド出力

Router# show crypto ca certificates
Certificate
  Status: Available
  Certificate Serial Number: 21
  Certificate Usage: General Purpose
  Issuer:
    cn=blue-lab CA
    o=CISCO
    c=IN
  Subject:
    Name: Router1.cisco.com
    c=IN
    ou=green
! The above line is a double check that “ou = green” has been set as the subject name.
    hostname=Router1.cisco.com
  Validity Date:
    start date: 14:34:30 UTC Mar 31 2004
    end   date: 14:34:30 UTC Apr 1 2009
    renew date: 00:00:00 UTC Jan 1 1970
  Associated Trustpoints: LaBcA

応答側の debug crypto isakmp コマンド出力

Router# debug crypto isakmp
6d23h: ISAKMP (0:268435460): received packet from 192.0.0.2 dport 500 sport 500 Global (R) MM_KEY_EXCH
6d23h: ISAKMP: Main Mode packet contents (flags 1, len 892):
6d23h:           ID payload
6d23h:             FQDN <Router1.cisco.com> port 500 protocol 17
6d23h:           CERT payload
6d23h:           SIG payload
6d23h:           KEEPALIVE payload
6d23h:           NOTIFY payload
6d23h: ISAKMP:(0:4:HW:2):Input = IKE_MESG_FROM_PEER, IKE_MM_EXCH
6d23h: ISAKMP:(0:4:HW:2):Old State = IKE_R_MM4  New State = IKE_R_MM5
6d23h: ISAKMP:(0:4:HW:2): processing ID payload. message ID = 0
6d23h: ISAKMP (0:268435460): ID payload
        next-payload : 6
        type         : 2
        FQDN name    : Router1.cisco.com
        protocol     : 17
        port         : 500
        length       : 28
6d23h: ISAKMP:(0:4:HW:2):: peer matches *none* of the profiles
6d23h: ISAKMP:(0:4:HW:2): processing CERT payload. message ID = 0
6d23h: ISAKMP:(0:4:HW:2): processing a CT_X509_SIGNATURE cert
6d23h: ISAKMP:(0:4:HW:2): peer's pubkey isn't cached
6d23h: ISAKMP:(0:4:HW:2): OU = green
6d23h: ISAKMP:(0:4:HW:2): certificate map matches certpro profile
! The above line shows that the certificate has gone through certificate map matching and that it matches the “certpro” profile.
6d23h: ISAKMP:(0:4:HW:2): Trying to re-validate CERT using new profile
6d23h: ISAKMP:(0:4:HW:2): Creating CERT validation list: 2315, LaBcA,
6d23h: ISAKMP:(0:4:HW:2): CERT validity confirmed.

次の設定およびデバッグ出力は、グループがピアに割り当てられたことを示します。

発信側の設定

crypto isakmp profile certpro
   ca trust-point 2315
   ca trust-point LaBcA
   match certificate cert_map
   client configuration group new_group
! The statement on the above line will assign the group “new_group” to any peer that matches the ISAKMP profile “certpro.”
   initiate mode aggressive

!

応答側の debug crypto isakmp プロファイル コマンド出力

次のデバッグ出力例は、ピアが「certpro」という ISAKMP プロファイルと照合され、「new_group」というグループが割り当てられたことを示します。

Router# debug crypto isakmp profile
6d23h: ISAKMP (0:268435461): received packet from 192.0.0.2 dport 500 sport 500 Global (R) MM_KEY_EXCH
6d23h: ISAKMP: Main Mode packet contents (flags 1, len 892):
6d23h:           ID payload
6d23h:             FQDN <Router1.cisco.com> port 500 protocol 17
6d23h:           CERT payload
6d23h:           SIG payload
6d23h:           KEEPALIVE payload
6d23h:           NOTIFY payload
6d23h: ISAKMP:(0:5:HW:2):Input = IKE_MESG_FROM_PEER, IKE_MM_EXCH
6d23h: ISAKMP:(0:5:HW:2):Old State = IKE_R_MM4  New State = IKE_R_MM5
6d23h: ISAKMP:(0:5:HW:2): processing ID payload. message ID = 0
6d23h: ISAKMP (0:268435461): ID payload
        next-payload : 6
        type         : 2
        FQDN name    : Router1.cisco.com
        protocol     : 17
        port         : 500
        length       : 28
6d23h: ISAKMP:(0:5:HW:2):: peer matches *none* of the profiles
6d23h: ISAKMP:(0:5:HW:2): processing CERT payload. message ID = 0
6d23h: ISAKMP:(0:5:HW:2): processing a CT_X509_SIGNATURE cert
6d23h: ISAKMP:(0:5:HW:2): peer's pubkey isn't cached
6d23h: ISAKMP:(0:5:HW:2): OU = green
6d23h: ISAKMP:(0:5:HW:2): certificate map matches certpro profile
6d23h: ISAKMP:(0:5:HW:2): Trying to re-validate CERT using new profile
6d23h: ISAKMP:(0:5:HW:2): Creating CERT validation list: 2315, LaBcA,
6d23h: ISAKMP:(0:5:HW:2): CERT validity confirmed.
6d23h: ISAKMP:(0:5:HW:2):Profile has no keyring, aborting key search
6d23h: ISAKMP:(0:5:HW:2): Profile certpro assigned peer the group named new_group
